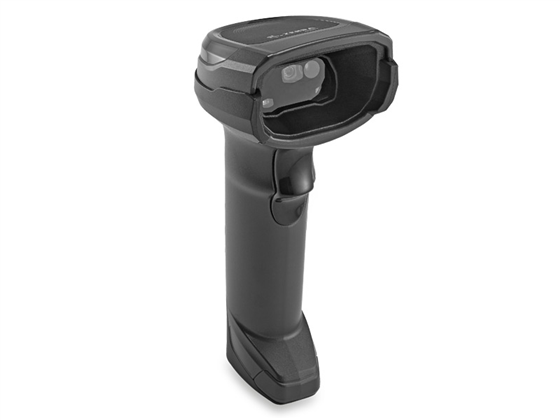

Zebra DS8178
The ultimate in performance, innovation and manageability
The Zebra DS8178 is the cordless DS8100 Series handheld imager for fast 1D and 2D capture at staffed checkout, self-checkout, curbside and in-store pickup, customer service, receiving and inventory. An 800 MHz processor, a 1,280 x 960 image sensor and Zebra PRZM Intelligent Imaging help it read difficult printed and electronic barcodes on the first pass.
Bluetooth 4.0 with BLE frees workers from the workstation, while interchangeable PowerPrecision+ battery and PowerCap options let a business choose extended runtime or fast cradle top-offs. Zebra DataCapture DNA adds workflow automation, analytics, configuration, diagnostics and development tools across the scanner lifecycle.
Watch the POSGuys quick look at the Zebra DS8178.
Key Specifications
- Scanner configuration: Cordless handheld area imager; presentation operation with standard or presentation cradle
- Barcode capability: 1D and 2D barcodes, including QR, PDF417 and Digimarc
- Reading range: Contact to 24 in. (61 cm) for 13 mil UPC
- Interfaces / connectivity: Bluetooth 4.0 with BLE; Class 1 up to 330 ft. (100 m) or Class 2 up to 33 ft. (10 m); cradles support USB, RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485
- Durability: Multiple 6 ft. (1.8 m) drops and 2,000 tumbles
- Environmental sealing: IP52
- Dimensions and weight: 6.6 x 2.6 x 4.2 in.; 8.3 oz. (235.3 g), excluding cradle
- Warranty: 3 years
- Battery and runtime: PowerPrecision+ battery supports up to 65,000 scans; PowerCap supports up to 2,000 scans
- Image sensor: 1280 x 960 pixels
In the Box
- DS8178 scanner
- Battery or PowerCap, as specified by the selected configuration
- Quick Start Guide
Configuration note: The cradle, interface cable, and power supply are separate unless included in a documented kit.
Unprecedented Performance
A high-resolution sensor, fast processor and PRZM algorithms capture dense, damaged, dirty, faded and poorly printed barcodes plus mobile codes on dim displays. The bright circular aimer and range to 24 inches on 100% UPC help reach items at the bottom of a cart.
Direct Decode Indicator flashes on the decoded symbol for immediate visual confirmation. IP52 sealing, multiple 6-foot drops and 2,000 tumbles protect a scanner that moves between lanes, receiving and inventory.
Choose Battery or PowerCap
The interchangeable 2,500 mAh PowerPrecision+ battery delivers up to 65,000 scans and reports health metrics; the 440 F PowerCap provides up to 2,000 scans for workflows that return the scanner to its cradle often. The PowerCap can ready 100 scans in about 35 seconds after a low-charge warning and fully charges over USB in about 30 minutes.
The power gauge shows shift readiness, while Connect+ supports durable cradle charging contacts.
Workflow Intelligence
Virtual Tether and the cradle paging button help prevent misplaced scanners. Wi-Fi Friendly Mode limits Bluetooth interference. Label Parse+ structures GS1 fields, and Multi-Code Data Formatting captures several symbols with one trigger pull. DL configurations add driver-license parsing; Digimarc support applies to compatible configurations.
Adapt and Manage
AutoConfig stores settings in the cradle so a scanner can move among checkout, customer service, inventory and receiving without manual reconfiguration. ScanSpeed Analytics exposes poorly performing labels. 123Scan configures parameters and firmware, Scanner Management Service updates distributed devices, and Zebra SDKs support Windows, Android, iOS and Linux applications.
Interfaces and Imaging
Cradles support USB, RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485 plus more than 90 keyboards. Bluetooth 4.0 BLE reaches up to 330 feet Class 1 or 33 feet Class 2. The imager resolves 3 mil Code 39/128, 5 mil PDF417 and 6 mil Data Matrix/QR Code and exports Bitmap, JPEG or TIFF images.
Applications
Use the DS8178 for point of sale, self-checkout, loyalty, mobile coupons, age verification, returns, receiving and inventory. FIPS 140-2 compliant configurations are available for defined security requirements.
Shop DS8178 Models

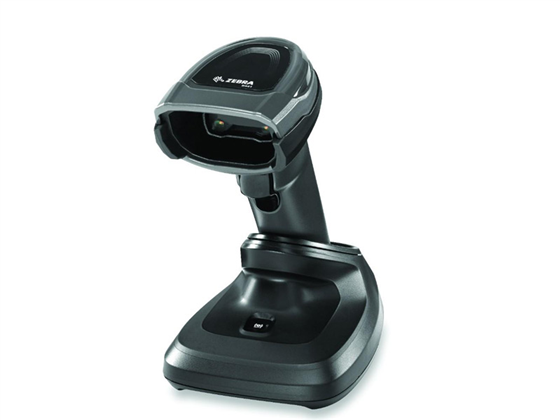

DS8178-SR7U2100PFW
DS8178-SR Presentation Cradle USB KIT: Includes Standard Range Scanner, USB Cable, and Presentation Cradle (FIPS) (Black)
Power Source:
Battery
Color:
Black
Healthcare:
No
Cradle:
Presentation Cradle
Scan Engine:
Standard Range
Interface:
USB
Interface Cable:
USB Cable Included

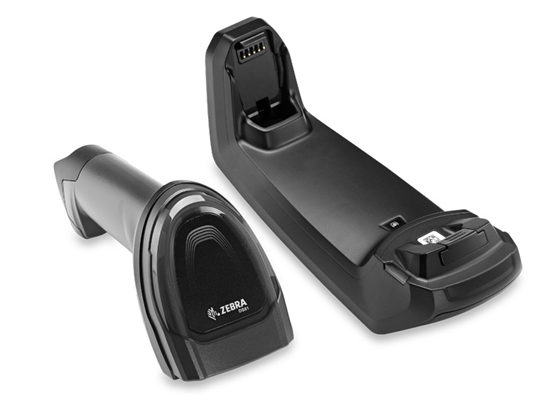

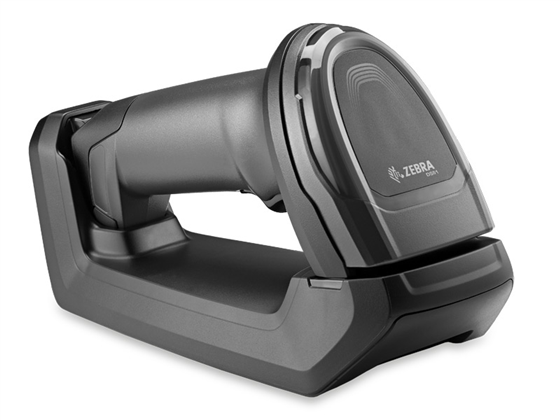

DS8178-SR7U2100SFW
DS8178-SR Standard Cradle USB KIT: Includes Standard Range Scanner, USB Cable, and Standard Cradle (Black)
Power Source:
Battery
Color:
Black
Healthcare:
No
Cradle:
Standard (Desk/Wall) Cradle
Scan Engine:
Standard Range
Interface:
USB
Interface Cable:
USB Cable Included

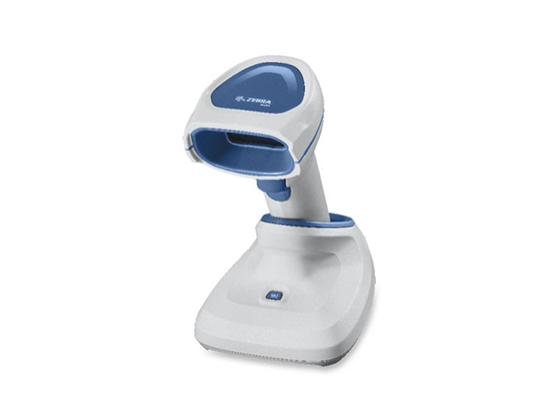

DS8178-HCBU210SP5W
DS8178-HC FIPS PRESENTATION USB KIT: DS8178-HCSF00BVMWW HEALTHCARE SCANNER WITH POWERCAP , CBA-U21-S07ZBR SHIELDED USB CABLE, CR8178-PC100FBWW CRADLE
Scan Engine:
Healthcare
Color:
Healthcare White
Power Source:
PowerCap
Cradle:
Presentation Cradle
Interface:
USB
Interface Cable:
USB Cable Included
Healthcare:
Yes
DS8178-HCBU210SS5W
DS8178-HC FIPS DESK/WALL USB KIT: DS8178-HCSF00BVMWW SCANNER WITH POWERCAP, CBA-U21-S07ZBR SHIELDED USB CABLE, CR8178-SC100FBWW CRADLE
Scan Engine:
Healthcare
Color:
Healthcare White
Power Source:
PowerCap
Cradle:
Standard (Desk/Wall) Cradle
Interface:
USB
Interface Cable:
USB Cable Included
Healthcare:
Yes
DS8178-HCBU210MP5W
DS8178-HC, FIPS Presentation Cradle with Magnet USB KIT: DS8178-HCMF00BVMWW Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR8178-PCM00FBWW Cradle
Power Source:
Battery
Scan Engine:
Healthcare
Color:
Healthcare White
Cradle:
Presentation Cradle with Magnet
Interface:
USB
Interface Cable:
USB Cable Included
Healthcare:
Yes
DS8178-DL7U2100PFW
DS8178-DL Presentation Cradle USB KIT: Includes Driver's License Parsing Scanner, USB Cable, and Presentation Cradle (FIPS) (Black)
Power Source:
Battery
Color:
Black
Scan Engine:
Driver’s License Parsing
Healthcare:
No
Cradle:
Presentation Cradle
Interface:
USB
Interface Cable:
USB Cable Included
DS8178-SR700000SFW
DS8178-SR FIPS Standard Cradle KIT: Includes Standard Range Scanner and (FIPS) Standard Cradle (Cable NOT INCLUDED)(Black)
Power Source:
Battery
Color:
Black
Interface:
Cable Not Included
Healthcare:
No
Interface Cable:
Not Included
Cradle:
Standard (Desk/Wall) Cradle
Scan Engine:
Standard Range
DS8178-SR0F007ZZWW
DS8178-SR Cordless 2D Imager, Standard Range, FIPS (Cradle and Cable NOT INCLUDED) (Black)
Power Source:
Battery
Color:
Black
Interface:
Cradle and Cable Not Included
Healthcare:
No
Interface Cable:
Not Included
Cradle:
Not Included
Scan Engine:
Standard Range
DS8178-DL0F007ZZWW
DS8178 Cordless Imager, Driver's License Parsing, FIPS, Scanner Only (Cradle and Cable NOT INCLUDED) (Black)
Power Source:
Battery
Color:
Black
Interface:
Cradle and Cable Not Included
Scan Engine:
Driver’s License Parsing
Healthcare:
No
Interface Cable:
Not Included
Cradle:
Not Included
DS8178-HCBU210MS5W
DS8178-HC Healthcare Standard Cradle USB Kit: FIPS, Includes Healthcare Scanner, USB Cable, and Standard Cradle (Healthcare White)
Power Source:
Battery
Scan Engine:
Healthcare
Color:
Healthcare White
Cradle:
Standard (Desk/Wall) Cradle
Interface:
USB
Interface Cable:
USB Cable Included
Healthcare:
Yes
DS8178-HCBU210FP5W
DS8178-HC, FIPS Presentation Cradle (with Fasteners) USB KIT: DS8178-HCMF00BVMWW Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR8178-PCM00FBWW Cradle, FAST-PC0081W-Q1 (Adhesive Fasteners Included)
Power Source:
Battery
Scan Engine:
Healthcare
Color:
Healthcare White
Cradle:
Presentation Cradle with Magnet and Fasteners
Interface:
USB
Interface Cable:
USB Cable Included
Healthcare:
Yes
DS8178-HCBU210FS5W
DS8178-HC, FIPS Desk/Wall Cradle (with Fasteners) USB KIT: DS8178-HCMF00BVMWW Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR8178-SC100FBWW Cradle, FAST-PC0081W-Q1 (Adhesive Fasteners Included)
Power Source:
Battery
Scan Engine:
Healthcare
Color:
Healthcare White
Cradle:
Standard (Desk/Wall) Cradle with Fasteners
Interface:
USB
Interface Cable:
USB Cable Included
Healthcare:
Yes
DS8178-HCMF00BVMWW
DS8178 Cordless Imager, FIPS, Magnetic Foot, Vibration Motor, Scanner Only, MFI (Cradle and Cable NOT INCLUDED) (Healthcare White)
Power Source:
Battery
Interface:
Cradle and Cable Not Included
Scan Engine:
Healthcare
Color:
Healthcare White
Cradle:
Not Included
Interface Cable:
Not Included
Healthcare:
Yes
Shop DS8178 Accessories
SSE-DS8178-30
Zebra OneCare for DS8178, Essential Comprehensive Coverage, 3 Year, Must be Purchased Within 30 Days
SSS-DS8178-30
Zebra OneCare for DS8178, Select Comprehensive Coverage, Advance Ship, 3 Year, Must be Purchased Within 30 Days
CBA-U21-S07ZBR
Cable - Shielded USB, Series A connector, 7 ft. (2.1 m), straight, BC1.2
CR8178-SC100F4WW
Standard Cradle for the DS8178 & DS4678, DS46XX, Black, Bluetooth, FIPS, Cradle Only - Requires Cables
CR8178-PC100F4WW
Presentation Cradle for DS8178, Black, Bluetooth, FIPS, Cradle Only, Requires Cables
BTRY-DS81EAB0E-00
81XX, Spare Battery (Batteries must be shipped via ground shipping)
PWR-WUA5V4W0US
Power supply - Level VI wall adapter with captive DC cable and US adapter clip, 5.2V, 1.1A, 5.7W
SUPR-DS81E000E-00
POWERCAP™ Replacement battery upgrade for use with DS8178. Works on all versions with firmware update. (Batteries must be shipped via ground shipping)
Z1AE-DS8178-3C00
3 Year Zebra OneCare Essential. Includes Comprehensive Coverage. Includes Coverage for Cradles.
PWR-WUA5V12W0US
Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.
CBA-U23-S07ZBR
Cable - Shielded USB: Power Plus Connector, 7ft. (2m), Straight, 12V
STND-DC0081W-04
DS8178, Document capture stand for use in presentation cradle
BRKT-AP0081W-04
Bracket - Adapter Plate for DS4678 & DS6878 to DS Bracket
