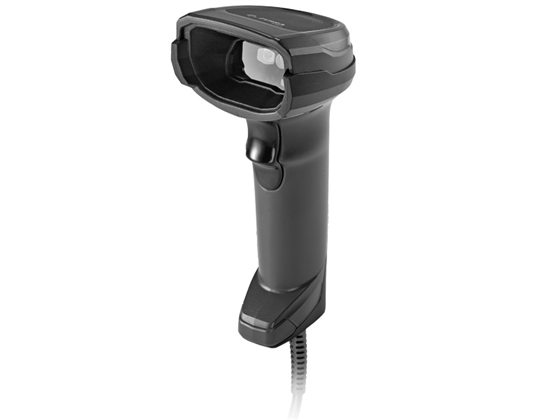

Zebra DS8108

Images may not reflect the actual product
Product Image
small product image0
small product image1

The ultimate in performance, innovation and manageability

The Zebra DS8108 is the corded model in the DS8100 Series, built for rapid 1D and 2D capture at staffed checkout, self-checkout, curbside and in-store pickup, receiving, inventory and other high-volume workflows. It combines an 800 MHz microprocessor, a 1,280 x 960 image sensor and Zebra PRZM Intelligent Imaging to read difficult printed and electronic barcodes on the first pass.

Because the DS8108 draws power from its host instead of using the DS8178's battery or PowerCap, it is the right fit for fixed workstations that need continuous operation without cordless charging. Zebra DataCapture DNA adds configuration, analytics, remote-management and development tools across the scanner lifecycle.

See the DS8100 Series in this POSGuys product review.

Key Specifications

  • Scanner configuration: Corded handheld area imager with automatic presentation mode in a stand
  • Barcode capability: 1D and 2D barcodes, including QR, PDF417 and Digimarc
  • Reading range: Contact to 24 in. (61 cm) for 13 mil UPC
  • Interfaces / connectivity: USB, RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485
  • Durability: Multiple 6 ft. (1.8 m) drops and 2,000 tumbles
  • Environmental sealing: IP52
  • Dimensions and weight: 6.6 x 2.6 x 4.2 in.; 5.4 oz. (154 g)
  • Warranty: 5 years
  • Image sensor: 1280 x 960 pixels
  • Specialized configurations: FIPS 140-2, healthcare, driver’s-license parsing and Checkpoint EAS options available

In the Box

  • DS8108 scanner
  • Quick Start Guide

Configuration note: The interface cable, power supply if required, IntelliStand, and document stand are separate unless explicitly included.

Unprecedented Performance

A high-resolution sensor, fast processor and PRZM algorithms capture dense, damaged, dirty, faded and poorly printed barcodes plus electronic codes on dim displays. The bright circular aimer and range to 24 inches on 100% UPC help reach items at the bottom of a cart.

The imager resolves 3 mil Code 39/128, 5 mil PDF417 and 6 mil Data Matrix/QR Code with broad pitch, skew and 360-degree roll tolerance. Direct Decode Indicator flashes on the decoded symbol for immediate visual confirmation.

Workflow Intelligence

Label Parse+ structures GS1 fields such as expiration date, lot and manufacturing location. Multi-Code Data Formatting captures several symbols in one trigger pull and sends only required values. DL configurations add driver-license parsing; Digimarc support applies to compatible configurations.

Measure and Manage

ScanSpeed Analytics identifies slow labels. 123Scan builds configuration barcodes, changes parameters and updates firmware. Scanner Management Service supports distributed devices, while logging captures asset, health, configuration and barcode evidence for troubleshooting and fleet analysis. Zebra SDKs support Windows, Android, iOS and Linux applications.

Corded Integration

USB, RS232, Keyboard Wedge and TGCS connectivity plus more than 90 keyboards simplify established checkout integration. This DS8108 is corded; Bluetooth, AutoConfig, Virtual Tether and swappable-power claims belong to the cordless DS8178 and do not apply.

Imaging and Durability

The DS8108 exports Bitmap, JPEG and TIFF images and provides 109 PPI on an A4 document. IP52 sealing, multiple 6-foot drops, 2,000 tumbles and operation from 32 to 122 degrees Fahrenheit support busy indoor environments.

Applications

Use the DS8108 for point of sale, self-checkout, loyalty, age verification, returns, receiving, inventory, hospitality, transportation, light manufacturing, government and banking.

Dimensions
6.6in H x 2.6in W x 4.2in D
Weight
5.4oz/154 g
Power and Host Support
Input: 4.5 to 5.5 VDC
Operating current at 5.0 V: 450 mA
USB Certified, RS-232, keyboard wedge and TGCS (IBM) 46XX over RS485
Supports over 90 international keyboards
FIPS 140-2 compliant
Color Options
Nova White
Twilight Black
Interface
USB
RS232
Keyboard Wedge
TGCS (IBM) 46XX over RS485
Indicators
LEDs
Beeper
Performance and Imaging
Aiming: circular 617 nm amber LED; illumination: two 645 nm red LEDs
Field of view: 48° H x 37° V nominal
Image sensor: 1280 x 960 pixels
Graphics: Bitmap, JPEG or TIFF; image quality: 109 PPI on A4
Minimum resolution: Code 39/Code 128 3.0 mil; Data Matrix/QR 6.0 mil; PDF 5.0 mil
Scan Method
Imager
Scan Engine
Standard Range
Drivers License Parsing (option)
Health Care (option)
Scan Range
Near Touch to 24in
Decoding Capabilities
1D
2D
Digimarc
Typical Decode Ranges
Code 39 3 mil: 2.2-5.0 in.; Code 39 20 mil: 0-36.8 in.
Code 128 3 mil: 2.6-4.5 in.; 5 mil: 1.6-8.4 in.; 15 mil: 0-27.1 in.
PDF417 5 mil: 2.3-6.4 in.; 6.7 mil: 1.8-8.5 in.
UPC 13 mil: 0-24.0 in.; Data Matrix 10 mil: 1.1-9.9 in.; QR 20 mil: 0.1-17.6 in.
Mobility/Range
Corded
Reading Angle
Pitch: +/- 60°
Roll: +/- 60°
Yaw: +/- 360°
Print Contrast (Min.)
16%
Auto Sense Mode
Yes, In Stand
Operating Temperature
32° to 122°F
0° to 50°C
Storage Temperature
-40° to 158°F
-40° to 70°C
User Environment
Charging: 32° to 104° F (0° to 40° C)
Humidity: 5% to 95% RH, non-condensing
2,000 tumbles in a 1.5 ft. (0.5 m) tumbler
Sealing: IP52
ESD: ±15 kV air, ±8 kV direct and ±8 kV indirect
Drop Specification
6.0 ft/1.8m to concrete
Ambient Light (Max)
0 to 9,000 Foot Candles
0 to 96,840 Lux
Stand
Presentation Stand (Optional)
Regulatory Compliance
Electrical safety: EN/IEC/UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
Environmental: RoHS EN 50581; LED safety: IEC 62471
IT emissions: EN 55022/55032 Class B; IT immunity: EN 55024
EN 61000-3-2 and EN 61000-3-3
47 CFR Part 15 Subpart B Class B; ICES-003 Issue 6 Class B
Accessories
Standard cradle, presentation cradle, wall-mount bracket, spare battery, spare PowerCap and document-capture stands
Utilities and Management
123Scan, Scanner SDK and Scanner Management Service (SMS)
Warranty
Five years from date of shipment
Recommended Services
Zebra OneCare Select; Zebra OneCare Essential
Zebra 123Scan Configuration Utility (Windows 64-Bit)
Download
Zebra 123Scan Configuration Utility (Windows 32-Bit)
Download
DS8108 Quick Start Guide
Download
DS8108 Product Reference Guide
Download
DS8100 Series Specification Sheet
Download
DS8108 and DS8108-HC Accessory Guide
Download

Shop DS8108 Models

DS8108-SR7U2100AZW

DS8108-SR USB KIT: Standard Range Scanner w/ USB Cable, Black

Color:

Black

Extra Features:

Standard Configuration

Scan Engine:

Standard Range

Interface:

USB

$343.24

DS8108-SR7U2100SGW

DS8108-SR USB KIT: Standard Range Scanner w/USB Cable and Gooseneck Intellistand, Black

Color:

Black

Extra Features:

Includes Stand

Scan Engine:

Standard Range

Interface:

USB

$369.01

DS8108-SR00006ZZWW

DS8108-SR, Area Imager, Standard Range, Corded (Cable not Included), White

Interface:

Order Cable Separately

Extra Features:

Standard Configuration

Scan Engine:

Standard Range

Color:

White

$324.45

DS8108-SR00007ZZWW

DS8108-SR, Area Imager, Standard Range, Corded (Cable not Included), Black

Color:

Black

Interface:

Order Cable Separately

Extra Features:

Standard Configuration

Scan Engine:

Standard Range

$324.45

DS8108-DL00007ZZWW

DS8108-DL, Area Imager, Drivers License Parsing, Corded (Cable not Included), Black

Color:

Black

Scan Engine:

Driver License Parsing

Interface:

Order Cable Separately

Extra Features:

Standard Configuration

$341.86

DS8108-SR00007ZCWW

DS8108-SR, Area Imager, Standard Range, Corded (Cable not included), Black, Checkpoint EAS

Color:

Black

Extra Features:

EAS Security

Interface:

Order Cable Separately

Scan Engine:

Standard Range

$359.96

DS8108-HC4000BVZWW

DS8108-HC, Area Imager, Healthcare, Corded (Cable not Included), HC White, Vibration Motor

Color:

HC White

Extra Features:

Health Care

Interface:

Order Cable Separately

Scan Engine:

Standard Range

$362.10

DS8108-HCBU2104ZVW

DS8108-HC USB KIT: Healthcare White Scanner w/ USB Cable, Vibration Motor

Color:

HC White

Extra Features:

Health Care

Scan Engine:

Standard Range

Interface:

USB

$382.22

Shop DS8108 Accessories

CBA-U21-S07ZBR

Cable - Shielded USB, Series A connector, 7 ft. (2.1 m), straight, BC1.2

$46.76

20-71043-04R

Gooseneck Intellistand – Black (DS2208, DS4308, DS4608, DS8108)

$61.37

STND-GS00UNC-04

Universal Gooseneck Intellistand – Black (LS2208, LI2208, LS4208, DS2208, DS4208, DS4308, DS4608, DS8108)

$56.25

Z1AE-DS8108-3C00

Zebra 3 Year Zebra Onecare Essential. Includes Comprehensive Coverage. Includes Coverage For Cradles.

$52.53

20-71043-0BR

DS2208, DS4308, DS4608, and DS8108 Gooseneck Intellistand, HC White

$81.82

21-71043-0BR

DS4308, Cup Healthcare

$54.07

21-71043-04R

DS4308, Cup, Black

$21.92

22-71043-0BR

DS4308, DS4608, DS2208, and DS8108 Gooseneck Intellistand, Weighted, HC White

$100.84

STND-DC1081C-04

DOCUMENT CAPTURE STAND KIT FOR USE WITH DS8108-SR, BLACK. Kit includes STND-DC0081C-04 & 20-66483-02R.

$204.31

11-66553-06R

Wall Mount Stand for Zebra LS3008, DS670X, and LS2208 Barcode Scanners.

$49.57

PWR-WUA5V4W0US

Power supply - Level VI wall adapter with captive DC cable and US adapter clip, 5.2V, 1.1A, 5.7W

$52.14

CBA-U30-S15ZBR

Shielded USB: Series A Connector, 15ft. (4.6m), Straight

$77.45

CBA-U23-S07ZBR

Cable - Shielded USB: Power Plus Connector, 7ft. (2m), Straight, 12V

$61.37

CBA-R01-S07PBR

Cable - RS-232, DB9 female, 7 ft. (2 m), straight; requires external 5V power supply

$42.38

CBA-K61-S07PAR

PS/2 Keyboard Wedge Interface Cable, 7 ft

$24.77
