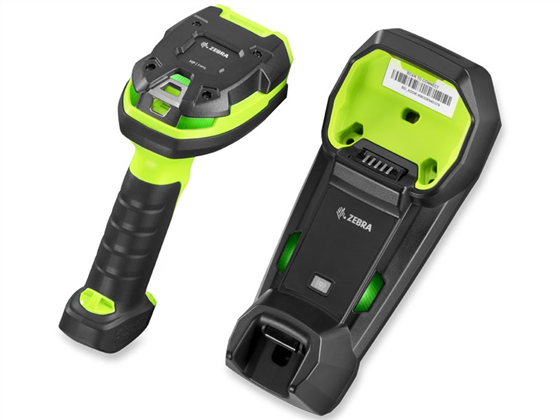

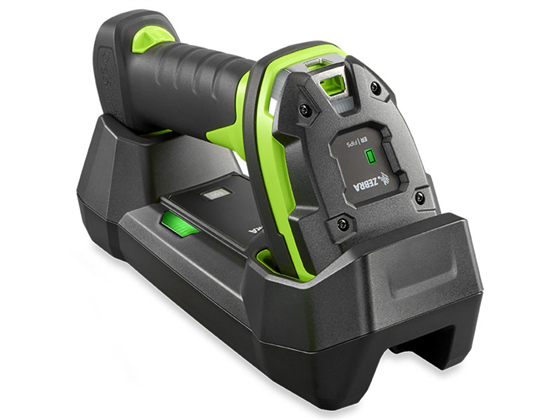

Zebra DS3678-XR

Name: Zebra DS3678-XR
Brand: Zebra
Price: 1056.65 USD
Availability: InStock

Images may not reflect the actual product

Unstoppable performance now with the industry’s longest scanning range

The cordless DS3678-XR reads 1D and 2D barcodes from less than 2 in./5 cm to over 105 ft./32 m, giving workers one device for in-hand pick lists, warehouse racks, yards and shipping containers.

Bluetooth mobility, a high-visibility green laser, IntelliFocus, PowerPrecision+ battery visibility and ultra-rugged construction support long shifts across changing distances and conditions.

Official Zebra family overview; no relevant POSGuys-created XR video is currently present on this record.

Key Specifications

Scanner configuration: Cordless ultra-rugged handheld extended-range area imager

Barcode capability: 1D and 2D barcodes, including QR Code and PDF417

Reading range: Less than 2 in./5 cm to more than 105 ft./32 m, depending on barcode size

Interfaces / connectivity: Bluetooth 4.0 Low Energy Class 1 with at least 300 ft./100 m line-of-sight range; cradle supports USB, RS-232, Keyboard Wedge and Industrial Ethernet

Durability: Multiple 10 ft./3 m drops at room temperature, multiple 8 ft./2.4 m drops across operating temperature and 7,500 tumbles from 3.3 ft./1 m

Environmental sealing: IP65 and IP68 scanner; IP65 forklift cradle

Dimensions and weight: 7.3 x 3.0 x 5.6 in./18.5 x 7.7 x 14.2 cm; 14.46 oz./410 g with battery

Warranty: Scanner and cradle: three years; battery: one year

Battery: PowerPrecision+ 3100 mAh battery; 80,000+ scans and at least 23 hours per charge

Aiming system: 520 nm green laser with wide crosshair

In the Box

Selected DS3678-XR cordless scanner with installed PowerPrecision+ battery

Standard USB cradle kit: CBA-U42-S07PAR cable, STB3678-C100F3WW cradle and PWR-BGA12V50W0WW power supply; the US kit also lists 23844-00-00R, while the no-line-cord kit omits the AC cord

Industrial Ethernet kits: CBA-RF5-S07ZAR cable, STB3678-C100F3WW cradle and the selected EA3600-R1CP-00 Rockwell or EA3600-S1CP-00 Siemens adapter

Forklift kit: CBA-U46-S07ZAR cable, FLB3678-C100F3WW cradle and BRKT-MM0036W-00 mounting bracket

Configuration note: Scanner-only selections do not include a cradle, cable, charger or power components. Other accessories are sold separately unless the selected option explicitly lists them.

Extreme Range, One Scanner

The DS3678-XR captures barcodes from under 2 inches to beyond 105 feet. PRZM Intelligent Imaging reads 1D, 2D, paper and mobile symbols, including scratched, dirty, poorly printed, dense, frosted and shrink-wrapped labels.

IntelliFocus automatically optimizes across the full range. The green crosshair laser is up to seven times more visible than a red aiming dot and remains visible throughout the indoor decode range and up to 10 feet in direct sunlight.

Ultra-Rugged Construction

The scanner survives 10-foot drops at room temperature and 7,500 tumbles. Dual IP65/IP68 sealing protects against dust, jetting water and immersion across extreme heat, cold and humidity.

Vibration, wraparound LEDs, a beeper and Direct Decode Indicator provide flexible confirmation in loud, dark or visually busy environments.

Faster Industrial Workflows

Label Parse+ extracts GS1 expiration, lot and manufacturing fields. Multi-Code Data Formatting captures up to 20 barcodes and transmits only required values in sequence, while Preferred Symbol isolates one barcode from a pick list.

Cordless Shift Power

The DS3678-XR supports more than 80,000 scans or at least 23 hours of continuous work per charge. PowerPrecision+ reports battery health; the scanner shows battery and Bluetooth status. AutoConfig applies host settings when the scanner pairs with another base, Virtual Tether helps prevent loss, and Wi-Fi Friendly Mode limits Bluetooth interference.

Connect and Manage

Network Connect for Automation links directly to Industrial Ethernet without third-party conversion. 123Scan builds configuration barcodes, Zebra Remote Management updates host-connected fleets, Remote Diagnostics records health and barcode evidence, and IoT Connector routes data to a selected endpoint.

Protection Options

Optional Zebra OneCare plans can add accidental-damage and wear coverage, with battery protection available for eligible deployments.

Dimensions

Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.7 cm W x 14.2 cm D

Weight

14.46 oz./410 g

Supported Host Interfaces

USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP

Battery

PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

Scans per Full Charge (Cordless)

80,000

Aimer

520 nm laser

2D Barcode Support

PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

1D Barcode Support

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

Drop Specification

DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
Corded: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C

Tumble Specification

7500 3.3 ft./1.0 m tumbles

Sealing

Scanner: IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65

Bluetooth Radio

Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles

Data Rate

3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy

Radio Range

Direct line of sight in open air: Class 1 minimum 300 ft. / 100 m; Class 2 minimum 30 ft. / 10 m

Input Voltage Range

Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.

FIPS and TAA

FIPS 140-3 compliant; TAA-compliant configurations available

User Indicators

Direct Decode Indicator, LEDs, beeper and vibration

Imaging Performance

Basic image capture
Near field of view: 42.1° H x 27° V; far: 14° H x 7.9° V
Near sensor: 1280 x 800; far sensor: 1920 x 1080
Minimum print contrast: 25%; skew ±60°; pitch ±60°; roll ±360°

Operating and Storage Environment

Corded operating: -22° to 122° F / -30° to 50° C
Cordless operating: -4° to 122° F / -20° to 50° C
Storage: -40° to 158° F / -40° to 70° C
5% to 95% non-condensing

ESD and Ambient Light

ESD: ±25 kV air, ±10 kV direct, ±10 kV indirect
0 to 10,000 foot-candles / 0 to 107,639 lux

Decode Ranges (Typical)

UPC 13 mil: 1.3 in. to 12.1 ft.
Code 128 15 mil: 2.1 in. to 13.6 ft.
Code 39 20 mil: 2.0 in. to 18.1 ft.
Code 39 100 mil: up to 105.1 ft.
Data Matrix 10 mil: 1.3 in. to 5.5 ft.
Data Matrix 200 mil: up to 100.0 ft.

Utilities and Management

123Scan, Scanner SDK, Scanner Management Service, Network Connect, Remote Diagnostics and Zebra DNA

Regulatory
