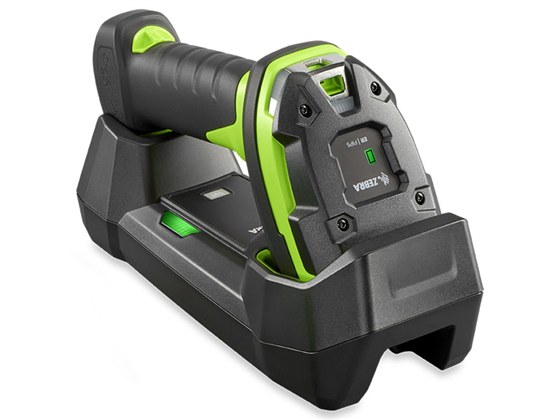

Zebra DS3678-ER
Unstoppable performance for extended range 1D/2D barcode scanning
The cordless DS3678-ER captures 1D and 2D barcodes from 3 in./7.6 cm to 70 ft./21.4 m, combining close pick-list work and long-range rack or yard scanning without a host cable.
Bluetooth mobility, PowerPrecision+ battery management, PRZM Intelligent Imaging and ultra-rugged IP65/IP68 construction support long shifts in demanding warehouse and manufacturing environments.
POSGuys demonstrates extended-range scanning with the Zebra 3600 Series.
Key Specifications
- Scanner configuration: Cordless ultra-rugged handheld extended-range area imager
- Barcode capability: 1D and 2D barcodes, including QR Code and PDF417
- Reading range: 3 in./7.6 cm to 70 ft./21.4 m, depending on barcode size
- Interfaces / connectivity: Bluetooth 4.0 Low Energy Class 1 with at least 300 ft./100 m line-of-sight range; cradle supports USB, RS-232, Keyboard Wedge and Industrial Ethernet
- Durability: Multiple 10 ft./3 m drops at room temperature, multiple 8 ft./2.4 m drops across operating temperature and 7,500 tumbles from 3.3 ft./1 m
- Environmental sealing: IP65 and IP68 scanner; IP65 forklift cradle
- Dimensions and weight: 7.3 x 3.0 x 5.6 in./18.5 x 7.7 x 14.3 cm; approximately 15.38 oz./436 g with battery
- Warranty: Scanner and cradle: three years; battery: one year
- Battery: PowerPrecision+ 3100 mAh battery; 70,000+ scans per charge
- Feedback: Direct Decode Indicator, LEDs, beeper and vibration
In the Box
Configuration note: The ER3U42A2 kits require the US AC line cord separately. Scanner-only selections do not include a cradle, host cable or power components. The TAA standard-range kit includes its stated cradle package; other accessories are sold separately unless the selected option explicitly lists them.
Performs in Your Toughest Environments
Superior Scanning Range
PRZM Intelligent Imaging reads 1D and 2D barcodes from 3 in./7.6 cm to 70 ft./21.4 m, including close extra-wide codes and distant labels that are under shrinkwrap, damaged, dirty or poorly printed.
Ultra-Rugged—the Most Indestructible Design in its Class
The DS3600-ER survives 10 ft./3 m drops at room temperature and 7,500 tumbles. Dual IP65/IP68 sealing protects against dust, jetting water and immersion in demanding indoor, outdoor and freezer environments.
Easily Capture Label Data for Better Inventory Management
Label Parse+ captures and separates GS1 label data such as expiration dates, lot numbers and manufacturing locations.
Read Up To 20 Barcodes with One Press of the Scan Trigger
Multi-Code Data Formatting captures multiple barcodes together and sends only the required values in the correct sequence.
Faster Pick-List Processing
Preferred Symbol helps the operator target one desired barcode on a pick list containing multiple codes.
Flexible Feedback Modes
Vibration, wraparound LEDs, audible feedback and the Direct Decode Indicator can be mixed to suit the environment.
Support for the Barcode of the Future—Digimarc™
The DS3600-ER supports Digimarc digital watermark technology, allowing compatible codes repeated across a surface to be captured without locating a conventional visible barcode.
Superior Cordless Technology
More Than 70,000 Scans on a Single Charge
PowerPrecision+ delivers more than 70,000 scans per charge and exposes charge-cycle, current-status and state-of-health information for proactive battery replacement.
Battery and Bluetooth™ Status At-A-Glance
The battery gauge and Bluetooth LED give workers a quick view of charge and connection status.
Switch Workflows in an Instant with AutoConfig
Pairing with another base automatically applies the workflow settings stored in that cradle.
Keep Track of Your Scanners and Prevent Workflow Interruptions
Virtual Tether alerts users when the scanner moves out of Bluetooth range or is left outside the cradle longer than allowed.
Eliminate Bluetooth Interference with Wi-Fi Friendly Mode
Wi-Fi Friendly Mode minimizes interference from Bluetooth devices on the Wi-Fi network.
Unrivaled Manageability
Instantly Connect to Your Industrial Ethernet Network
Network Connect for Automation links 3600 Series scanners directly to Industrial Ethernet without third-party conversion equipment.
Identify and Correct Problem Barcodes with ScanSpeed Analytics
ScanSpeed Analytics reports detailed decode metrics so barcode quality problems can be identified before they reduce throughput.
No-Cost Tools to Meet Your Management Needs
123Scan creates configuration barcodes, and Scanner Management Service can update and configure host-connected devices across distributed locations.
Up-To-The-Minute Insight Into Every Aspect of Your Scanners
Remote Diagnostics automates collection of asset, health, settings, statistics and barcode data for verification, troubleshooting and fleet analysis.
Shop DS3678-ER Models
DS3678-ER3U4212SVW
DS3678 Ultra Rugged Cordless 2D Imager Cradle Kit, Green, Extended Range, Cordless, Includes Cradle, Cable and Power Supply, USB Interface
Accessories:
Cradle, Cable and Power Included
Range:
Extended Range
DS3678-ER3U42A2SVW-PG
DS3678 Ultra Rugged Cordless 2D Imager Cradle Kit, Green, Extended Range, Cordless, Includes Cradle, Cable and Power Supply, USB Interface - ORDER LINE CORD SEPARATELY (POSGuys Special Order)
Accessories:
Cradle Kit - US Line Cord Separate
Range:
Extended Range
KT-DS3678-SR0FCC3VTNA
DS3600-SR Ultra-Rugged Scanner- FIPS VIBRATION TAA COMPLIANT STANDARD CRADLE KIT
Accessories:
Cradle Kit
Range:
Standard Range
DS3678-SR0FCC3VTNA
DS3678-SR TAA Compliant Rugged Area Imager, Standard Range, Cordless, Fips, Industrial Green, Vibration Motor
Accessories:
Scanner Only
Range:
Standard Range
DS3678-ER2F003VZWW
DS3678 Ultra Rugged Cordless 2D Imager Cradle Kit, Green, Extended Range, Cordless, ORDER CRADLE AND CABLES SEPARATELY
Range:
Extended Range
Accessories:
Scanner Only
DS3678-ER3U42A2SVW
DS3678 Ultra Rugged Cordless 2D Imager Cradle Kit, Green, Extended Range, Cordless, Includes Cradle, Cable and Power Supply, USB Interface - ORDER LINE CORD SEPARATELY
Accessories:
Cradle Kit - US Line Cord Separate
Range:
Extended Range
Shop DS3678-ER Accessories
SAC3600-4001CR
4 Slot Battery Charger for 3600 Series Battery; Power Supply & AC Line Cord Required - Order Separately (AC Line Cord CBL-DC-388A1-01 and Power Brick PWR-BGA12V50W0WW)
BTRY-36IAB0E-00
Spare Battery For Zebra 36XX Family Scanners. 3150 mAh. PowerPrecision Plus. Batteries Must be Shipped via Ground Shipping.
CBL-DC-388A1-01
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
23844-00-00R
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
Z1AE-DS3678-3CC0
3 Year Comprehensive Warranty For Zebra DS3678 Barcode Scanners. Includes Accidental Damage and Issues Caused By Wear & Tear. 3-Business-Day Repair Depot Turnaround. Includes Coverage for Cradles. Can Be Added Up to 30 Days After Product Purchase.
BRKT-MM0036W-00
Forklift Mounting Bracket for DS3600 Cradle. Purchase Cradle (FLB3678-C100F3WW) Seperately.
21-52612-01R
Forklift Holder for Zebra DS3X78 & LS3X78 Industrial Barcode Scanners
EA3600-T1CP-00
Industrial Ethernet Adapter for Zebra DS3600 Barcode Scanners. Standard TCP/IP - Point-To-Point, 24 VDC, RJ45. Power Supply (PWR-BGA12V50W0WW) & Line Cords (CBL-DC-388A1-01 & 23844-00-00R) Sold Separately.
CBA-U42-S07PAR
Shielded Powered USB Cable for Zebra Barcode Scanner: Series A Connector, 7ft. Straight. Filter Adapter Cable (CBL-36-453A-01) required if using DC Line Cord (CBL-DC-375A1-01) or legacy PWRS-14000-148R power supply on STB/FLB cradles
CBA-U46-S07ZAR
Shielded USB Cable for Zebra Barcode Scanners: Series A Connector, 7ft. Straight
CBA-R07-S07PAR
Zebra RS232 Cable. DB9 Female, TxD on 2, 7ft. Straight. Requires 12V External Power Supply
CBL-DC-451A1-01
DC Line Cord for Zebra DS3600 Barcode Scanners. 1.5 Meters. Used along with Power Supply PWRBGA12V50W0WW. Not compatible for charging 4-Slot Battery Charger
11-35035-01R
Belt/Pants Scanner Holster
50-15400-031
LS3408, Tool Balancer Pulley
50-12500-066
Wrist Strap, Attaches to bottom of Snap-on Trigger Handle (SKU# TRG-TC2L-SNP1-01).
STB3678-C100F3WW
Standard Bluetooth Cradle for 3678 Family Scanners. Cradle Only. Order Power Supply & Line Cords Separately (PWR-BGA12V50W0WW, 23844-00-00R, and CBL-DC-375A1-01)
PWRS-14000-252R
Power Supply, DC/DC Low Voltage Power Converter, Input: 9-30V, 4.4A, Output: 12V, 2.5A. For nominal voltage input of 12V and 24V systems.
PWR-BGA12V50W0WW
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
FLB3678-C100F3WW
Forklift Cradle for 3678 Scanners, Sealed IP64 Rated, Bluetooth, Multi Interface. Purchase Mounting Bracket Separately. (BRKT-MM0036W-00)
