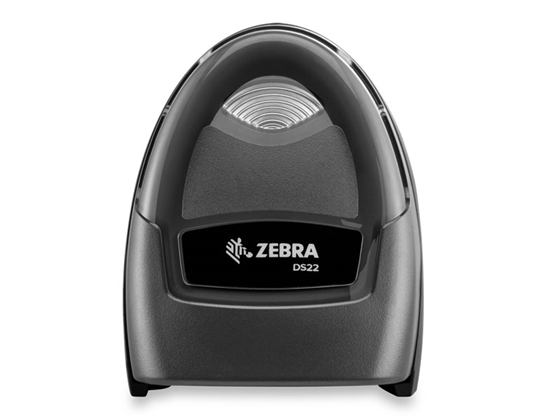

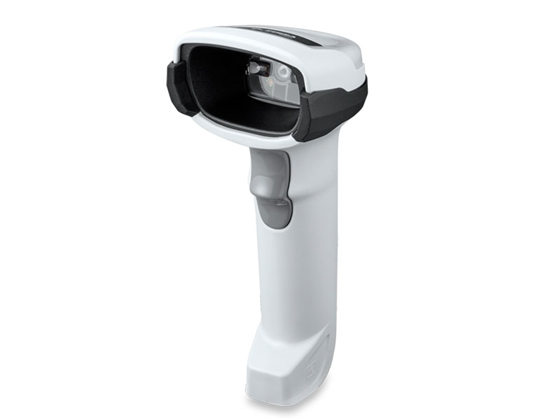

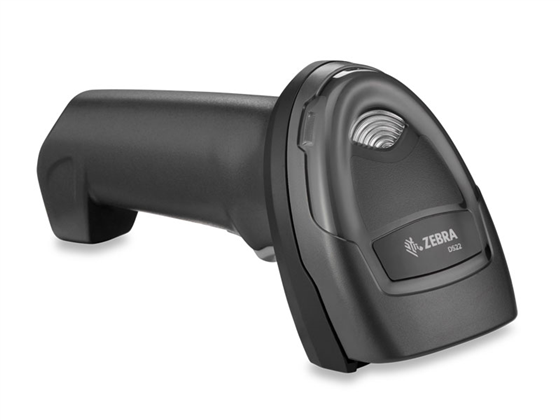

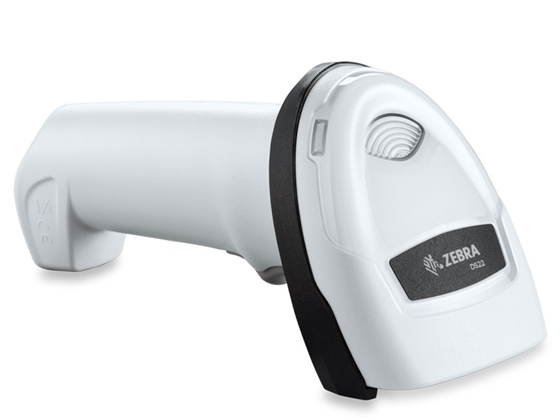

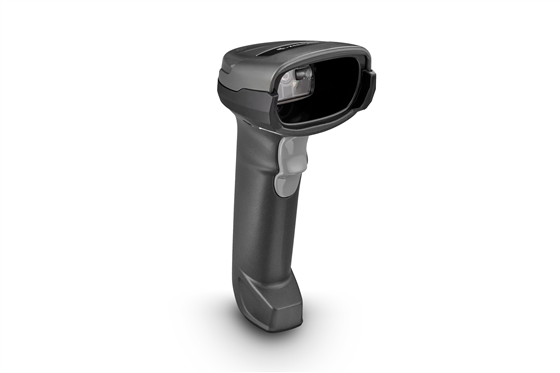

Zebra DS2278

Easy to Deploy

Pre-configured and ready to use, right out of the box

The DS2278 arrives preconfigured for typical scanning tasks.

From unboxing to fully operational in five minutes or less

Zebra's Simple Setup Experience uses a QR code to open a mobile-friendly setup page tailored to the scanner, where users can choose common settings and generate a programming barcode.

Auto-host detect cables

Zebra auto-host detect cables identify the connected interface and select the appropriate settings automatically, reducing manual setup at each workstation.

Easy integration with a tablet-based POS

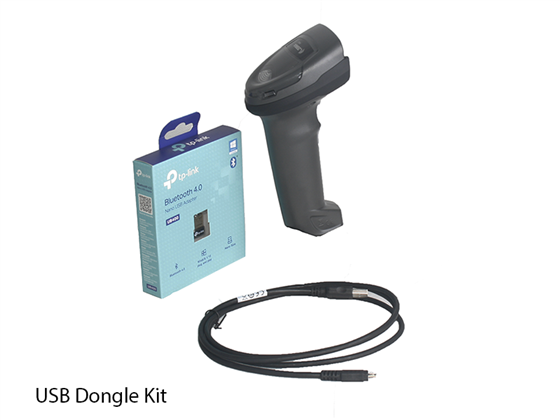

The cordless scanner can connect directly to Bluetooth-enabled tablets and supports Micro USB charging when a cradle is not needed. Zebra's tablet application tools can help configure or update the scanner from the same mobile device used for POS.

Deploy anywhere in the world

USB, RS232, Keyboard Wedge, and TGCS (IBM) 46XX interfaces cover common POS connections, while support for more than 90 international keyboards helps standardize deployments across regions.

Easily customize settings with 123Scan

For larger rollouts, 123Scan can configure scanners, update firmware, display scanned data, print reports, and place a complete setup into a single barcode.

Backwards compatible with Zebra LS2208 series cables

The DS2278 can reuse Zebra LS2208 universal cables, which can lower the cost of replacing an installed scanner fleet.

Easy to Use

Instant decoding with PRZM intelligent imaging

PRZM Intelligent Imaging improves decode performance on damaged, poorly printed, or low-quality barcodes. The 640 x 480 imager reads 1D and 2D symbols with minimum resolutions down to 4 mil for Code 39/Code 128, 6 mil for DataMatrix, and 6.7 mil for QR, subject to print quality and conditions.

Unsurpassed scanning range

A typical working range of 0.5 to 14.5 inches lets associates capture codes from near contact through common checkout distances. The scanner supports handheld movement up to 5 inches per second and hands-free swipe speeds up to 30 inches per second, helping items move through presentation workflows smoothly.

Point-and-shoot scanning simplicity

Omnidirectional scanning removes the need to rotate labels.

Patent pending technology for the most intuitive aiming

The visible aim line gives users the familiar targeting experience of a 1D scanner.

Easiest pairing on the planet

Scan-to-Connect pairs the DS2278 with a Bluetooth-enabled PC, tablet, or smartphone by scanning a single on-screen barcode. Its Class 2 Bluetooth radio provides at least 30 feet of range, while a CR2278 presentation cradle can extend operation to as much as 300 feet in suitable environments.

Fast, easy and flexible charging

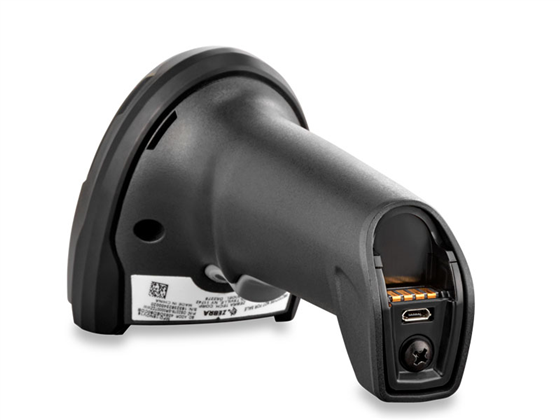

Charge through the host, an external supply, Micro USB, or a presentation cradle. From empty, published full-charge times range from about 4 hours over BC1.2 Micro USB to 7 hours over standard Micro USB.

Unique direct decode indicator improves productivity

Direct Decode Indicator projects illumination onto the barcode after a successful read, supplementing the scanner's beeper and LED feedback in busy or noisy areas.

On-the-fly switching between handheld and hands-free scanning

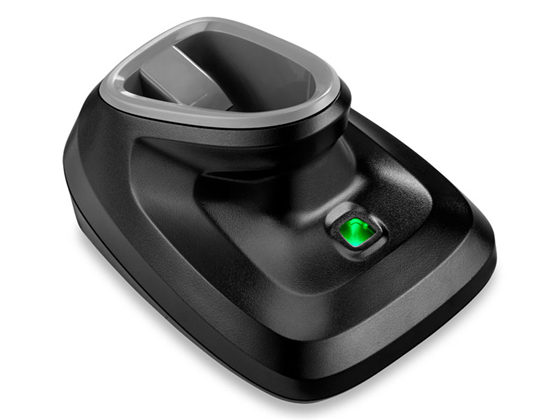

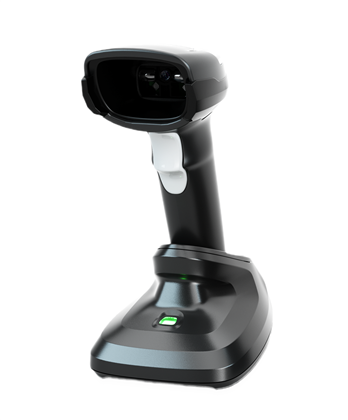

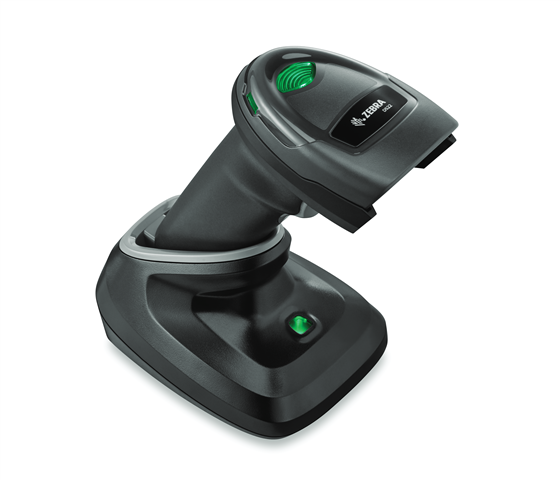

Placing the scanner in a presentation cradle switches it automatically from handheld to hands-free scanning.

Guaranteed full shift battery power

The 2,400 mAh battery is rated for up to 84 hours, 110,000 scans at 60 scans per minute, or 50,000 scans at 10 scans per minute under Zebra's test conditions.

Easy to Manage

Control your scanners from a smartphone, tablet or PC

From supported Windows, Android, and iOS hosts, administrators can control the beeper, LED, supported symbologies, and data formatting while viewing decoded data. Applications can also read the scanner model and serial number, making it easier to inventory devices and apply consistent policies.

Eliminate Bluetooth interference with Zebra’s proprietary Wi-Fi™ friendly mode

Wi-Fi Friendly Mode limits Bluetooth interference with a wireless LAN, helping protect both scanner responsiveness and store network performance.

A battery designed to last

The high-capacity, replaceable 2,400 mAh Li-Ion battery provides full-shift power while helping reduce the number of spare batteries an organization needs to purchase and manage.

The DS2278 is IP52 sealed and designed for multiple 5-foot drops to concrete plus 250 tumbles in a 1.5-foot tumbler. That protection helps it withstand routine knocks, countertop falls, dust, and spills in checkout and service environments.

No-cost tools to meet advanced management and application development needs

Zebra provides Scanner SDKs for Windows, Android, iOS, and Linux so organizations can build scanner controls into their applications. Scanner Management Service can remotely manage supported scanners and query asset information, reducing visits to individual lanes.
