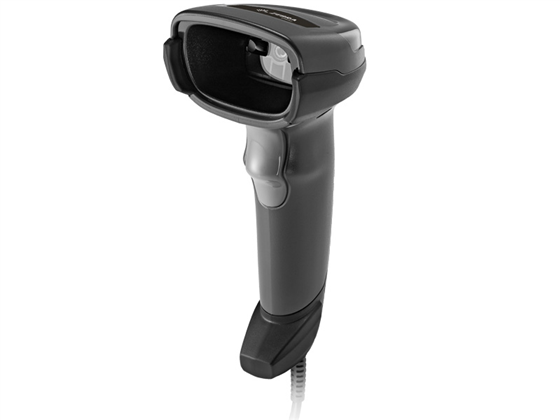

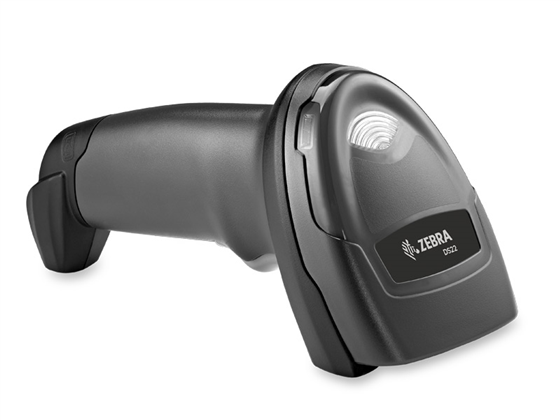

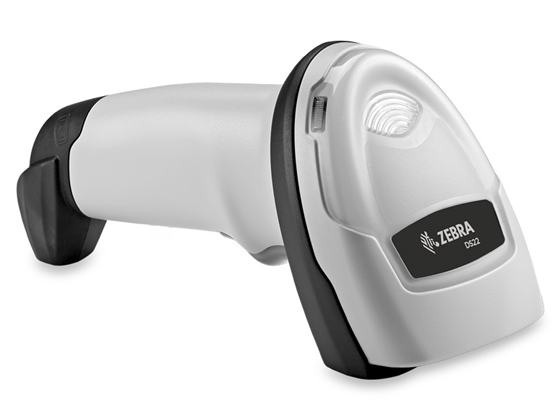

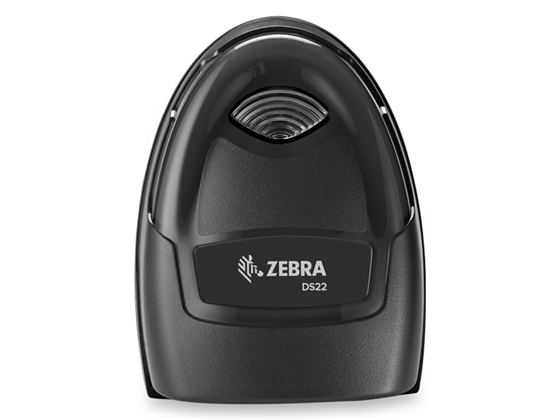

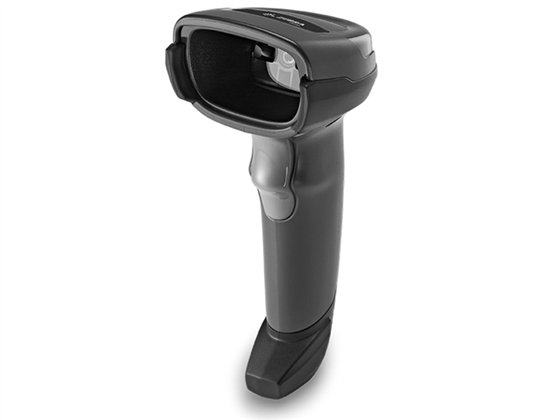

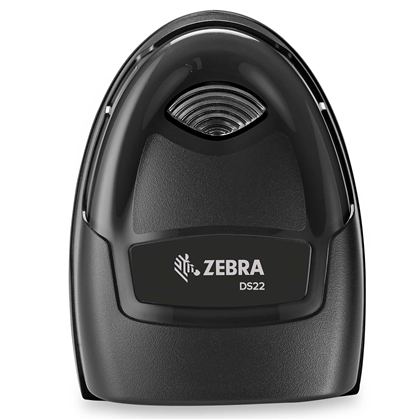

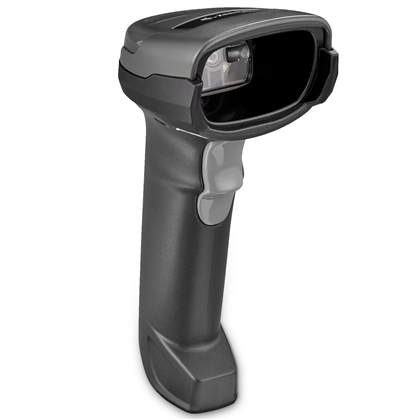

Zebra DS2208

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

DS2208 (iOS)

DS2208 - iOS Compatible 1D/2D Barcode Scanner (USB) Designed by Zebra, the DS2208 quickly captures virtually any 1D or 2D barcode from any surface, ensuring fast, reliable performance. Ideal for retail, hospitality, and other mobile-friendly environments, this scanner offers seamless compatibility with iOS devices for flexible, efficient workflows.
  • • Software: Shopify, Lightspeed, Toast, Jonas Club, Dutchie
  • • Warranty: 5-Year
  • • Return Period: 15 Days
  • • Lifetime Support
  • • Free Shipping

Affordability and Simplicity Delivered

2D barcodes now appear throughout the point-of-sale environment, on everything from the products customers purchase to printed and electronic coupons and loyalty cards. A 1D-only scanner cannot capture these codes, creating exceptions that slow checkout and frustrate customers at a critical service moment. The Zebra DS2208 provides an affordable path to corded 1D/2D imaging without sacrificing essential performance or features.

Workers get first-time, every-time scanning with familiar point-and-shoot simplicity, even when barcodes are poorly printed or displayed on a screen. The DS2208 is preconfigured for common applications, straightforward to deploy and manage, and automatically switches between triggered handheld scanning and hands-free presentation scanning when placed in an optional IntelliStand.

Watch the POSGuys team demonstrate the DS2208 on 1D and 2D barcodes, mobile screens and challenging retail labels.

Key Specifications

  • Scanner configuration: Corded handheld area imager
  • Barcode capability: 1D and 2D barcodes, including QR and PDF417
  • Reading range: 0.5 in. to 14.5 in. (1.3 cm to 36.8 cm) for 13 mil UPC
  • Interfaces / connectivity: USB, RS232, Keyboard Wedge and TGCS (IBM) 46XX over RS485
  • Durability: Multiple 5 ft. (1.5 m) drops and 250 tumbles from 1.5 ft. (0.5 m)
  • Environmental sealing: IP52
  • Dimensions and weight: 6.5 x 2.6 x 3.9 in. (16.5 x 6.6 x 9.8 cm); 5.7 oz. (161.6 g)
  • Warranty: 5 years
  • Image sensor: 640 x 480 pixels

In the Box

  • DS2208 scanner
  • Quick Start Guide

Configuration note: The interface cable, power supply if required, and IntelliStand are separate unless the selected option is explicitly identified as a kit.

Easy to Deploy

Pre-configured and ready to use, right out of the box

Optimized defaults let most DS2208 scanners work as soon as they are connected.

Auto-host detect cables

Supported cables identify the host interface and establish the connection automatically.

Easily customize settings with 123Scan

Create a configuration with Zebra's wizard, then program each scanner with one barcode.

Backwards compatible with Zebra LS2208 series cables

Reuse supported LS2208 universal cables when upgrading from 1D to 1D/2D scanning.

Easy to Use

Instant decoding with PRZM intelligent imaging

Capture poorly printed, damaged and screen-displayed barcodes with fewer rescans.

Unsurpassed scanning range

Read a 13 mil UPC from 0.5 to 14.5 in. (1.3 to 36.8 cm) away.

Unique direct decode indicator improves productivity

Illumination flashes on the barcode after a successful read, backed by LEDs and an adjustable beeper.

On-the-fly switching between handheld and hands-free scanning

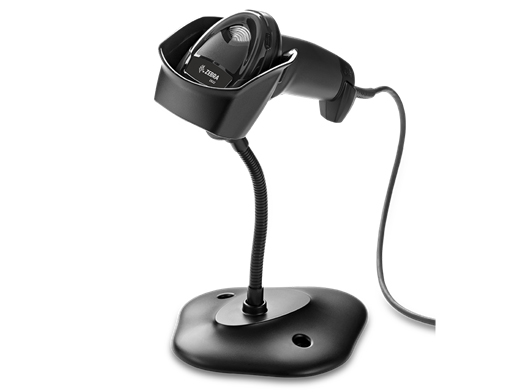

Place the scanner in an optional IntelliStand for presentation mode; remove it to resume handheld use.

Easy to Manage

Control your scanners from a smartphone, tablet or PC

Adjust common settings and view device information from supported Windows, Android and iOS hosts.

No-cost tools to meet advanced management and application development needs

Use Zebra Scanner Management Service for remote administration and Zebra SDKs for custom applications.

Dimensions
6.5 in. H x 2.6 in. W x 3.9 in. D
(16.5 cm. H x 6.6 cm. W x 9.9 cm. D)
Weight
5.7 oz. / 161.6 g
Input Voltage
4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0 V)
250 mA typical (auto-aim and illumination on when acquiring image)
Standby Current at Nominal Voltage (5.0 V)
150 mA typical (auto-aim on)

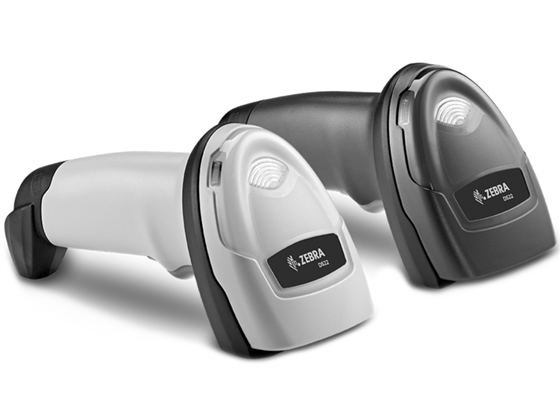

Color Options
Nova White
Twilight Black
Interfaces Available
USB
RS232
Keyboard Wedge
Keyboard Support
Supports more than 90 international keyboards
Indicators
Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)
Motion Tolerance
Up to 5 in. (13 cm) per second for 13 mil UPC in handheld mode
Scan Rate (Maximum)
Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light Source
Aiming: linear 624 nm amber LED; illumination: two 645 nm super-red LEDs
Reading Angle
32.8° H x 24.8° V Nominal
Image Sensor
640 x 480 pixels
Print Contrast (Min.)
25% minimum reflective difference
Minimum Element Resolution
Code 39: 4.0 mil; Code 128: 4.0 mil; Data Matrix: 6.0 mil; QR Code: 6.7 mil
Scan Method
2D Imager, Omni-Directional
Scan Engine
Standard Range, Area Imager
Barcodes Supported
1D, 2D
Scan Range
0.5 in./1.23 cm to 14.5 in./36.8 cm
Mobility/Range
Corded
Auto Sense Mode
Optional
Operating Temperature
32.0° to 122.0° F/0.0° to 50.0° C
Storage Temperature
-40° to 158° F (-40° to 70° C)
Humidity
5% to 95% RH, non-condensing
Drop Specification
5.0 ft./1.5 m to concrete
Tumble Specification
Designed to withstand 250 tumbles in a 1.5 ft. (0.5 m) tumbler
Environmental Sealing
IP42
Electrostatic Discharge (ESD)
EN 61000-4-2: ±15 kV air, ±8 kV direct, ±8 kV indirect
Ambient Light (Max)
0 to 10,000 Foot Candles/0 to 107,600 Lux
Stand
Optional
Regulatory Compliance
Electrical safety: EN/IEC/UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
Environmental: RoHS EN 50581
LED safety: IEC 62471
IT emissions: EN 55032 Class B
IT immunity: EN 55024
Harmonic current emissions: EN 61000-3-2
Voltage fluctuation and flicker: EN 61000-3-3
Radio-frequency devices: 47 CFR Part 15, Subpart B, Class B
Digital apparatus: ICES-003 Issue 6, Class B
123Scan
Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports
Scanner SDK
Generates a fully featured scanner application with documentation, drivers, test utilities and sample source code
Scanner Management Service (SMS)
Remotely manages the scanner and queries asset information
Warranty
DS2208 corded scanner: sixty months from date of shipment
Recommended Services
Zebra OneCare Select; Zebra OneCare Essential
123Scan Configuration Utility 6.01.0001 (Windows 64-Bit)
Download
123Scan Configuration Utility 6.01.0001 (Windows 32-Bit)
Download
DS2208 Quick Start Guide
Download
DS2208 Product Reference Guide
Download
DS2200 Series Specification Sheet
Download
DS2200 Series Accessory Guide
Download

Shop DS2208 Models

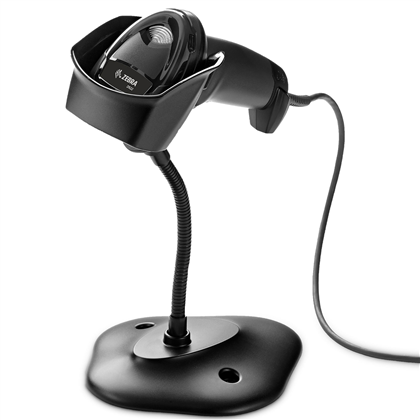

DS2208-SR7U2100SGW

DS2208 1D/2D Barcode Scanner, Black, Standard Range, With Stand and Interface Cable, USB Interface

Color:

Black

Accessories:

Cable and Stand

Interface:

USB

$208.40

DS2208-SR7U2100AZW

DS2208 1D/2D Barcode Scanner, Black, Standard Range, With Interface Cable, No Stand, USB Interface

Color:

Black

Accessories:

Cable, No Stand

Interface:

USB

$193.30

DS2208-SR7U2500AZW

DS2208 1D/2D Barcode Scanner, Black, Standard Range, With 9 ft Shielded Interface Cable, No Stand, USB Interface

Accessories:

9 ft Shielded Cable, No Stand

Color:

Black

Interface:

USB

$243.13

DS2208-SR6U2100AZW

DS2208 1D/2D Barcode Scanner, White, Standard Range, With Interface Cable, No Stand, USB Interface

Accessories:

Cable, No Stand

Interface:

USB

Color:

White

$193.30

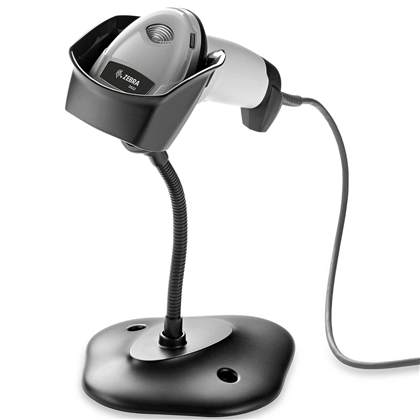

DS2208-SR6U2100SGW

DS2208 1D/2D Barcode Scanner, White, Standard Range, With Black Stand and Interface Cable, USB Interface

Accessories:

Cable and Black Stand

Interface:

USB

Color:

White

$208.40

DS2208-SR00007ZZWW

DS2208 1D/2D Barcode Scanner, Black, Standard Range, Scanner Only - No Cable (Order CBA-U01-S07ZAR for USB)

Color:

Black

Interface:

Cable Sold Separately

Accessories:

Not Included

$178.20

DS2208-SR00006ZZWW

DS2208 1D/2D Barcode Scanner, White, Standard Range, Scanner Only - No Cable (Order CBA-U01-S07ZAR for USB)

Interface:

Cable Sold Separately

Accessories:

Not Included

Color:

White

$178.20

Outlet Items

Zebra DS2208

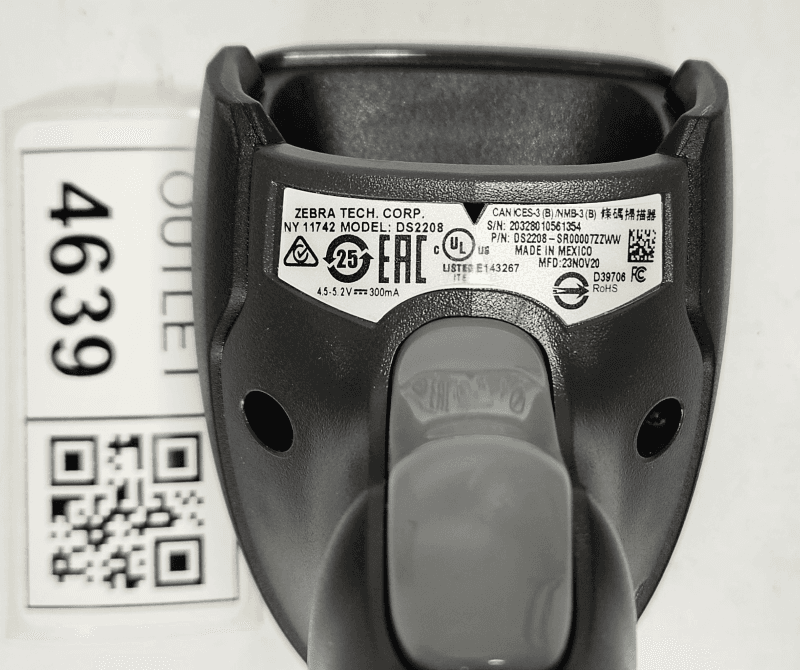

Outlet thumbnail 1Outlet thumbnail 2

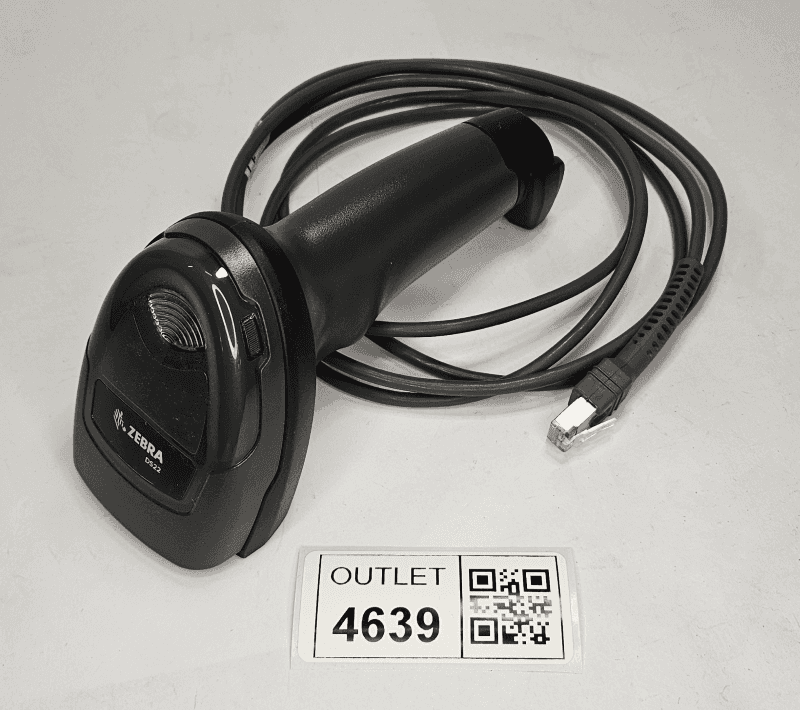

Zebra DS2208
