MicroTouch Desktop Series
Commercial 10-point PCAP displays sized for customer-facing, point-of-sale and point-of-service installations.
The MicroTouch Desktop Series gives businesses a choice of 10.1-, 15.6- and 21.5-inch touch monitors in a compact, VESA-mountable design. Every active model supports projected-capacitive 10-point touch and VGA, DisplayPort and HDMI video connections.
The DT-100P-A1 is the small-footprint choice for secondary displays and compact interactive stations. The Full HD DT-156P-B2 and DT-215P-B2 add etched anti-glare surfaces and modular mounting points for select peripherals.
Key Specifications
- Product type / application: Commercial desktop PCAP touch monitors for POS, customer displays and interactive workstations
- Display / resolution: 10.1-inch at 1280 x 800; 15.6- and 21.5-inch at 1920 x 1080
- Touch input: Projected capacitive, 10 touch points; USB-C or USB-HID by model
- Host compatibility: USB-HID touch with VGA, DisplayPort, HDMI and model-specific USB-C video
- Interfaces / connectivity: VGA, DisplayPort, HDMI and 3.5 mm audio on all three models; USB-C carries touch and adds video or power-delivery functions on supported models
- Power: 12V DC; 36W or 60W external adapter by model
- Durability / environment: 0°C to 40°C; 20% to 80% RH; 7H or etched anti-glare front glass by model

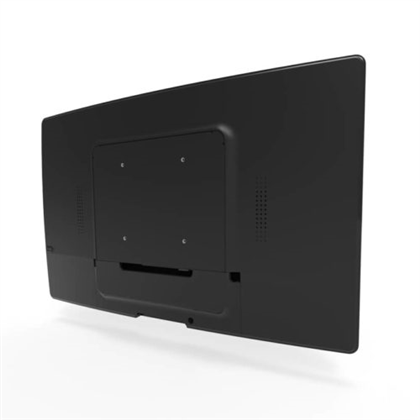

- Mounting / form factor: VESA 75 x 75 or 100 x 100 mm; desktop stands sold separately
- Dimensions / weight: 10.1-inch: 245.4 x 170.5 x 30.3 mm / 0.95 kg; 15.6-inch: 369.1 x 223.7 x 27.2 mm / 1.805 kg; 21.5-inch: 510.96 x 308.01 x 37.9 mm / 4.05 kg
- Warranty: 3 years
In the Box
- DT-100P-A1: Touch monitor, power cord, power supply/AC-DC adapter, HDMI cable, USB-C-to-A cable and USB-C-to-C cable
- DT-156P-B2: Touch monitor, power cord, DC power supply, HDMI cable, OSD remote key, screw and I/O cover
- DT-215P-B2: Touch monitor, power cord, DC power supply, HDMI cable, OSD remote key, screw and I/O cover
Choose the right display size
From compact customer display to Full HD workstation
Use the 10.1-inch, 1280 x 800 model where counter space is limited or a secondary customer-facing screen is needed. Choose the 15.6- or 21.5-inch Full HD model when applications need more screen area and a 16:9 layout.

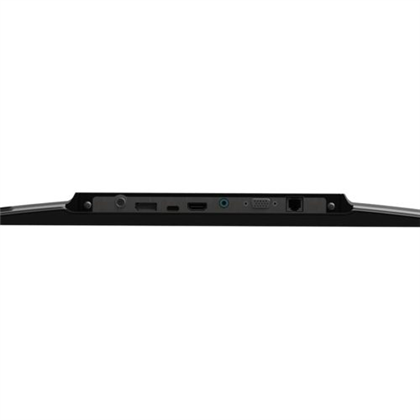

Keep connections flexible
Modern USB-C plus familiar video inputs

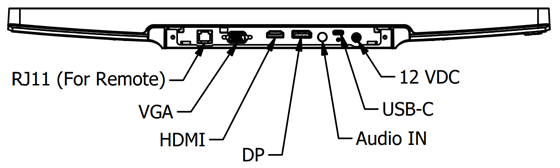

All three active monitors accept VGA, DisplayPort and HDMI video. USB-C carries the touch interface; on DT-100P-A1 it also supports DisplayPort Alt Mode and power-delivery input, while every model retains a dedicated 12V DC input.
Designed for commercial touch
Durable surfaces for repeated interaction
The DT-100P-A1 uses 7H-hardness glass with front IP65 protection. DT-156P-B2 combines an etched anti-glare surface with front IP65 protection, while DT-215P-B2 provides the same etched anti-glare treatment for larger-format installations.

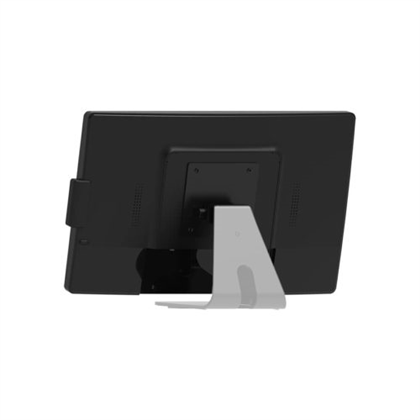

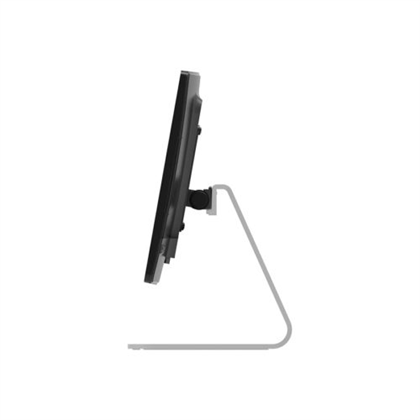

Plan the stand and peripherals
Build the mounting package around the deployment
The active POSGuys options are monitor-only. DT-156P-B2 supports the MicroTouch MSR-156-A1, while DT-215P-B2 supports MSR-215-A1. MicroTouch does not publish an optional stand for DT-100P-A1; select mounting hardware by the model's documented VESA pattern.
Shop Desktop Series Models

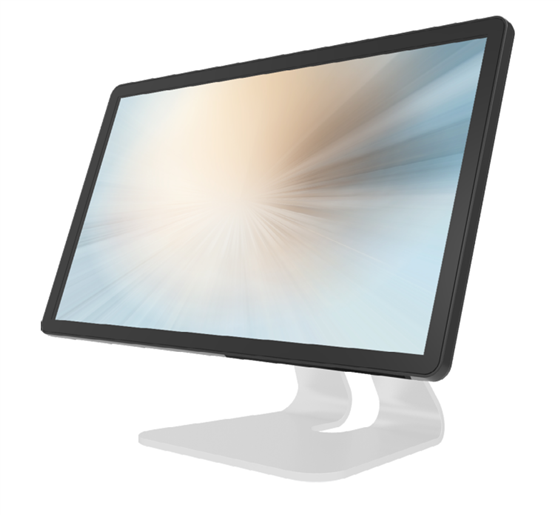

DT-156P-B2
MicroTouch DT-156P-B2 15.6" PCAP Desktop Series touch monitor, 1920 x 1080, VGA, DisplayPort, HDMI and USB-C; no stand; order SS-156-A1 separately
Screen Size:
15.6"
Screen Size:
15.6"
Resolution:
1920 x 1080

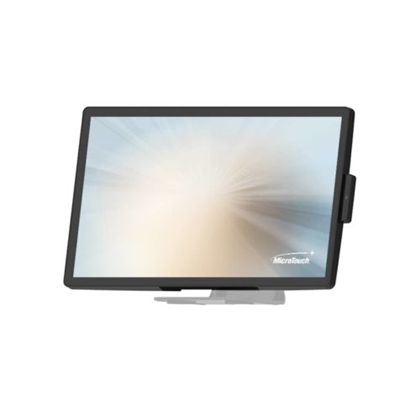

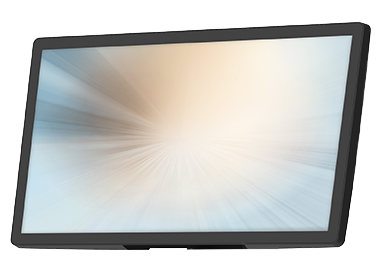

DT-215P-B2

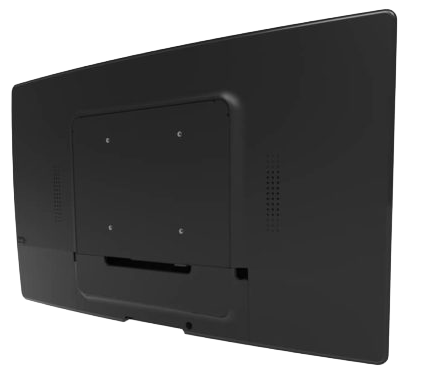

MicroTouch DT-215P-B2 21.5" PCAP Desktop Series touch monitor, 1920 x 1080, VGA, DisplayPort, HDMI and USB-C, 100 x 100 mm VESA; stand selected separately
Resolution:
1920 x 1080
Screen Size:
21.5"
Screen Size:
21.5"
DT-100P-A1
MicroTouch DT-100P-A1 10.1" PCAP Desktop Series touch monitor, 1280 x 800, VGA, DisplayPort, HDMI and USB-C with DisplayPort Alt Mode, 75 x 75 mm VESA; stand selected separately
Screen Size:
10.1"
Screen Size:
10.1"
Resolution:
1280 x 800
Shop Desktop Series Accessories
CAM-000-A1
MicroTouch CAM-000-A1 2MP Full HD 1080p USB camera module for compatible 15.6- and 21.5-inch MicroTouch DT and IC systems; fixed focus, black, mounting screws included.
SS-156-A1
MicroTouch SS-156-A1 slim adjustable stand for DT-156P-B2 and compatible IC-156 systems; 100 x 100 mm VESA mount, cable management and mounting screws included.
DD-215-A1
MicroTouch DD-215-A1 dual-display stand for DT-215P-B2 and compatible IC-215 systems; 100 x 100 mm front VESA mount plus 75 x 75 and 100 x 100 mm rear VESA mounting, hardware included.
PS-3316005044F0
MicroTouch 50W Power Supply, Adapter 12V 50W
USB-5313120024FV
MicroTouch USB-5313120024FV 2 m USB-C-to-USB-C replacement cable; black.
PC-5330001214FI
Power Cable, AC Power Core 1.8M BK UL
USB-5313120025FV
MicroTouch USB-5313120025FV 2 m USB-C-to-USB-A replacement cable; black.
HDMI-5313118134FH
MicroTouch HDMI-5313118134FH 1.8 m HDMI 2.0 Type-A-to-Type-A replacement cable; black.
DP-5313118123FV
MicroTouch DP-5313118123FV 1.8 m DisplayPort-to-DisplayPort replacement cable; black.
VGA-5313118072FH
MicroTouch VGA-5313118072FH 1.8 m VGA replacement cable; black.
MA-STAND-A2
MicroTouch MA-STAND-A2 weighted adjustable stand for compatible Mach Desktop and Mach All-in-One systems; integrated cable routing and VESA mounting interface.
MSR-156-A1
MicroTouch MSR-156-A1 encrypted 3-track bidirectional USB magnetic stripe reader for IC-156P-AA2, black, mounting screws included
MSR-215-A1
MicroTouch MSR-215-A1 encrypted three-track, bidirectional magnetic stripe reader for DT-215P-B2 and compatible IC-215 systems.
2D-PMH-A1
MicroTouch 2D-PMH-A1 portrait-orientation 2D barcode scanner for DT-215P-B2 and compatible MicroTouch DT/IC systems; Honeywell N4680 engine, presentation mode, up to 120 frames per second; two mounting screws included.
2D-LMH-A1
MicroTouch 2D-LMH-A1 landscape-orientation 2D barcode scanner for DT-215P-B2 and compatible MicroTouch DT/IC systems; Honeywell N4680 engine, presentation mode, up to 120 frames per second; two mounting screws included.
