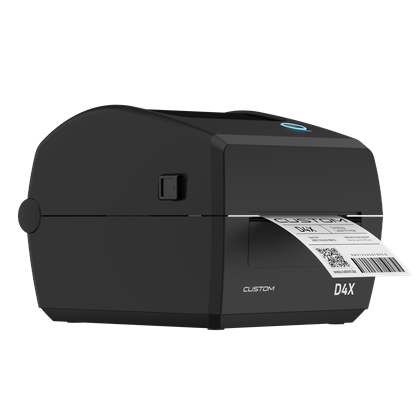

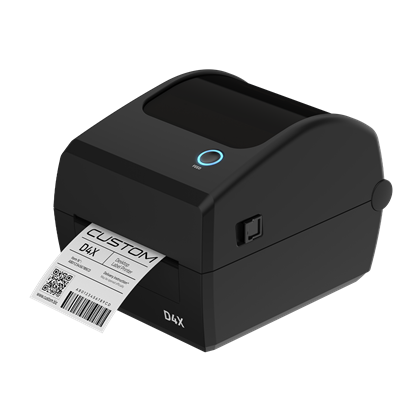

Custom America D4X

Images may not reflect the actual product
Product Image
small product image0
small product image1

Compact 4-inch direct thermal printing for retail counters, shipping and back-office labels.

Key Specifications

  • Print method: Direct thermal; no ribbon.
  • Resolution: 203 dpi.
  • Maximum print width: 108 mm (4.25 inches).
  • Print speed: Up to 8 ips.
  • Media and ribbon handling: 25–110 mm media; continuous, gap, black-mark and punched-hole labels; ribbon not used.
  • Connectivity: USB 2.0 and 10/100 Ethernet; 911PZ010200J33 adds Bluetooth 5.2/BLE.
  • Duty / application fit: Desktop labels for retail, shipping, logistics and back-office workflows.
  • Dimensions and weight: 175 x 219 x 163 mm (W x D x H); 1.37 kg (3 lb) device weight.

In the Box

  • Custom America D4X direct thermal label printer, selected interface configuration
  • AC power adapter and U.S. power cord
  • USB cable and starter paper roll
  • USB flash drive with BarTender UltraLite license
  • Quick guide

A starter roll is included; replacement direct thermal labels and an Ethernet cable are ordered separately. Bluetooth 5.2/BLE is included only on 911PZ010200J33.

Print Labels at Up to 8 ips

203 dpi output and a 108 mm print width suit shipping, retail and inventory labels in a compact desktop footprint.

Fit Existing Label Workflows

USB and Ethernet connections, common label-language emulations and BarTender UltraLite support local and shared printer deployments.

Print Method
Direct thermal; no ribbon
Resolution
203 dpi
Maximum Print Speed
8 ips
Maximum Print Length
1296 mm
Maximum Print Width
108 mm
Sensors
Transmissive and reflective
RAM
32 MB
Flash Memory
128 MB
Processor
32-bit RISC
Media Types
Continuous paper, gap labels, black-mark media and punched-hole labels
Media Width
25–110 mm
Media Thickness
0.06–0.25 mm
Maximum Roll Diameter
5 inches (127 mm)
Ribbon
Not used; direct thermal only
Emulations
PZPL, ZEPL and ZTSL
Interfaces
911PZ010100J33: USB 2.0 and 10/100 Ethernet. 911PZ010200J33: USB 2.0, 10/100 Ethernet and Bluetooth 5.2/BLE.
1D Barcodes
Code 39, Code 93, Code 128 UCC, Code 128 A/B/C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC add-ons, MSI and GS1 DataBar
2D Barcodes
PDF417, MaxiCode, Data Matrix, QR Code and Aztec
Bitmap Fonts
Sizes 6, 8, 12, 16, 32; OCR-A and OCR-B; 90/180/270-degree rotation; up to 10x horizontal/vertical scaling
TrueType Fonts
Monotype CG Triumvirate; 0/90/180/270-degree rotation
Supported Driver Platforms
Windows, macOS, Android, Linux and Chrome OS
Controls
One button; one three-color LED
Printer Management Software
BarTender UltraLite
Power Region
US/EU configurations; order exact regional SKU
Operating Temperature
5–40 °C (41–104 °F)
Operating Humidity
25–85% RH, non-condensing
Dimensions (W x D x H)
175 x 219 x 163 mm
Device Weight
1.37 kg (3 lb)
Supply Voltage
24 Vdc ±10%; supplied AC adapter
Power Adapter Input
100–240 Vac, 50–60 Hz
Label Roll Core
At least 25 mm external core diameter; 2 mm (+1 mm) core wall
Storage Temperature
−20 to 50 °C
Storage Humidity
25–85% RH, non-condensing
Package Contents
Printer, AC adapter, U.S. power cord, USB cable, starter roll, USB flash drive with BarTender UltraLite license and quick guide
Custom America D4X Specification Sheet
Download
D4X English Quick Guide (2.20)
Download
D4X English User Manual (1.00)
Download
D4X Linux CUPS Driver (1.25)
Download
D4X macOS Driver (1.2.3)
Download
D4X Windows Utility (1.0.0.7)
Download
D4X Windows Driver (12.3)
Download
D4X Android Print Service (1.00.00)
Download

Shop D4X Models

911PZ010100J33

D4X 4-inch Direct Thermal Label Printer, 203 dpi, up to 8 ips, USB and Ethernet, black.

Interface:

USB and Ethernet

$221.13

911PZ010200J33

D4X 4-inch Direct Thermal Label Printer, 203 dpi, up to 8 ips, USB, Ethernet and Bluetooth 5.2/BLE, black.

Interface:

USB, Ethernet and Bluetooth

$292.06
