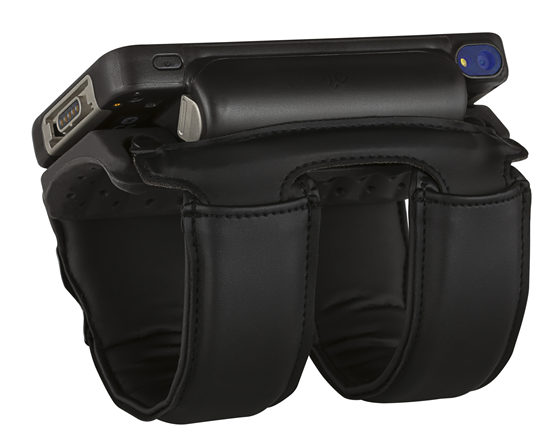

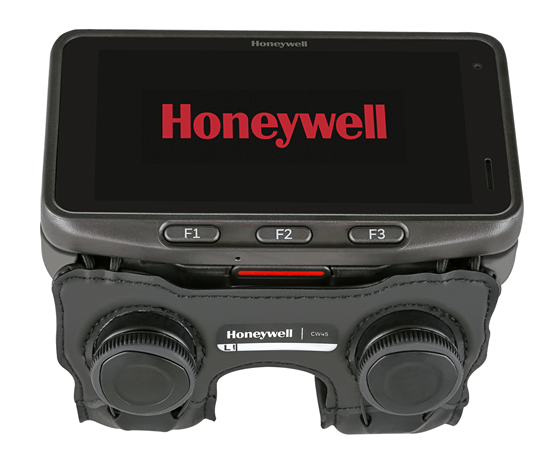

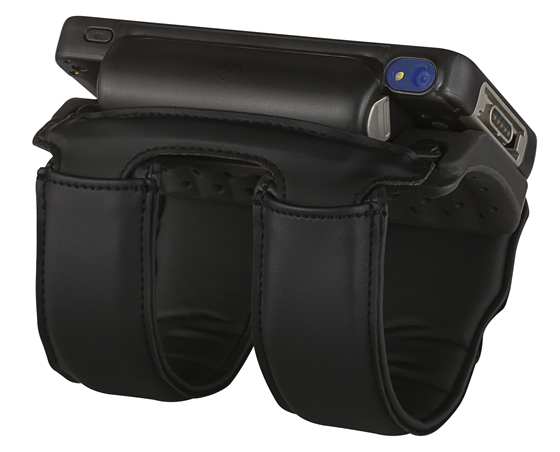

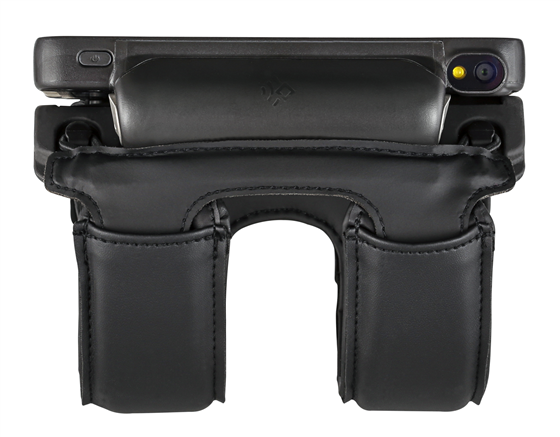

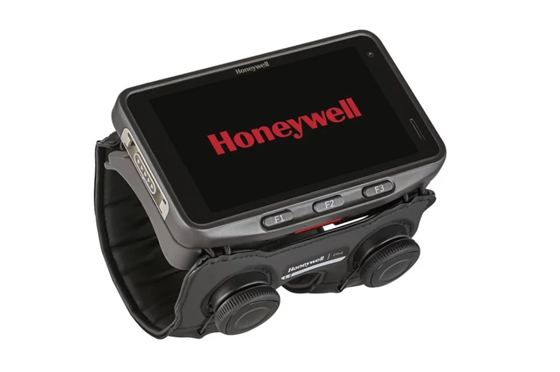

Honeywell CW45

Name: Honeywell CW45
Brand: Honeywell
Price: 2517.17 USD
Availability: InStock

Images may not reflect the actual product

A compact, rugged wearable computer for hands-free warehouse, retail, logistics, and manufacturing workflows.

Brand update: The CW45 is now a Brady product, formerly sold as the Honeywell CW45.

Built on Honeywell's Mobility Edge platform, the CW45 combines a 4.7-inch HD display, Wi-Fi 6 connectivity, front- and side-facing cameras, and a hot-swappable battery in a low-profile arm-worn design. Current configurations offer full-touch or 20-key input with a standard or extended battery.

The CW45 does not include an integrated scan engine. Capture 1D and 2D barcodes with its camera, or pair it with a supported wearable scanner such as the Honeywell 8675i for scan-intensive work.

Key Specifications

Operating system / support horizon: Android 12; guaranteed support through Android 13, with a commitment through Android 14 and 15 subject to feasibility
Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0 GHz
Memory and storage: 6 GB DDR4x RAM; 64 GB UFS flash
Display and input: 4.7-inch 1280 x 720 HD touchscreen; full-touch or 20-key configurations
Scan engine: No integrated engine; camera or supported paired scanner captures 1D/2D barcodes
Wireless connectivity: Wi-Fi 6, Bluetooth 5.1 with BLE, and NFC
Ruggedness and sealing: Up to 6 ft drops, 1,000 tumbles, and IP65/IP67 sealing
Battery / power: 3,400 mAh standard or 6,800 mAh extended battery; hot swap supported for up to one minute
Form factor, dimensions and weight: Arm-worn; 133 x 86 x 14 mm; 263 g standard or 328 g extended
Warranty: 1 year.

In the Box

Honeywell CW45 wearable computer
Selected 3,400 mAh standard or 6,800 mAh extended battery
Arm mount
Comfort pad
Product documentation

Current options include the mount and comfort pad. Arm strap, charger, regional power cord, cables, and companion scanner are sold separately.

Built for Hands-Free Work

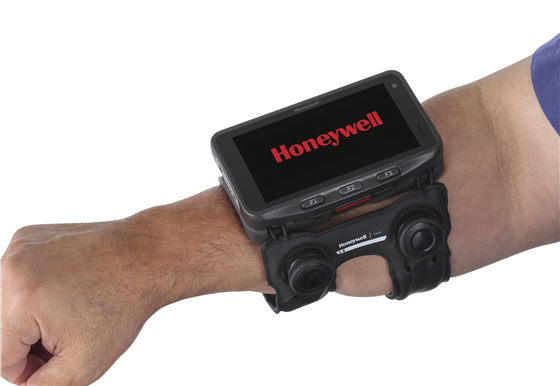

Comfortable arm-worn design

A compact profile, low center of gravity, large display, and purpose-built mounting system keep information accessible while workers keep both hands on the task.

Flexible Data Capture

Use the camera or add a scanner

Use the integrated cameras for occasional barcode capture, or connect a supported 8675i wearable scanner for faster, dedicated scanning without changing the CW45 workflow.

Connected on Mobility Edge

Responsive wireless communication

Wi-Fi 6 with 2x2 MU-MIMO supports data, voice, and video in dense environments, while Honeywell Mobility Edge tools help standardize deployment, management, and application support.

Rugged for Daily Use

Built for demanding shifts

IP65/IP67 sealing, 6-foot drop performance, 1,000 tumbles, Gorilla Glass 5, and a disinfectant-ready housing support repeated use across warehouse, retail, logistics, and manufacturing operations.

Dimensions (L x W x D)

133 mm x 86 mm x 14 mm

Weight

263 g (9.3 oz) with standard battery; 328 g (11.6 oz) with extended battery

Display Size

11.9 cm (4.7 in)

Resolution

High-definition (1280 x 720)

Backlight

LED

Touch Panel

Rugged multi-touch capacitive panel, optically bonded for durability and outdoor readability; glove, stylus, rain, water-droplet rejection, and screen-protector modes; Gorilla Glass 5

Soft Keys

F1, F2, and F3 keys along the bottom edge; default functions are Volume Up, Volume Down, and Enter; reprogrammable by application

Audio

PTT and VoIP ready; speaker; one microphone

I/O Ports

Durable flat I/O connector; USB OTG supported

Universal Dock Platform

Compatible

Operating Temperature

-20°C to +50°C (-4°F to +122°F)

Storage Temperature

-30°C to +70°C (-22°F to +158°F)

Humidity

5% to 95% (non-condensing)

Drop Specification

Multiple 1.2 m (4 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F), and multiple 1.8 m (6 ft) drops to concrete at 23°C to +50°C (73°F to +122°F), per MIL-STD-810H

Tumble Specification

Exceeds 1,000 tumbles at 0.5 m (1.64 ft) per IEC 60068-2-32

Electrostatic Discharge (ESD)

±8 kV direct; ±15 kV air

Environmental Sealing

Independently certified to IP65 and IP67 for moisture and particle intrusion

Thermal Shock

-30°C to +70°C (-22°F to +158°F)

Disinfectant-Ready Housing

Supports frequent cleaning without cracking or fading; see the User Guide for approved cleaning agents

Processor

Qualcomm QCS4290/QCM4290 octa-core, 2.0 GHz

Operating System

Released with Android 12; guaranteed support through Android 13, with a commitment through Android 14 and Android 15 subject to feasibility

Memory

6 GB DDR4x RAM; 64 GB UFS flash

Cameras

13-megapixel side-facing camera; 8-megapixel front-facing camera

Sensors

Ambient light sensor, accelerometer, gyroscope, eCompass, and high-gravity sensor

Battery Type

Li-ion smart battery with integrated diagnostic tools

Standard Battery Pack

3.6 V, 3,400 mAh

Extended Battery Pack

3.6 V, 6,800 mAh

Battery Hot Swap

Up to 1 minute

Charging Time

At 25°C: standard battery, 3 hours typical; extended battery, 6.5 hours typical

Decode Capabilities

1D and 2D barcode symbologies through a paired scanner accessory or the integrated camera; Honeywell SDKs for Android

Application Software

Honeywell Mobility Edge utilities and demos

WLAN

Wi-Fi 6 certified; IEEE 802.11 a/b/g/n/ac/ax with 2x2 MU-MIMO; OPEN, WEP, WPA/WPA2/WPA3 Personal and Enterprise security

Push to Talk (PTT)

Supported

Supported EAP

TLS, PEAP, and TTLS

Bluetooth

Bluetooth 5.1 and BLE

Bluetooth Profiles

HFP, PBAP, A2DP, AVRCP, OPP, SPP, and GATT

NFC
