Citizen CT-E301
Description
Specifications
Download

Citizen CT-E301

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

Compact, top-exit receipt printing with self-protective housing

The Citizen CT-E301 combines fast thermal receipt printing with a compact design for retail and hospitality counters. Its disinfectant-ready, silver-ion housing is designed to suppress bacterial growth on the casing.

Choose a USB-only model or a triple-interface model with USB, serial and Ethernet. Drop-in loading and an anti-curl function simplify daily receipt handling.

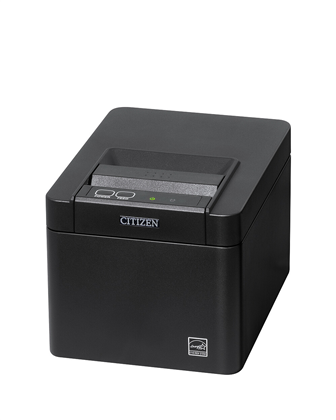

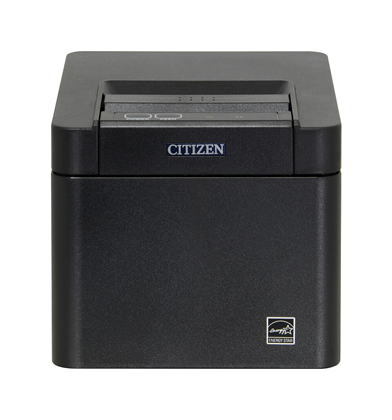

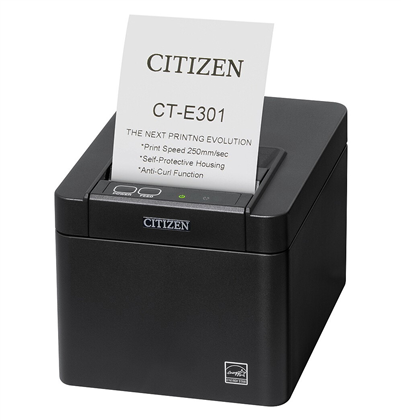

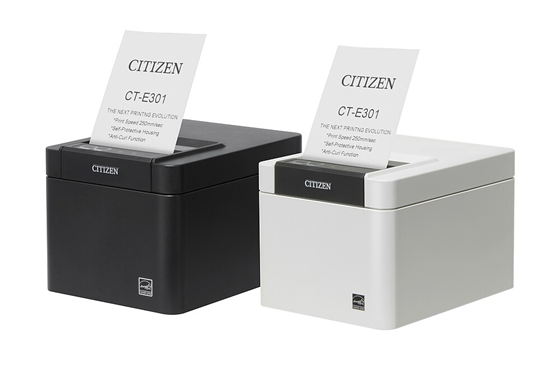

Citizen CT-E301 receipt printer

Key Specifications

  • Print method: Direct thermal
  • Print speed: Up to 250 mm/sec
  • Paper widths: 58 or 80 mm
  • Resolution: 203 dpi
  • Interfaces / connectivity: USB-only or USB + RS-232 serial + Ethernet, by model
  • Cutter and reliability: Full/partial cutter; 1.5 million cuts with 80 mm paper or 1 million with 58 mm paper. Print head rated for 150 km or 200 million pulses under specified conditions.
  • Platform support: Windows; CUPS for macOS and Linux; OPOS and JavaPOS
  • Dimensions and weight: 125 W × 165 D × 108 H mm; approximately 1.2 kg

In the Box

  • Citizen CT-E301 printer
  • 37AD5 AC adapter
  • AC power cord
  • Quick Start Guides

Receipt paper, interface cables and optional accessories are sold separately unless included with the selected configuration.

Antibacterial, Disinfectant-Ready Housing

Citizen’s antibacterial housing carries the SIAA mark and meets ISO 22196. Its disinfectant-ready construction makes it a relevant choice for healthcare, hospitality and other counters where cleaning is a priority.

Anti-Curl Receipt Output

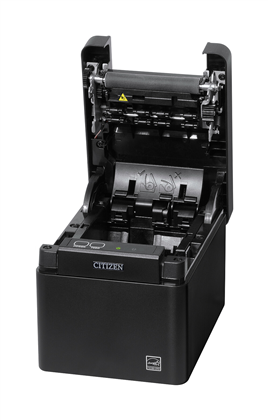

Citizen’s anti-curl function helps receipts lie flatter after printing. One-handed media changes make it easy to reload the compact printer during service.

Dimensions (W x D x H)
125 (W) x 165 (D) x 108 (H) mm
Weight
Approximately 1.2 kg

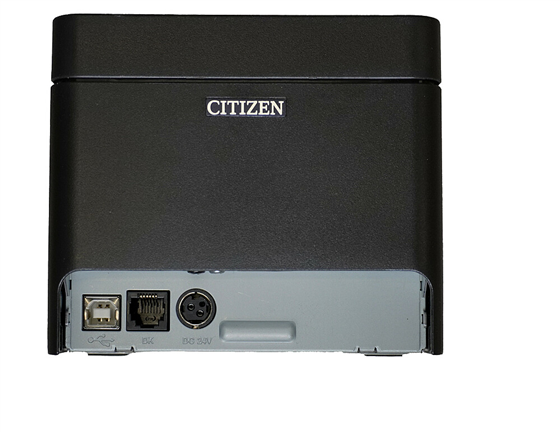

Interface Options
USB-only (UB models) or USB, RS-232 serial and Ethernet (TR models)
Print Method
Direct Thermal
Media Thickness (min to max)
53 to 85 µm
Resolution
203 dpi
Print Speed (maximum)
250 mm/sec maximum at 100% print density
Print Width (maximum)
72 mm
Media Width (min to max)
57.5 - 79.5 (+/- 0.5 mm)
Roll Size (max), Core Size
83 mm maximum roll outside diameter; core: 12 mm inside / 18 mm outside diameter
Media Sensor
Paper end
Cutter
Guillotine cutter, full and partial cutting
Printer Reliability
Print head: 150 km or 200 million pulses. Auto cutter: 1.5 million cuts with 3-inch paper; 1 million cuts with 2-inch paper. Ratings apply at room temperature and humidity with specified recommended paper and thickness.
Power supply
AC adapter (37AD5): 100–240 V AC, 50/60 Hz input; 24 V DC, 2.1 A output. Printer supply: 24 V DC ±5%.
Emulations (Languages)
ESC/POS

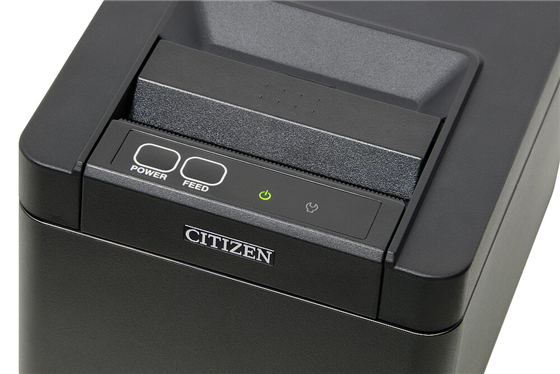

Control panel
POWER and FEED buttons; POWER and ERROR LEDs
Drivers and software
Windows driver; CUPS drivers for macOS and Linux; OPOS and JavaPOS drivers. Model-specific downloads are available from Citizen.
Flash (Non-Volatile Memory)
8 MB flash; 384 KB user memory for user-defined characters and logos
EMC and safety standards
UL, cUL, FCC, IC, CE and UKCA when used with the specified 37AD5 AC adapter; certifications vary by region.
Operating temperature and humidity
5 to 45 °C; 10 to 90% RH, non-condensing
Storage temperature and humidity
-20 to 60 °C; 10 to 90% RH, non-condensing
Cash drawer kick-out
Supports 2 cash drawers
Media type
Thermal receipt paper; 58 mm or 80 mm nominal paper width
Line spacing
4.25 mm (1/6 inch), variable by command
CT-E301 POS Printer Utility 2.10.0.0 (Windows)
Download
CT-E301 US Datasheet (English)
Download
CT-E301 User Manual (English)
Download
CT-E301 Windows Driver 3.6.1.0 (Windows 10/11)
Download

Shop CT-E301 Models

CT-E301UBUBK

CT-E301 Thermal Receipt Printer, USB, Black

Color:

Black

Interface:

USB

$261.29

CT-E301TRUWH

CT-E301 Thermal Receipt Printer, USB, Serial and Ethernet, White

Interface:

USB, Serial, Ethernet

Color:

White

$291.29

CT-E301TRUBK

CT-E301 Thermal Receipt Printer, USB, Serial and Ethernet, Black

Color:

Black

Interface:

USB, Serial, Ethernet

$325.42

Shop CT-E301 Accessories

XWP-T220PF-10-ADD

Phenol-free thermal receipt paper, 3.125 in × 220 ft, 10-roll introductory pack. Ground shipping only.

$45.00

28102

6-Foot Black USB Type-A-to-Type-B Printer Cable

$14.00
Have Questions?Call Us at: (800) 241-6264
