Custom America Connect Kiosk
Build a compact countertop or floor-standing self-service station around the touch computer and peripherals your application requires.

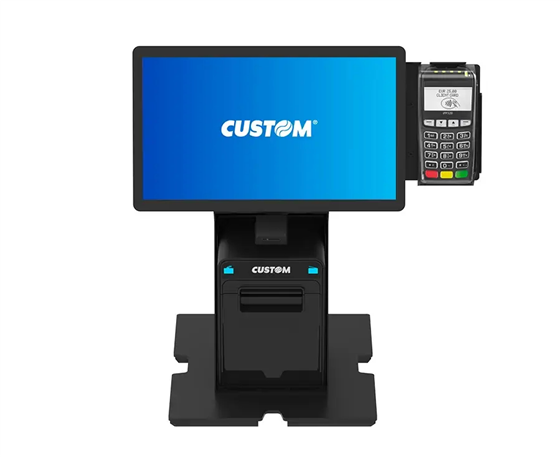

CONNECT is Custom's modular indoor kiosk stand for attended and unattended self-service deployments. Its space-saving frame supports portrait or landscape touch computers and keeps the display, printer, barcode reader, and payment-device choices flexible.
The platform is designed for straightforward assembly and maintenance, with separate countertop and floor configurations and adjustable VESA mounting for compatible 15-inch through 24-inch displays.
Key Specifications
- Processor: Supplied by the selected touch computer
- Memory and storage: Supplied by the selected touch computer
- Display and touch: VESA-ready displays from 15 to 24 inches
- Operating system / platform: Determined by the selected Windows or Android touch computer
- Data capture and peripherals: Optional 80 mm printer, barcode reader, and payment-terminal support
- Ports and connectivity: Supplied by the installed touch computer and peripherals
- Mounting / deployment: Countertop or floor stand; VESA 75 x 75 mm or 100 x 100 mm; portrait or landscape
- Power: Each installed electronic device uses its own specified power connection
- Durability / environmental range: Indoor deployment; ADA and EAA compliance is configuration-dependent
- Dimensions and weight: Countertop 320 x 290 x 488-582.5 mm; floor 450 x 420 x 1317-1411.5 mm; frame weight varies by configuration
- Warranty: 3 years
In the Box

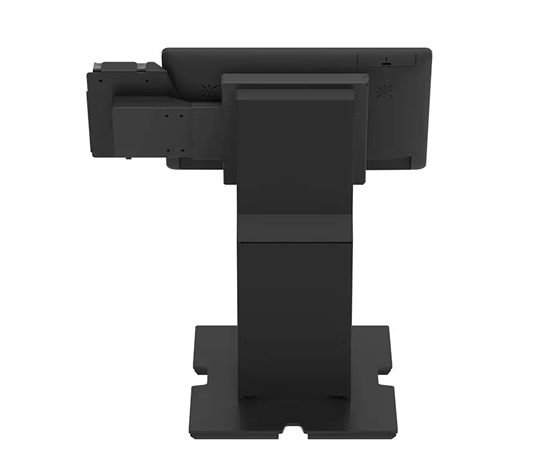

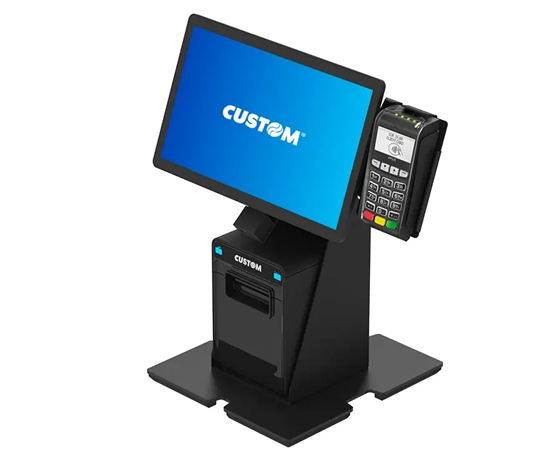

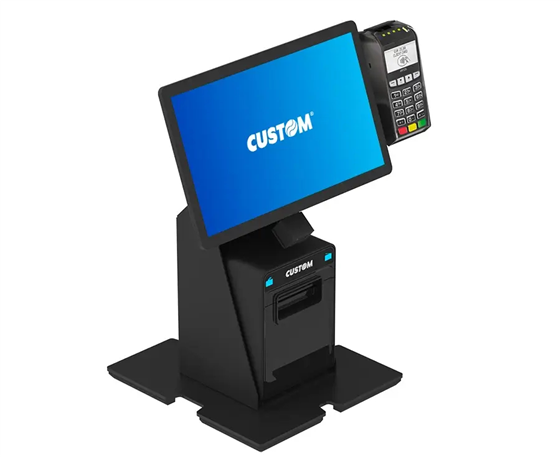

- Countertop kit: CONNECT countertop self-service stand and countertop base
- Floor kit: CONNECT countertop self-service stand, floor pedestal, and floor pedestal base
Touch computer, receipt printer, barcode reader, payment device, and their holders are optional unless the selected configuration explicitly includes them.
Compact and Configurable

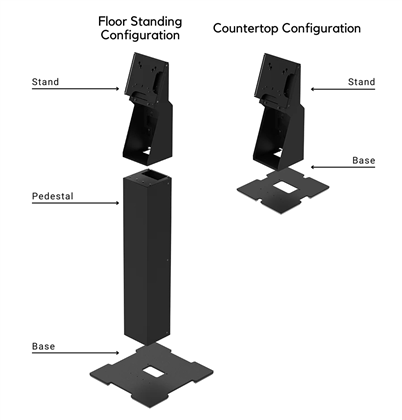

Two deployment formats

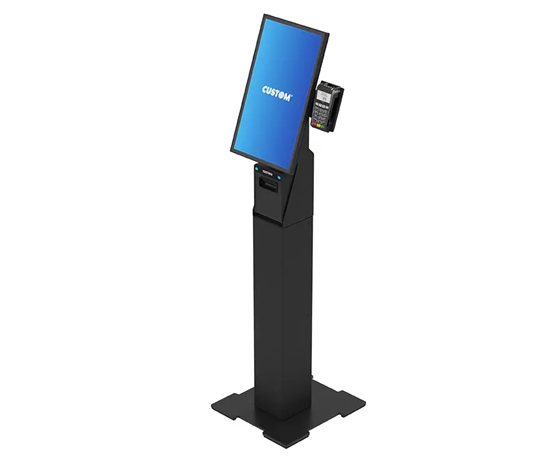

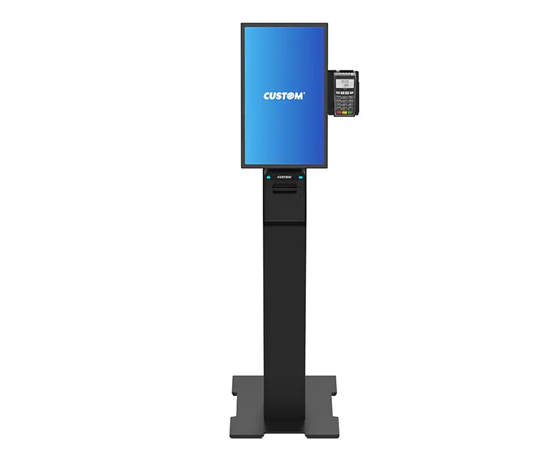

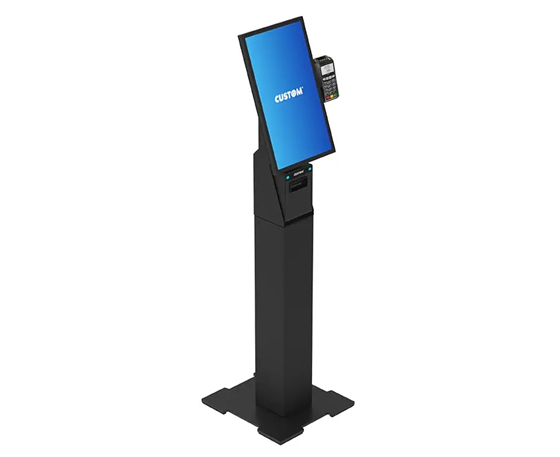

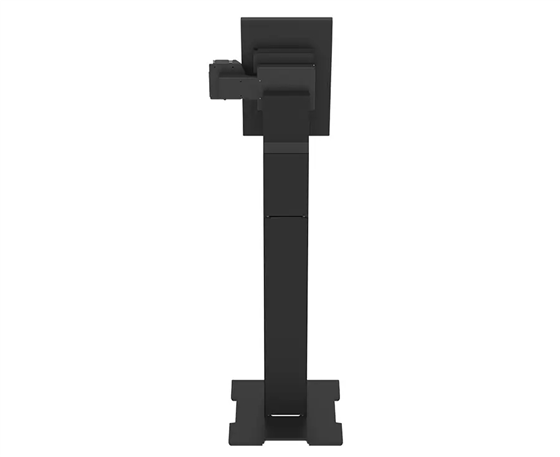

Use the same modular platform on a counter or add the pedestal and floor base for a freestanding self-service station.
Flexible Display Mounting
Portrait or landscape
The adjustable VESA plate supports 75 x 75 mm and 100 x 100 mm patterns for compatible touch computers from 15 inches to 24 inches.
Peripheral Integration
Configure the workflow
Add a compatible 80 mm receipt printer, barcode reader, and payment-device holder to suit ordering, check-in, payment, or information applications.
Installation and Service
Designed for maintainability
Internal routing and removable covers help installers assemble, secure, cable, and service the selected devices while keeping the finished kiosk tidy.
Compatible Touch Computers
DAYTONA Windows, SILK Windows, PEAK Windows 21.5-inch, and the TREK Windows and Android families are current manufacturer-listed choices.
Shop Connect Kiosk Models
CONNECT-COUNTERTOP-KIT
Complete CONNECT Kiosk Countertop Kit — Stand and Countertop Base
Configuration:
Complete countertop kit
CONNECT-FLOOR-KIT
Complete CONNECT Kiosk Floor Kit — Stand, Floor Pedestal, and Pedestal Base
Configuration:
Complete floor kit
Shop Connect Kiosk Accessories
9C3PC010500010
CONNECT Barcode Scanner Bracket Kit
9C1PC011100010
CONNECT Payment Terminal Support Arm
9C3PC010800010
CONNECT Small Payment Device Plate
9C3PC010600010
CONNECT Large Payment Plate for Verifone M400
9C3PC010900010
CONNECT Large Payment Plate for Ingenico iSC Touch 250
9C1PC010800010
CONNECT Printer Mount for Epson TM-m30III
