Epson ColorWorks CW-C6500
Description
Specifications
Download

Epson ColorWorks CW-C6500

Images may not reflect the actual product
Product Image
small product image0
small product image1

Wide-format color labels with automated handling options

The Epson ColorWorks CW-C6500 extends on-demand color printing to wider labels, with a maximum print width of 8.34 inches. It combines detailed inkjet output with a choice of automatic cutting or peel-and-present operation.

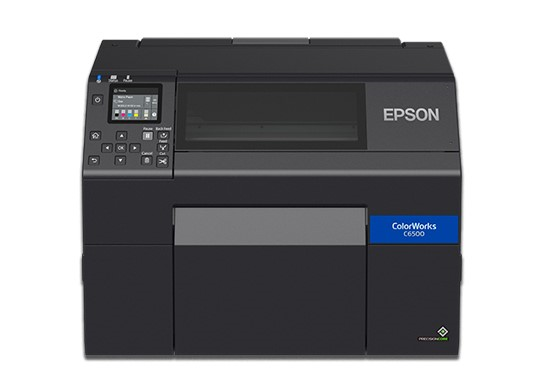

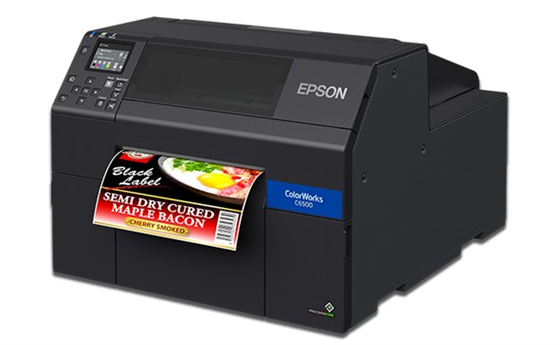

Epson ColorWorks CW-C6500 printer

Key Specifications

  • Print method: Inkjet
  • Resolution: Up to 1200 dpi
  • Maximum print width: 8.34 in (212 mm)
  • Print speed: Up to 5 in/sec; varies with print width and quality
  • Media and ribbon handling: Cutter or peel-and-present; rolls up to 6 in OD; no ribbon
  • Connectivity: USB, Ethernet and applicator I/O
  • Duty / application fit: Mid- to high-volume wide-format color labels
  • Dimensions and weight: 444 × 515 × 326 mm (cutter) or 444 × 530 × 326 mm (peeler), W × D × H; 26 kg
  • Warranty: 1 year

In the Box

  • Selected CW-C6500 cutter or peel-and-present printer
  • AC power cord, four setup ink cartridges and maintenance box
  • Setup documentation

Initial charging uses part of the setup ink. Match Gloss Black or Matte Black to the intended media.

Wide color output

The wider print area accommodates larger labels with detailed graphics, text and barcodes.

Choose label handling

CW-C6500A models cut labels automatically; CW-C6500P models peel and present them.

Application integration

ZPL II compatibility and an applicator I/O connection support existing labeling and automation workflows.

Remote administration

Network tools support monitoring and configuration across printer fleets.

Interface Options
USB 2.0; Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
Operating System
Windows 10, 8.1, 8, 7 SP1, Windows Vista® SP2, macOS® 10.6.8 or later, Linux
Print Method
Serial inkjet PrecisionCore TFP
Print Resolution
Up to 1200 × 1200 dpi
Maximum Print Area
Print Width: 8.34" (212 mm)
Media Type
Inkjet Coated Matte Paper, Gloss Paper, High-gloss Synthetic, Fine Paper, PET Film, Matte Synthetic, Uncoated Plain Paper
Paper Thickness
.005" – .009" (0.129 mm – 0.236 mm)
Core Diameter
3" (76 mm)
Media Roll Diameter
6.0" (153 mm)
Barcodes Supported
UPC-A, UPC-E, EAN-13, EAN-8, Code 39, ITF, Codabar, Code 93, Code 128, GS1-128 and GS1 DataBar Omnidirectional, Truncated, Limited and Expanded
Dimensions (W x D x H)
CW-C6500A: 444 × 515 × 326 mm (17.5 × 20.3 × 12.8 in); CW-C6500P: 444 × 530 × 326 mm (17.5 × 20.9 × 12.8 in), W × D × H
Weight
57.3 lb (26.0 kg)
Warranty
1-year depot repair
Print Speed
Up to 5 in/s at 300 × 600 dpi and 3.5 in (89 mm) print width. Speed varies with print width, resolution, data and finishing.
Ink
UltraChrome DL pigment ink; individual cyan, magenta, yellow and gloss-black or matte-black cartridges, depending on model
Printhead and Durability
Permanent PrecisionCore TFP printhead; nozzle verification, automatic maintenance and missing-dot compensation. Feeding mechanism: 200 km before major service.
Control Panel
2.7-inch full-color display and 13-key pad; power, status and pause indicators with beeper
Color Management
ICC profiles, RGB spot-color substitution and driver-based adjustments; supports banner printing in segments
Media Sources
Internal roll, rear-fed fanfold or external powered unwinder
Label Length
Maximum 610 mm (24 in); minimum 8 mm without finishing, 13 mm with peeler or 15 mm with cutter
Media Sensors
Die-cut gap: 2–6 mm; adjustable gap sensor 10–60 mm from left guide in 5 mm steps. Black-mark sensor fixed 12 mm from left guide; minimum mark 18 × 4 mm.
Cutter Life
Auto-cutter models: up to 1.5 million cuts with paper liner; 0.5 million with synthetic liner or continuous matte paper; 0.3 million with continuous gloss paper; 0.1 million with continuous synthetic media
2D Symbols
PDF417, QR Code, MaxiCode, GS1 DataBar Stacked, Stacked Omnidirectional and Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417 and Micro QR Code
Printer Languages
Native ZPL II support with color extensions; ESC/Label
General-Purpose I/O
25-pin D-Sub connector for supply/fault/readiness status and pause, clean and print controls
Remote Management
Epson Device Admin, WebConfig, Monitoring Tool, Printer Setting Utility, Deployment Tool, EpsonNet SetupManager, EpsonNet Config SE and Firmware Updater
Operating Environment
5–35°C; 20–80% relative humidity
Storage Environment
-20–60°C; 5–85% relative humidity
Power
100–240 V AC, 50–60 Hz; average printing 50–60 W, standby 4.1–4.4 W, power-off 0.2–0.5 W
Acoustic Noise
Approximately 55 dBA
In the Box
Printer, AC power cord, four ink cartridges (CMY plus gloss or matte black), maintenance box and instruction sheet
Media Width
Cutter model: 25–216 mm (1.0–8.5 in); peeler model: 50.8–216 mm (2.0–8.5 in)
Finishing
A models: auto cutter; P models: peel-and-present with label-taking sensor
CW-C6000 / CW-C6500 Specification Sheet — CPD-58012R6
Download
CW-C6000 / CW-C6500 Technical Reference Guide — Rev. O
Download
CW-C6000 / CW-C6500 User Guide — Revision 06
Download
CW-C6500 Start Here Guide
Download
CW-C6500A Auto Cutter Windows 64-bit Driver v1.10.0.0 — firmware 03.67.TS12N5 or later required
Download
CW-C6500P Peeler Windows 64-bit Driver v1.10.0.0 — firmware 03.67.TS12N5 or later required
Download

Shop ColorWorks CW-C6500 Models

C31CH77A9971

C6500 Color Inkjet Label Printer, 8", Peel and Present, Gloss. Includes power cord, four starter ink cartridges for initial setup, maintenance box, and documentation. 1 Year Standard Warranty.

Gloss or Matte:

Gloss

Accessory:

Peeler

$4305.00

C31CH77A9991

C6500 Color Inkjet Label Printer, 8", Auto Cutter, Gloss. Includes power cord, four starter ink cartridges for initial setup, maintenance box, and documentation. 1 Year Standard Warranty.

Accessory:

Autocutter

Gloss or Matte:

Gloss

$3965.00

C31CH77A9981

C6500 Color Inkjet Label Printer, 8", Auto Cutter, Matte. Includes power cord, four starter ink cartridges for initial setup, maintenance box, and documentation. 1 Year Standard Warranty.

Accessory:

Autocutter

Gloss or Matte:

Matte

$3965.00

C31CH77A9961

C6500 Color Inkjet Label Printer, 8", Peel and Present, Matte. Includes power cord, four starter ink cartridges for initial setup, maintenance box, and documentation. 1 Year Standard Warranty.

Gloss or Matte:

Matte

Accessory:

Peeler

$4305.00

Shop ColorWorks CW-C6500 Accessories

C32C881101

C6500 SPARE SPINDLE 8-INCH

$197.72

C32C891321

USB Wireless Adapter Dongle (2.4GHz/5.0GHz), OT-WL06-321

$135.49

C13T44B520

Single Black Matte Ink Cartridge for C6000/C6500

$95.93

C13T44B120

Single Black Gloss Ink Cartridge for C6000/C6500

$95.93

C13T44B220

SINGLE CYAN INK CARTRIDGE FOR C6000/C6500

$95.93

C13T44B320

SINGLE MAGENTA INK CARTRIDGE FOR C6000/C6500

$95.93

C13T44B420

SINGLE YELLOW INK CARTRIDGE FOR C6000/C6500

$95.93

C33S021501

Epson SJMB6000/6500 ink maintenance box for ColorWorks CW-C6000 and CW-C6500 printers.

$41.25

EPPCWC6500R2

Epson ColorWorks CW-C6500 2-year Return for Repair service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$754.00

EPPCWC6500R4

Epson ColorWorks CW-C6500 4-year Return for Repair service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$1428.00

EPPCWC6500S3

Epson ColorWorks CW-C6500 3-year on-site repair service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$2006.00

EPPCWC6500S5

Epson ColorWorks CW-C6500 5-year on-site repair service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$2760.00

EPPCWC6500SITA3

Epson ColorWorks CW-C6500 3-year Spare-in-the-Air exchange service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$992.00

EPPCWC6500SITA5

Epson ColorWorks CW-C6500 5-year Spare-in-the-Air exchange service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$1564.00

EPPCWC6500R1

Epson ColorWorks CW-C6500 1-year Return for Repair service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$397.00

EPPCWC6500S1

Epson ColorWorks CW-C6500 1-year on-site repair service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$788.00

EPPCWC6500SITA

Epson ColorWorks CW-C6500 1-year Spare-in-the-Air exchange service plan. Requires current Epson coverage; eligibility and use limits apply. Total coverage cannot exceed 5 years from printer purchase.

$369.00
