DataLogic CODiScan

Name: DataLogic CODiScan
Brand: DataLogic
Price: 604.8 USD
Availability: InStock

Images may not reflect the actual product

Lightweight wearable scanning for hands-free workflows

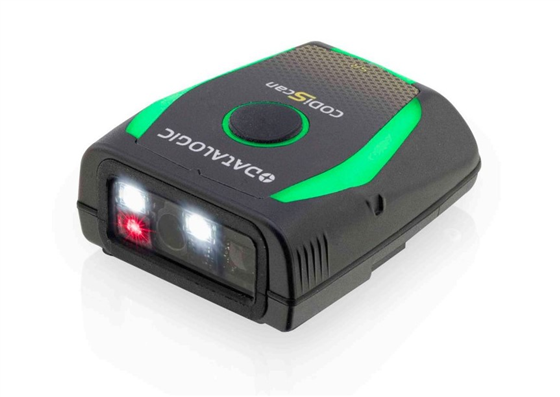

The Datalogic CODiScan is a compact Bluetooth wearable imager for picking, packing, order fulfillment and traceability. Smart aiming helps target the right barcode, while Green Spot, visible LEDs, sound and vibration confirm each read without setting down a handheld scanner.

Key Specifications

Scanner configuration: Wearable cordless area imager
Barcode capability: 1D and 2D, including QR and PDF417
Reading range: 13 mil UPC: SR 4.5–74 cm; MR 8–100 cm
Interfaces / connectivity: Bluetooth 5.2 Classic and BLE; optional Gateway Connect provides USB or Wi-Fi host connectivity
Durability: Repeated 5.9 ft / 1.8 m concrete drops; 2,000 tumbles at 1.6 ft / 0.5 m
Environmental sealing: IP54
Dimensions: 2.0 × 1.7 × 0.7 in / 53 × 44 × 19 mm
Weight: 1.5 oz / 44 g
Battery / runtime: 640 mAh; up to 16 hours or 12,000 scans at one scan every 5 seconds, depending on settings and conditions; 2.15-hour charging with a Datalogic charging station
Warranty: 1 year, including battery

Working distance varies with barcode size, scan angle and environmental conditions. Standard Range is specified with 13 mil UPC/EAN; Mid Range with 13 mil UPC.

In the Box

HS7600SR / HS7600MR
- CODiScan wearable scanner with the selected Standard Range or Mid Range engine

Hand trigger or lanyard and charging accessories are sold separately.

Smart aiming and clear feedback

The aiming system identifies the framed barcode before capture. Green Spot projects good-read confirmation onto the scanned item; lateral and rear LEDs, adjustable sound and vibration provide additional feedback.

Flexible hands-free wearing

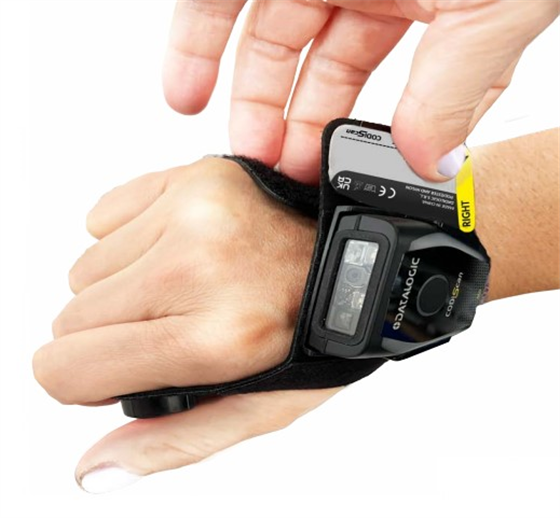

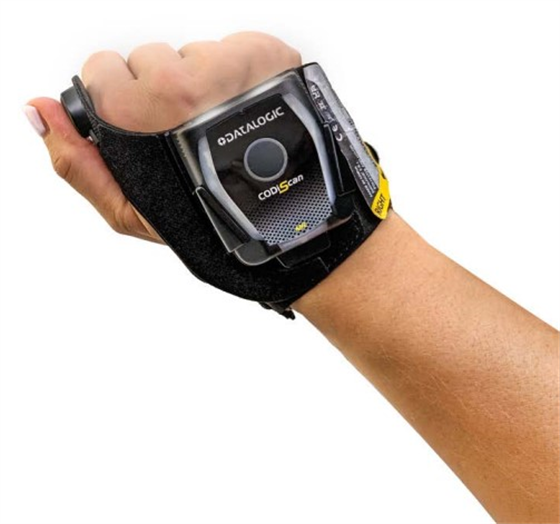

Optional left- or right-hand triggers adjust for use on a bare hand or over a work glove. Their electronics detach from the washable fabric, while an optional extensible lanyard supports neck, belt or pocket carrying.

Dimensions

53 x 44 x 19 mm / 2.0 x 1.7 x 0.7 in

Weight

44 g / 1.5 oz

Optical Resolution

1280 x 960 pixels

Reading Field of View

Standard Range: horizontal 42°, vertical 32°; Mid Range: horizontal 30°, vertical 23°

Reading Angle

Skew: ±60°; pitch: ±60°; roll: ±180°

Ambient Light

0–100,000 lux

Aimer

650 nm, 1 mW

Green Spot

Datalogic Green Spot projects good-read feedback onto the code

LEDs

Three LEDs: two lateral blades and a rear spot with separate on/off; good-read, battery status and Bluetooth pairing feedback

Audio

85 dBA, adjustable

Haptic

Vibration feedback available for quiet environments

Bluetooth Wireless Technology

Bluetooth BLE / Classic 5.2, classes 1, 2 and 3; supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0, 5.1 and 5.2

Transmission Range

Up to 100 m / 328 ft to host; with Gateway Connect, range depends on the host

Wi-Fi (via Gateway)

IEEE 802.11b/g/n, 1x1, 20 MHz channel bandwidth, 2.4 GHz; WPA2/WPA3 Personal; WPA2 Enterprise PEAP, TLS and TTLS; MQTT clients 3.1 and 3.1.1; WebSocket client

1D / Linear Codes

Automatically decodes standard 1D codes, including GS1 DataBar linear codes

2D Codes

PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec and MaxiCode

Postal Codes

US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal and Dutch Postal (KIX)

Battery

640 mAh rechargeable lithium polymer

Charging Time

2.15 hours with a Datalogic charging station

Operating Time / Scans

Up to 16 hours at one scan every 5 seconds / 12,000 scans, depending on settings and environmental conditions

Power Supply

Charging station: 5 VDC, 1.2 A via power supply

Drop Resistance

Multiple drops from 1.8 m / 5.9 ft onto concrete; IEC 60068-2-31:2008–1

Tumbles

2,000 at 0.5 m / 1.6 ft; IEC 60068-2-31:2008–2

Impact Resistance

Greater than IK06 (1 J); IEC 60068-2-75

Particulate and Water Sealing

IP54; EN 60529

Temperature

Operating: -20 to 50°C / -4 to 122°F; charging: 0 to 40°C / 32 to 104°F; storage: -20 to 60°C / -4 to 140°F

Standard Range Reading Distances

Code 39 3 mil: 13–22 cm / 5.1–8.6 in; Code 128 5 mil: 10–30 cm / 3.9–11.8 in; PDF417 5 mil: 12–19 cm / 4.7–7.5 in; Data Matrix 10 mil: 10–28 cm / 3.9–11.0 in; EAN/UPC-A 13 mil: 4.5–74 cm / 1.7–29.1 in; QR Code 15 mil: 4–37 cm / 1.5–14.5 in; Code 39 20 mil: 40–110 cm / 15.7–43.3 in. Minimum distance depends on symbol length, scan angle and environmental conditions.

Mid Range Reading Distances

Code 128 5 mil: 21–52 cm / 8.2–20.4 in; PDF417 5 mil: 22–30 cm / 8.6–11.8 in; Data Matrix 10 mil: 20–45 cm / 7.8–17.7 in; UPC-A 13 mil: 8–100 cm / 3.1–39.3 in; Code 39 20 mil: up to 160 cm / 62.9 in; Code 39 100 mil: up to 500 cm / 196.8 in. Minimum distance depends on symbol length, scan angle and environmental conditions.

Configuration Tools and Device Management

Aladdin web or stand-alone software for barcode, interface, device and profile configuration and device management

Gateway Integration

Optional Datalogic Gateway Connect supports USB host integration and manages up to seven CODiScan scanners

Android Integration

Mobile Aladdin app and SDK support integration with Android enterprise applications; app is preinstalled on the Datalogic Memor family

Trigger

Device multifunction key, or separately sold Datalogic hand trigger rated for five million activations; smart aiming helps select the intended barcode

Recommended Paired Devices

Datalogic Memor PDA 11, 12, 30 and 35; consult the product manual for supported interfaces

Agency Approvals

Meets applicable safety and regulatory approvals for its intended use; complete certification list is in the product Regulatory Addendum

Environmental Compliance

China RoHS, EU RoHS and REACH

EASEOFCARE Services

Optional 3- or 5-year service coverage includes battery; service plans are also available for accessories, chargers and Gateway

Warranty

1-year factory warranty, including the battery

Shop CODiScan Models

HS7600SR

CODiScan Bluetooth Wearable Scanner, Standard Range. Hand Strap & Trigger (HT1-HS7600KL or HT1-HS7600KR), Lanyard & Charger Sold Separately.

Range:

Standard Range

$677.70

HS7600MR

CODiScan Bluetooth Wearable Scanner, Mid Range. Hand Strap & Trigger (HT1-HS7600KL or HT1-HS7600KR), Lanyard & Charger Sold Separately.

Range:

Mid Range

$604.80

Shop CODiScan Accessories

HT1-HS7600KL

Left Hand Trigger - Adjustable Multisize - 1 pc

$53.63

HT1-HS7600KR

Right Hand Trigger - Adjustable Multisize - 1 pc

$53.63

90ACC0306

Datalogic US/Japan plug adapter for 90ACC0287 5V power supply. Power supply sold separately.

$13.41

90A052258

Straight USB Cable for Datalogic Barcode Scanners. Type A, TPUW. 2 Meter, Black

$25.00

6003-0941

Power Cord, 110V, US

$15.00

90ACC1886

Datalogic US 2-Pin AC Power Cord

$4.00

90ACC0287

Power Supply, 5V 3A, Line Cord Not Included

$28.00

94ACC0196

DataLogic, Power Adapter Kit, Power Supply, 4 Regional Plugs USB-C

$29.87

ZSC2CODIS3B

CODiScan Ease of Care 3-Year Comprehensive Warranty. Includes 2 Day Express Shipping To Depot and Customer Covered by Datalogic. No Advanced Replacement.

$224.40
