Citizen CMP-30II
Description
Specifications
Download

Citizen CMP-30II

Images may not reflect the actual product
Product Image
small product image0
small product image1

Portable 3-inch receipts and model-qualified labels

The Citizen CMP-30II prints mobile receipts at up to 100 mm/sec (4 ips) for retail, hospitality, ticketing, and transport work. CMP-30IIL label configurations also print direct thermal labels. A rechargeable battery and drop-in loading support printing away from a fixed counter.

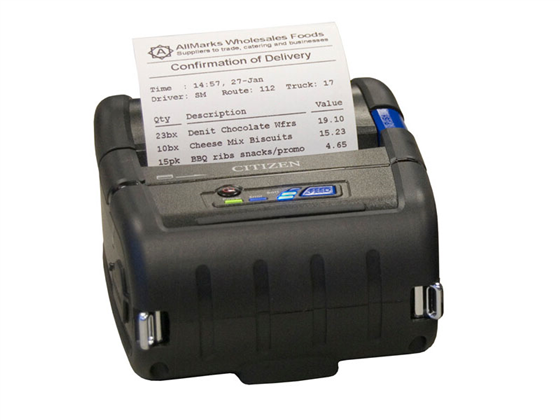

Citizen CMP-30II mobile receipt printer

Key Specifications

  • Print method: Direct thermal
  • Resolution: 203 dpi
  • Maximum print width: 72 mm
  • Print speed: Up to 100 mm/sec (4 ips)
  • Media handling: 25–80 mm media width; maximum roll diameter 56 mm; paper-end and reflective black-mark sensors; integral tear bar. CMP-30IIL configurations add label-gap sensing for label printing
  • Connectivity: USB mini-B and RS-232 mini-DIN standard; Bluetooth, Apple MFi, or Wi-Fi by configuration
  • Battery / power: 7.4 V, 2600 mAh battery; 100–240 V AC adapter input
  • Durability / sealing: Exceeds IP42; survives multiple 1.5 m drops in manufacturer testing
  • Dimensions and weight: 120 × 152 × 70 mm (W × D × H); 0.6 kg
  • Warranty: 1 year

In the Box

  • CMP-30II printer
  • Standard clip-in rechargeable battery
  • AC adapter
  • USB cable
  • Belt clip
  • Sample paper roll
  • 58 mm paper-width partition
  • Quick Start Guide and software CD

Additional paper or labels, serial cables and optional carrying or charging accessories are sold separately unless included with the selected configuration.

Drop-Tested Portable Housing

Citizen’s rugged housing exceeds IP42 and withstands repeated 1.5 m drops in manufacturer testing. A replaceable battery supports three-inch receipt printing away from a fixed counter.

Receipt or Label Configuration

CMP-30II models print mobile receipts. CMP-30IIL configurations add a label-gap sensor for compatible label stock, making the L suffix an important choice when the application requires labels.

Print Speed (maximum)
Up to 100 mm/sec (4 inches per second)
Print Width (maximum)
72 mm
Media Width (min to max)
25 - 80 mm
Media Sensor
Paper end and reflective black mark; label-gap sensing on label-capable L configurations
Roll Size (max), Core Size
Diameter 2.20 inches (56 mm)
Size (W x D x H) and Weight
120 x 152 x 70 mm, 0.6 Kg
Emulations (Languages)
ESC/POS + CPCL on C configurations; ZPL II on Z configurations
Media type
Direct thermal receipt paper; label-capable L configurations also support direct thermal labels with label-gap sensing. Drop-in loading and integral tear bar.
Environmental rating, drop test
Exceeds IP42; survives multiple 1.5 m drops in manufacturer testing
Battery and Power
Standard clip-in hard-pack rechargeable battery: 7.4 V, 2600 mAh. AC adapter input: 100–240 VAC, 50/60 Hz; output: 8.4 V, 1200 mA. On-board charging or optional external charger. Mains charger included.
Print Method and Format
Direct thermal; 3-inch mobile receipts, with label printing on label-capable L configurations
Resolution
203 dpi
Interfaces Available
Standard USB (mini-B) and RS-232 serial (mini-DIN). Bluetooth Class 2, Bluetooth with Apple MFi, compact wireless LAN or Bluetooth 4.2 depending on configuration. Optional factory-installed magnetic stripe or IC-card reader.
Warranty
1 year
CMP-30II Android SDK (current official package)
Download
CMP-30II Configuration Utility 2.93 (Windows 7/8/10)
Download
CMP-30II iOS SDK (current official package)
Download
CMP-30II Spec Sheet (English US)
Download
CMP-30II User Manual (English)
Download
CMP-30II Windows Driver (Windows 8/10/11; Server 2012/2016/2019)
Download

Shop CMP-30II Models

CMP-30IIBTIUZL

CMP-30II 3" Mobile Printer - Label, Serial, USB, BT + MFi, ZPL II

Radio:

Bluetooth + MFi

Media Handling:

Receipts and labels

Emulation:

ZPL II

$728.52

CMP-30IIBTIUC

CMP-30II 3" Mobile Printer - Serial, USB, BT + MFi, ESC/POS & CPCL

Radio:

Bluetooth + MFi

Emulation:

ESC/POS + CPCL

Media Handling:

Receipts

$615.75

CMP-30IIWFUZL

CMP-30II 3" Mobile Printer - Label, Serial, USB, WiFi, ZPL II

Media Handling:

Receipts and labels

Radio:

Wi-Fi

Emulation:

ZPL II

$864.46

CMP-30IIWFUC

CMP-30II 3" Mobile Printer - Serial, USB, WiFi, ESC/POS & CPCL

Emulation:

ESC/POS + CPCL

Media Handling:

Receipts

Radio:

Wi-Fi

$756.71

CMP-30IIWFUZ

CMP-30II 3" Mobile Printer - Serial, USB, WiFi, ZPL II

Media Handling:

Receipts

Radio:

Wi-Fi

Emulation:

ZPL II

$756.71

CMP-30IIUC

CMP-30II 3" Mobile Printer - Serial, USB, ESC/POS & CPCL

Emulation:

ESC/POS + CPCL

Radio:

None (USB/Serial)

Media Handling:

Receipts

$474.81

CMP-30IIUZ

CMP-30II 3" Mobile Printer - Serial, USB, ZPL II

Radio:

None (USB/Serial)

Media Handling:

Receipts

Emulation:

ZPL II

$474.81

Shop CMP-30II Accessories

STD-08410CV

Adapter, AC 100-240V (CMP-20II/30II)- Change from CMP-AD20US

$46.09

CMP-BA30II

CMP30II LION BATTERY (Batteries must be shipped via ground shipping)

$54.30
