Citizen CMP-20II
Description
Specifications
Download

Citizen CMP-20II

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

Portable 2-inch receipt printing

The Citizen CMP-20II prints mobile receipts at up to 80 mm/sec for retail, ticketing, and courier work. Its compact body, rechargeable battery, and drop-in paper loading keep receipt printing close to the job.

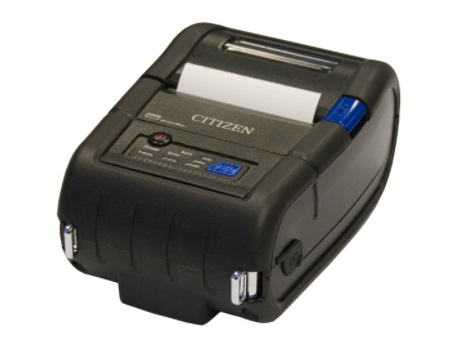

Citizen CMP-20II mobile receipt printer

Key Specifications

  • Print method: Direct thermal
  • Resolution: 203 dpi
  • Maximum print width: 48 mm
  • Print speed: Up to 80 mm/sec
  • Media handling: 58 mm thermal receipt paper; maximum roll diameter 48 mm; paper-end sensor; integral tear bar
  • Connectivity: USB mini-B and RS-232 mini-DIN standard; Bluetooth, Apple MFi, or Wi-Fi by configuration
  • Battery / power: 7.4 V, 1800 mAh Li-ion battery; 100–240 V AC adapter input
  • Durability / sealing: Exceeds IP42; survives multiple 1.5 m drops in manufacturer testing
  • Dimensions and weight: 96 × 136 × 58 mm (W × D × H); 0.42 kg
  • Warranty: 1 year

In the Box

  • CMP-20II printer
  • Standard clip-in rechargeable battery
  • AC adapter
  • USB cable
  • Belt clip
  • Sample paper roll
  • Quick Start Guide and software CD

Additional receipt paper, serial cables and optional carrying or charging accessories are sold separately unless included with the selected configuration.

Drop-Tested Portable Housing

Citizen’s rugged housing exceeds IP42 and withstands repeated 1.5 m drops in manufacturer testing. The compact design suits receipt printing away from a fixed counter.

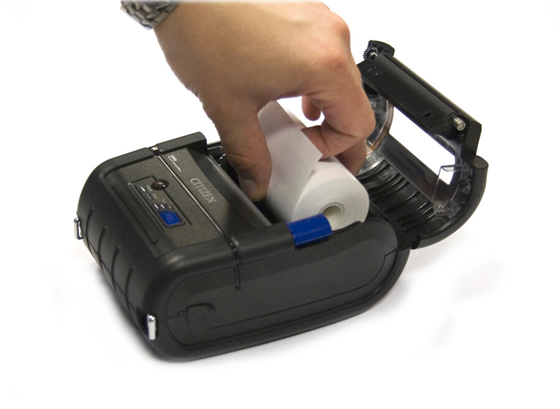

Clip-In Battery and High-Capacity Rolls

The replaceable clip-in battery can be exchanged for continued portable use. Paper rolls up to 48 mm in diameter provide a substantial media supply in the compact two-inch printer.

Resolution
203 dpi
Printing Technology
Direct thermal; 2-inch mobile receipt printer
Print Speed (maximum)
Up to 80 mm/sec
Print Width (maximum)
48 mm
Media Type and Handling
Thermal receipt paper; 58 mm width; 48 mm maximum roll diameter; drop-in loading; integral tear bar
Media Sensor
Paper-end and reflective black-mark sensor
Interfaces
USB mini-B and RS-232 mini-DIN standard. Bluetooth with Apple MFi or Wi-Fi by selected configuration; current Wi-Fi options use 2.4 GHz.
Emulations
ESC/POS, CPCL compatibility or ZPL II, depending on configuration
Battery and Power
7.4 V, 1800 mAh standard clip-in rechargeable Li-ion battery. AC adapter input: 100–240 VAC, 50/60 Hz; output: 8.4 V, 1200 mA. On-board charging; external charger optional.
Durability
Exceeds IP42; survives multiple 1.5 m drops in manufacturer testing
Dimensions and Weight
96 × 136 × 58 mm (W × D × H); 0.42 kg
Warranty
1 year printer warranty
Media Thickness and Core
0.065–0.09 mm media thickness; 12.5 ±0.5 mm core diameter
Print Head Life
50 km or 100 million pulses under specified conditions
Input Buffer
8 KB for USB; 32 KB for other interfaces
Barcodes and Fonts
Common 1D barcodes including UPC, EAN, Code 39 and Code 128; QR Code and PDF417. Additional barcode formats and resident/downloadable fonts vary with the selected ESC/POS, CPCL or ZPL II emulation.
Operating and Storage Environment
Operating: -10 to +50 °C, 30–80% RH. Storage: -20 to +60 °C, 10–85% RH. Low-temperature operation does not guarantee print quality.
Control Panel and Power Management
Power and paper-feed buttons; power, error and three battery-status LEDs. Automatic power-save and power-off modes; self-test and sensor calibration.
What's In the Box
Printer, standard rechargeable battery, belt clip, AC adapter, USB cable, sample paper roll and Quick Start Guide. Serial cable, case, strap, car charger and external charger sold separately.
CMP-20II Android SDK (current official package)
Download
CMP-20II Configuration Utility 2.93 (Windows 7/8/10)
Download
CMP-20II iOS SDK (current official package)
Download
CMP-20II Spec Sheet (English US)
Download
CMP-20II User Manual (English)
Download
CMP-20II Windows Driver (Windows 8/10/11; Server 2012/2016/2019)
Download

Shop CMP-20II Models

CMP-20IIBTIUC

CMP-20II 2" Mobile Printer - Serial & USB, BT + MFi, ESC/POS & CPCL

Radio:

Bluetooth + MFi

Emulation:

ESC/POS + CPCL

$474.81

CMP-20IIBTIUZ

CMP-20II 2" Mobile Printer - Serial & USB, BT + MFi, ZPL II

Radio:

Bluetooth + MFi

Emulation:

ZPL II

$474.81

CMP-20IIUZ

Mobile Ptr, CMP-20 Type II - SER & USB, ZPL II

Radio:

None (USB/Serial)

Emulation:

ZPL II

$333.86

CMP-20IIUC

Mobile Ptr, CMP-20 Type II - SER & USB, ESC/POS & CPCL

Emulation:

ESC/POS + CPCL

Radio:

None (USB/Serial)

$333.86

CMP-20IIWFUZ

Mobile Ptr, CMP-20 Type II - SER & USB, WiFi 2.4GHz, ZPL II

Radio:

Wi-Fi 2.4 GHz

Emulation:

ZPL II

$615.75

CMP-20IIBTIUMC

CMP-20II Portable 2" Receipt Printer, MSR, ESC/POS, BT

Radio:

Bluetooth

Emulation:

ESC/POS

$469.54

CMP-20IIWFUC

Mobile Ptr, CMP-20 Type II - SER & USB, WiFi 2.4GHz, ESC/POS & CPCL

Emulation:

ESC/POS + CPCL

Radio:

Wi-Fi 2.4 GHz

$615.75

Shop CMP-20II Accessories

CMP-BA20II

Battery, 2000mA (CMP-20II) (Batteries must be shipped via ground shipping)

$52.61

STD-08410CV

Adapter, AC 100-240V (CMP-20II/30II)- Change from CMP-AD20US

$46.09
