Citizen CL-S521II/CL-S531II

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

Packed with features for industrial desktop printing

The CL-S521II offers a reliable, easily integrated industrial desktop printing solution. These units are supplied as standard with on-board ZPL2®, Datamax® and EPL2® emulations plus CBI BASIC Interpreter programming support, offering maximum flexibility and easy compatibility with other applications.

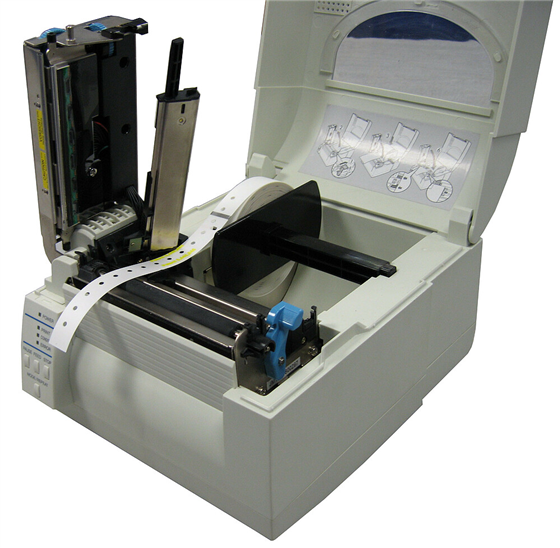

  • Handles a range of media types, including specialized labels and wristbands.
  • Powerful on-board 32 bit processor for fast output
  • 32Mb of RAM and 16Mb of flash

Featured Specs

  • Paper width: Variable paper width - 0.8 inches (19.5 mm) – 4.6 inches (118 mm)
  • Paper load: Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
  • Printing Speed: Fast print out - 6 inches per second (150 mm per second)
  • Media support: Large media capacity - holds rolls up to 5 inches (127 mm)
  • Paper thickness: Paper thickness up to 0.250mm

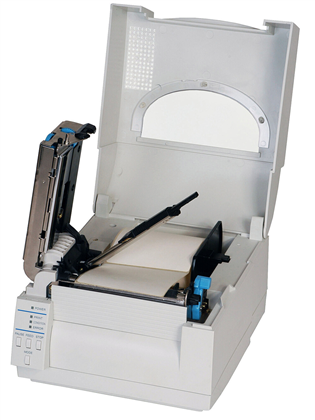

  • Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
  • Low space requirement - integrated power supply enables clean work station

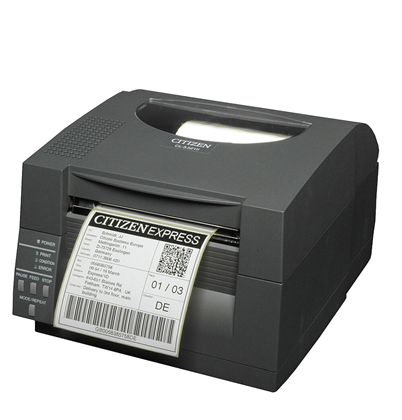

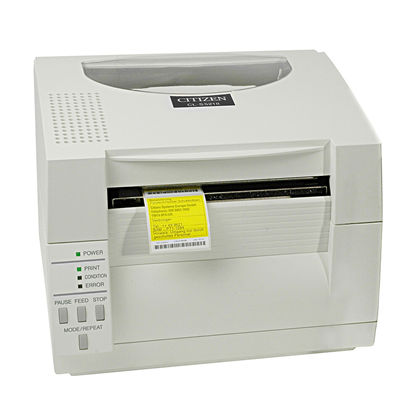

  • Case colour: Available in black or white
  • Energy: Internal power supply for reliability
  • Media sensor: Black mark sensor, Adjustable media sensor, Label gap sensor
  • Tear bar: Standard tear-bar for perforated tags
Placeholder image
Looking for Compatible Labels or Ribbon?

We offer a selection of labels and ribbon to meet any need. Having trouble finding the label you need? Give our Label Selector Tool a try or give us a call! We have people ready to help.

Printing Technology
Direct Thermal
Resolution
203 dpi
Print Speed (maximum)
6 inches per second (150 mm/s)
Print Width (maximum)
4 inches (104 mm)
Media Width (min to max)
0.5 - 4.6 inches (12.5 - 118 mm)
Media Thickness (min to max)
63.5 to 254 µm
Media Length (min to max)
0.25 to 99.99 inches (6.35 to 2539.74mm)
Roll Size (max), Core Size
Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm)
Mechanism
Hi-Lift™ metal mechanism with wide opening head
Media Sensor
Fully adjustable gap, notch and reflective black mark
Main Interface

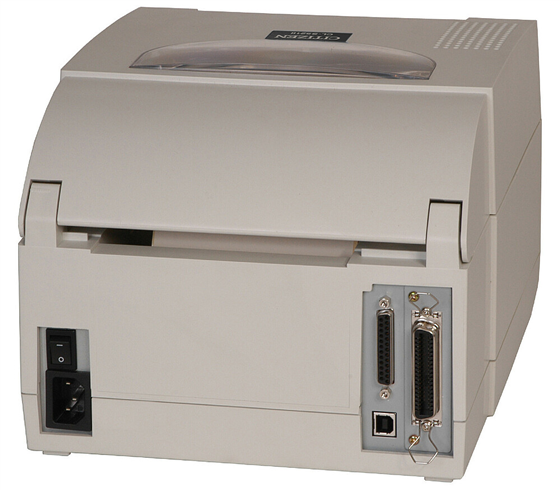

Dual Interface Serial (RS-232C), USB (version 2.0, full speed)

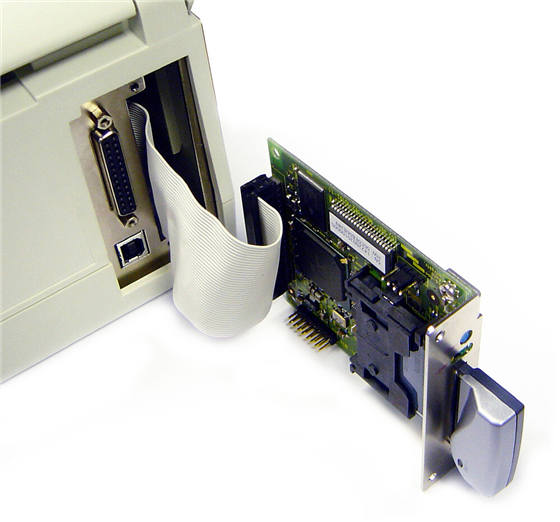

Optional interfaces
  • Parallel (IEEE 1284 compliant)
  • Wireless LAN 802.11b and
  • 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps
  • Ethernet (10/100 BaseT)
    • Case
    Hi-Open™ metal case with safe, soft-close feature
    Control panel
    4 buttons and 4 LEDs
    Flash (Non-Volatile Memory)
    16 MB total, 4MB available for user
    RAM (standard Memory)
    32MB total, 8MB available for user
    Drivers and software
    Free-of-charge from website, including support for various platforms
    Emulations (Languages)
  • Citizen Original Commands
  • Datamax® DMX
  • Cross-Emulation™ - autoswitch between Zebra® and Datamax® emulations
  • Zebra® ZPL2®
  • CBI™ BASIC Interpreter
  • EPL-2®
    • Size (W x D x H) and Weight
    231 x 289 x 183mm, 3.6 Kg
    Warranty
    2 years on printer. 6 months or 30 Kms on printhead
    Cutter
    Guillotine type, Dealer Installable
    CL-S521II Spec Sheet
    Download
    CL-S521II User Manual
    Download
    Driver for CL-S521II
    Download

    Shop CL-S521II/CL-S531II Models

    CL-S521IINNUBK

    CL-S521II Direct Thermal, 203 DPI, Serial & USB, Gray

    DPI:

    203

    Print Method:

    Direct Thermal

    Interface:

    Serial, USB

    $371.00

    CL-S521II-EPUBK-C

    CL-S521II Direct Thermal, 203DPI, Premium LAN, Serial & USB, Cutter, Gray

    DPI:

    203

    Extra Features:

    Cutter

    Print Method:

    Direct Thermal

    Interface:

    Premium LAN, Serial, USB

    $665.00

    CL-S521II-EPWSUBK

    CL-S521II Direct Thermal, 203 DPI, Premium LAN, WiFi Short Range, Serial & USB, Gray

    DPI:

    203

    Print Method:

    Direct Thermal

    Interface:

    Premium LAN, WiFi Short Range, Serial, USB

    $645.00

    CL-S521II-ETUBK

    CL-S521II Direct Thermal, 203 DPI, Economy LAN, Serial & USB, Gray

    DPI:

    203

    Print Method:

    Direct Thermal

    Interface:

    Economy LAN, Serial, USB

    $477.00

    CL-S521II-WUBK

    CL-S521II Direct Thermal & Thermal Transfer, 300 DPI, WIFI, Serial & USB, Gray

    DPI:

    300

    Print Method:

    Thermal Transfer

    Interface:

    WiFi, Serial, USB

    $533.00

    CL-S521II-EPWLUBK

    CL-S521II Direct Thermal, 203 DPI, Premium LAN, WiFi Long Range, Serial & USB, Gray

    DPI:

    203

    Print Method:

    Direct Thermal

    Interface:

    Premium LAN, WiFi Long Range, Serial, USB

    $649.00

    CL-S521II-EPUBK

    CL-S521II Direct Thermal, 203DPI, Premium LAN, Serial & USB, Gray

    DPI:

    203

    Print Method:

    Direct Thermal

    Interface:

    Premium LAN, Serial, USB

    $547.00

    CL-S521II-EUBK

    CL-S521II Direct Thermal, 203DPI, LAN, Serial & USB, Gray

    Interface:

    LAN, Serial, USB

    DPI:

    203

    Print Method:

    Direct Thermal

    $499.00

    CL-S521II-EUBK-C

    CL-S521II Direct Thermal, 203 DPI, LAN, Serial & USB, Cutter, Gray

    DPI:

    203

    Extra Features:

    Cutter

    Print Method:

    Direct Thermal

    Interface:

    LAN, Serial, USB

    $610.00

    CL-S521II-EUBK-P

    CL-S521II Direct Thermal, 203DPI, LAN, Serial & USB, Peeler, Gray

    DPI:

    203

    Print Method:

    Direct Thermal

    Interface:

    LAN, Serial, USB

    Extra Features:

    Peeler

    $610.00

    CL-S521IINNUBK-C

    CL-S521II Direct Thermal, 203DPI Serial, USB, Cutter, Gray

    DPI:

    203

    Extra Features:

    Cutter

    Print Method:

    Direct Thermal

    Interface:

    Serial, USB

    $489.00

    CL-S521IINNUBK-P

    CL-S521II Direct Thermal, 203DPI, Serial & USB, Peeler, Gray

    DPI:

    203

    Print Method:

    Direct Thermal

    Extra Features:

    Peeler

    Interface:

    Serial, USB

    $450.00

    CL-S531II-EUBK

    CL-S531II Direct Thermal, 300 DPI, LAN, Serial & USB, Gray

    DPI:

    300

    Print Method:

    Direct Thermal

    Interface:

    LAN, Serial, USB

    $573.00

    CL-S531II-EUBK-C

    CL-S531II Direct Thermal, 300 DPI, LAN, Serial & USB, Cutter, Gray

    DPI:

    300

    Extra Features:

    Cutter

    Print Method:

    Direct Thermal

    Interface:

    LAN, Serial, USB

    $684.00

    CL-S531II-EUBK-P

    CL-S531II Direct Thermal, 300 DPI, LAN, Serial & USB, Peeler, Gray

    DPI:

    300

    Print Method:

    Direct Thermal

    Interface:

    LAN, Serial, USB

    Extra Features:

    Peeler

    $684.00

    CL-S531IINNUBK

    CL-S531II Direct Thermal, 300 DPI, Serial & USB, Gray

    DPI:

    300

    Print Method:

    Direct Thermal

    Interface:

    Serial, USB

    $450.00

    CL-S531IINNUBK-C

    CL-S531II Direct Thermal, 300 DPI, Serial & USB, Cutter, Gray

    DPI:

    300

    Extra Features:

    Cutter

    Print Method:

    Direct Thermal

    Interface:

    Serial, USB

    $567.00

    CL-S531IINNUBK-P

    CL-S531II Direct Thermal, 300 DPI, Serial & USB, Peeler, Gray

    DPI:

    300

    Print Method:

    Direct Thermal

    Extra Features:

    Peeler

    Interface:

    Serial, USB

    $528.00
