Citizen CL-S400DT Ticketing Printer
Energy-efficient ticket and label printing for events, travel and retail.

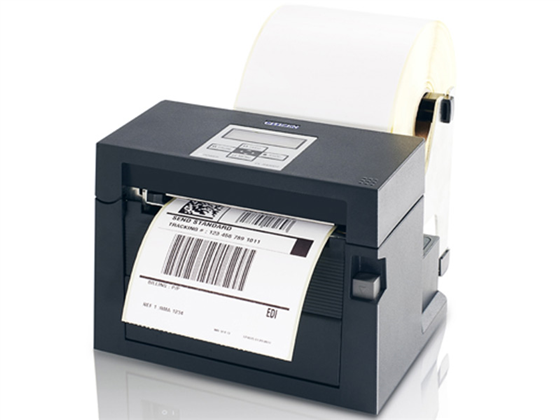

The Citizen CL-S400DT is a compact direct thermal printer for boarding passes, swing tags, festival and concert tickets, and everyday labels. It accommodates roll or fanfold stock, with a Hi-Lift metal mechanism and vertically opening Hi-Open case for straightforward loading.
Citizen’s user manual provides selectable speeds up to 6 inches per second. The current US data sheet lists up to 8 inches per second; confirm the required speed for the selected configuration. Standard USB and serial connections are included, with network connectivity on selected configurations. The two-color LCD simplifies setup and alerts the operator to errors; the integrated ENERGY STAR power supply and sleep/standby functions support efficient desktop operation.
Key Specifications
- Print method: Direct thermal; no ribbon required.
- Resolution: 203 dpi.
- Print speed: Up to 6 ips (approximately 152 mm/s), per Citizen’s user manual.
- Maximum print width: 4 inches (104 mm).
- Media handling: Roll or fanfold labels, tags and tickets; width 0.5–4.6 inches (12.5–118 mm), thickness 63.5–254 µm and length 0.25–32 inches (6.35–812.8 mm). Roll capacity up to 5 inches (125 mm) internally or 8 inches (200 mm) externally, on a 1-inch (25 mm) core.

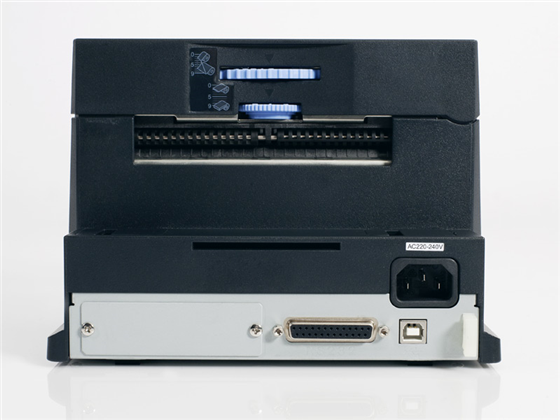

- Connectivity: Standard RS-232C serial and USB 2.0 full speed. Selected configurations provide Ethernet, parallel, wireless LAN or Bluetooth interfaces.
- Duty / application fit: Desktop ticketing, boarding passes, swing tags, courier, logistics, retail and kiosk printing.
- Dimensions / weight: 206 × 149 × 150 mm (W × D × H); 2.68 kg excluding the roll holder.
- Warranty: 2 years on the printer; direct thermal printhead 1 year or 30 km.
In the Box
- Selected CL-S400DT printer
- Media holder bar and guide
- Test label media
- Power cord
- Quick Start Guide
Additional labels or tickets, interface cables and optional accessories are sold separately unless included with the selected configuration.

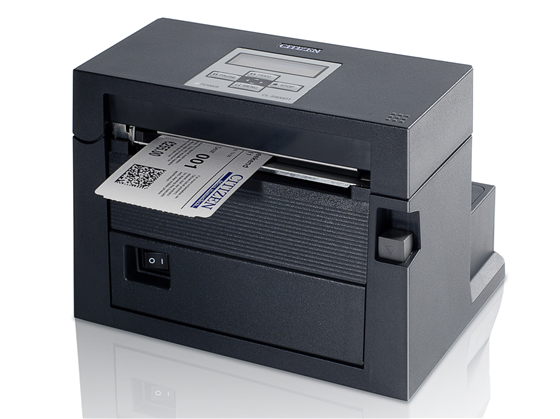

Fanfold Tickets or Roll Media

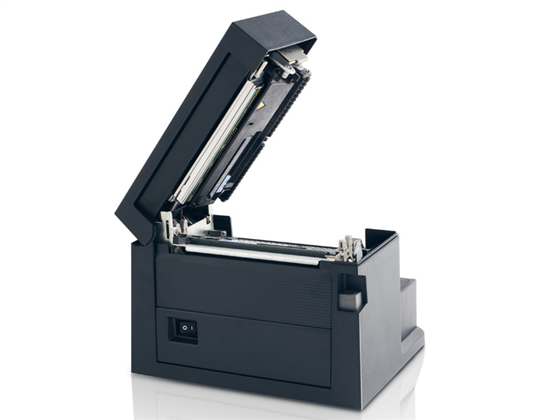

The CL-S400DT handles fanfold tickets as well as rolls of labels, tags and receipts. Its Hi-Lift mechanism opens wide for loading the different media used in ticketing and desktop labeling.

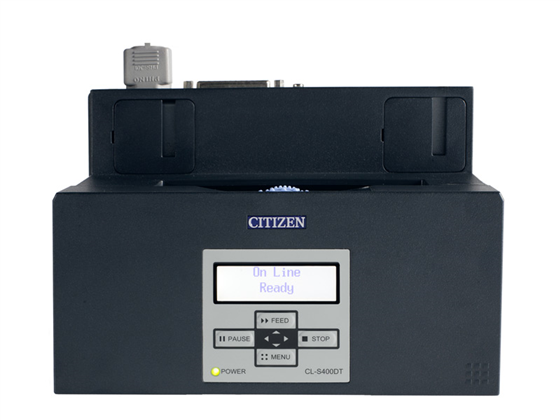

Two-Color LCD with Error Alerts
The LCD makes printer setup and status visible at the machine. Its backlight changes to red when an error needs attention, helping operators identify a printing interruption.
Shop CL-S400DT Ticketing Printer Models
CL-S400DTU-R
Citizen CL-S400DT - Black Direct Thermal Ticketing Printer, USB and Serial Interfaces
Interface:
USB & Serial
CL-S400DTU-R-CU
Citizen CL-S400DT - Black Direct Thermal Ticketing Printer, Cutter, USB and Serial Interfaces
Interface:
USB & Serial
CL-S400DTWFU-R
Citizen CL-S400DT - Black Direct Thermal Ticketing Printer, WiFi, USB and Serial Interfaces
Interface:
USB, Serial & Wi-Fi
