Citizen CL-E321/CL-E331
Description
Specifications
Download

Citizen CL-E321/CL-E331

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

Compact desktop label printing with quick media changes

The Citizen CL-E321 and CL-E331 combine direct thermal and thermal transfer printing with a compact design. A wide-opening Hi-Lift mechanism and ClickClose closure simplify media and ribbon changes, while Ethernet, USB and Serial connections are included as standard.

Choose the CL-E321 for 203 dpi output at up to 8 ips, or the CL-E331 for 300 dpi detail at up to 6 ips. The CL-E331 suits small part and test tube labels; the CL-E321 supports fast courier and warehouse workflows.

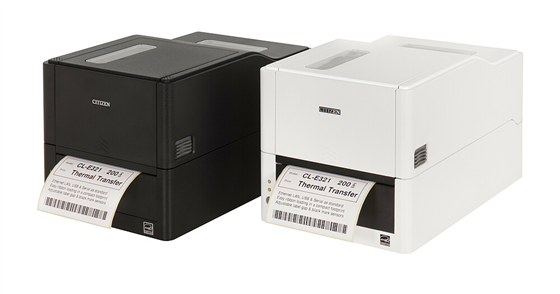

Citizen CL-E321 and CL-E331 desktop label printers

Key Specifications

  • Print method: Direct thermal and thermal transfer
  • Maximum print width: 4 inches (104 mm)
  • Resolution: CL-E321: 203 dpi; CL-E331: 300 dpi
  • Print speed: CL-E321: Up to 8 ips (200 mm/s); CL-E331: Up to 6 ips (150 mm/s)
  • Media and ribbon handling: Media width 1–4.6 inches (25–118 mm); internal rolls up to 5 inches (125 mm), 1-inch core. Ribbons up to 300 m, 1-inch core, ink side out.
  • Connectivity: USB 2.0, RS-232 Serial and 10/100 Ethernet standard; Bluetooth or Wi-Fi on selected options.
  • Duty / application fit: CL-E321: Courier, logistics, manufacturing and healthcare labels; CL-E331: Detailed labels for manufacturing, healthcare, pharmacy and retail
  • Dimensions and weight: 178 × 266 × 173 mm (W × D × H); 2.6 kg
  • Warranty: 2 years on printer

In the Box

  • Listed North American models
    • Printer and AC adapter
    • AC power cord
    • Media shaft and guide
    • Two ribbon shafts and ribbon take-up core
    • USB cable
    • Quick Start Guide and safety instructions
    • Factory-installed cutter (cutter configurations only)

Labels, ribbon, other interface cables and optional accessories are sold separately unless included with the selected configuration.

Compact Printing with Full-Size Ribbons

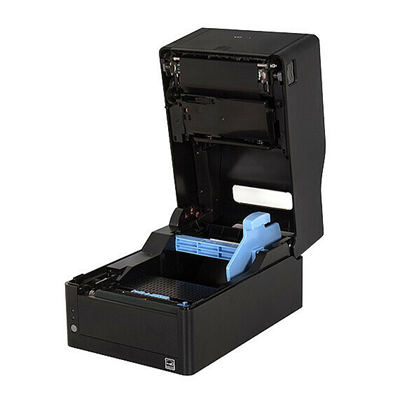

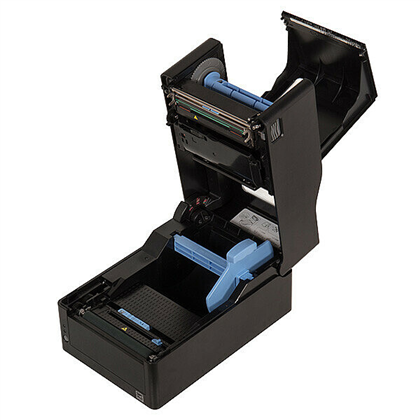

The CL-E321 and CL-E331 combine a compact desktop design with 300 m ribbon capacity. Wide-opening Hi-Lift access and ClickClose closure simplify label and ribbon loading.

300 dpi for Small Labels

Choose the CL-E331 for 300 dpi output on small-part and test-tube labels. The CL-E321 offers 203 dpi printing when higher print speed takes priority.

Print method / control / memory
Direct thermal and thermal transfer. Flash: 16 MB total, 4 MB available for user; RAM: 32 MB total, 4 MB available for user. Single-button control; CL-E321: one LED and FEED key.
Resolution
CL-E321: 203 dpi; CL-E331: 300 dpi
Maximum Print Speed
CL-E321: up to 8 ips (200 mm/s); CL-E331: up to 6 ips (150 mm/s)
Print Width
Up to 4 in (104 mm)
Media length
CL-E321: 0.25–100 inches (6.35–2540 mm); CL-E331: 0.25–64 inches (6.35–1625.6 mm)
Media type and width
Width: 1–4.6 inches (25–118 mm). Roll or fanfold media; die-cut, continuous or perforated labels, tags and tickets; inside or outside wound.
Media Thickness
63.5–190 μm
Media roll / ribbon
Internal media roll up to 5 inches (125 mm); 1-inch (25 mm) core. Ribbon: up to 300 metres; maximum outside diameter 60 mm; 1-inch (25 mm) core; ink side out; wax, wax/resin or resin.
Media Sensors
CL-E321: gap and reflective black mark; CL-E331: gap, notch and reflective black mark
Interfaces / software
USB 2.0, RS-232 serial and 10/100 Ethernet standard; Bluetooth or Wi-Fi on selected configurations. Emulations: Datamax DMX; Zebra ZPL2; Cross-Emulation (automatic Zebra/Datamax switching); CBI BASIC Interpreter; Eltron EPL2. Drivers and software available free from Citizen website. Barcodes: UCC/EAN, Composite Symbology, GS1-Databar, QR Code, PDF417, CODABAR (NW-7), CODE128, CODE93, CODE39/Code3of9, ITF, EAN-8/JAN-8, EAN-13/JAN-13, UPC-E and UPC-A.
Print Cutter
Factory-installed guillotine cutter on BC models; availability depends on option. Rated life: 300,000 cuts on media 0.06–0.15 mm; 100,000 cuts on media 0.15–0.25 mm.
Dimensions / construction
178 × 266 × 173 mm (W × D × H). Wide-opening Hi-Lift mechanism with ClickClose closure. CL-E321: clamshell mechanism and Hi-Open industrial ABS case; CL-E331: metal Hi-Lift mechanism and vertically opening Hi-Open case.
Weight / compliance
2.6 kg. EMC and safety standards: CE, TUV, UL, FCC and VCCI.
Printer Warranty
Both models: 2 years on printer. CL-E321 printhead: 6 months or 50 km. CL-E331 printhead: 1 year, with 50 km in thermal transfer mode or 30 km in direct thermal mode.
CL-E321 / CL-E331 Windows Printer Driver 11.11.0 (Windows 10/11; Server 2008/2012/2016/2019)
Download
CL-E321 203 DPI Spec Sheet
Download
CL-E321/CL-E331 User Manual
Download
CL-E331 300 DPI Spec Sheet
Download

Shop CL-E321/CL-E331 Models

CL-E321XUBNNA

CL-E321 Thermal Transfer Label Printer, 203 DPI, USB, LAN & Serial, BK

DPI:

203

Color:

Black

Interface:

LAN, USB, Serial

$331.70

CL-E321XUWNNA

CL-E321 Thermal Transfer Label Printer, 203 DPI, USB, LAN & SERIAL, WH

DPI:

203

Interface:

LAN, USB, Serial

Color:

White

$326.78

CL-E321EXXUBBTNA

CL-E321 Thermal Transfer Label Printer, 203 DPI, Bluetooth, USB, Black

DPI:

203

Color:

Black

Interface:

Bluetooth, USB

$404.30

CL-E331XUBNNA

CL-E331 Thermal Transfer Label Printer, 300 DPI, USB, LAN & Serial, Black

DPI:

300

Color:

Black

Interface:

LAN, USB, Serial

$407.60

CL-E321XUBNBCA

CL-E321 Thermal Transfer Label Printer, 203 DPI, USB, LAN & Serial, Label Cutter, Black

DPI:

203

Color:

Black

Interface:

LAN, USB, Serial

$420.80

CL-E321EXXUBWD

CL-E321 Thermal Transfer Label Printer, 203 DPI, LAN, 2.4/5 GHz Wifi, USB, BK

DPI:

203

Color:

Black

Interface:

LAN, WiFi, USB

$517.60

CL-E331EXXUBBTNA

CL-E331 Thermal Transfer Label Printer, 300 DPI, Bluetooth, USB, Black

DPI:

300

Color:

Black

Interface:

Bluetooth, USB

$480.20

CL-E331EXXUBWD

CL-E331 Thermal Transfer Label Printer, 300 DPI, LAN, 2.4/5 GHz Wifi, USB, Black

DPI:

300

Color:

Black

Interface:

LAN, WiFi, USB

$593.51

CL-E331XUBNBCA

CL-E331 Thermal Transfer Label Printer, 300 DPI, USB, LAN & Serial, Label Cutter, Black

DPI:

300

Color:

Black

Interface:

LAN, USB, Serial

$496.71
