Citizen CL-E300/CL-E303

Name: Citizen CL-E300/CL-E303
Brand: Citizen
Price: 262 USD
Availability: InStock

Images may not reflect the actual product

Compact direct thermal printing with LAN as standard.

Citizen CL-E300 and CL-E303 label printers fit shipping, warehouse, pharmacy and retail workstations where space is limited. Their compact design holds a 5-inch media roll, while Hi-Lift loading, ClickClose closure and adjustable sensors make everyday media changes straightforward.

Choose the CL-E300 for faster 203 dpi output or the CL-E303 for finer 300 dpi labels. Standard models provide USB, serial and Ethernet connections with LinkServer web management; selected EX configurations offer Bluetooth or Wi-Fi.

Key Specifications

Print method: Direct thermal for the listed CL-E300, CL-E303 and EX configurations; no ribbon required.
Maximum print width: 4 inches (104 mm).
Resolution: CL-E300: 203 dpi; CL-E303: 300 dpi
Print speed: CL-E300: Up to 8 ips (200 mm/s); CL-E303: Up to 6 ips (150 mm/s)
Media handling: Width 1–4.6 inches (25.4–118 mm); internal roll up to 5 inches (125 mm), with a 1-inch (25 mm) core. The selected cutter or peeler configuration determines media thickness limits.
Connectivity: Standard USB 2.0, RS-232 and 10/100 Ethernet; Bluetooth or Wi-Fi on selected EX configurations.
Duty / application fit: Compact desktop label printing for courier, logistics, warehouse, pharmacy and retail workflows.
Dimensions / weight: Standard model: 170 × 207 × 151.3 mm (W × D × H), approximately 2.0 kg. Cutter, peeler and adapter-case configurations vary.
Warranty: 2 years.

In the Box

Selected Citizen CL-E300 or CL-E303 printer
AC adapter and AC cord (adapter housed inside the case on adapter-storage models)
Media shaft and shaft guide
USB cable
Quick Start Guide and safety instructions

Labels, other interface cables and optional accessories are sold separately unless included with the selected configuration.

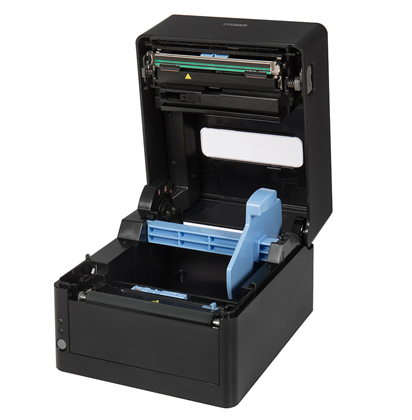

Full-Size Rolls in a Compact Printer

A compact housing holds a 5-inch label roll, giving tight workspaces room for a full-size media supply. Hi-Lift access and ClickClose closure make media changes straightforward.

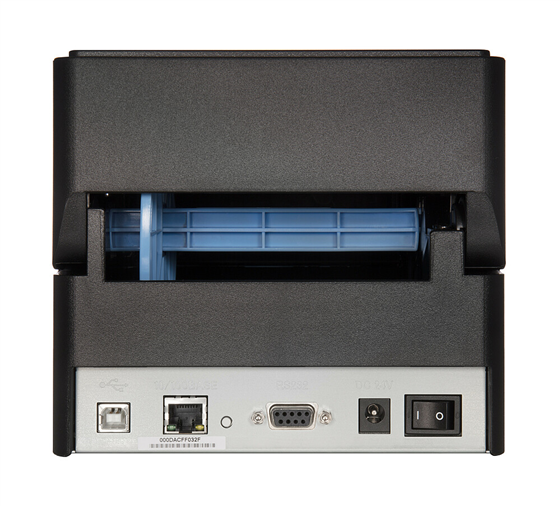

Ethernet, USB and Serial as Standard

Both the CL-E300 and CL-E303 include Ethernet, USB and Serial connections. The built-in network interface makes them suitable for shared labeling stations as well as a directly connected desktop.

Print method / loading / controls

Direct thermal on the listed CL-E300, CL-E303 and EX models, using coated media; no ribbon required. Hi-Lift loading mechanism and ClickClose closure. Single-button control panel; black or white case.

Resolution

CL-E300 / CL-E300EX: 203 dpi; CL-E303 / CL-E303EX: 300 dpi.

Print Speed (maximum)

CL-E300: up to 8 inches per second (200 mm/s); CL-E303: up to 6 inches per second (150 mm/s).

Print width / dimensions / weight

Maximum print width: 4 inches (104 mm), per Citizen product sheets. Standard model: 170 × 207 × 151.3 mm (W × D × H), approximately 2.0 kg. Manual configuration weights: adapter-storage case 2.7 kg; integrated cutter 2.3 kg; separable cutter or peeler 2.2 kg.

Media type / width / thickness / length

Roll or fanfold, continuous or die-cut labels, tags and tickets; outside wound. Width 1–4.6 inches (25.4–118 mm). Minimum thickness 0.0635 mm; maximum standard/integrated cutter 0.19 mm, separable cutter 0.15 mm, peeler 0.17 mm. Maximum label length: CL-E300 99.99 inches (2539.7 mm) in Datamax mode or 100 inches (2540 mm) in Zebra mode; CL-E303 50 inches (1270 mm).

Roll Size (max), Core Size

Internal roll up to 5 inches (125 mm), with a 1-inch (25 mm) core, per Citizen product sheets. Shared manual allows 1- or 1.5-inch cores (25.4 / 38.1 mm); peeler configurations require a 1.5-inch core.

Media Sensor

Fully adjustable gap and reflective black mark sensors.

Interfaces / management

Standard models: triple interface USB 2.0, RS-232 and 10/100 Ethernet. Selected CL-E300EX / CL-E303EX configurations provide Bluetooth or Wi-Fi options and LAN with XML support. LinkServer web management and configuration.

Flash / compliance

Flash memory: 16 MB total, 4 MB available for user. Citizen lists CE, TUV, UL, FCC and VCCI compliance; ENERGY STAR compliant.

RAM (standard Memory)

32 MB total, 4 MB available for user.

Drivers and software

Free-of-charge from Citizen’s website, including support for various platforms.

Emulations (Languages)

Cross-Emulation automatically switches between Zebra and Datamax emulations; CBI BASIC Interpreter; Eltron EPL2; Zebra ZPL2; Datamax DMX.

Warranty

2 years on the printer; 1 year or 30 km on the printhead in direct thermal mode.

CL-E300XUBNNA

CL-E300 Direct Thermal Label Printer, 203 DPI, USB, LAN & Serial, Black

DPI:

203

Color:

Black

Interface:

USB, LAN & Serial

$293.19

CL-E300XUWNNA

CL-E300 Direct Thermal Label Printer, 203 DPI, USB, LAN & Serial, White

DPI:

203

Interface:

USB, LAN & Serial

Color:

White

$262.00

CL-E300EXXUBBTNA

CL-E300 Direct Thermal Label Printer, 203 DPI, BT, USB, Black

DPI:

203

Color:

Black

Interface:

USB, Bluetooth

$368.01

CL-E303XUBNNA

CL-E303 Direct Thermal Label Printer, 300 DPI, USB, LAN & Serial, BK

DPI:

300

Color:

Black

Interface:

USB, LAN & Serial

$372.04

CL-E300XUBNBCA

CL-E300 Direct Thermal Label Printer, 203 DPI, USB, LAN & Serial, Label Cutter, Black

DPI:

203

Color:

Black

Interface:

USB, LAN & Serial

$379.51

CL-E303EXXUBBTNA

CL-E303 Direct Thermal Label Printer, 300 DPI, BT, USB, Black

DPI:

300

Color:

Black

Interface:

USB, Bluetooth

$579.93

CL-E300EXXUBWD

CL-E300 Direct Thermal Label Printer, 203 DPI, LAN, 2.4/5 GHz Wifi, USB, Black

DPI:

203

Color:

Black

Interface:

USB, LAN & WiFi

$483.51
