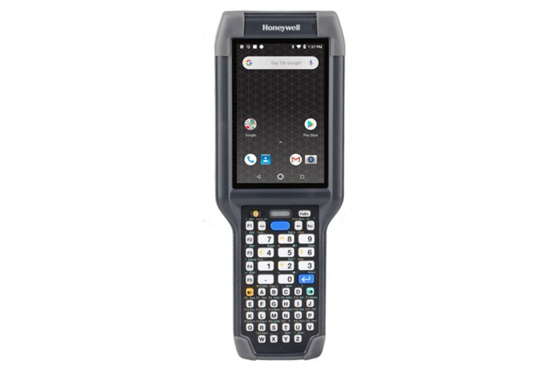

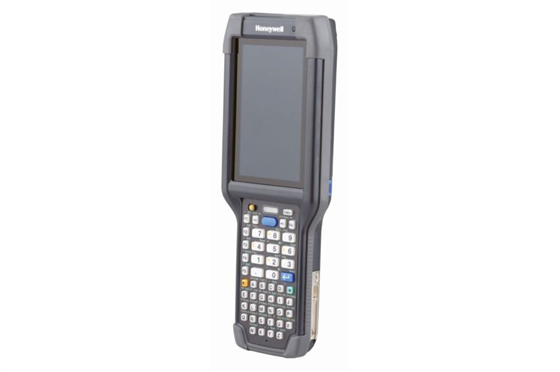

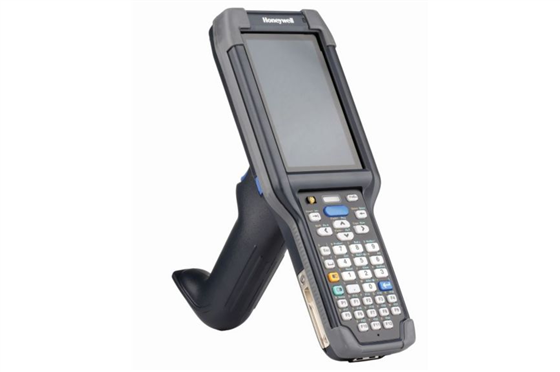

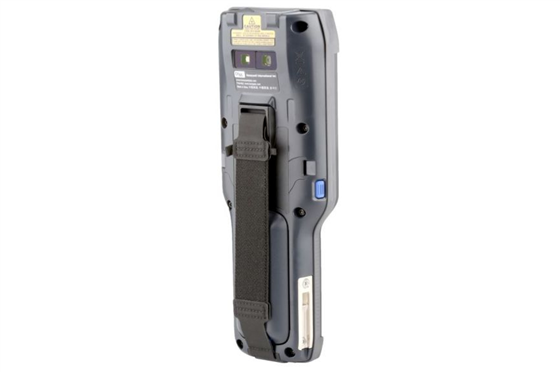

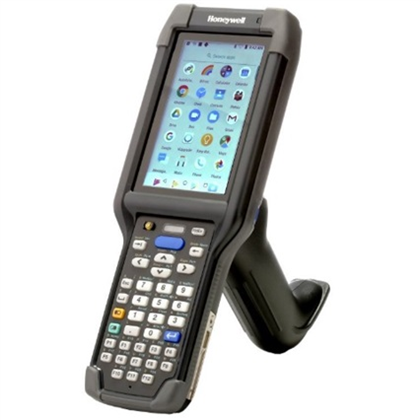

Honeywell CK65

Name: Honeywell CK65
Brand: Honeywell
Price: 3290.71 USD
Availability: InStock

Images may not reflect the actual product

Ultra-rugged keyed mobile computing for warehouse, distribution, manufacturing, and cold-chain workflows.

Brand update: The CK65 is now a Brady product, formerly sold as the Honeywell CK65.

The Honeywell CK65 combines a 4-inch touchscreen, physical keypad, industrial data capture, and the Mobility Edge platform in a handheld built for demanding supply-chain work. Its Qualcomm 64-bit octa-core processor, 4 GB RAM on available configurations, and enterprise Wi-Fi keep picking, receiving, replenishment, and production applications responsive.

Choose a 38-key numeric-function or 51-key alphanumeric layout with standard-range, FlexRange, or near/far imaging. A hot-swappable 7,000 mAh smart battery supports extended shifts, while the IP65/IP68 enclosure and multi-drop construction protect the device across warehouse and industrial environments.

Key Specifications

Operating system / support horizon: Android 10; manufacturer-documented upgrade path through Android 14, subject to configuration feasibility
Processor: Qualcomm 64-bit Snapdragon octa-core, up to 2.2 GHz
Memory and storage: 4 GB RAM and 32 GB flash on available configurations; microSD expansion supported
Display and input: 4-inch 480 x 800 outdoor-readable multi-touch display; numeric-function or alphanumeric keypad
Scan engine: Standard-range, FlexRange, or near/far 1D/2D imager, depending on option
Wireless connectivity: Enterprise Wi-Fi, Bluetooth, NFC, and option-dependent cellular/GPS support
Ruggedness and sealing: Up to 3 m drops at room temperature, 3,000 tumbles at 1 m, IP65 and IP68
Battery / power: Hot-swappable 7,000 mAh smart battery; up to 28 hours under Honeywell's published test profile
Form factor, dimensions and weight: Ultra-rugged keyed handheld; approximately 227 x 83 x 42 mm; configuration-dependent weight
Warranty: 1 year.

In the Box

Honeywell CK65 mobile computer
Hot-swappable extended smart battery

Keypad, scan engine, camera, Google Mobile Services, memory, regional certification, and durability configuration vary by selected option. Charging equipment and other accessories are sold separately unless the exact option description states otherwise.

Capture Near or Far

Range choices for the aisle and the rack

Standard-range configurations handle close-up labels, while FlexRange and near/far models extend capture across warehouse aisles and elevated locations. Available configurations pair the imager with a 13-megapixel rear camera.

Keep Keyed Workflows Moving

Touch plus purpose-built physical keys

Numeric-function and alphanumeric layouts support scan-intensive picking as well as form-driven entry without giving up a responsive touchscreen. The balanced housing is designed for continuous handheld use.

Run Through Extended Shifts

Hot-swappable 7,000 mAh battery

Honeywell rates the extended smart battery for up to 28 hours under its published scan-and-transaction test profile. Hot swapping helps shared devices remain in service when operations run beyond a single shift.

Built for Harsh Operations

Ultra-rugged warehouse protection

The CK65 withstands repeated drops, 3,000 tumbles at 1 m, and dust or water intrusion under IP65 and IP68 ratings. Standard, cold-storage, and hazardous-location configurations support specialized deployments; select the exact certified option required.

Processor

2.2 GHz Qualcomm 64-bit Snapdragon octa-core

Operating System

Android 9 through Android 13 supported; committed Android 14 support pending feasibility. 4 GB RAM is recommended for Android 11 or later; 2 GB SKUs are limited to Android 10.

Memory and Storage

2 GB or 4 GB DDR4 RAM; 32 GB flash; user-accessible microSD expansion up to 512 GB (SDXC/SDHC/SDIO)

Display

4 in (10.16 cm), 480 x 800 bright color LCD with backlight; outdoor-readable, optically bonded Corning Gorilla Glass 5

Touch Panel

Rugged optically bonded capacitive multi-touch panel with water rejection and support for many off-the-shelf gloves

Keypad

51- or 53-key alphanumeric, 38- or 42-key numeric-function, or 30-key large-numeric keypad; two programmable side buttons

Audio and I/O

Speaker and noise-cancelling microphone support; push-to-talk and Bluetooth headset support; durable custom I/O connector compatible with CK3 accessories

Camera and Sensors

13 MP autofocus color camera with f/2.0 aperture and flash/flashlight; ambient light, accelerometer, gyroscope, Hall-effect, and High-G sensors

Battery and Runtime

7,000 mAh Li-ion smart battery; up to 28 hours under Honeywell's published operating profile

Scan Engines and SDK

N6703 standard-range, N6803 FlexRange, FlexRange XLR, or EX20 near/far 1D/2D imager depending on configuration; Honeywell Scanning SDKs for Android

Dimensions and Weight

N6703/FlexRange/XLR: 8.9 x 3.3 x 1.7 in (22.7 x 8.3 x 4.2 cm), 17.6 oz (498 g) with battery. EX20: 8.9 x 3.3 x 1.9 in (22.7 x 8.3 x 4.7 cm), 19.2 oz (544 g) with battery.

WLAN

IEEE 802.11a/b/g/n/ac with Wi-Fi-certified 2x2 MIMO; 802.11d/e/h/i/k/r/w support

Bluetooth, NFC, and Voice

Bluetooth 5.0 with BLE and backward compatibility; HFP, PBAP, A2DP, AVRCP, OPP, SPP, and GATT profiles; integrated NFC; VoIP and push-to-talk supported

Wireless Security and VPN

OPEN, WEP, WPA/WPA2/WPA3 Personal and Enterprise; EAP-TLS, PEAP, TTLS, PWD, and LEAP; IPSec V4/L2TP and PPTP VPN support

Data Security

FIPS 140-2 Level 1 validated for data at rest and data in motion

Operating and Storage Temperature

Standard: -4°F to 122°F (-20°C to 50°C); cold storage: -22°F to 122°F (-30°C to 50°C); storage: -22°F to 158°F (-30°C to 70°C)

Humidity and ESD

0% to 95% relative humidity, non-condensing; ±15 kV air and ±8 kV direct electrostatic discharge

Drop

10 ft (3 m) to concrete at room temperature; 8 ft (2.4 m) across the operating range per MIL-STD 810G

Tumble

3,000 tumbles at 3.3 ft (1 m) per IEC 60068-2-32

Environmental Sealing

Independently certified to IP65 and IP68 for moisture and particle intrusion

Warranty

One-year limited factory warranty

Shop CK65 Models

CK65-L0N-BMC210F

CK65 Mobile Computer, Red Dot Near/Far Imager, Alphanumeric (51-Key) - 4GB RAM/32GB Flash Memory, Camera, GMS, FCC

Keyboard:

Alphanumeric (51-Key)

GMS:

GMS

Barcode Scanner:

Red Dot Near/Far Imager

Specialty :

Standard

$3842.16

CK65-L0N-DSC110F

CK65 Mobile Computer, Red Cross Standard Range Imager, Numeric F-Key (38-Key) - 4GB RAM/32GB Flash Memory, Camera, FCC

GMS:

No GMS

Keyboard:

Numeric F-Key (38-Key)

Barcode Scanner:

Red Cross Standard Range

Specialty :

Standard

$3290.71

CK65-L0N-B8C214F

CK65 Mobile Computer, Red Dot FlexRange Imager, Alphanumeric (51-Key) - 4GB RAM/32GB Flash Memory, Camera, GMS, FCC, Enhanced Durability

Keyboard:

Alphanumeric (51-Key)

Specialty :

Enhanced Durability

GMS:

GMS

Barcode Scanner:

Red Dot FlexRange

$3611.64

Shop CK65 Accessories

CK65-CB-UVN-0

CK65 standard charge base, not compatible with rubber boot

$640.19

CK65-NB-UVN-0

CK65 standard ethernet charge base, not compatible with rubber boot

$985.87

318-063-003

CK65 Replacement Battery NI/ATEX

$164.68

318-063-002

CK65 Cold Storage Battery

$188.44

8754-870650-01

CK65 Hand Strap Replacement Kit, 5 Pack

$199.61

318-063-001

CK65 7,000 mAh Extended Smart Battery

$157.02

213-063-001

KIT, Protective Rubber Boot for CK65 Computers with EX20 engine (color is orange)

$64.04

213-064-001

KIT, Protective Rubber Boot for CK65 Computers with 6703 or 6803 FlexRange engine (color is orange)

$64.04

SVCCK65-SG3N

CK65, Edge Service, Gold, 5 Day, 3 Year, New Contract

$321.12

871-230-301

US only. Quad Battery Charger, CK3/CK65 (AC20) CEC compliant; Rest of World Part Number 871-230-101. Can not charge smart battery pack 318-046-031, REQUIRES POWER SUPPLY, 3011-8248-001, AND COUNTRY SPECIFIC AC POWER CORD

$621.98

871-230-101

Not for customers in California and Oregon. Quad Battery Charger for CK65, CK62, CK3 (AC20), EDA60K, and EDA61K; charges up to four batteries. Requires power supply 851-061-502 and a country-specific AC power cord. Not compatible with battery 318-046-011.

$623.52

318-033-021

Battery, Standard CK3

$230.32

236-209-001

Cable Assembly (1 Meter, USB-A to USB-micro) Use with CK3 Series Single

$83.90

236-297-001

CK65 / CK3X / CK3R USB Charging and Communications Cable

$86.36

871-229-302

Non-Cancelable/Non-Returnable Ethernet Multi-dock, US Only, accommodates up to four (4) device. US customers only. Requires global power supply 851-064-416 and US AC power cord. Provides extra port allowing for ability to link up to three (3) multidocks.

$1032.53

CK65-SCH

CK65 rugged scan handle with stylus

$272.09

CK65-UCP-N

CK65 replacement cup for CK65-CB-UVN-0 or CK65-NB-UVN-0

$82.43

871-228-301

Single dock for CK65/CK3X/CK3R, US Only, fits one device and one battery. Requires power supply 3011-8248-001 and US AC power cord. Supports Single Dock Ethernet Module, 871-238-012. The battery bay is not compatible with CK7X battery (318-046-031).

$432.29

3011-8248-001

CK65 / CK3 US/EU 12 V / 30 W Level VI Power Supply

$164.87

871-238-012

Ether Module, Single Dock-Flex Dock, CN3, CN50, CN51, CK3 (replaces 871-238-011)

$162.79

203-879-003

Pistol Grip kit, CK3 or CK60K (Field attachable)

$257.70

815-088-001

Holster (with Scan Handle) for the CK3R/CK3X

$200.02

815-087-001

Holster (without Scan Handle) for the CK3R/CK3X

$205.73

130063

Cable, power cord, AC outlet to power supply/device, straight (US type B grounded 3 prong, C13), 2.5m (8.2ft)

$21.20

1-974028-025

AC Line Cord

$19.93

851-064-416

CK3 Multi-Dock Power Supply

$318.53

203-990-002

CK3 USA AC Adapter Kit, 10 W, with Cable

$223.91

850-815-002

Adapter (RS-232 Snap-On AA21 with Kapton)

$281.54

850-817-002

Adapter (Power Snap-On AA23, with Kapton)

$253.26

851-061-502

Honeywell 851-061-502 12V Power Supply for AC20 Quad Battery Charger; Requires Country-Specific AC Cord

$100.11

CN80-STY-5SH

CN80 scan handle, Tethered Stylus, 5 pack

$76.86

871-236-001

CK65 / CK67 Non-Powered Vehicle Holder (Mounting Hardware Not Included)

$384.61

203-802-001

Install Kit (Vehicle Dock, ROHS)

$167.53

805-611-001

Mounting Kit (700 Vehicle Dock Mount) for Model 7xx, CK3X and CN3X

$175.27

871-231-102

Vehicle Dock (AV10) for the CK3

$709.79

715-549-002FRE

CK65 NI or ATEX I/O Cover replacement cap

$31.12

213-065-001

CK65 Glass Screen Protector Kit, 5-Pack

$72.46
