Honeywell CK62

Name: Honeywell CK62
Brand: Honeywell
Price: 1839.5 USD
Availability: InStock

Images may not reflect the actual product

Lightweight rugged mobile computing for warehouse, distribution, manufacturing, and inventory workflows.

Brand update: The CK62 is now a Brady product, formerly sold as the Honeywell CK62.

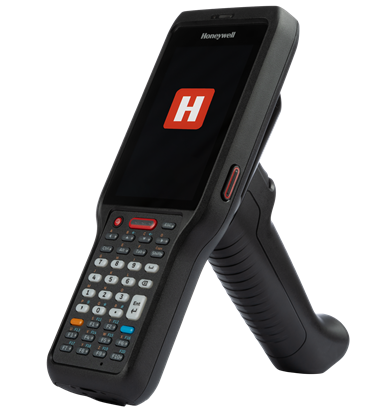

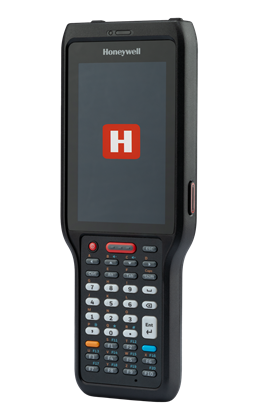

The Honeywell CK62 pairs a 4-inch touchscreen with a purpose-built physical keypad in a warehouse handheld weighing less than one pound. Built on the Mobility Edge platform, it combines Qualcomm 4490 octa-core processing, Wi-Fi 6E, enterprise data capture, and a long Android support horizon for receiving, picking, replenishment, and production tasks.

Choose a 47-key alphanumeric or 38-key numeric-function layout with an S0703 standard-range imager or FlexRange XLR scanning. A removable, hot-swappable 7,000 mAh battery supports extended shifts, while the IP65 enclosure, 1.8 m drop rating, and 3,000-tumble specification protect the device in demanding warehouse environments.

Key Specifications

Operating system / support horizon: Android 14; Honeywell documents planned support for Android 16 and 18, subject to Qualcomm and Google confirmation
Processor: Qualcomm 4490 octa-core, 2.4 GHz
Memory and storage: 4 GB RAM / 64 GB flash or 8 GB RAM / 128 GB flash, depending on option; microSD expansion up to 2 TB
Display and input: 4-inch 480 x 800 multi-touch display with Gorilla Glass 5; 47-key alphanumeric or 38-key numeric-function keypad
Scan engine: Honeywell S0703 slim 1D/2D imager or FlexRange XLR, depending on option
Wireless connectivity: Wi-Fi 6E, Bluetooth, NFC, and option-dependent cellular/GPS support
Ruggedness and sealing: Multiple 1.8 m drops, 3,000 tumbles at 1 m, and IP65 sealing
Battery / power: Removable, hot-swappable 7,000 mAh battery; Quick Charge 3.0; more than 28 hours under Honeywell's published profile
Form factor, dimensions and weight: Keyed rugged handheld; 206 x 78 x 27 mm; approximately 440 g
Warranty: 1 year.

In the Box

Honeywell CK62 mobile computer in the selected keypad, memory, and scan-engine configuration
Removable 7,000 mAh battery
Hand strap
USB cable

Keypad, scan engine, memory, camera, Google Mobile Services, regional certification, and wireless configuration vary by selected option. Charging equipment, cables, power supplies, and other accessories are sold separately unless the exact option description states otherwise.

Enter Data Your Way

Physical keys plus multi-touch control

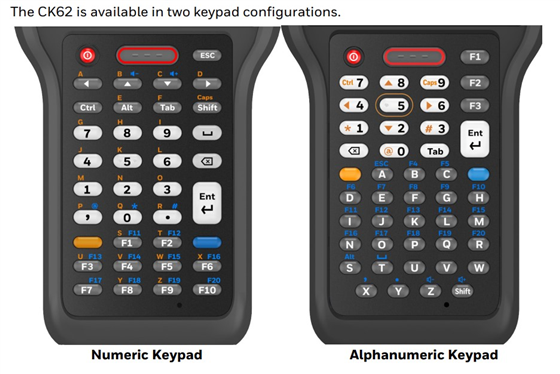

Select the 47-key alphanumeric layout for text-heavy work or the 38-key numeric-function layout for fast quantity and command entry. Two programmable side scan keys support left- or right-handed workflows.

Scan the Item or the Rack

Standard-range and FlexRange XLR choices

The S0703 slim imager handles close-range 1D and 2D labels, while FlexRange XLR configurations extend capture across warehouse aisles and elevated locations. Choose the range matched to the selected workflow.

Stay Connected Across the Facility

Wi-Fi 6E on Mobility Edge

Enterprise Wi-Fi 6E, Bluetooth, NFC, and the Mobility Edge platform support responsive applications and managed deployments. Memory, storage, cellular, and location capabilities remain configuration-dependent.

Built for Long Warehouse Shifts

Hot-swappable power in a lighter rugged body

The 7,000 mAh battery is removable and hot-swappable, while the enclosure withstands repeated 1.8 m drops, 3,000 tumbles at 1 m, and IP65 dust and water exposure. At about 440 g, the CK62 balances durability with all-day portability.

Dimensions

206 mm L x 78 mm W x 27 mm H (8.11 in x 3.07 in x 1.06 in)

Weight

440 g (0.97 lb)

Display Size

Corning® Gorilla® Glass 5; 4-inch display

Resolution

480 x 800

Backlight

LED

Touchscreen

Multi-touch capacitive (CTP), GFF

Keypad

Alphanumeric (47-key), function-numeric (38-key), or large-numeric (29-key), plus two programmable side scan keys

Universal Dock Platform

Compatible for power charging

Operating Temperature

-20°C to +50°C (-4°F to +122°F)

Storage Temperature and Humidity

-30°C to +70°C (-22°F to +158°F); 5% to 95% relative humidity, non-condensing

Drop

Multiple 1.8 m (6 ft) drops to concrete across -10°C to +50°C per MIL-STD-810H; with optional protective boot, multiple 2.4 m (8 ft) drops

Tumble

3,000 tumbles at 1.0 m (3.3 ft) per IEC 60068-2-32

Vibration and ESD

MIL-STD-810H, Method 514.6, Procedure I; ±8 kV direct and ±15 kV air discharge

Environmental Sealing

IP65

Processor

Qualcomm 4490 octa-core, 2.4 GHz

Memory

4 GB RAM / 64 GB flash or 8 GB RAM / 128 GB flash

Operating System

Android 14; upgradeable through Android 18 (4 GB configurations: Android 16 planned, subject to Qualcomm and Google confirmation)

Storage Expansion

microSD support up to 2 TB

Rear Camera

13-megapixel color camera

Indicators and Sensors

Battery status LEDs: red/green/amber; scan indication: red/green; 3-axis accelerometer, 3-axis gyroscope, compass, and hall sensor

PC Interface

USB 3.1 with USB Type-C interface

Interface Ports

2-pin bottom connection

Real-Time Clock

5-minute backup

Battery

Li-ion, 7,000 mAh, 3.6 V, removable and hot-swappable

Charging

Quick Charge 3.0; approximately 3.5 hours to full charge

Battery Runtime

More than 28 hours; actual runtime depends on usage and other factors

Scan Engine

Honeywell FlexRange™ XLR or S0703 slim imager; 1D/2D barcode symbologies

SIM Card

1 eSIM and 1 nano SIM on CK62X10 configurations

WLAN

IEEE 802.11 a/b/g/n/ac/ax on 2.4 GHz, 5 GHz, and 6 GHz bands

Bluetooth

Bluetooth 5.3/2.1 + EDR Class 1

GPS

CK62X10 only; dual-band L1 + L5 GPS/AGPS with GLONASS, Galileo, and BeiDou support; configuration- and region-dependent

WWAN Radio
