Star Micronics BSH-20U

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
small product image8
small product image9
small product image10

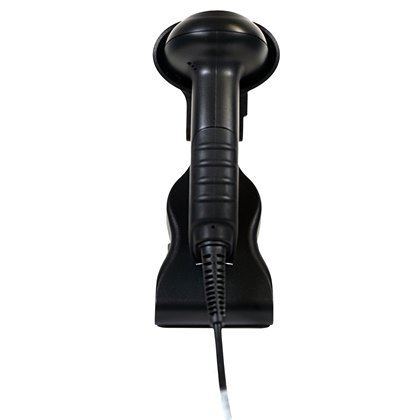

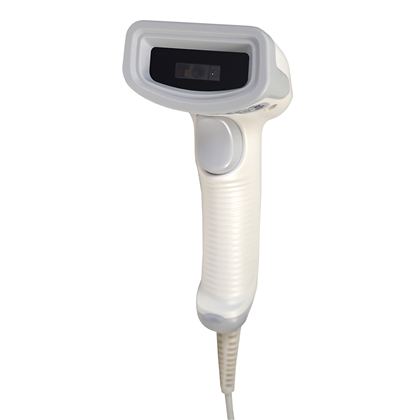

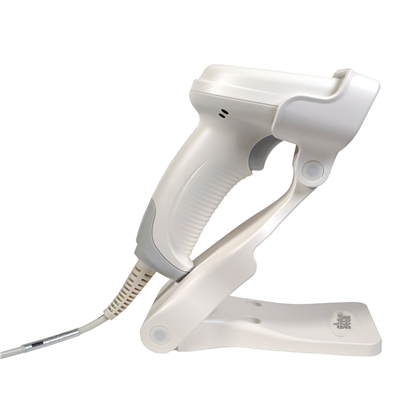

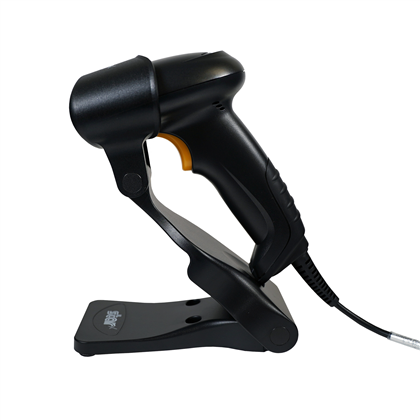

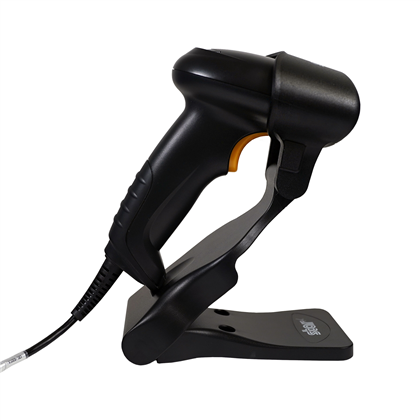

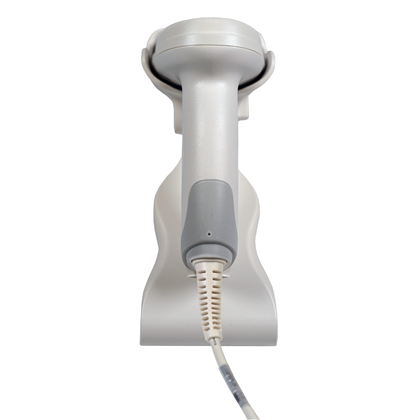

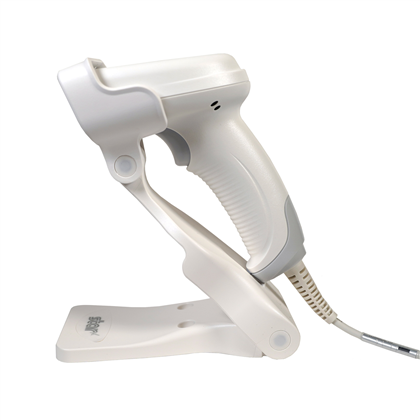

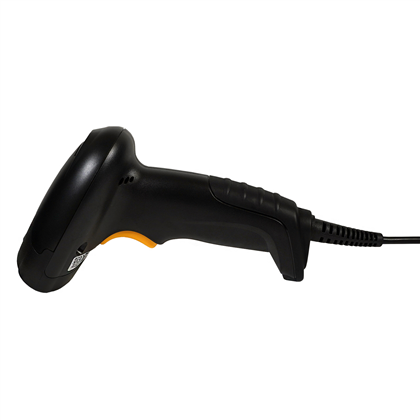

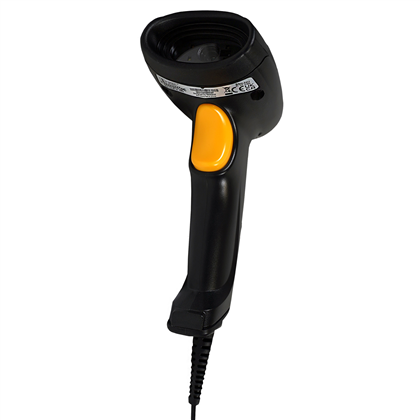

Handheld USB Barcode Scanner

The BSH-20U is a versatile, cost-effective 1D/2D handheld USB barcode scanner equipped with a high-performance CPU. It excels in scanning high-density, high-volume, and distorted barcodes on various surfaces, including paper, uneven media, or digital displays. Designed for durability, it features an IP42-rated construction and drop-resistant housing, ensuring resilience in active business settings. It’s ideal for a range of markets like retail, hospitality, and the healthcare sector and is compatible with any POS system. It supports easy plug-and-play functionality with iOS, Android, and Windows devices. For businesses seeking advanced scanning capabilities, the BSH-20U is the efficient, reliable, and economical choice.

Key Features - BSH-20U Handheld 1D/2D USB Barcode Scanner

  • High-performance CPU captures high-density, high-volume, & distorted barcodes
  • Plug and play with iOS, Android, and Windows
  • Scans on paper, uneven media, or screen
  • 5 scanning modes (level, sense, continuous, pulse, batch)
  • Access to StarSCAN configuration utility for customized functionality
  • Ergonomic, IP42-rated design and 1.2m drop resistance

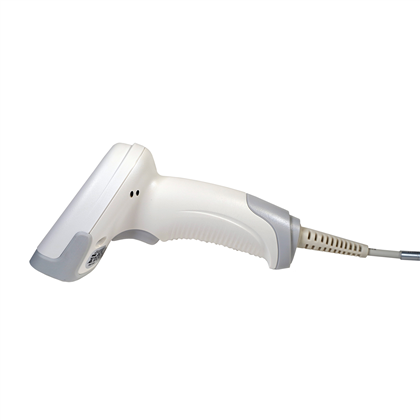

  • White models have washable antimicrobial housing, ideal for the health sector
  • 2-year warranty included with options to EXTEND-A-STAR® or SWAP-A-STAR®
  • Compatible with any POS software, including Star’s mCollection® products (mC-Print2/3 & mPOP®)
  • Star branded for superior quality guaranteed
  • Scanner stand included

Included in Box

  • Scanner
  • Stand
Image Sensor
640×480 CMOS
Illumination
White LED
Aiming
Red LED
Symbologies
  • 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec
  • 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS)
  • Resolution*
    ≥3 mil
    Typical Depth of Field*
  • EAN-13: 50 mm-260 mm (13 mil)
  • Code39: 50 mm-115 mm (5 mil)
  • PDF417: 50 mm-120 mm (6.7 mil)
  • Data Matrix: 35 mm-125 mm (10 mil)
  • QR Code: 30 mm-170 mm (15 mil)
  • Scan Angle
    Pitch: ±55°, Roll: 360°, Skew: ±55°
    Field of View
    Horizontal 45°, Vertical 34°
    Min Symbol Contrast
    20%
    Interface
    USB, RS232
    Operating Voltage
    5VDC±5%
    Dimensions (L×W×H)
    146mm x 103mm x 69mm
    Weight
    125g
    Colors
    Black, White
    Notification
    Beep, LED
    Operating Temperature
    -20°C to 60°C (-4°F to 140°F)
    Storage Temperature
    -40°C to 70°C (-40°F to 158°F)
    Humidity
    5%~95% (non-condensing)
    ESD
    ±15 KV (air discharge); ±8 KV (contact discharge)
    Drop
    1.2 m
    Sealing
    IP42
    BSH-20U Scanner Quickstart Guide
    Download
    BSH-20U Scanner Spec Sheet
    Download
    BSH-20U Scanner User Manual
    Download
    StarSCAN Configuration Utility
    Download

    Shop BSH-20U Models

    37950920

    BSH-20U 2D Scanner, USB Cable, Black, Includes Stand, mC-Print and mPOP Compatible

    $129.58

    37950930

    BSH-20U 2D Scanner, USB Cable, White, Includes Stand, mC-Print and mPOP Compatible

    $140.69

    Shop BSH-20U Accessories

    37955360

    Barcode Scanner Serial Interface Kit: Includes Serial Cable and Power Supply

    $58.08
