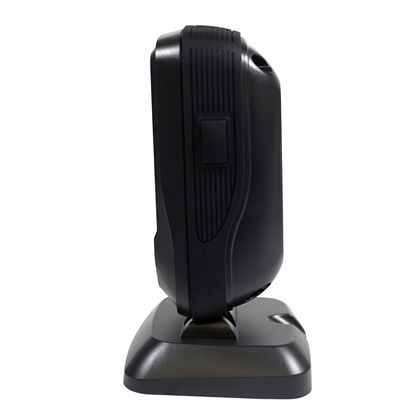

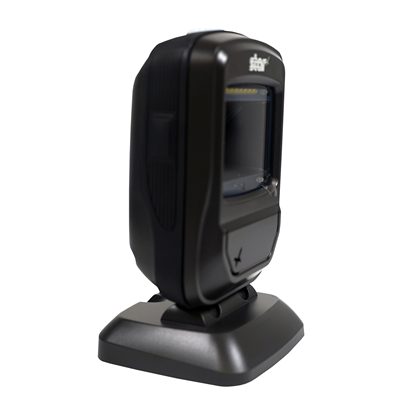

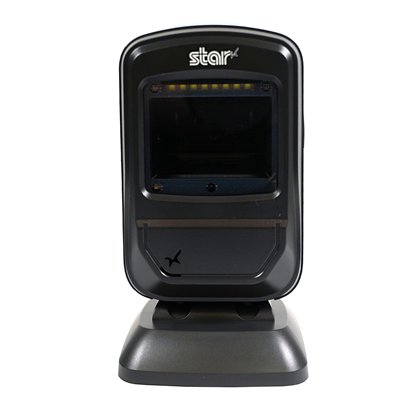

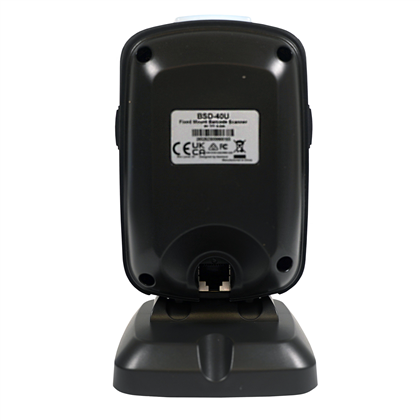

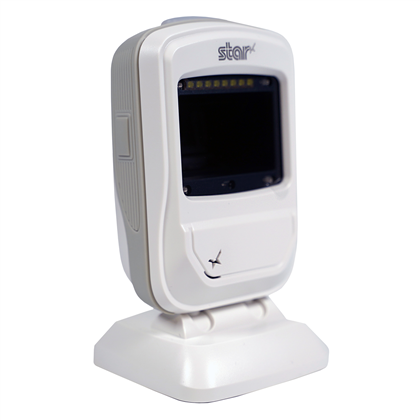

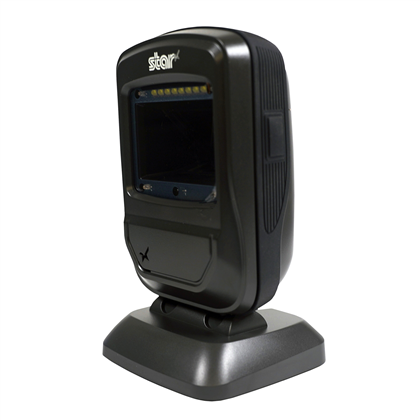

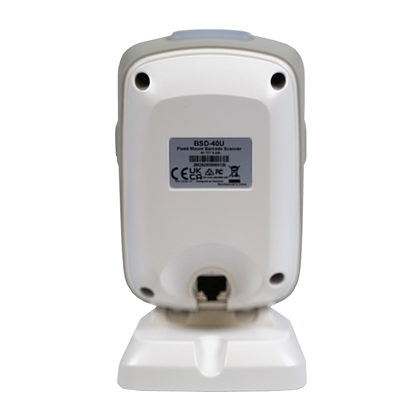

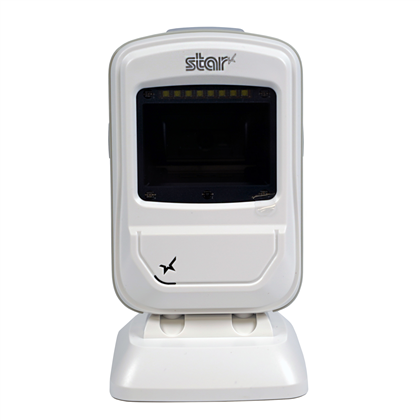

Star Micronics BSD-40U
High-speed desktop 1D/2D scanning for hands-free POS and ID workflows

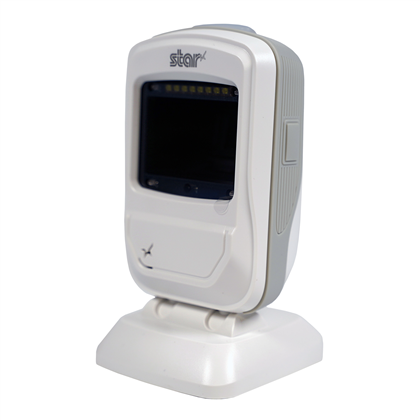

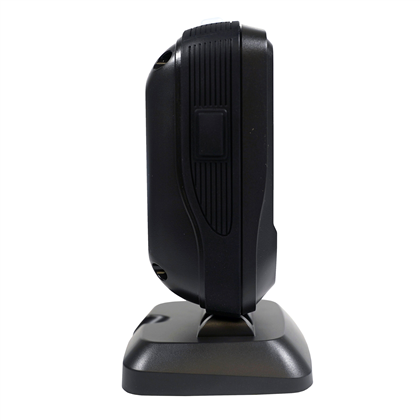

The Star Micronics BSD-40U is a compact presentation scanner for fast, hands-free capture at the counter. Its 1280 x 800 CMOS imager reads common 1D and 2D barcodes from paper and screens, while AAMVA driver-license parsing supports age-verification and identification workflows.
Connect the included USB cable for plug-and-play deployment, or add the optional 37955360 serial interface kit when an RS-232 connection is required. Infrared sensing and motion detection support automatic presentation scanning.
Key Specifications
- Scanner configuration: Desktop hands-free/presentation megapixel CMOS area imager
- Barcode capability: 1D and 2D, including QR, PDF417 and Data Matrix; AAMVA driver-license parsing
- Reading range: 10 to 210 mm depending on symbology and density
- Interfaces / connectivity: USB standard; RS-232 with optional serial interface kit
- Durability: 1.2 m drops to concrete on six sides
- Environmental sealing: IP52
- Dimensions and weight: 83 x 80 x 147 mm; 297 g
- Warranty: 2 years
- Image sensor: 1280 x 800 megapixel CMOS
- Motion tolerance and field of view: 2.5 m/s; 51° horizontal x 32° vertical
In the Box
- BSD-40U scanner in the selected color
- USB cable
- Quick Start Guide
Configuration note: Current US parts 37950900 (black) and 37950910 (white) include the USB cable. Optional serial kit 37955360 is sold separately and includes the serial cable and power supply.
Flexible Presentation Scanning
Four modes with fast automatic triggering
Switch among supported scanning modes for different counter workflows. Infrared sensing and motion detection help trigger scans as barcodes enter the field of view.
Confident Barcode Capture
Megapixel imaging for paper, screens and IDs
The 1280 x 800 CMOS sensor reads common 1D and 2D symbols, including high-density codes, with AAMVA driver-license parsing for supported workflows.
USB or Serial Deployment
Included USB cable with an RS-232 upgrade path
Use the included USB cable for standard installations. For legacy serial hosts, add exact kit 37955360, which packages the required serial cable and power supply.
Simple to Configure
Plug-and-play operation with StarSCAN support
Deploy quickly over USB and use the StarSCAN configuration utility on Windows to tailor supported scanner settings. The IP52 housing and 1.2 m drop rating suit busy retail and hospitality counters.
Shop BSD-40U Models
Shop BSD-40U Accessories
37955360
Barcode Scanner Serial Interface Kit: Includes Serial Cable and Power Supply
37950580
Extends standard warranty to total of three (3) years. Valid in US / CA / Latin America. See terms & conditions for details. NCNR (Non-Cancelable, Non-Returnable).
37951340
Extends standard warranty to total of four (4) years. Valid in US / CA / Latin America. See terms & conditions for details. NCNR (Non-Cancelable, Non-Returnable).
37950560
Adds next business day shipment via 2nd day air to standard two (2) year warranty. Valid in contiguous US only. See terms & conditions for details.
37951320
Extends standard warranty to total of three (3) years and includes next business day shipment via 2nd day air. Valid in contiguous US only. See terms & conditions for details. NCNR (Non-Cancelable, Non-Returnable).
