Interface cables for Datalogic barcode scanners

Datalogic scanner cables connect compatible readers or cradles to USB, serial, keyboard-wedge and legacy POS hosts. Straight and coiled designs are available. Compatibility depends on the scanner or cradle and the exact cable; a matching host connector alone does not establish compatibility.

Choosing a cable

Match the part number: Check your scanner or cradle model, host connection, and required cable length. CAB-362, CAB-365, CAB-412 and CAB-426 are 6 ft; other cables vary.

Power and package: Each option includes one cable. Scanner, cradle and power supply are sold separately. CAB-362 requires external power.

90A051330 (CAB-362)

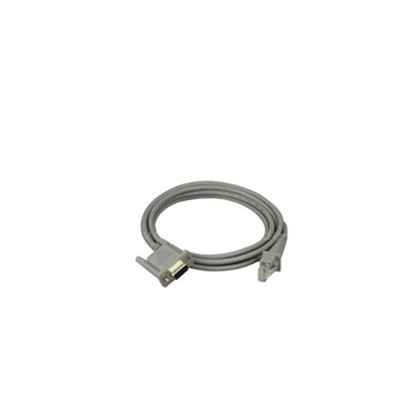

Cable, RS-232, 9P, Female, Coiled, CAB-362, External Power, 6 ft. Compatible models: Gryphon 4200 Series, Gryphon™ I GBT4100, Gryphon™ I GBT4400 2D, Gryphon™ I GD4100, Gryphon™ I GD4400 2D, Gryphon™ I GM4100, Gryphon™ I GM4400 2D, Gryphon™ L GD4300, QuickScan 2100 Series, QuickScan 2400 Series, QuickScan 2500 Series, Gryphon 4600 Series, Heron 3100 Series, Heron 3400 Series, Heron™, Touch 1100 Series, QuickScan™ I QM2100, Gryphon 4500 Series, Gryphon 4500 Fixed Series, Cobalto™ CO5300, Gryphon™ I GPS4400.
90A051360 (CAB-365)

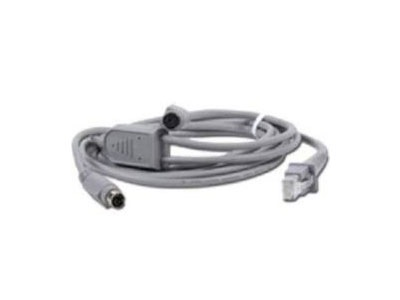

Cable, IBM PS/2, KBW, Minidin Connector, Coiled, CAB-365, 6 ft. Compatible models: GFS4170, Gryphon™ I GBT4100, Gryphon™ I GBT4400 2D, Gryphon™ I GD4100, Gryphon™ I GM4100, Gryphon™ I GM4400 2D, Gryphon™ L GD4300, QuickScan 2100 Series, QuickScan 2400 Series, Heron™, QuickScan™ I QD2100, Touch 1100 Series, QuickScan™ I QM2100.
90A051902 (CAB-412)
Cable, USB, Type A, Optional Power USB Keyboard, USB COM Mode, Straight, CAB-412, 6 ft. Compatible models: QuickScan 2100 Series, QuickScan 2400 Series.
90A051945 (CAB-426)
Cable, USB, Type A, Straight, CAB-426, 6 ft. Compatible models: Gryphon™ L GD4300, QuickScan 2100 Series, QuickScan 2400 Series, Heron™, QuickScan™ I QM2100.
90G001010 (CAB-321)
Cable, IBM PS/2, KBW, Minidin Connector, Straight, CAB-321. Compatible models: GFS4170, QuickScan 2100 Series, QuickScan 2400 Series, Heron 3100 Series, Heron 3400 Series, QuickScan™ I QD2100.

Shop Barcode Scanners Models

90A051902

Datalogic CAB-412 straight USB Type-A cable, 6 ft. Supports USB keyboard and USB COM modes; optional external power.

Interface:

USB

$21.00

90A051410

Straight Cable 369, IBM 468X / 469X, Port 5B for the Gryphon Series Barcode Scanner

$19.00

90A051330

Datalogic CAB-362 coiled RS-232 cable, 9-pin female, 6 ft. Requires an external power supply, sold separately.

Interface:

RS-232

$29.00

90A051360

Datalogic CAB-365 coiled PS/2 keyboard-wedge cable with Mini-DIN connector, 6 ft.

Interface:

PS/2

$29.00

8-0734-08

12-Foot USB Interface Cable for the QS2500 PDF: Series A

Interface:

USB

$19.00

90A051945

Datalogic CAB-426 straight USB Type-A cable, 6 ft.

Interface:

USB

$21.00

90G001010

Datalogic CAB-321 straight PS/2 keyboard-wedge cable with Mini-DIN connector.

Interface:

PS/2

$20.00
