Custom America Ascent
Description
Specifications
Download

Custom America Ascent

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

A serviceable, retail-hardened POS platform for counters that need flexible screen, performance, and operating-system choices.

Custom America Ascent is an all-in-one touch computer available with a traditional 15.1-inch 4:3 display or a 15.6-inch Full HD widescreen. Long-life Intel Celeron J6412 and Core i5-1145G7E processors, a compact collapsible stand, and retail-specific I/O make it a versatile platform for checkout, hospitality, grocery, convenience, entertainment, and other transaction environments.

Current POSGuys configurations span 8 GB or 16 GB of DDR4 memory, 128 GB or 256 GB M.2 solid-state storage, and no-OS, Windows 10 IoT, Windows 11 IoT, or Windows 11 Pro choices. Standard configurations add Wi-Fi 6 and Bluetooth 5.2; bezel-mounted peripherals and customer-display options can extend the station without replacing the core terminal.

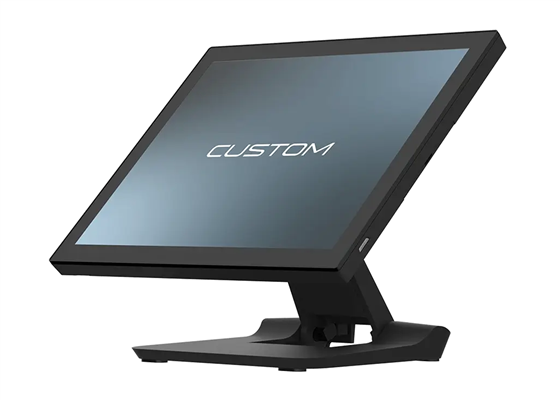

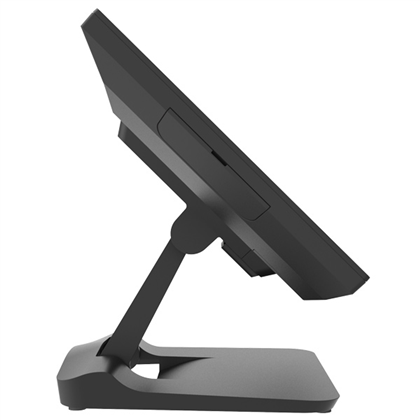

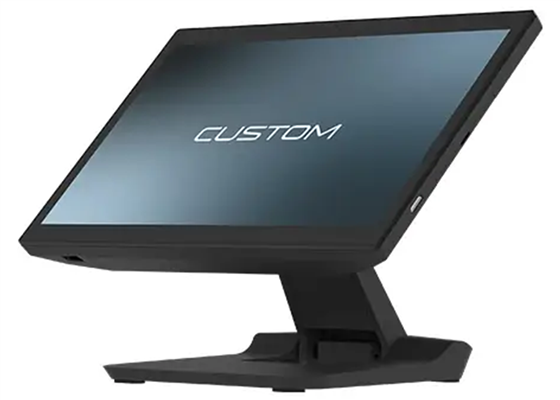

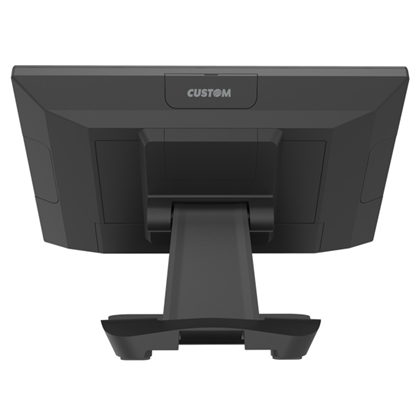

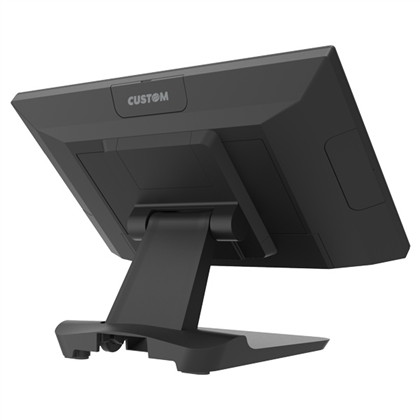

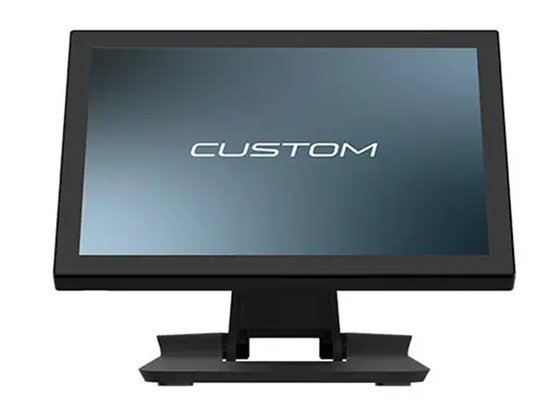

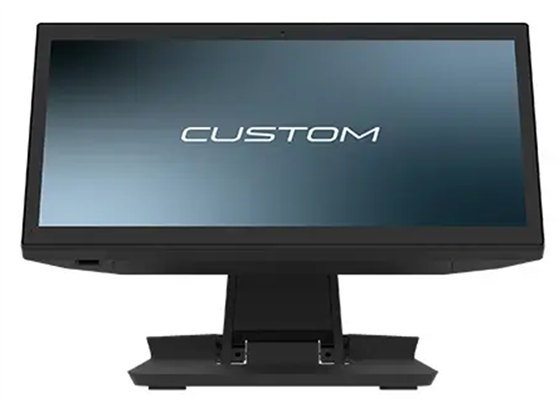

Custom America Ascent POS computer

Key Specifications

  • Processor: Intel Celeron J6412 or Intel Core i5-1145G7E.
  • Memory and storage: 8 GB or 16 GB DDR4 with a 128 GB or 256 GB M.2 SSD, depending on the selected option.
  • Display and touch: 15.1-inch 1024 x 768 or 15.6-inch 1920 x 1080 True-Flat PCAP multi-touch display; 500-nit brightness.
  • Operating system: No OS, Windows 10 IoT, Windows 11 IoT, or Windows 11 Pro by option; Linux is also supported.
  • Ports and connectivity: Front and rear USB-A, USB-C 3.0, three RJ48 serial ports, Gigabit Ethernet, cash-drawer, CuDP second-display, and latched 4-pin connections; Wi-Fi 6/Bluetooth 5.2 on Standard models.
  • Mount / stand: Collapsible counter stand with landscape or portrait positioning; 100 x 100 mm VESA mounting support.
  • Peripheral options: 11.6-inch touch customer display, LCM customer display, fingerprint reader, 3-track MSR, iButton reader, and CuDP-to-HDMI adapter.
  • Serviceability: Front USB access plus service-friendly memory and storage compartments simplify upgrades and support.
  • Dimensions and weight: 15.1-inch model: 326 x 270 x 261 mm and 4 kg with stand; 15.6-inch model: 368 x 265 x 233 mm and 3.5 kg with stand.
  • Warranty: 3 years

In the Box

  • Custom America Ascent touch computer in the selected screen, processor, memory, storage, connectivity, and OS configuration
  • Collapsible POS stand
  • 65 W / 19 V or 120 W / 19 V power supply, matched to the selected configuration
  • Two RJ48-to-DB9 serial cables

Customer displays, readers, powered-USB features, camera, and other modular peripherals are included only when the selected option explicitly lists them.

Match the Screen to the Lane

Choose a traditional 4:3 workspace or Full HD widescreen

The 15.1-inch model preserves a compact 1024 x 768 layout for established POS software, while the 15.6-inch model provides a wider 1920 x 1080 canvas. Both use bright True-Flat PCAP multi-touch displays.

Choose Long-Life Intel Performance

Celeron efficiency or Core i5 application headroom

Select the Celeron J6412 for everyday transaction workloads or the Core i5-1145G7E for more demanding software, multitasking, and peripheral environments. TPM 2.0 and current Windows options support managed commercial deployments.

Connect a Complete POS Station

Retail I/O without a desk full of adapters

Multiple USB ports, three serial connections, Gigabit Ethernet, a cash-drawer port, CuDP display output, and wireless connectivity on Standard models accommodate printers, scanners, payment peripherals, networking, and customer displays.

Service and Expand in Place

Accessible components and bezel-mounted peripherals

Easy access to memory and storage, a technician-friendly front USB port, and modular display and reader options help reduce downtime and let the station evolve as the checkout experience changes.

Processor
Intel Celeron J6412; Intel Core i5-1145G7E
TPM
TPM 2.0
Memory
8 GB to 16 GB DDR4
Storage
128 GB to 256 GB M.2 SSD
Supported OS
Windows 10 IoT; Windows 11 IoT; Windows 11 Pro; Linux
Display
15.1-inch TFT LCD (1024 x 768); 15.6-inch TFT LCD (1920 x 1080)
Resolution
1024 x 768 (15.1-inch); 1920 x 1080 (15.6-inch)
Touch Screen
True-flat projected capacitive multi-touch
Brightness
500 nits
I/O
Celeron: 1 x front USB-A 2.0, 2 x USB-A 3.0, 4 x USB-A 2.0, 1 x USB-C 3.0, 3 x RJ48 (with 2 RJ48-to-DB9 cables), 1 x RJ45, 1 x RJ11, 1 x CuDP, 1 x latched 4-pin
Core i5: 1 x front USB-A 2.0, 4 x USB-A 3.0, 2 x USB-A 2.0, 1 x USB-C 3.0, 3 x RJ48 (with 2 RJ48-to-DB9 cables), 1 x RJ45, 1 x RJ11, 1 x CuDP, 1 x latched 4-pin
Wireless
Wi-Fi 6 and Bluetooth 5.2 via M.2 module on Standard and Premium configurations
Speaker
1 x 3 W
Camera
Embedded 5 MP front camera on Premium configurations
Power Supply
65 W / 19 V or 120 W / 19 V with powered USB (Celeron); 120 W / 19 V (Core i5)
Dimensions
15.1-inch: 326 mm (W) x 270 mm (H) x 261 mm (D); 15.6-inch: 368 mm (W) x 265 mm (H) x 233 mm (D), both with collapsible stand
Weight
15.1-inch: 4 kg with stand, 6 kg packaged with cables; 15.6-inch: 3.5 kg with stand, 5 kg packaged with cables
VESA Mount
100 x 100 mm
Warranty
3 years
Powered USB
2 x 12 V powered USB and 1 x 24 V powered USB on Premium configurations
EMC and Safety
FCC Class A; CE Mark Class A; LVD
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
20% to 85% RH, non-condensing
Custom America Ascent 15.6-inch Data Sheet
Download
Custom America Ascent 15.1-inch Data Sheet
Download

Shop Ascent Models

935KY462L00L33

Ascent 15.6-inch Standard POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, Windows 11 IoT, Wi-Fi and Bluetooth.

Screen Size:

15.6-inch Widescreen

RAM:

16 GB

Storage:

256 GB SSD

Processor:

Intel Core i5-1145G7E

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 IoT

$2417.86

935KY462F00L33

Ascent 15.1-inch Standard POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, Windows 11 IoT, Wi-Fi and Bluetooth.

Screen Size:

15.1-inch Standard

RAM:

16 GB

Storage:

256 GB SSD

Processor:

Intel Core i5-1145G7E

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 IoT

$2412.86

935KY461V00L33

Ascent 15.1-inch Standard POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, Windows 11 Pro, Wi-Fi and Bluetooth.

Screen Size:

15.1-inch Standard

RAM:

16 GB

Storage:

256 GB SSD

Processor:

Intel Core i5-1145G7E

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 Pro

$2522.38

935KY460500L33

Ascent 15.6-inch Standard POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, Windows 11 Pro, Wi-Fi and Bluetooth.

Storage:

128 GB SSD

Screen Size:

15.6-inch Widescreen

RAM:

8 GB

Processor:

Intel Celeron J6412

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 Pro

$1401.18

935KY461C00L33

Ascent 15.6-inch Standard POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, Windows 11 IoT, Wi-Fi and Bluetooth.

Storage:

128 GB SSD

Screen Size:

15.6-inch Widescreen

RAM:

8 GB

Processor:

Intel Celeron J6412

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 IoT

$1183.51

935KY461F00L33

Ascent 15.1-inch Standard POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, Windows 11 IoT, Wi-Fi and Bluetooth.

Storage:

128 GB SSD

Screen Size:

15.1-inch Standard

RAM:

8 GB

Processor:

Intel Celeron J6412

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 IoT

$1112.80

935KY460400L33

Ascent 15.6-inch Premium POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, Windows 10 IoT, Wi-Fi, Bluetooth, powered USB, and front camera.

Storage:

128 GB SSD

RAM:

8 GB

Processor:

Celeron J6412

Screen Size:

Wide Screen

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 10 IoT

$1328.51

935KY460P00L33

Ascent 15.6-inch Standard POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, Windows 11 Pro, Wi-Fi and Bluetooth.

Screen Size:

15.6-inch Widescreen

RAM:

16 GB

Storage:

256 GB SSD

Processor:

Intel Core i5-1145G7E

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 Pro

$2524.08

935KY462A00L33

Ascent 15.1-inch Standard POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, no OS, Wi-Fi and Bluetooth.

Screen Size:

15.1-inch Standard

RAM:

16 GB

Storage:

256 GB SSD

Processor:

Intel Core i5-1145G7E

OS:

No OS

Connectivity:

Wi-Fi and Bluetooth

$2237.97

935KY460B00L33

Ascent 15.6-inch Standard POS Touch Computer, Intel Core i5-1145G7E, 8 GB RAM, 256 GB SSD, Windows 11 Pro, Wi-Fi and Bluetooth.

Screen Size:

15.6-inch Widescreen

Storage:

256 GB SSD

RAM:

8 GB

Processor:

Intel Core i5-1145G7E

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 Pro

$2315.07

935KY461000L33

Ascent 15.1-inch Standard POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, Windows 11 Pro, Wi-Fi and Bluetooth.

Storage:

128 GB SSD

Screen Size:

15.1-inch Standard

RAM:

8 GB

Processor:

Intel Celeron J6412

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 Pro

$1302.02

935KY460J00L33

Ascent 15.6-inch Value POS Touch Computer, Intel Core i5-1145G7E, 8 GB RAM, 256 GB SSD, Windows 11 Pro, Ethernet only.

Screen Size:

15.6-inch Widescreen

Storage:

256 GB SSD

RAM:

8 GB

Connectivity:

Ethernet only

Processor:

i5

OS:

Windows 11 Pro

$2277.49

935KY460H00L33

Ascent 15.6-inch Value POS Touch Computer, Intel Core i5-1145G7E, 8 GB RAM, 256 GB SSD, Windows 10 IoT, Ethernet only.

Processor:

i5

Screen Size:

15.6-inch Widescreen

Storage:

256 GB SSD

RAM:

8 GB

Connectivity:

Ethernet only

OS:

Windows 10 IoT

$2201.45

935KY460F00L33

Ascent 15.6-inch Value POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, Windows 11 Pro, Ethernet.

Storage:

128 GB SSD

Screen Size:

15.6-inch Widescreen

RAM:

8 GB

Connectivity:

Ethernet only

Processor:

Intel Celeron J6412

OS:

Windows 11 Pro

$1238.69

935KY460E00L33

Ascent 15.6-inch Value POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, Windows 10 IoT, Ethernet only.

Storage:

128 GB SSD

Screen Size:

15.6-inch Widescreen

RAM:

8 GB

Connectivity:

Ethernet only

Processor:

Intel Celeron J6412

OS:

Windows 10 IoT

$1192.81

935KY460C00L33

Ascent 15.6-inch Premium POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, Windows 11 Pro, Wi-Fi, Bluetooth, powered USB, and front camera.

Screen Size:

15.6-inch Widescreen

RAM:

16 GB

Storage:

256 GB SSD

Processor:

Intel Core i5-1145G7E

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 11 Pro

$2520.53

935KY460A00L33

Ascent 15.6-inch Premium POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, Windows 10 IoT, Wi-Fi, Bluetooth, powered USB, and front camera.

Processor:

i5

Screen Size:

15.6-inch Widescreen

RAM:

16 GB

Storage:

256 GB SSD

Connectivity:

Wi-Fi and Bluetooth

OS:

Windows 10 IoT

$2520.53

935KY460700L33

Ascent 15.6-inch Standard POS Touch Computer, Intel Core i5-1145G7E, 8 GB RAM, 256 GB SSD, no OS, Wi-Fi and Bluetooth.

Screen Size:

15.6-inch Widescreen

Storage:

256 GB SSD

RAM:

8 GB

Processor:

Intel Core i5-1145G7E

OS:

No OS

Connectivity:

Wi-Fi and Bluetooth

$2034.36

935KY460100L33

Ascent 15.6-inch Standard POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, no OS, Wi-Fi and Bluetooth.

Storage:

128 GB SSD

Screen Size:

15.6-inch Widescreen

RAM:

8 GB

Processor:

Intel Celeron J6412

OS:

No OS

Connectivity:

Wi-Fi and Bluetooth

$1012.23

935KY460U00L33

Ascent 15.1-inch Standard POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, no OS, Wi-Fi and Bluetooth.

Storage:

128 GB SSD

Screen Size:

15.1-inch Standard

RAM:

8 GB

Processor:

Intel Celeron J6412

OS:

No OS

Connectivity:

Wi-Fi and Bluetooth

$1040.22

935KY460G00L33

Ascent 15.6-inch Value POS Touch Computer, Intel Core i5-1145G7E, 8 GB RAM, 256 GB SSD, no OS, Ethernet only.

Screen Size:

15.6-inch Widescreen

Storage:

256 GB SSD

RAM:

8 GB

Connectivity:

Ethernet only

Processor:

Intel Core i5-1145G7E

OS:

No OS

$2067.80

935KY460D00L33

Ascent 15.6-inch Value POS Touch Computer, Intel Celeron J6412, 8 GB RAM, 128 GB SSD, no OS, Ethernet.

Storage:

128 GB SSD

Screen Size:

15.6-inch Widescreen

RAM:

8 GB

Connectivity:

Ethernet only

Processor:

Intel Celeron J6412

OS:

No OS

$966.94

935KY460800L33

Ascent 15.6-inch Premium POS Touch Computer, Intel Core i5-1145G7E, 16 GB RAM, 256 GB SSD, no OS, Wi-Fi, Bluetooth, powered USB, and front camera.

Screen Size:

15.6-inch Widescreen

RAM:

16 GB

Storage:

256 GB SSD

Processor:

Intel Core i5-1145G7E

OS:

No OS

Connectivity:

Wi-Fi and Bluetooth

$2230.06

Shop Ascent Accessories

932AD050100002

11.6-inch Rear Touch Display for Custom America Ascent and Peak All-in-One Computers

$412.62

938KY460000002

3-Track MSR for Ascent All-in-One Terminal; connects to a side I/O port

$97.02

932AD050100003

2-Line LCM Customer Display for Ascent All-in-One Terminal; connects to the top I/O port

$124.74

938KY460000001

Fingerprint Reader for Ascent All-in-One Terminal; connects to the side I/O port

$221.76

9SRSW230200010

Custom America 3-Year CustomCare Advanced Exchange Warranty for Ascent, Daytona, and Peak 15-inch All-in-One Computers

$230.00

9SRSW230200030

Custom America 5-Year CustomCare Advanced Exchange Warranty for Ascent, Daytona, and Peak 15-inch All-in-One Computers

$384.00

9SRSW230200020

Custom America 4 Year CustomCare Advanced Exchange Warranty For Ascent, Daytona, and Peak 15" All-In-One Computers.

$307.00
