Elo TouchSystems 99-Series Outdoor
Description
Specifications
Download

Elo TouchSystems 99-Series Outdoor

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

Sunlight-readable outdoor open-frame touchscreens for embedded kiosks.

Elo’s 99-Series Outdoor brings optically bonded, anti-glare touch displays to payment, ticketing, signage and charging equipment. Choose the compact 10.1-inch 1099L or the 27-inch Full HD 2799L. Their panels deliver 1000 or 1500 nits respectively, with 900 or 1320 nits through the touchscreen.

Both models support 24/7 operation, viewing with polarized sunglasses and -20°C to 60°C operating temperatures. The displays can be sealed to IP66 / NEMA 4X when properly integrated into an enclosure. Ambient light sensing adjusts brightness, while thermal sensing and fans help manage outdoor conditions.

Elo 1099L 10.1-inch outdoor open-frame touchscreen

Key Specifications

  • Product / application: Outdoor open-frame kiosk displays
  • Host platform: External computer required
  • Display / resolution: 10.1-inch 1280 × 800 or 27-inch Full HD
  • Touch input: PCAP; 5-touch on 1099L or 10-touch on 2799L with USB
  • Video inputs: HDMI, VGA and DisplayPort
  • Brightness with touch: 900 nits (1099L); 1320 nits (2799L)
  • Mounting: 75 mm VESA (1099L); 200 × 100 mm VESA (2799L); flush brackets included
  • Power: 1099L: 12V DC; 2799L: 12–24V DC; adapter sold separately
  • Operating temperature: -20°C to 60°C
  • Dimensions / weight: 256 × 176 × 41 mm / 1.67 kg, or 658 × 415 × 66 mm / 13.6 kg
  • Protection: Sealable to IP66 / NEMA 4X; IK09 (1099L) or IK10 (2799L)
  • Warranty: 2 years

In the Box

  • Selected 1099L or 2799L touchscreen
  • HDMI and VGA video cables; USB touch cable
  • Remote OSD controller and quick-install guide
  • Flush-mount brackets and screws
  • Power adapter is sold separately

Outdoor visibility

Optical bonding and high brightness help keep content readable in direct sunlight. Both models support polarized sunglasses in portrait and landscape orientations, and automatic brightness adjustment can reduce unnecessary light output.

Built for enclosure integration

Locking connections and included flush-mount brackets support secure installations. The 1099L has IK09 impact protection; the 2799L has IK10 protection and adds GPIO control. Follow the selected model’s drawing and installation guide for enclosure sealing.

Part Number(s)
1099L: TouchPro PCAP with anti-glare - E354792 2799L: TouchPro PCAP with anti-glare - E399052
Enclosure Color
Black
Touch Technology & Capacity
1099L: PCAP (TouchPro® Projected Capacitive) - up to 5 touches 2799L: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru
Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Touch Interface
1099L: USB 2.0 2799L: 10 touch with USB 2.0 2 touch with RS232 via VGA port with E810917
Diagonal Size
1099L: 10.1'' diagonal, Active matrix TFT LCD (LED) 2799L: 27'' diagonal, Active matrix TFT LCD (LED)
On Screen Display (1099L)
Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese, Lockouts: OSD, Power
On Screen Display (2799L)
Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power
Aspect Ratio
1099L: 16:10 2799L: 16:9
Active Area
1099L: 8.54" x 5.33" / 216.96 mm x 135.60 mm 2799L: 23.54" x 13.24" / 597.89 mm x 336.31 mm
Resolution
1099L: 1280 x 800 2799L: 1920 x 1080
Other Supported Resolutions
1099L: 640 x 480 60Hz 720 x 400 70Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 800 60Hz 2799L: 640 x 480 60Hz 720 x 400 70Hz 800 x 500, 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50, 60Hz
Viewing Angle
1099L: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total 2799L: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
1099L: LCD Panel: 1000 nits TouchPro PCAP: 900 nits 2799L: LCD panel: 1500 nits TouchPro PCAP: 1320 nits
Response Time-total (typical)
1099L: 25 msec 2799L: 14 msec
Contrast Ratio
1099L: 700:1 2799L: 1000:1
I/O Ports
1099L: Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort 2799L: Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in, Terminal Block for GPIO control (4 pins)
Video
1099L: HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DE-15 (DB-15) connector DisplayPort V1.1a - Supports later versions of DisplayPort video input Input Video Horizontal Sync frequency range: 31.5 – 80 KHz Input Video Vertical Sync (frame rate) frequency range: 60-75Hz 2799L: HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DE-15 (DB-15) connector (Support RS232 touch via E810917) DisplayPort V1.1a - Supports later versions of DisplayPort video input Input Video Horizontal Sync frequency range: 30 – 82 KHz Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
Power (1099L)
External DC - Optional power brick (sold separately) Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) Barrel depth) Monitor input voltage range: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz
Power (2799L)
External DC - Optional power brick (sold separately) Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) barrel depth) Monitor input voltage range: 12V – 24V DC +/- 5% Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz
Power Consumption (Typical)
1099L: Monitor + adapter ON: 23W SLEEP from PC: 1.5W OFF: 1.5W 2799L: Monitor + adapter ON: 70W SLEEP from PC: 1.23W OFF: 0.26W
Dimensions
1099L: 10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm 2799L: 16.34" x 25.90" x 2.6" / 415 mm x 658 mm x 66 mm
Shipping Box Dimensions
1099L: 13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm 2799L: 22.25" x 32.29" x 9.06" / 565 mm x 820 mm x 230 mm
Weight (Unpackaged)
1099L: 3.68 lbs / 1.67 kg (2026 specification sheet) 2799L: 30.00 lbs / 13.6 kg
Weight (Packaged)
1099L: 7.94 lbs / 3.6 kg (2026 specification sheet) 2799L: 36.60 lbs / 16.6kg
Operating Temperature
-20°C to 60°C / -4°F to 140°F
Storage Temperature
-30°C to 80°C / -22°F to 176°F
Humidity
Operating: 10% to 90% Storage: 10% to 95% (38.7° maximum wet bulb temperature)
Sealability
Sealable to IP66 / NEMA 4x
MTBF
50,000 hours demonstrated
Warranty
2-year
Regulatory approvals and declarations
1099L: Australia RCM Canada cUL, IC China CCC Europe CE, TUV United Kingdom UKCA Japan VCCI Korea KCC Mexico NoM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE 2799L: Australia RCM Canada cUL, IC China CCC Europe CE, TUV United Kingdom UKCA Japan VCCI Korea KCC Mexico NoM Taiwan BSMI United States UL, FCC International CB Russia EAC RoHS, China RoHS, WEEE
Compliance
1099L: GLI 27 kV air / 8 kV contact ESD compliance UL ball-drop compliance IK09 impact compliance 2799L: GLI 15 kV air / 8 kV contact ESD compliant UL ball-drop compliant IK10 impact compliant
Mounting Options
1099L: 75 mm VESA mount on rear; 2-hole mounting interface on all four sides; flush mount with included brackets. 2799L: 200x100mm VESA mount on rear of unit 4 Hole mounting interface on all four sides. Flush mount with included brackets
Other Features
1099L: Viewable with polarized sunglasses in portrait and landscape orientations. Ambient light sensor Thermal sensor External fans (Automatically controlled) 2799L: Polarize sunglasses view: portrait and landscape Ambient light sensor (1x) Thermal sensor (2x) Internal fan (2x) External fan (4x) GPIO Control (1x input, 1x output, VCC, GND)
What's in the Box
1099L: 1099L HDMI cable with screw-locked type VGA Cable Remote OSD Touch USB Cable with screw-locked type Quick Install Guide Flush Mount Brackets w/Screws EEI Label 2799L: 2799L HDMI cable with screw-locked type VGA Cable Remote OSD Touch USB Cable with screw-locked type Quick Install Guide Flush Mount Brackets w/Screws EEI Label
Accessory compatibility
E596619 North America 80W power adapter/cable kit, E483757 OSD remote, E538507 DVI-D-to-HDMI and E582895 DisplayPort cable: both models. E777499 replacement flush-mount kit: 1099L. E598366 replacement flush-mount kit and E810917 Y-cable for 2-touch RS232: 2799L. Flush brackets are included with each display; spare kits replace them. Outdoor sealing requires correct enclosure integration.
Elo 1099L Spec Sheet
Download
Elo 2799L Specification Sheet
Download
Elo 1099L User Guide
Download
Elo 2799L User Guide
Download
Elo 2799L Quick Installation Guide
Download
Elo 1099L Dimensional Drawing
Download
Elo 2799L Dimensional Drawing
Download

Shop 99-Series Outdoor Models

E354792

Elo 1099L, 10.1-inch 1280 × 800 outdoor open-frame touchscreen, optically bonded anti-glare TouchPro PCAP up to 5-touch with USB, 900 nits with touch (1000-nit panel), HDMI, VGA and DisplayPort, black, flush-mount brackets included; power adapter sold separately.

Size:

10.1"

Brightness (with touch):

900 nits

Touch:

PCAP 5-touch

$1132.87

E399052

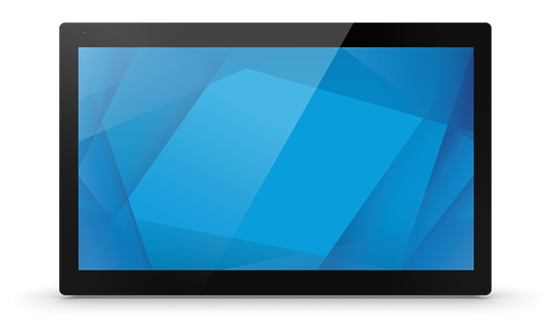

Elo 2799L, 27-inch Full HD outdoor open-frame touchscreen, optically bonded anti-glare TouchPro PCAP 10-touch with USB, 1320 nits with touch (1500-nit panel), HDMI, VGA and DisplayPort, black, flush-mount brackets included; power adapter sold separately. RS232 supports 2-touch with separate E810917 Y-cable.

Brightness (with touch):

1320 nits

Size:

27"

Touch:

PCAP 10-touch

$2071.58

Shop 99-Series Outdoor Accessories

E483757

Elo Replacement OSD Remote Controller (RJ45)

$69.74

E538507

DVI-D-to-HDMI Converter Cable Kit

$45.00

E582895

1.8m DisplayPort to DisplayPort video Cable

$47.00

E777499

1099L Flush mount Bracket

$100.32

E100212

1099L HDMI to HDMI Locking Cable

$37.00

E100418

1099L USB Locking Cable

$30.00

E610090

VGA to VGA locking cable

$28.95

E596619

External 80W power brick and cable for outdoor open frames, LVL6 America

$185.92

E810917

Elo Cable Kit, Y Cable for IDS

$30.00

E598366

Elo 2799L Replacement PCAP Flush-Mount Bracket Kit (made to order, non-cancelable)

$286.32

E503785

Elo 2799L Outdoor Replacement Cable Kit, 1.8 m (made to order, non-cancelable)

$78.60

E162782

Elo Locking DC Power Cable, 1.8 m, black (power adapter sold separately)

$32.28
