Elo TouchSystems 90-Series
Description
Specifications
Download

Elo TouchSystems 90-Series

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
small product image8
small product image9
small product image10
small product image11

Commercial open-frame touchscreens for kiosks, self-service and industrial controls.

Elo’s 90-Series combines integrated touch and open-frame LCD displays for OEMs and system integrators. The listed models span 10.1 to 27 inches, with compact 16:10, standard 4:3 or 5:4, and widescreen Full HD configurations.

Choose TouchPro PCAP for multi-touch interaction, a bezeled single-touch PCAP option for the 1990L, 2294L or 2494L, or the 1598L with AccuTouch resistive single-touch. All listed options provide HDMI, VGA and DisplayPort video. The 2295L and 2495L offer brighter panels, while bracket requirements and touch interfaces vary by configuration.

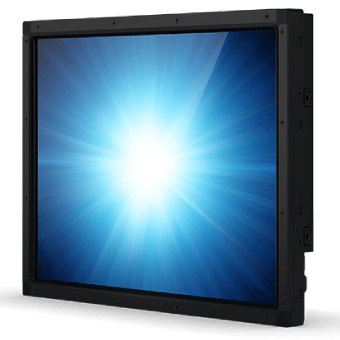

Elo 1594L 15.6-inch zero-bezel open-frame touchscreen

Key Specifications

  • Product / application: Open-frame kiosk and HMI displays
  • Host platform: External host computer required
  • Display / resolution: 10.1–27 inches; 1024 × 768 to Full HD by model
  • Touch input: PCAP 10-touch, PCAP single-touch or resistive single-touch
  • Touch interface: USB; dual USB/serial on selected bezeled options
  • Video inputs: HDMI, VGA and DisplayPort
  • Brightness with touch: 225–540 nits, depending on model
  • Mounting: 75 mm, 100 mm or 200 × 100 mm VESA; embedded mounting varies
  • Power: 12V DC; adapter sold separately
  • Operating temperature: 0–40°C; 1598L rated 0–50°C
  • Dimensions / weight: Model-dependent; 255.8–644.2 mm wide and 1.2–7.3 kg unpackaged
  • Warranty: 3 years

In the Box

  • Selected Elo open-frame touchscreen
  • HDMI and VGA video cables; USB touch cable
  • Remote OSD controller and quick-install guide
  • Mounting brackets and screws appropriate to the selected configuration

Touch integrated from the start

TouchPro PCAP provides stable touch operation for interactive equipment. Choose the specific touch technology and capacity for your application; through-glass modes are model-dependent and require the selected model’s cover-glass specifications.

Flexible embedded designs

Sizes and mounting patterns support a range of enclosures. Zero-bezel configurations include flush-mount brackets; bezeled configurations use side brackets and model-specific front or rack mounting accessories. All listed options require a separately supplied power adapter.

Display size and aspect ratio
Active models: 1093L 10.1-inch 16:10; 1598L 15-inch 4:3; 1594L 15.6-inch 16:9; 1990L 19-inch 5:4; 2094L 19.5-inch 16:9; 2294L and 2295L 21.5-inch 16:9; 2494L and 2495L 23.8-inch 16:9; 2794L 27-inch 16:9. Historical models remain identified separately.
Native resolution
Active 1093L: 1280 × 800; 1598L: 1024 × 768; 1990L: 1280 × 1024; other listed active models: 1920 × 1080. Historical 1291L: 800 × 600; 1590L: 1024 × 768; 1790L and 1991L: 1280 × 1024.
Touch technology
Active configurations: E296521 (1990L), E297107 (2294L) and E297309 (2494L) use bezeled TouchPro PCAP single-touch. E126407 (1598L) uses AccuTouch five-wire resistive single-touch. The other eight listed active configurations use TouchPro PCAP 10-touch. See each exact model’s sheet and Touch filter.
Brightness
Typical brightness with touch by active model: 1093L/2295L 450 nits; 1598L 400 nits; 1594L 315 nits; 1990L/2094L/2294L/2494L 225 nits; 2495L 540 nits; 2794L 270 nits. Panel-only ratings differ.
Video inputs
HDMI 1.3, DisplayPort 1.1a and analog VGA; model-dependent support as documented by Elo.
Touch interface
Listed zero-bezel PCAP models use USB 2.0 touch. E296521 (1990L), E297107 (2294L), E297309 (2494L) PCAP bezel and E126407 (1598L) AccuTouch use dual serial/USB touch.
Mounting
Open-frame integration with model-dependent rear, front and side mounting; VESA support where specified. Current 1990L PCAP supports 100 mm VESA.
Power
External 12 VDC; power adapter is option-dependent and is not included with the current E296521 1990L configuration. 2295L: External DC - Optional power brick (sold separately) Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth) Monitor input voltage range: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz
Operating environment
Current 1990L: 0 to 40 degrees C (32 to 104 degrees F) operating; 20% to 80% non-condensing operating humidity.
Dimensions and weight
Model-dependent by size and bezel. Current 1990L PCAP: 16.54 x 13.70 x 1.60 in (420.1 x 348.1 x 40.7 mm), 10.14 lb (4.6 kg) unpacked.
Durability
Commercial open-frame construction. Current 1990L PCAP is specified for IK07 impact testing and supports through-touch mode through the OSD.
Compliance
Model-dependent commercial approvals. Current 1990L documentation lists UL, FCC, cUL, IC, CE, TUV, VCCI, KCC, CB, RoHS and WEEE. 2295L: GLI 27 kV air / 8 kV contact ESD compliant UL 62368 ball-drop compliant IK07 impact compliant 2794L: GLI 27 kV air / 8 kV contact ESD compliant (TouchPro PCAP only) UL 62368 ball-drop compliant (TouchPro PCAP only) IK08 impact compliant (TouchPro PCAP only)
Mounting Options (2294L)
VESA 4-hole 100mm mounting interface on rear of unit; 2-hole mounting interface on all 4 sides; Front mount with optional bezel kit (IntelliTouch/IntelliTouch Dual Touch/ TouchPro PCAP Bezel Models); Rack mount with optional kit (IntelliTouch/IntelliTouch Dual Touch/ TouchPro PCAP, Bezel Models); Flush mount with included brackets (TouchPro PCAP Zero Bezel Models); See dimensional drawings for details
Reliability
Current 1990L is specified for 50,000 hours MTBF.
Warranty
Three-year standard manufacturer warranty; optional extension coverage is available for eligible configurations. 1093L: 3-year 1598L: 3-year 2295L: 3-year 2794L: 3-year
In the box
Current E296521 configuration: 1990L TouchPro PCAP open-frame display, OSD controller, HDMI cable, VGA cable, USB touch cable, quick-install guide and embedded-mounting brackets with screws. Power adapter sold separately.
Active configurations
Current listed SKUs: E321195 1093L; E126407 1598L; E131375 1594L; E296521 1990L; E331214 2094L; E330620/E297107 2294L; E146083 2295L; E493782/E297309 2494L; E506980 2495L; E493591 2794L. All omit the power adapter. Touch capacity, bezel construction and interfaces differ; use the selected option.
Part Number(s)
1594L: TouchPro PCAP - E131375 2094L: IntelliTouch (Worldwide) - E328883; TouchPro PCAP (Worldwide) - E331214 2294L: IntelliTouch (Worldwide) - E327914; IntelliTouch Dual Touch (Worldwide) - E327528; TouchPro PCAP Zero Bezel (Worldwide) - E330620; TouchPro PCAP with Bezel (Worldwide) - E297107 2494L: IntelliTouch - E330019; IntelliTouch Dual Touch - E329825; TouchPro PCAP Zero Bezel (Worldwide) - E493782; TouchPro PCAP with Bezel (Worldwide) - E297309 2495L: TouchPro PCAP - E506980 1093L: TouchPro PCAP (Worldwide) - E321195 1598L: AccuTouch (Worldwide) - E126407 2295L: TouchPro PCAP (Worldwide) - E146083 2794L: Listed active configuration: E493591 TouchPro PCAP Zero-Bezel
Enclosure Color
1594L, 2094L, 2294L, 2494L, 2495L: Black 1093L: Black 1598L: Black 2295L: Black 2794L: Black
Touch Technology & Capacity
1594L, 2495L: PCAP (TouchPro® Projected Capacitive) - 10 Touch 2094L: SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch; PCAP (TouchPro® Projected Capacitive) - 10 Touch 2294L, 2494L: SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch; SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch; PCAP (TouchPro® Projected Capacitive) - 10 Touch; PCAP (TouchPro® Projected Capacitive) - Single-Touch 1093L: PCAP (TouchPro® Projected Capacitive) - 10 Touch 1598L: 5-Wire Resistive (AccuTouch®) - Single-Touch 2295L: PCAP (TouchPro® Projected Capacitive) - 10 Touch 2794L: Listed E493591 configuration: TouchPro PCAP, 10-touch 1990L: Listed E296521 bezeled configuration: TouchPro PCAP, single-touch
Mounting Options (2494L)
200x100mm VESA mount on rear of unit; 4 Hole mounting interface on all four sides (IntelliTouch/IntelliTouch Dual Touch/ TouchPro PCAP Bezel Models); Side mount with included “L” brackets (IntelliTouch/IntelliTouch Dual/ TouchPro PCAP Bezel Models); Front mount with optional bezel kit (IntelliTouch/IntelliTouch Dual Touch/ TouchPro PCAP Bezel Models); Flush mount with included brackets (TouchPro PCAP Zero Bezel Models); See dimensional drawings for details
Touch Interface
1594L, 2495L: USB 2.0 2094L: TouchPro PCAP - USB 2.0; IntelliTouch - Dual serial/USB 2.0 2294L, 2494L: TouchPro PCAP Zero Bezel, IntelliTouch DT - USB 2.0; IntelliTouch, TouchPro PCAP Bezel - Dual serial/USB 2.0 1093L: USB 2.0 1598L: Dual serial/USB 2295L: USB 2.0 2794L: Listed E493591 configuration: USB 2.0 1990L: Listed E296521 bezeled configuration: dual serial/USB 2.0
Diagonal Size
1594L: 15.6'' diagonal, Active matrix TFT LCD (LED) 2094L: 19.5'' diagonal, Active matrix TFT LCD (LED) 2294L: 21.5'' diagonal, Active matrix TFT LCD (LED) 2494L, 2495L: 23.8'' diagonal, Active matrix TFT LCD (LED) 1093L: 10.1'' diagonal, Active matrix TFT LCD (LED) 1598L: 15'' diagonal, Active matrix TFT LCD (LED) 2295L: 21.5'' diagonal, Active matrix TFT LCD (LED) 2794L: 27'' diagonal, Active matrix TFT LCD (LED)
On Screen Display (1594L, 2094L, 2495L)
Accessible through switches on the unit’s tethered OSD Control box.; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
On Screen Display (2294L, 2494L)
Accessible through switches on the unit’s tethered OSD Control box.; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through, USB HID mouse (TouchPro PCAP, Bezel only); Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
Aspect Ratio
1093L: 16:10 1598L: 4:3 1990L: 5:4 1594L, 2094L, 2294L, 2295L, 2494L, 2495L and 2794L: 16:9
Active Area
1594L: 13.55" x 7.62" / 344.16 mm x 193.59 mm 2094L: 17.12" x 9.40" / 434.88mm x 238.68mm 2294L: 18.76" x 10.55" / 476.64mm x 268.11mm 2494L, 2495L: 20.75" x 11.67" / 527.04 mm x 296.46 mm 1093L: 8.54" x 5.34"/ 216.96mm x 135.6mm 1598L: 11.97" x 8.98"/ 304.1mm x 228.1mm 2295L: 18.74" x 10.54" / 476.06 mm x 267.79 mm 2794L: 23.53" x 13.23" / 597.6 mm x 336.15 mm
Resolution
1594L, 2094L, 2294L, 2494L, 2495L: 1920 x 1080 1093L: 1280 x 800 at 60Hz 1598L: 1024 x 768 2295L: 1920 x 1080 2794L: 1920 x 1080
Other Supported Resolutions
1594L: 640 x 480 60Hz; 720 x 400 70Hz; 800 x 500, 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60, 75Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50 60Hz 2094L, 2294L, 2494L, 2495L: 640 x 480 60Hz; 720 x 400 70Hz; 800 x 500, 60Hz; 800 x 600 56, 60Hz; 1024 x 768 60Hz; 1280 x 800 60Hz; 1280 x 1024 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz
Other Supported Resolutions (continued)
1093L: 640 x 480 60Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 800 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz 1598L: 640 x 480 60Hz 720 x 400 70Hz 800 x 500, 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 2295L: 640 x 480 60Hz 720 x 400 70Hz 800 x 500, 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50, 60Hz 2794L: 640 x 480 60Hz 720 x 400 70Hz 800 x 500, 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50, 60Hz
Mounting Options (2495L)
200x100mm VESA mount on rear of unit; Flush mount with included brackets
Viewing Angle
1594L, 2094L, 2294L, 2494L, 2495L: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total 1093L: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total 1598L: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total 2295L: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total 2794L: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
1594L, 2094L, 2294L, 2494L, 2495L: 16.7 million 1093L: 16.7 million 1598L: 16.2 million 2295L: 16.7 million 2794L: 16.7 million
Brightness (typical)
1594L: LCD panel: 350 nits; TouchPro PCAP: 315 nits 2094L: LCD panel: 250 nits; IntelliTouch: 225 nits; TouchPro PCAP: 225 nits 2294L, 2494L: LCD panel: 250 nits; IntelliTouch: 225 nits; IntelliTouch Dual-Touch: 225 nits; TouchPro PCAP: 225 nits 2495L: LCD panel: 600 nits; TouchPro PCAP: 540 nits 1093L: LCD panel: 500 nits TouchPro PCAP: 450 nits 1598L: LCD panel: 500 nits AccuTouch: 400 nits 2295L: LCD panel: 500 nits TouchPro PCAP: 450 nits 2794L: LCD panel: 300 nits IntelliTouch: 270 nits IntelliTouch Dual-Touch: 270 nits TouchPro PCAP: 270 nits
Response Time-total (typical)
1594L: 25 msec 2094L: 20 msec 2294L, 2495L: 14 msec 2494L: 16 msec 1093L: 29 msec 1598L: 35 msec 2295L: 22 msec 2794L: 12 msec
Contrast Ratio
1594L: 800:1 2094L, 2494L: 3000:1 2294L, 2495L: 1000:1 1093L: 800:1 1598L: 1500:1 2295L: 1000:1 2794L: 3000:1
I/O Ports
2294L, 2494L: Serial port (Bezel models only); USB Type B; RJ45 for OSD remote key; VGA; HDMI; DisplayPort; 12V D/C in 2495L: USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in 2295L: USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in 2794L: Listed E493591: USB Type B, RJ45 for OSD remote, VGA, HDMI, DisplayPort, 12V DC input
Input Video Format
1594L, 2094L, 2294L: HDMI V1.3 Type A receptacle for HDMI input; Analog VGA on Female DB-15 connector; DisplayPort V1.1a - Supports later versions of Display Port video input 2494L, 2495L: HDMI V1.3 Type A receptacle for HDMI input; Analog VGA on Female DB-15 connector; DisplayPort V1.1a - Supports later versions of DisplayPort video input
Input Video Format (continued)
1093L: HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of Display Port video input 1598L: HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of Display Port video input 2295L: HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of DisplayPort video input 2794L: HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of DisplayPort video input
Input Video Frequency
1594L, 2094L, 2294L, 2494L, 2495L: Horizontal: 30 - 82 KHz; Vertical: 50 - 75 Hz 1093L: Horizontal: 30 - 60 KHz Vertical: 50 - 75 Hz 1598L: Horizontal: 30 - 60 KHz Vertical: 50 - 75 Hz 2295L: Horizontal: 30 - 82 KHz Vertical: 50 - 75 Hz 2794L: Horizontal: 30 - 82 KHz Vertical: 50 - 75 Hz
Video Interface
1594L, 2294L: HDMI, VGA & Display Port 2094L: HDM, VGA & Display Port 1093L: HDMI, VGA & Display Port 1598L: HDMI, VGA & Display Port 2295L: HDMI, VGA & Display Port 2794L: HDMI, VGA & Display Port
Power Supply
1594L, 2094L, 2294L, 2494L: External DC - Optional power brick (sold separately) 1093L: External DC - Optional power brick (sold separately) 1598L: External DC - Optional power brick (sold separately) Power DC 24V/DC 12V Converter sold separately - Elo P/N: E239980 2794L: External DC - Optional power brick (sold separately)
Power
2495L: External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
What's in the Box
1594L: HDMI cable; VGA Cable; RJ45 OSD Remote; Touch USB Cable; Quick Install Guide; Flush Mount Brackets w/Screws; EEI Label; Japan Class-B TM info sheet 2094L: HDMI cable; VGA Cable; RJ45 OSD Remote; Touch USB Cable; Quick Install Guide; For Zero-Bezel Models: Flush Mount Brackets w/Screws; For Bezeled - IntelliTouch Models: “L” (Side Mount) Brackets and w/Screws; EEI Label; Japan Class-B TM info sheet 2294L, 2494L: HDMI cable; VGA Cable; RJ45 OSD Remote; Touch USB Cable; Quick Install Guide;; For Zero-Bezel Models: Flush Mount Brackets w/Screws; For Bezel Models: “L” (Side Mount) Brackets and w/Screws; EEI Label; Japan Class-B TM info sheet 2495L: HDMI cable; VGA Cable; Remote OSD; Touch USB Cable; Quick Install Guide; Flush Mount Brackets w/Screws; EEI Label; Japan Class-B TM info sheet
What's in the Box (continued)
1093L: HDMI Cable VGA Cable Remote OSD Flush Mount Brackets w/Screws (TouchPro PCAP Models) Touch USB Cable Quick Install Guide EEI Label Japan Class-B TM info sheet 1598L: HDMI cable Touch USB Cable VGA Cable Remote OSD “L” (Side Mount) Brackets w/Screws Quick Install Guide EEI Label Japan Class-B TM info sheet 2295L: HDMI cable Touch USB Cable VGA Cable Remote OSD Flush Mount Brackets w/Screws Quick Install Guide EEI Label Japan Class-B TM info sheet 2794L: Listed E493591: HDMI cable; VGA cable; OSD remote; USB touch cable; quick-install guide; flush-mount brackets and screws; EEI label; Japan Class-B information sheet
Input power connector (Monitor)
1594L, 2094L, 2294L, 2494L: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) 1093L: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) 1598L: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) 2794L: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage
1594L, 2094L, 2294L, 2494L: 12VDC +/- 5% 1093L: 12VDC +/- 5% 1598L: 12VDC +/- 5% 2794L: 12VDC +/- 5%
Adapter Output Power Connector
1594L, 2094L, 2294L, 2494L: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) 1093L: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) 2794L: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
1594L: Monitor + Adapter; ON: 13.23 W; SLEEP: 0.48 W; OFF: 0.22W 2094L: Monitor + Adapter; ON (Default - 75% Brightness): 13.87 W; ON (Typical - 100% Brightness): 16.54 W; SLEEP: 1.5 W; OFF: 0.5W 2294L: Monitor + Adapter; ON (Default - 75% Brightness): 12.8 W; ON (Typical - 100% Brightness): 14.5 W; SLEEP: 1.5 W; OFF: 0.5W 2494L: ON (Default - 75% Brightness): 15.24 W; ON (Typical - 100% Brightness): 17.46 W; SLEEP FROM PC (monitor + adapter): 1.07 W; OFF (monitor + adapter): 0.2 W 2495L: ON (Typical - 100% Brightness): 32.95 W; SLEEP FROM PC (monitor + adapter): 0.71 W; OFF (monitor + adapter): 0.2 W
Power Consumption (continued)
1093L: Monitor + Adapter at 230V/50Hz ON: 6.2 W SLEEP: 0.46 W OFF: 0.25 W 1598L: Monitor + Adapter at 230V/50Hz ON: 14.1 W SLEEP: 1.5 W OFF: 0.5W 2295L: Monitor + Adapter ON: 26.2 W SLEEP: 0.48 W OFF: 0.28 W 2794L: ON (Default - 75% Brightness): 21 W ON (Typical - 100% Brightness): 27 W SLEEP FROM PC (monitor + adapter): 1.5 W OFF (monitor + adapter): 0.5 W
Dimensions
1594L: 15.5" x 9.52" x 1.71" / 394.7 mm x 242.0 mm x 43.4 mm 2094L: Bezel: 18.74" x 11.03" x 1.71" / 476mm x 280.1mm x 43.4mm; Zero-Bezel: 18.87" x 11.22" x 1.59" / 479.2mm x 285.0mm x 40.5mm 2294L: Bezel: 20.12" x 11.74" x 1.65" / 511.8mm x 298.2mm x 42mm; Zero-Bezel: 20.31" x 12.24" x 1.49" / 516mm x 311mm x 37.9mm 2494L: Bezel: 22.14" x 12.86" x 1.64" / 562.4 mm x 326.6 mm x 41.7 mm; TouchPro PCAP: 22.41" x 13.43" x 1.5" / 569.2 mm x 341.1 mm x 38 mm 2495L: 22.41" x 13.43" x 1.46" / 569.2 mm x 341.1 mm x 37 mm 1093L: 10.07" x 7.03" x 1.45" / 255.8mm x 178.5mm x 36.9mm 1598L: 13.24" x 10.41" x 1.65" / 336.4mm x 264.4mm x 41.9mm 2295L: 20.31" x 12.24" x 1.85" / 516 mm x 311 mm x 46.9 mm 2794L: Listed E493591 zero-bezel: 25.36 × 15.29 × 1.6 in / 644.2 × 388.4 × 40.6 mm
Shipping Box Dimensions
1594L: 18.5" x 13.03" x 6.89" / 470 mm x 331 mm x 175 mm 2094L: 22.64" x 14.8" x 7.28" / 575mm x 376mm x 185mm 2294L: 24.41" x 16.65" x 7.48" / 620mm x 423mm x 190mm 2494L, 2495L: 27.24" x 17.8" x 7.48" / 692 mm x 452 mm x 190 mm 1093L: 13.23" x 10.31" x 6.89" / 336mm x 262mm x 175mm 1598L: 17.09" x 14.76" x 6.89" / 434mm x 375mm x 175mm 2295L: 24.41" x 16.65" x 7.48" / 620 mm x 423 mm x 190 mm 2794L: 30.79" x 20.87" x 7.87" / 782 mm x 530 mm x 200 mm
Weight (Unpackaged)
1594L: 6.7lbs / 3.02 Kg 2094L: 10.36 lbs / 4.7Kg 2294L: 11.24 lbs / 5.1 kg 2494L: Bezeled models, including PCAP: 14.09 lbs / 6.39 kg; Zero-bezel PCAP: 13.6 lbs / 6.17 kg 2495L: 12.47 lbs / 5.65 kg 1093L: 2.65 lbs / 1.2 kg 1598L: 6.4 lbs / 2.9 Kg 2295L: 11.9 lbs / 5.41 kg 2794L: 16.09 lbs / 7.3 Kg
Accessory compatibility
Replacement flush-mount kits: E511656 (1093L PCAP), E190706 (2094L/2294L/2295L zero-bezel PCAP), E000879 (2494L zero-bezel PCAP), E190896 (2794L zero-bezel PCAP), E001178 (1990L PCAP). Bezeled 1598L: E203787 side brackets, E323425 front bezel, E295006 rack kit. Bezeled 2294L: E530432 side brackets, E668194 front bezel, E462672 rack kit (12U, portrait). Bezeled 2494L: E083096 front bezel. 1990L: E163604 front bezel and E579652 rack kit. Zero-bezel displays include flush brackets; replacement kits are spares. Bezel/rack kits are model-specific and do not fit zero-bezel configurations. PCAP stylus E066148 is for compatible PCAP models.
Weight (Packaged)
1594L: 10.2lbs / 4.62 Kg 2094L: 14.11 lbs / 6.4Kg 2294L: 18.08 lbs / 8.2 kg 2494L: Bezeled models, including PCAP: 19.29 lbs / 8.75 kg; Zero-bezel PCAP: 17.79 lbs / 8.07 kg 2495L: 16.7 lbs / 7.57 kg 1093L: 5.73 lbs / 2.6 kg 1598L: 10.36 lbs / 4.7 Kg 2295L: 18.92 lbs / 8.6 kg 2794L: 22.49 lbs / 10.2 Kg
Operating Temperature
1594L, 2094L, 2294L, 2494L, 2495L: 0°C to 40°C / 32°F to 104°F 1093L: 0°C to 40°C / 32°F to 104°F 1598L: 0°C to 50°C / 32°F to 122°F 2295L: 0°C to 40°C / 32°F to 104°F 2794L: 0°C to 40°C / 32°F to 104°F
Storage Temperature
1594L, 2094L, 2294L, 2494L, 2495L: -20°C to 60°C / -4°F to 140°F 1093L: -20°C to 60°C / -4°F to 140°F 1598L: -20°C to 70°C / -4°F to 158°F 2295L: -20°C to 60°C / -4°F to 140°F 2794L: -20°C to 60°C / -4°F to 140°F
Humidity
1594L, 2094L, 2294L, 2494L, 2495L: Operating: 20% to 80%; Storage: 10% to 95% 1093L: Operating: 20% to 80% Storage: 10% to 95% 1598L: Operating: 20% to 80% Storage: 10% to 95% 2295L: Operating: 20% to 80% Storage: 10% to 95% 2794L: Operating: 20% to 80% Storage: 10% to 95%
Sealability
2094L, 2294L, 2494L, 2495L: Touchscreen sealed to bezel; Touchscreen sealed to LCD 1093L: Touchscreen sealed to bezel; Touchscreen sealed to LCD 1598L: Touchscreen sealed to bezel Touchscreen sealed to LCD 2295L: Touchscreen sealed to bezel Touchscreen sealed to LCD 2794L: Touchscreen sealed to bezel Touchscreen sealed to LCD
MTBF
1594L, 2094L, 2294L, 2494L, 2495L: 50,000 hours demonstrated 1093L: 50,000 hours demonstrated 1598L: 50,000 hours demonstrated 2295L: 50,000 hours demonstrated 2794L: 50,000 hours demonstrated
Warranty
1594L, 2094L, 2294L, 2494L, 2495L: 3-year
Regulatory approvals and declarations
1594L: Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; Russia EAC; India BIS; RoHS, China RoHS, WEEE 2094L, 2294L, 2494L, 2495L: Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; Russia EAC; RoHS, China RoHS, WEEE
Regulatory Approvals (continued)
1093L: Australia RCM Canada cUL, IC China CCC Europe CE TUV United Kingdom UKCA Japan VCCI Korea KCC Mexico CoC Taiwan BSMI United States UL, FCC International CB Russia EAC RoHS, China RoHS, WEEE 1598L: Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE 2295L: Australia RCM Canada cUL, IC China CCC Europe CE TUV United Kingdom UKCA Japan VCCI Korea KCC Mexico CoC Taiwan BSMI United States UL, FCC International CB Russia EAC RoHS, China RoHS, WEEE 2794L: Australia RCM Canada cUL, IC China CCC Europe CE TUV United Kingdom UKCA Japan VCCI Korea KCC Mexico CoC Taiwan BSMI United States UL, FCC International CB Russia EAC RoHS, China RoHS, WEEE
Compliance
2094L: GLI 27 kV air / 8 kV contact ESD compliant (TouchPro PCAP only); UL 62368 ball-drop compliant (TouchPro PCAP only); IK07 impact compliant (TouchPro PCAP only) 2294L: GLI 27 kV air / 8 kV contact ESD compliant for PCAP model; UL 62368 ball-drop compliant for PCAP and SecureTouch models; IK07 impact compliant for PCAP and SecureTouch models; IP65 front side for PCAP ZB model 2494L: GLI 27 kV air / 8 kV contact ESD compliant for PCAP model; UL 62368 ball-drop compliant for PCAP and SecureTouch models; IK08 impact compliant for PCAP and SecureTouch models; IP65 front side for PCAP ZB model 2495L: GLI 27 kV air / 8 kV contact ESD compliant; UL 62368 ball-drop compliant; IK07 impact compliant
Mounting Options (1594L)
75 mm VESA mount; 2-hole mounting interface on all 4 sides; Rear mount; Flush mount with included brackets
Mounting Options (2094L)
100mm VESA mount; 2 Hole mounting interface on all four sides.; Front mount with optional bezel kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models); Rack mount with optional kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models); Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)
On Screen Display (1093L)
1093L: Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power
Mounting Options (1093L)
1093L: 75 mm VESA mount Flush mount with included brackets 2-hole mounting interface on all 4 sides See dimensional drawings for details
On Screen Display (1598L)
1598L: Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power
Adapter AC input connector
1598L: IEC 60320 C14
Adapter AC input rating
1598L: 100-240VAC, 50/60Hz
Mounting Options (1598L)
1598L: 75 mm and 100 mm VESA mount 2-hole mounting interface on all 4 sides Front mount with optional bezel kit Rack mount with optional bezel kit See dimensional drawings for details
On Screen Display (2295L)
2295L: Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power
Mounting Options (2295L)
2295L: VESA 4-hole 100mm mounting interface on rear of unit Flush mount with included brackets
On Screen Display (2794L)
2794L: Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru (Only available for TouchPro PCAP) Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power
Mounting Options (2794L)
2794L: Listed E493591 zero-bezel: 200 × 100 mm VESA; four-hole interface on all four sides; flush mount with included brackets
1594L Specification Sheet
Download
1990L Specification Sheet
Download
2094L Specification Sheet
Download
2294L Specification Sheet
Download
2494L Specification Sheet
Download
2495L Specification Sheet
Download
1093L Specification Sheet
Download
1598L Specification Sheet
Download
2295L Specification Sheet
Download
2794L Specification Sheet
Download
90-Series User Guide
Download
1598L Standard-Aspect User Guide (English)
Download
90-Series Quick Installation Guide (Revision D)
Download
1990L Dimensional Drawing
Download
1093L Dimensional Drawing
Download
1598L Dimensional Drawing
Download
2295L Dimensional Drawing
Download
2794L Dimensional Drawing
Download
2294L Dimensional Drawing
Download
2494L Dimensional Drawing
Download
1291L Specification Sheet
Download
1590L Specification Sheet
Download
1790L Specification Sheet
Download
1991L Specification Sheet
Download
