Honeywell 8675i
Rugged hands-free scanning with standard-range and FlexRange options for warehouse, retail, transportation, and field workflows.
Brand update: The 8675i is now a Brady product, formerly sold as the Honeywell 8675i.

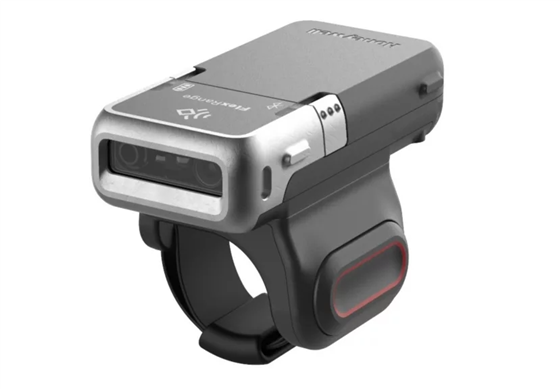

The Honeywell 8675i keeps an industrial area imager on the worker instead of on a cart or workstation. The compact scanner module connects by Bluetooth 5.1, supports NFC tap-to-pair, and can be worn with a triggered ring, glove, or lanyard package. A tethered CW45 configuration is also available for workflows that need continuous power from the mobile computer.
Choose Standard Range for common close-up barcodes or FlexRange for near-to-far capture. Honeywell rates the FlexRange engine to read a 100% UPC code from near contact to 1.5 m (5 ft) and a 100 mil Code 39 label out to 10 m (33 ft), helping workers scan items, racks, and locations without changing devices.
Key Specifications
- Scanner configuration: Wearable omnidirectional area imager; Standard Range or FlexRange; Bluetooth ring, glove, lanyard, and tether-ready packages.
- Barcode capability: Reads supported 1D and 2D barcodes from paper labels and electronic screens.
- Reading range: FlexRange reads 100% UPC from near contact to 1.5 m (5 ft) and 100 mil Code 39 to 10 m (33 ft); range varies by engine, symbology, and density.
- Interfaces / connectivity: Bluetooth 5.1 Class 1 with up to 100 m (330 ft) line of sight, Bluetooth Low Energy, and NFC tap-to-pair; selected configurations support a CW45 power cable.
- Durability: 1.8 m (6 ft) MIL-STD-810 drop rating, fifty 1.5 m (5 ft) concrete drops, 2,000 half-meter tumbles, and a trigger rated for five million activations.
- Environmental sealing: IP65; operates from -20 to 50°C (-4 to 122°F).
- Dimensions and weight: 65.2 x 30.3 x 15.2 mm (2.6 x 1.2 x 0.6 in); scanner module weighs 50 g SR or 53 g FR before battery and wearable accessory.
- Battery and shift capacity: Replaceable 3.85 V, 570 mAh battery; rated for 12,000 scans across a 10-hour shift; approximately 3.5 hours to charge.
- Warranty: 2 years for the scanner; 1 year for the battery.
In the Box
- Honeywell 8675i scanner module with the selected Standard Range or FlexRange engine
- The battery and wearable package named in the selected option, when included
- Selected wearable accessory: large right-hand glove, triggered ring, or lanyard/trigger/reel package, when specified
The CW45 tether-ready options do not include a battery, power cable, wearable accessory, or charger. Battery-powered options require a compatible charger, sold separately. Verify the exact option description before ordering.
Keep Both Hands Available
Wear it for pick, pack, sort, and service tasks
Ring, glove, and lanyard choices keep the scanner within reach while workers handle cartons, products, tools, or paperwork. The small module can move between supported wearable accessories as the job changes.
Scan Near and Far
Choose the engine for the working distance
Standard Range is suited to close-up item and package scanning. FlexRange extends capture to rack and location labels while retaining near-field performance, reducing the need to carry a second long-range device.
Pair Quickly and Roam
Bluetooth 5.1 Class 1 with NFC
Tap-to-pair NFC simplifies connection to supported hosts, while the Class 1 radio provides up to 100 m (330 ft) of line-of-sight range for larger work areas.
Built for Industrial Handling
IP65 sealing and repeat-drop protection
The sealed housing, low-temperature operating range, repeated-drop testing, tumble rating, and five-million-cycle trigger support demanding daily use in warehouses, transportation operations, retail backrooms, and field service.
Shop 8675i Models
8675I400SR-2-N
8675i Wearable 1D/2D Scanner, Standard Range, Battery and Triggered Ring Included, Charger Required and Not Included
Battery:
Included
Barcode Scanner:
Standard Range
Wearable Package:
Triggered Ring
8675I100SR-2-N
8675i Wearable 1D/2D Scanner, Standard Range, For CW45 Tethering, Battery or Power Cable, Wearable Accessory and Charger Not Included
Wearable Package:
CW45 Tether-Ready
Battery:
Sold Separately
Barcode Scanner:
Standard Range
8675I200FR-2-N
8675i Wearable 1D/2D Scanner, FlexRange, Battery, Lanyard, Trigger and Reel Included, Charger Required and Not Included
Barcode Scanner:
FlexRange
Battery:
Included
Wearable Package:
Lanyard / Trigger / Reel
8675I200SR-2-N
8675i Wearable 1D/2D Scanner, Standard Range, Battery, Lanyard, Trigger and Reel Included, Charger Required and Not Included
Battery:
Included
Wearable Package:
Lanyard / Trigger / Reel
Barcode Scanner:
Standard Range
8675I100FR-2-N
8675i Wearable 1D/2D Scanner, FlexRange, For CW45 Tethering, Battery or Power Cable, Wearable Accessory and Charger Not Included
Wearable Package:
CW45 Tether-Ready
Barcode Scanner:
FlexRange
Battery:
Sold Separately
8675I300FR-2-N
8675i Wearable 1D/2D Scanner, FlexRange, Battery and Large Right-Hand Glove Included, Charger Required and Not Included
Barcode Scanner:
FlexRange
Battery:
Included
Wearable Package:
Large Right-Hand Glove
8675I300SR-2-N
8675i Wearable 1D/2D Scanner, Standard Range, Battery and Large Right-Hand Glove Included, Charger Required and Not Included
Battery:
Included
Wearable Package:
Large Right-Hand Glove
Barcode Scanner:
Standard Range
8675I400FR-2-N
8675i Wearable 1D/2D Scanner, FlexRange, Battery and Triggered Ring Included, Charger Required and Not Included
Barcode Scanner:
FlexRange
Battery:
Included
Wearable Package:
Triggered Ring
Shop 8675i Accessories
MB8-BAT-SCN10
8 bay 8675i battery charger with power supply. Charges battery only when removed from 8675i. Region-specific cord must be ordered separately.
8675I505-FNGRSTRP
Pack of 10 finger straps for the 8675i triggered ring
50121666-001
Honeywell 12V 3A Charging-Base Power Adapter
BAT-SCN10
8675i battery, NA, Japan, ROW.
CBL-500-150-S00-01
Non-Cancellable/Non-Returnable. PC42D, PC42T USB CABLE.
MB12-SCN10
12 Bay 8675I Charger
MB24-BAT-SCN10
24 bay 8675i battery charger with power supply. Charges battery only when removed from 8675i. Region-specific cord must be ordered separately.
MB1-SCN10
1 bay 8675i device charging cup. USB cable for charging or wired communication to host while scanner is docked.
MB4-SCN10
4 BAY 8675I Scanner Charger.
8675I505-GLVASST
8675i assorted gloves (4x right hand medium, 2x left hand glove medium, 2 left hand large
8675I505-LNYRDRL
8675i lanyard replacement reel and neck strap (5 per pack).
8675I505-LNYRD
8675I Lanyard Kit to convert glove or triggered ring to lanyard version, 5 pieces.
8675I505-LHGL-PS
8675i left hand strap glove replacement palm strap, size large. 10 per pack.
8675I505-LHGM-PS
8675i left hand strap glove replacement palm strap, size medium. 10 per pack.
8675I505-LHGS-PS
8675i left hand strap glove replacement palm strap, size small. 10 per pack.
8675I505-LHGXL-PS
8675i left hand strap glove replacement palm strap, size extra large. 10 per pack.
8675I505-RHGL-PS
8675i right hand strap glove replacement palm strap, size large. 10 per pack.
8675I505-RHGS-PS
8675i right hand strap glove replacement palm strap, size small. 10 per pack.
8675I505-RHGXL-PS
8675i right hand strap glove replacement palm strap, size extra large. 10 per pack.
8675I505-LHGL
8675I Left Hand Large Glove, 10 Pieces.
8675I505-LHGM
8675I Left Hand Medium Glove, 10 Pieces.
8675I505-LHGS
8675I Left Hand Small Glove, 10 Pieces.
8675I505-LHGXL
8675I Left Hand Extra Large Glove, 10 Pieces.
8675I505-RHGL
8675I Right Hand Large Glove, 10 Pieces.
MB1-SCN10
1 bay 8675i device charging cup. USB cable for charging or wired communication to host while scanner is docked.
BAT-SCN10
8675i battery, NA, Japan, ROW.
CW45-8675-CBL
CW45 cabled connector to 8675i. CW45 and 8675i required and sold separately
8675I505-FNGRSTRP
Pack of 10 finger straps for the 8675i triggered ring
8675I505-TRGR
Pack of 10 sets of reversible triggered ring and strap
8675I505-LNYRD
8675I Lanyard Kit to convert glove or triggered ring to lanyard version, 5 pieces.
8675I505-LNYRDRL
8675i lanyard replacement reel and neck strap (5 per pack).
CW45-8675-CBL
CW45 cabled connector to 8675i. CW45 and 8675i required and sold separately
UCP4-SCN10
Cup to charge 4x 8675i devices. Universal 5 bay charger sold separately
8675I505-RHGM
8675I Right Hand Medium Glove, 10 Pieces.
8675I505-RHGS
8675I Right Hand small Glove, 10 Pieces.
8675I505-RHGXL
8675I Right Hand Extra Large Glove, 10 Pieces.
8675I505-RHGM-PS
8675i right hand strap glove replacement palm strap, size medium. 10 per pack.
8675I505-TRGR
Pack of 10 sets of reversible triggered ring and strap
