Elo TouchSystems 6553L

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

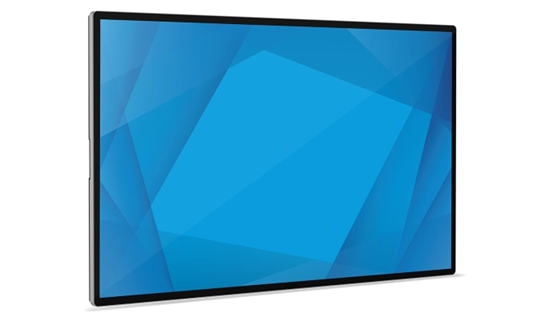

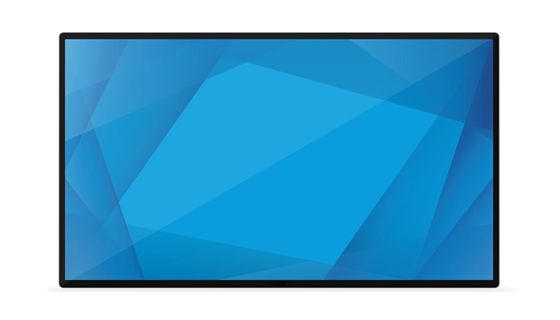

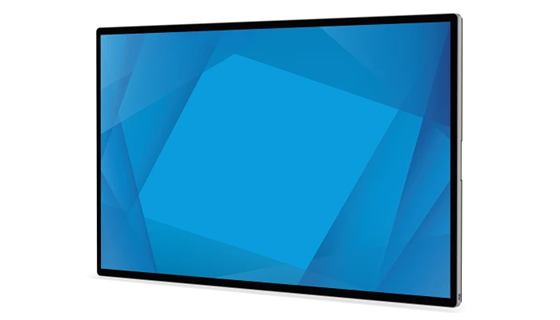

Elo 6553L 65-inch 4K Interactive Display

Elo's 6553L is a large-format 4K touchscreen designed for endless aisle, brand experiences, conferencing, whiteboarding and collaborative spaces that require continuous commercial operation.

Choose TouchPro® PCAP for up to 40 touches or Infrared (IR) for up to 20 touches on the same 65-inch platform.

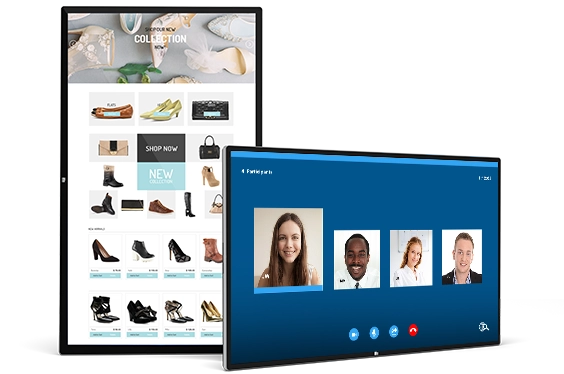

Elo 6553L 65-inch interactive 4K touchscreen

Deployment-Ready for Interactive Spaces.

  • Elo Edge Connect: supports optional peripherals including EMV, NFC/RFID, MSR and barcode readers.
  • Huddle room capable: can be paired with Elo Huddle Kit workflows.
  • Optional computer modules: transform the display into an integrated all-in-one solution.
  • Commercial lifecycle focus: built for around-the-clock deployment profiles.
Elo display with optional edge accessories and compute expansion

4K UHD Panel Performance with Multi-Touch Options.

  • Resolution: 3840 x 2160 @ 60Hz native, 16:9
  • Active area: 56.2" x 31.6" (64.53" diagonal)
  • Brightness: 500 nits panel, 450 nits with IR, 430 nits with TouchPro PCAP
  • Response time: 8 msec typical
  • Viewing / contrast: 178° total viewing angle, 1100:1 typical contrast ratio
  • Color: 10-bit (1.07 billion colors)

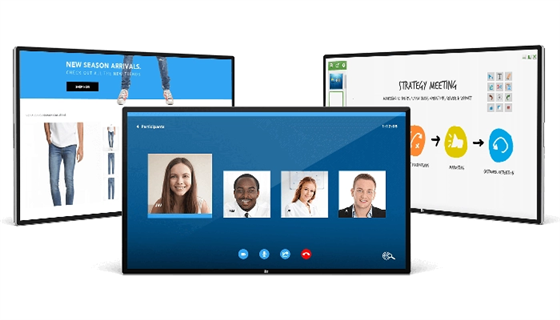

Elo large-format interactive display with 4K touch performance

Comprehensive I/O for Video, Touch and Control.

  • Rear I/O: 2 x HDMI, USB 3.0 Type-B, RJ45 OSD remote, DisplayPort 1.4, 3.5 mm TRS RS232, 3.5 mm line-out
  • Side I/O: HDMI, USB 3.0 Type-A, power button, source select, OSD button
  • Video inputs: 3 x HDCP-capable HDMI plus DisplayPort 1.4
  • Sync ranges: 121.8-140 KHz horizontal, 47-63 Hz vertical
  • OSD menus: source, color, audio, power, time, settings and conference controls

Power and Audio Profile.

  • Input power: 100-240VAC, 50/60Hz (IEC 60320-C13)
  • IR power: ON 152W, SLEEP 2W, OFF 0.7W
  • TouchPro power: ON 157W, SLEEP 2W, OFF 0.7W
  • Speakers: 2 x 10W integrated stereo
  • Audio out: 3.5 mm TRS headphone output

Built for 24/7 Commercial Duty Cycles.

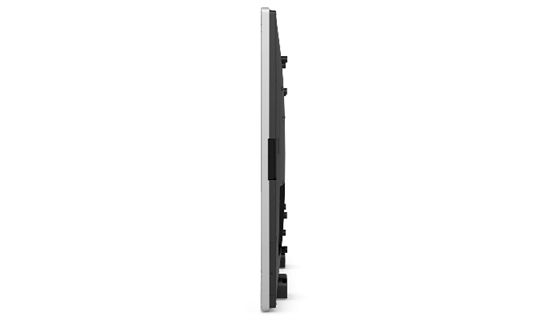

Mechanical + Mounting

  • TouchPro dimensions: 58.69" x 34.08" x 3.17"
  • IR dimensions: 58.69" x 34.07" x 3.55"

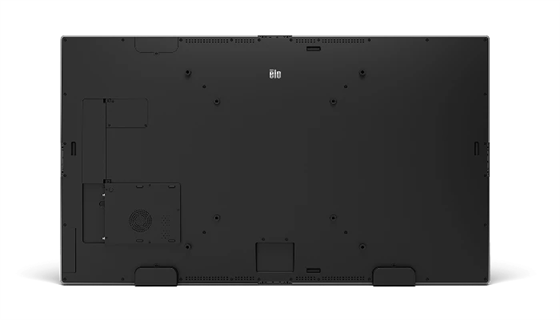

  • VESA: MIS-F 400 x 400 mm (M6)
  • VESA: MIS-F 600 x 600 mm (M8)
  • Shipping carton: 68.9" x 45.28" x 11.02"

Environmental + Compliance

  • Max operating time: 24 hours/day
  • Operating temp: 0°C to 40°C (tilt up to 15°)
  • Tabletop operating temp: 0°C to 35°C
  • Operating humidity: 20% to 80% non-condensing
  • Approvals: UL, FCC, CE, RCM, VCCI, CB, IK07
  • Energy Star: 7.1
  • Sensors/features: ambient light sensor, auto wake
Elo 6553L installed in commercial mounting configurations

Warranty and Coverage Options.

  • Standard warranty: 3-year with AUR included
  • 4-year + AUR: Elo P/N E740135
  • 5-year + AUR: Elo P/N E740330
  • 3-year + OSE (Continental US): Elo P/N E740527
Model
6553L
Color
Black
Active Display Area
56.2" x 31.6" / 1428.48 mm x 803.52 mm
Dimensions
TouchPro: 58.69" x 34.08" x 3.17" / 1490.6 mm x 865.5 mm x 80.4 mm; IR: 58.69" x 34.07" x 3.55" / 1490.6 mm x 865.5 mm x 90.2 mm
Display Technology
3840 x 2160 @ 60Hz native; Active matrix TFT LCD with LED backlight; other resolutions supported
Diagonal Size
64.53" / 1639.06 mm
Aspect Ratio
16:9
Number of Colors
10 bit, 1.07 billion
Brightness
LCD Panel 500 nits; with IR 450 nits; with TouchPro PCAP 430 nits
Response Time
8 msec
Viewing Angle
Horizontal ±89° / 178° total; Vertical ±89° / 178° total
Contrast Ratio
1100:1
On-Screen Display
Let’s Get Started, Video Source Select, Color Settings, Audio Settings, Power, Time, OSD Settings, Information, Conference
Available I/O Ports
Back: HDMI x2, USB 3.0 Type B, RJ45 OSD Remote, DisplayPort 1.4, 3.5mm TRS jack for Serial RS232, 3.5mm Audio Headphones Line-out; Side: HDMI x1, USB 3.0 Type A, Power Button, Video Source Selection, On Screen Display Button
Video Inputs
3x HDCP-capable HDMI on Type A connector, DisplayPort 1.4 connector; Input Video Horizontal Sync frequency range: 121.8 - 140 KHz; Input Video Vertical Sync frequency range: 47 - 63 Hz
Power
Power Input connector: IEC 60320-C13; Input power signal specifications: 100-240VAC 50/60Hz; Power Consumption: IR - ON 152W, SLEEP 2W, OFF 0.7W; TouchPro - ON 157W, SLEEP 2W, OFF 0.7W
Audio
Internal Speakers: 2 x 10 W stereo speakers; Headphone output connector: 3.5 mm TRS jack
Weight
Unpackaged TouchPro with ECM: 115.54 lbs / 52.41 kg; TouchPro without ECM: 111.14 lbs / 50.41 kg; IR with ECM: 118.54 lbs / 53.77 kg; IR without ECM: 114.13 lbs / 51.77 kg; Packaged TouchPro without ECM: 131.04 lbs / 59.44 kg; IR without ECM: 136.24 lbs / 61.8 kg
Shipping Dimensions
68.9" x 45.28" x 11.02" / 1750 mm x 1150 mm x 280 mm
Maximum Operating Time
24 hours/day
Temperature
Portrait/Landscape/Tilt ≤15° Mode: Operating 0°C to 40°C / 32°F to 104°F; Storage -20°C to 60°C / -4°F to 140°F; Tabletop Mode: Operating 0°C to 35°C / 32°F to 95°F; Storage -20°C to 60°C / -4°F to 140°F
Humidity
Operating 20%-80%; Storage 10%-95% non-condensing, 38.7°C max wet bulb temperature
Regulatory Approvals and Declarations
UL, FCC; cUL, IC; CB; CE; RCM; VCCI; CCC for TouchPro only, IK07 and UL60950 for ball drop test
Energy Star
7.1
Mounting Options
VESA MOUNT PER MIS-F, 400 x 400mm, M6; VESA MOUNT PER MIS-F, 600 x 600mm, M8
Other Features
Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
Warranty
3-year with AUR included
Extended Warranty
4 year + AUR - Elo P/N: E740135; 5 year + AUR - Elo P/N: E740330; 3 year + OSE Continental US Only - Elo P/N: E740527; 4 year + OSE Continental US Only - Elo P/N: E740728; 5 year + OSE Continental US Only - Elo P/N: E740918
MTBF
50,000 hours demonstrated
What’s in the Box
QIG, HDMI 2.0 cable, USB 3.0 cable Type A to Type B, power cable, IEC 60320-C13 to NA plug, EU/KR plug, UK plug, Serial 3.5mm male to Serial DB9 female cable, Energy label according to EU Regulation 1062/2010
