DataLogic 2128P
Description
Specifications
Download

DataLogic 2128P

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

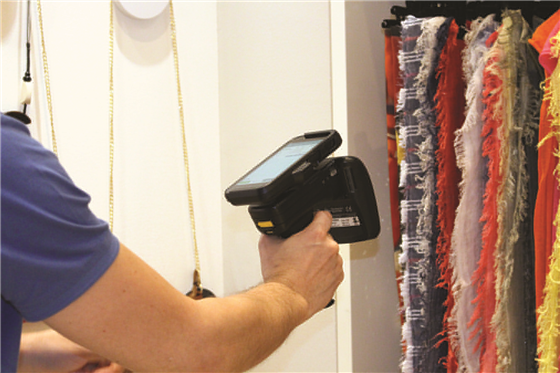

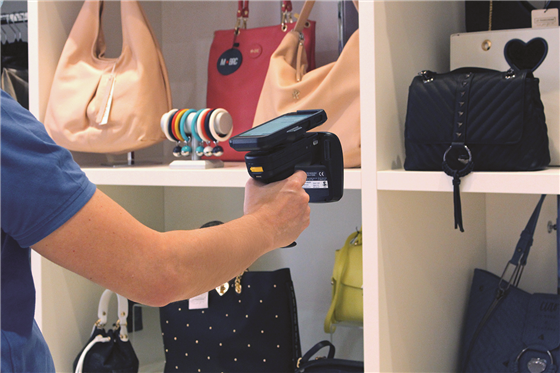

UHF RFID capture for inventory and item finding

The Datalogic 2128P reads groups of UHF RFID tags for stock counts, receiving and locating tagged items. Its fixed antenna reaches up to 9 m under suitable conditions, while tag de-duplication reduces repeated reads sent to your application.

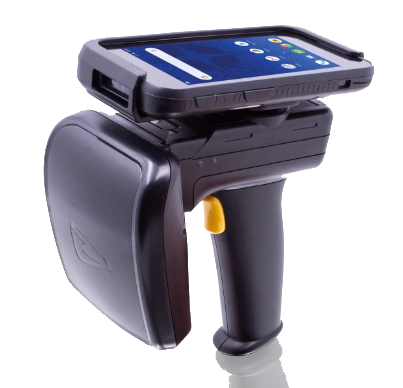

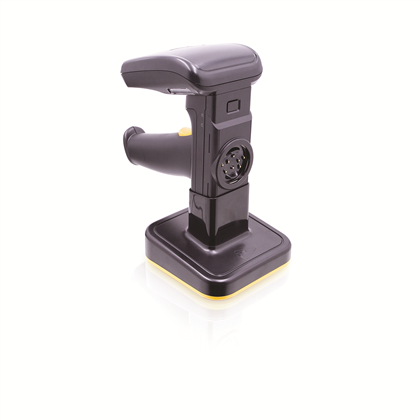

Use Bluetooth or connect a Memor 11 through the active ePop-Loq case. With an optional microSD card, the reader can log time-stamped tag data when a host connection is unavailable. The charging cradle can charge the reader and an attached mobile computer together.

Key Specifications

  • Product type / application: Handheld UHF RFID sled for inventory and item finding
  • Read / write range: Up to 9 m read; up to 4 m write, depending on tags and conditions
  • RFID support: EPC Class 1 Gen 2; US reader: 902–928 MHz
  • Platform / compatibility: Memor 11/10 with AH-SLED01 active case
  • Interfaces / connectivity: Bluetooth 4.2 Classic/BLE; USB through active ePop-Loq case
  • Power / battery: Removable 3.7 V, 2300 mAh battery; charging cradle required
  • Durability / environment: IP52; 1.2 m drops at ambient temperature; −10 to 50 °C operation

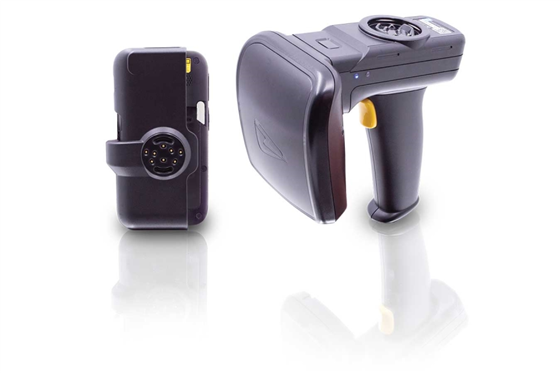

  • Deployment / form factor: Trigger handle with detachable ePop-Loq host mounting
  • Dimensions: 158 × 98 × 170 mm
  • Weight: 445 g including battery
  • Warranty: 1 year

In the Box

  • Reader with Memor 11 kit: DLR-SLED01-US reader with battery, AH-SLED01 active case, CC-SLED01 charging cradle kit and 944900002 Memor 11.
  • Reader kit: The same reader, battery, active case and charging cradle kit; Memor 11 is sold separately.
  • DLR-SLED01-US: Reader with battery only; active case and charging cradle sold separately.
  • Individual components: AH-SLED01 case, RBP-SLED01 spare battery or CC-SLED01 charging cradle kit, according to the selected item.

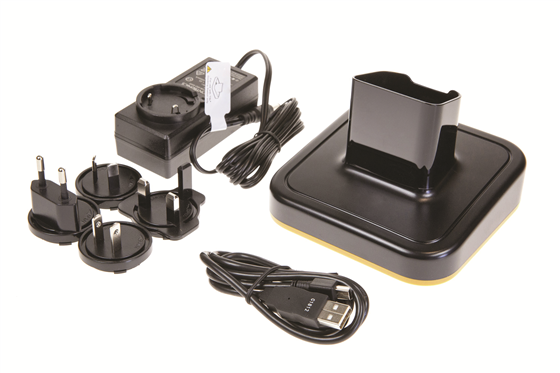

CC-SLED01 includes a power supply and mini-USB data cable. A microSD card for batch storage is optional and sold separately. Use the configuration filter to distinguish complete kits from individual components.

Capture groups of tags and find individual items

Tag de-duplication helps keep inventory data manageable. Configurable audible, vibration and LED feedback supports scanning and item-search workflows in the connected application.

Continue collecting without a host connection

Batch logging supports up to 500 million time-stamped EPC records on a separately purchased 32 GB microSD card. Direct USB through ePop-Loq provides a wired data path when Bluetooth is unsuitable.

RFID Performance
Maximum output: 34 dBm EIRP. Nominal read range: up to 9 m / 29.5 ft; write range: up to 4 m / 13.1 ft. Read/write performance depends on tag type, tagged item, tag population, radio and environmental conditions. Field: 150° forward-facing. EPC Class 1 Gen 2. Frequency: US 902–928 MHz; EU 865–868 MHz (regional reader required). Optional 32 GB microSD card supports up to 500 million date/time-stamped EPC records; card sold separately.
Communication
Host: Datalogic Memor 11; AH-SLED01 active case also supports Memor 10. Direct USB through the active ePop-Loq case. Bluetooth 4.2 Classic and BLE; SPP and HID profiles. Bluetooth range: up to 100 m / 328 ft. Simple Secure Pairing and NFC out-of-band pairing.
Physical Characteristics

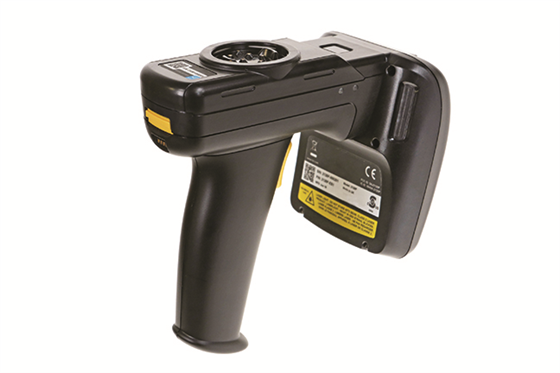

158 × 98 × 170 mm / 6.2 × 3.8 × 6.7 in (L × W × H). Weight: 445 g / 15.7 oz including battery. Polycarbonate enclosure. Trigger-button input; speaker, vibration motor and LED feedback. Removable rechargeable 3.7 V, 2300 mAh lithium-polymer battery, 8.6 Wh. Dedicated charging cradle required for battery charging.
Environmental
Operating: −10 to 50 °C / 14 to 122 °F. Charging with standard trigger handle: 5 to 40 °C / 41 to 104 °F. Storage: less than 1 month at −20 to 45 °C; less than 6 months at −20 to 35 °C (User Guide v1.07). Humidity: 5–85%, non-condensing. Repeated concrete drops: 1.2 m at ambient temperature; 0.9 m across operating range (IEC 68-2-32, Procedure 1). Repeated 0.5 m tumbles at room temperature (Procedure 2). ESD: ±15 kV air, ±8 kV contact. Sealing: IP52.
Software
Manufacturer-listed applications: RFID Explorer for reader features and performance; RFID Tag Finder for locating tagged assets; RFID Scan Scan Write for tag commissioning from barcode data. Software availability and host requirements depend on the selected application.
Regulatory
EMI/EMC: FCC 47 CFR Part 15B 15.107/15.109; ICES-003 Issue 6; EN 55032:2015 +AC:2016; EN 55024:2010 +A1:2015; EN 301 489-1 V2.1.1. Electrical safety: IEC 62368-1:2014 CB; EN 62368-1:2014 +AC:2015. RF exposure: 47 CFR Part 2.1091; OET Bulletin 65; RSS-102; EN 50566:2017. RFID/Bluetooth: 47 CFR Part 15C 15.247; RSS-247; EN 300 328 V2.1.1; EN 302 208 V3.1.1; EN 301 489-17 V3.1.1; EN 301 489-3 V2.1.1.
Warranty
1-year factory warranty.
2128P UHF RFID Reader Spec Sheet
Download
2128P UHF RFID Reader User's Guide
Download
TSL ASCII Protocol 2.5 Rev A
Download

Shop 2128P Models

2128P-RFID-READER-MEMOR-KIT

2128P US RFID Reader Kit with Battery, Active Case, Charging Cradle and Memor 11 Mobile Computer (944900002)

Configuration:

Reader + Memor 11 Kit

$2581.63

2128P-RFID-READER-KIT

2128P US RFID Reader Kit with Battery, Active Case and Charging Cradle; Memor 11 Sold Separately

Configuration:

Reader Kit

$1655.00

DLR-SLED01-US

2128P UHF RFID Reader, US 902–928 MHz, with Battery Pack; Active Case and Charging Cradle Sold Separately

Configuration:

Reader Only

$1445.50

AH-SLED01

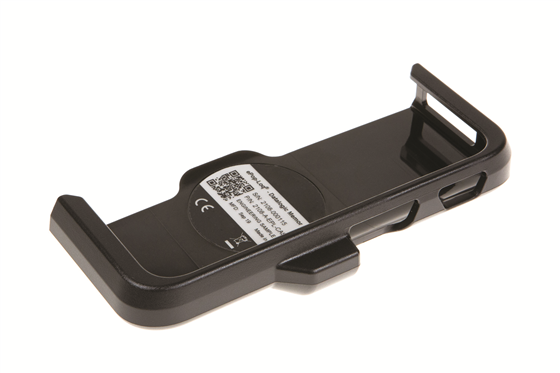

Active ePop-Loq Case for Memor 11/10 and 2128P RFID Reader

Configuration:

Active Case

$86.26

RBP-SLED01

Rechargeable Spare Battery Pack for 2128P RFID Reader

Configuration:

Spare Battery

$138.76

CC-SLED01

Charging Cradle Kit for 2128P RFID Reader, with Power Supply and Mini-USB Data Cable

Configuration:

Charging Cradle

$123.00

Shop 2128P Accessories

PG-TM-WEDGEA

TagMatiks Wedge Android License: Simplifies RFID inventory data collection with configurable tag filtering, supporting all-in-one handhelds and iOS/Android devices with an RFID sled.
