Elo TouchSystems 1715L 17in.

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

The 1715L Elo 17 inch touch monitor was created to be a cost-effective solution for customers with system integration needs. It combines the award winning, agency approved touchscreen technology of Elo with intuitive monitor design and affordability. The 17 inch touch monitor features ample touchscreen space and supports multiple touch technologies including AccuTouch (Resistive), Acoustic Pulse Recognition (APR), IntelliTouch (Capacitive) and Projected Capacitive (Multi-Touch). Optimal screen resolution is 1280 x 1024 but allows for many variations (see data sheet for details.)

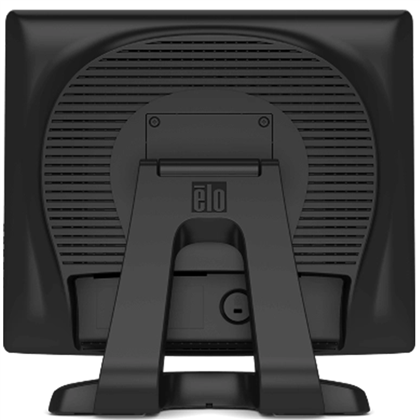

For added security, the base of the 1715L touch monitor sports mounting holes on the bottom and is removable, allowing for VESA pole mounting. The monitor interfaces to the computer via a dual serial or USB interface and is internally powered but also has a jack to accept power from an optional external power brick.

Elo monitors are renowned for maintaining the highest level of quality and are a mainstay in the monitor industry. This 1715L 17 inch touch monitor is a reliable asset to any point-of-sale (POS), point-of-service, loyalty system, kiosk information system (KIS), interactive advertising display or guest check in application.

Features

  • Entry-level monitor with Elo quality
  • "Designed for touch" features such as a stable tilt base
  • Long-lasting product cycle
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable base and VESA mounting option
  • Mounting holes on base bottom for tabletop security

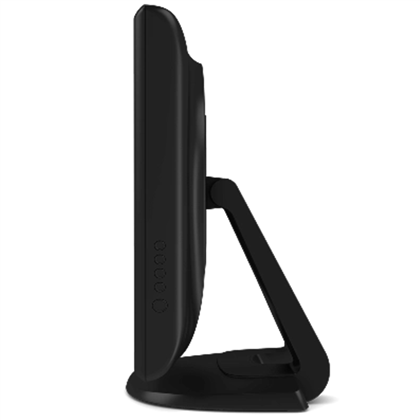

  • Controls on the side rather than the front, plus lockout function for public use
  • Worldwide agency approvals

    Similar models include the 1515L 15 inch touch monitor and the 1215L 12 inch touch monitor.
Display Type
17 Inch TFT Active Matrix Display
Color Options
Dark Grey
Interface
USB or Dual Serial/USB
Style
Desktop - Stable Tilt Base
Optimal Resolution
1280 x 1024 at 60 or 75 Hz
Aspect Ratio
5:4
Contrast Ratio
800:1
Brightness
LCD panel: 280 nits - with AccuTouch: 230 nits - with Acoustic Pulse Recognition: 258 nits - with IntelliTouch: 258 nits (typical)
Colors
16.2 million colors with dithering
Weight
15.2 lb (6.9 kg)
Dimensions
15.4 (w) x 8 (h) x 14.4 (d) in.
Mounting Options
Removable Base, 75 mm VESA Mount
Operating Temperature
0°C to 40°C
Power Supply
Internal, with jack to accept power from optional external brick
Monitor Input Voltage
100-240 VAC, 50/60 Hz
Optional Input Voltage
+12VDC ±5%
Power Dissipation
50 W max
Optional Peripherals
3 track magnetic strip reader (MSR)
Warranty
3 Years
Data Sheet
Download
Manual
Download
Driver
Download
Dimensional Drawings
Download
Optional Advance Unit Replacement Plan
Download

Shop 1715L 17in. Models

E603162

1715L 17" AccuTouch LCD Touch Monitor, Dark Gray. Anti-Glare Surface Treatment. VGA(DB-15) for Video. Dual Serial & USB for Touch. 1280 x 1024.

Touch Type:

Resistive (AccuTouch)

$905.49

E719160

Elo 1715L 17" IntelliTouch LCD Touch Monitor, Dark Gray. Anti-Glare Surface Treatment. VGA(DB-15) for Video. Dual Serial & USB for Touch. 1280 x 1024.

Touch Type:

SAW (IntelliTouch)

$913.52

E832132

Elo 1715L 17 Inch LCD Touch Monitor: Dark Grey with Acoustic Pulse Recognition (APR) Touch Technology, Antiglare Surface Treatment, USB Interface

Touch Technology:

Acoustic Pulse Recognition

Color:

Dark Grey

Interface:

USB

$661.00

E230052

Elo 1715L 17 Inch LCD Touch Monitor: Dark Grey with Projected Capacitive (Multi-Touch) Technology, USB Interface

Color:

Dark Grey

Touch Technology:

Projected Capacitive

Interface:

USB

$664.13

Shop 1715L 17in. Accessories

E785134

External Power Brick (with Cable) for the 1715L LCD Touch Monitor

$61.36

758588-000

Elo 1 Year Extended Warranty Service for 22 Inch Widescreen Monitor

$58.00

930057-000

Elo 2 Year Extended Warranty Service for 22 Inch Widescreen Monitor

$133.00

C35148-000

Elo Advanced Unit Replacement Service (Must be purchased with an extended warranty service.)

$38.00

D82064-000

Stylus Pen for use with IntelliTouch Touchscreen Monitor

$34.21

E143088

Wall Mount bracket for Elo E-Series, I Series, X Series, and 02-Series & 03-Series Touchscreen Monitors. VESA 75x75mm / 100x100mm. Black.

$53.00
