Elo TouchSystems 1099L
Description
Specifications
Download

Elo TouchSystems 1099L

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

Outdoor-ready 10.1-inch touch for kiosks, payment systems and commercial equipment.

The Elo 1099L is a compact open-frame touchscreen for equipment that must remain readable and responsive in exposed or high-ambient-light locations. Its optically bonded 10.1-inch display, TouchPro projected-capacitive touch and zero-bezel construction give integrators a bright, durable interface without adding a finished desktop enclosure.

Locking video, touch and OSD connections support permanent installations, while landscape, portrait and upward-facing orientations provide flexibility for kiosks, ticketing, access control and industrial controls.

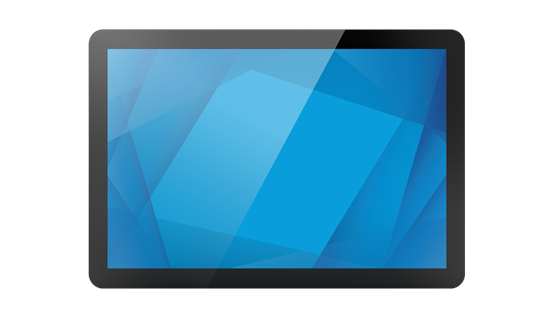

Front view of the Elo 1099L 10.1-inch outdoor open-frame touchscreen

Key Specifications

  • Product: 10.1-inch outdoor open-frame touchscreen
  • Display: 1280 x 800, 16:10; 1,000-nit LCD panel and 900 nits with TouchPro PCAP
  • Touch: TouchPro projected capacitive; up to 5 simultaneous touches over USB
  • Touch-thru: Up to 6 mm glass or 3 mm plastic with up to 2 touches
  • Ports and connectivity: Locking USB-B, HDMI 1.3, VGA, DisplayPort 1.1a and RJ45 OSD
  • Power: 12 VDC input; 23 W typical in use
  • Mounting: 75 x 75 mm VESA, side mounting points and included flush-mount brackets
  • Dimensions: 10.08 x 6.93 x 1.61 in / 256 x 176 x 41 mm
  • Host compatibility: Plug-and-play support for Windows, Android and Linux
  • Protection: IK09 impact resistance; sealable to IP66 and NEMA 4X when integrated in an enclosure
  • Operating range: -4° to 140° F / -20° to 60° C
  • Warranty: 2 years

In the Box

  • Elo 1099L touchscreen
  • Locking HDMI, VGA and USB cables
  • OSD remote with cable
  • Flush-mount brackets and screws
  • Quick installation guide
  • Regulatory information

The external power adapter is sold separately. RS-232 touch requires the optional serial cable kit and driver.

Readable in Bright Locations

Optically bonded outdoor display

Optical bonding reduces internal reflections and improves visibility in direct sunlight. The display remains viewable with polarized sunglasses in portrait or landscape orientation.

Built for Exposed Enclosures

Impact, moisture and temperature protection

The IK09-rated front glass is designed for public-facing use. When properly installed in a suitable enclosure, the front can be sealed to IP66 and NEMA 4X, and internal sensors and fans help the monitor operate from -20° to 60° C.

Flexible Integration

Multiple orientations and mounting methods

Install the 1099L in landscape, portrait or upward-facing positions. Included flush-mount hardware, 75 x 75 mm VESA mounting and side mounting points support a range of kiosk and equipment designs.

Locking I/O and Touch Choices

Connections intended for permanent installs

Locking HDMI, VGA, DisplayPort, USB touch and RJ45 OSD connections resist accidental disconnection. USB supports up to five touches, with optional RS-232 and touch-thru modes available for specialized integrations.

Color
Black
Active Display Area
8.54" x 5.33" / 216.96 mm x 135.60 mm
Diagonal
10.1"
Aspect Ratio
16:10
Native Resolution
1280 x 800
Other Supported Resolutions
640 x 480 at 60 Hz; 720 x 400 at 70 Hz; 800 x 600 at 60 Hz; 1024 x 768 at 60 Hz; 1280 x 800 at 60 Hz
Number of Colors
16.7 million
Number of Touches
Up to 5 touches via USB; up to 2 touches via RS-232; up to 2 touches through 6 mm glass or 3 mm plastic
Brightness (typical)
LCD panel: 1,000 nits; with TouchPro PCAP: 900 nits
Response (typical)
25 msec
Viewing Angle
Horizontal: 85°/170°; Vertical: 85°/170°
Contrast Ratio
700:1
On-Screen Display
  • Controls: Menu, Up, Down, Select, Power, Brightness, Contrast, Light Sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time
  • Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
  • Lockouts: OSD, Power
    • I/O Ports
    Locking USB Type-B for touch, RJ45 for OSD remote, VGA, HDMI and DisplayPort
    Video
  • HDMI 1.3 Type-A receptacle
  • Analog VGA on female DE-15 connector
  • DisplayPort 1.1a receptacle; accepts later DisplayPort source versions
  • Horizontal sync range: 31.5-80 kHz
  • Vertical sync range: 60-75 Hz
    • Power
  • External DC input; optional power adapter sold separately
  • Monitor input voltage: 12 VDC ±5%
  • Monitor power connector: 2.5 mm pin, 5.7 mm inner barrel diameter, 7.8 mm barrel depth
  • Optional adapter input: 100-240 VAC, 50-60 Hz
  • Adapter output: 12 VDC, 6.67 A, 80 W
    • Power Consumption
    Monitor plus adapter: 23 W on; 1.5 W sleep; 1.5 W off
    Temperature
    Operating: -20 °C to 60 °C (-4 °F to 140 °F); Storage: -30 °C to 80 °C (-22 °F to 176 °F)
    Humidity
    Operating: 10% to 90%; Storage: 10% to 95% (38.7 °C maximum wet-bulb temperature)
    Dimensions
    10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm
    Shipping Dimensions
    13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm
    Weight
    Unpackaged: 1.67 kg / 3.68 lb; Packaged: 3.6 kg / 7.94 lb
    Mounting Options

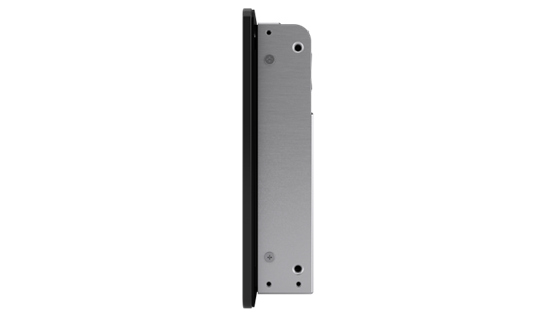

    75 x 75 mm VESA mount on rear; two-hole mounting interface on all four sides; flush mounting with included brackets
    Warranty
    2 years standard
    MTBF
    50,000 hours demonstrated
    Agency Approvals
    Australia RCM; Canada cUL and IC; China CCC; Europe CE and TÜV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NOM; Taiwan BSMI; United States UL and FCC; International CB; RoHS, China RoHS and WEEE
    Compliance
    GLI 27 kV air / 8 kV contact ESD compliance; UL ball-drop compliance; IK09 impact compliance
    Other Features

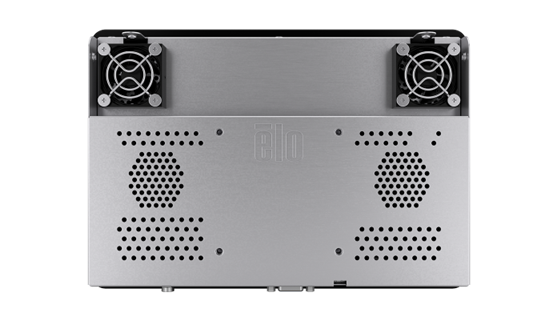

    24/7 operation; viewable with polarized sunglasses in portrait and landscape; ambient light and thermal sensors; automatically controlled external fans; front sealable to IP66 and NEMA 4X when properly integrated
    What’s in the Box
    1099L touchscreen, screw-locking HDMI cable, VGA cable, OSD remote with cable, screw-locking USB touch cable, quick installation guide, flush-mount brackets with screws, EEI label and Japan Class-B information sheet
