Elo TouchSystems 1064L 10-inch

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

Industrial-grade 10.1-inch open-frame touch for compact equipment, kiosks and controls.

The Elo 1064L is a compact open-frame touchscreen designed to integrate cleanly into industrial controls, HMI systems, warehouse automation, gaming equipment and self-service enclosures. Its optically bonded TouchPro projected-capacitive display delivers clear 10-touch interaction in a narrow-border form factor.

Flexible mounting and a wide 12–24 VDC input support embedded designs, while USB-C can combine power, video and touch in compatible installations.

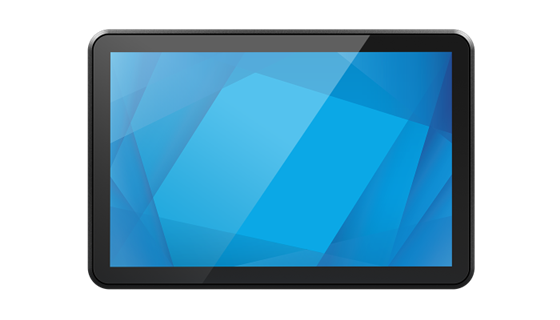

Front view of the Elo 1064L 10.1-inch open-frame touchscreen

Key Specifications

  • Product type / application: 10.1-inch industrial open-frame touchscreen for embedded equipment and self-service systems
  • Display performance: 1280 x 800, 16:10; 500-nit LCD panel and 450 nits with TouchPro PCAP
  • Touch input: Optically bonded TouchPro PCAP with up to 10 touches; touch-thru supports up to 6 mm glass or 3 mm plastic with up to 2 touches
  • Platform / compatibility: USB 2.0 touch interface with on-screen display controls available through rear buttons or touch gestures

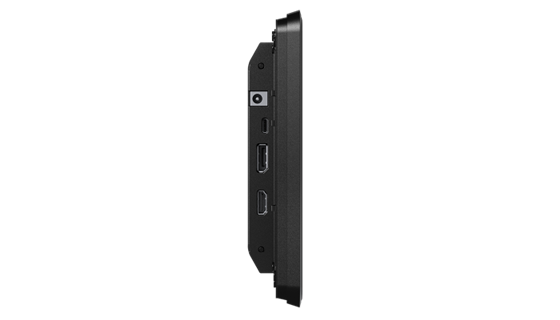

  • Interfaces / connectivity: HDMI 1.4, DisplayPort 1.2, USB-C video and USB touch
  • Power: 12–24 VDC external input or USB-C power delivery; optional external power adapter sold separately
  • Durability / environment: IK08, UL62368 ball-drop, IPX1 front, 24/7 operation and 32° to 104° F / 0° to 40° C

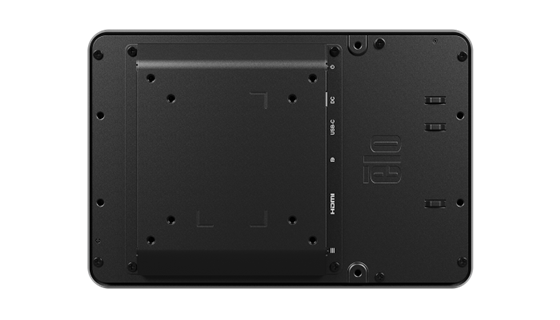

  • Deployment / mounting: 75 x 75 mm and 100 x 100 mm VESA, four-side mounting interface and included flush-mount brackets
  • Dimensions and weight: 9.46 x 6.26 x 1.26 in / 240.4 x 159.0 x 32.0 mm; 2.75 lb / 1.25 kg
  • Warranty: 3 years; 50,000-hour demonstrated MTBF

In the Box

  • Elo 1064L touchscreen
  • HDMI cable
  • USB-A to USB-C touch cable
  • Flush-mount brackets and screws
  • Quick installation guide
  • EEI label

A desktop stand, external power adapter and USB-C power/video cable are sold separately.

Built for Embedded Equipment

Narrow borders and flexible mounting

Use the included flush-mount brackets, the four-side mounting interface or 75 mm and 100 mm VESA patterns to build the display into a purpose-designed enclosure.

Clear, Responsive Touch

Optically bonded TouchPro display

The 450-nit touch display supports up to 10 simultaneous touches. Selectable touch-thru mode helps maintain two-touch interaction through compatible protective glass or plastic.

Simplified USB-C Integration

Power, video and touch over one connection

A compatible USB-C host and cable can carry power, video and touch together, reducing cabling inside compact enclosures. HDMI and DisplayPort remain available for conventional installations.

Ready for Continuous Use

Commercial durability and efficient operation

IK08 impact resistance, UL62368 ball-drop compliance, chemically strengthened glass and a 24/7 duty rating support dependable use in public-facing and industrial equipment.

Color
Black
LCD Technology
Active matrix TFT LCD
Diagonal Size
10.1 in
Active Display Area
8.54 x 5.34 in / 216.96 x 135.60 mm
Aspect Ratio
16:10
Native Resolution
1280 x 800
Preset Video Timings
640 x 480 at 60 Hz; 720 x 400 at 70 Hz; 800 x 500 at 60 Hz; 800 x 600 at 60 Hz; 1024 x 768 at 60 Hz; 1280 x 800 at 60 Hz and 60 Hz reduced blanking; 1366 x 768 at 60 Hz and 60 Hz reduced blanking; 1920 x 1080 at 60 Hz; 1920 x 1200 at 60 Hz
Touch Technology
TouchPro® projected capacitive (PCAP), up to 10 touches
Touch Thru
Supports up to an additional 6 mm glass or 3 mm plastic with up to 2 touches
Number of Colors
16.7 million
Brightness (Typical)
LCD panel: 500 nits; TouchPro PCAP: 450 nits
Response Time (Tr + Tf, Typical)
29 ms
Viewing Angle (Typical)
Horizontal: 89° / 178° total; vertical: 89° / 178° total
Contrast Ratio (Typical)
800:1
On-Screen Display (OSD)
On-screen OSD with menu and power buttons on the rear. Touch gestures can open the OSD and lock or unlock the OSD and power buttons. Settings include Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode and Touch Through. Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese and Japanese. Lockouts: OSD and Power.
Video
HDMI 1.4 Type A, DisplayPort 1.2 and USB Type-C. Input horizontal sync: 30–80 kHz; vertical sync: 50–75 Hz. Elo recommends USB-C to USB-C cable E129019.
Power
External DC: optional power adapter sold separately; monitor input 12–24 VDC ±5%. USB Type-C input: 5 V ±5% at 3 A, 9 V ±5% at 3 A, 15 V ±5% at 1.8 A or 20 V ±5% at 1.35 A.
Power Consumption (Typical)
On at 80% brightness: 6.52 W
On at 100% brightness: 7.42 W
Sleep (monitor + adapter): 0.45 W
Off (monitor + adapter): 0.25 W
Mounting Options
75 x 75 mm and 100 x 100 mm VESA mount; mounting interface on all four sides; flush mount with included brackets
Weight
Unpackaged: 2.75 lb / 1.25 kg
Packaged: 5.35 lb / 2.43 kg
Dimensions
9.46 x 6.26 x 1.26 in / 240.4 x 159.0 x 32.0 mm
Shipping Dimensions
12.40 x 9.57 x 5.67 in / 315 x 243 x 144 mm
Temperature
Operating: 0° to 40° C / 32° to 104° F; storage: -20° to 60° C / -4° to 140° F
Humidity (Non-Condensing)
Operating: 20%–80%; storage: 10%–95%
Maximum Operating Time
24 hours per day
Regulatory Approvals and Declarations
Australia RCM; Canada cUL and IC; China CCC; Europe CE and TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NOM; Taiwan BSMI; United States UL and FCC; International CB; RoHS, China RoHS and WEEE
Ingress Protection
IPX1 on the front side
Energy Star
Energy Star 7.0
Compliance
GLI 27 kV air / 8 kV contact ESD; UL62368 ball-drop; IK08 impact; TUV Rheinland Low Blue Light; power collection through DDCCI
Warranty
3-year standard warranty
Extended Warranty
4-year: E898247
5-year: E898449
3-year with Advance Unit Replacement: E898648
4-year with Advance Unit Replacement: E894921
5-year with Advance Unit Replacement: E895125
MTBF
50,000 hours demonstrated
What's in the Box
Elo 1064L monitor; HDMI cable; USB-A to USB-C touch cable; flush-mount brackets with screws; quick installation guide; EEI label
1064L 10-inch Spec Sheet
Download
1064L 10-inch User Manual
Download
Elo 1064L Quick Installation Guide
Download
Elo 1064L Dimensional Drawing
Download
