Elo TouchSystems 0764L 7-inch

Name: Elo TouchSystems 0764L 7-inch
Brand: Elo TouchSystems
Price: 423.75 USD
Availability: InStock

Images may not reflect the actual product

Industrial-grade 7-inch open-frame touch for compact equipment, kiosks and controls.

The Elo 0764L is a compact open-frame touchscreen designed to integrate cleanly into industrial controls, HMI systems, warehouse automation, gaming equipment and self-service enclosures. Its optically bonded TouchPro projected-capacitive display delivers clear 10-touch interaction in a narrow-border form factor.

Flexible mounting and a wide 12–24 VDC input support embedded designs, while USB-C can combine power, video and touch in compatible installations.

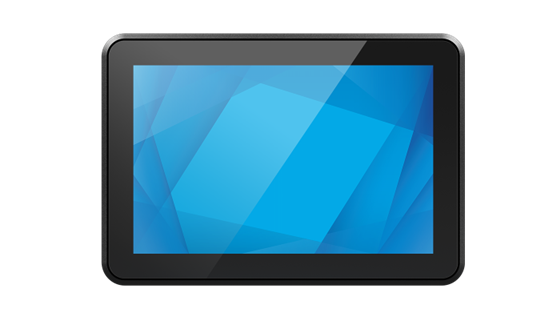

Front view of the Elo 0764L 7-inch open-frame touchscreen

Key Specifications

Product type / application: 7-inch industrial open-frame touchscreen for embedded equipment and self-service systems
Display performance: 1280 x 800, 16:10; 400-nit LCD panel and 360 nits with TouchPro PCAP
Touch input: Optically bonded TouchPro PCAP with up to 10 touches; touch-thru supports up to 6 mm glass or 3 mm plastic with up to 2 touches
Platform / compatibility: Plug-and-play support for Windows, Android and Linux; Windows 10 or later uses HID touch drivers

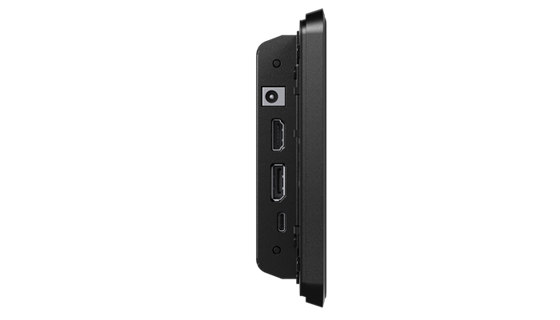

Interfaces / connectivity: HDMI 1.4, DisplayPort 1.2, USB-C video and USB 2.0 touch
Power: 12–24 VDC external input or USB-C power delivery; optional external power adapter sold separately
Durability / environment: IK08, UL62368 ball-drop, IPX1 front, 24/7 operation and 32° to 104° F / 0° to 40° C

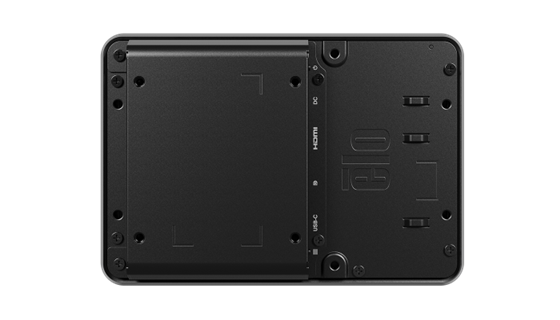

Deployment / mounting: 75 x 75 mm VESA, four-side mounting interface, portrait/landscape/upward-facing operation and included flush-mount brackets
Dimensions and weight: 6.94 x 4.72 x 1.25 in / 176.2 x 120.0 x 31.7 mm; 1.47 lb / 0.66 kg
Warranty: 3 years; 50,000-hour demonstrated MTBF

In the Box

Elo 0764L touchscreen
HDMI cable
USB-A to USB-C touch cable
Flush-mount brackets and screws
Quick installation guide
EEI label

An external power adapter and USB-C-to-USB-C power/video cable are sold separately.

Built for Embedded Equipment

Narrow borders and flexible mounting

Use the included flush-mount brackets, the four-side mounting interface or the 75 mm VESA pattern to build the display into a purpose-designed enclosure.

Clear, Responsive Touch

Optically bonded TouchPro display

The 360-nit touch display supports up to 10 simultaneous touches. Selectable touch-thru mode helps maintain two-touch interaction through compatible protective glass or plastic.

Simplified USB-C Integration

Power, video and touch over one connection

A compatible USB-C host and cable can carry power, video and touch together, reducing cabling inside compact enclosures. HDMI and DisplayPort remain available for conventional installations.

Ready for Continuous Use

Commercial durability and efficient operation

IK08 impact resistance, UL62368 ball-drop compliance, chemically strengthened glass and a 24/7 duty rating support dependable use in public-facing and industrial equipment.

LCD Technology

Active matrix TFT LCD

Diagonal Size

Active Display Area

5.90" x 3.69" / 149.76 mm x 93.60 mm

Aspect Ratio

16:10

Native Resolution

1280 x 800

Preset Video Timings

640x480 60Hz; 800x500 60Hz; 800x600 56, 60Hz; 1024x768 60Hz; 1280x800 60Hz, 60Hz RB

Touch Technology

TouchPro® PCAP - up to 10 touches

Touch Thru

TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches.

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 400 nits; TouchPro PCAP: 360 nits

Response Time (Tr + Tf) (typical)

40 msec

Viewing Angle (typical)

Horizontal: ±88° / 176° total; Vertical: ±88° / 176° total

Contrast Ratio (typical)

800:1

On-Screen Display (OSD)

On screen OSD with menu and power buttons on the back of the unit. Supported Touch gestures include:
1. Call out the OSD menu. 2. lock/unlock the OSD button function. 3. lock/unlock the power button function.
Controls: Menu, Power
Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
Lockouts: OSD, Power

Video

HDMI V1.4 Type A receptacle for HDMI input, DisplayPort V1.2 - Supports later versions of Display Port video input, USB Type-C
*Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues Input Video Horizontal Sync frequency range: 30 – 80KHz, Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz

Power

Option1: External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input power signal specifications: 12V – 24V DC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Option 2: USB Type-C Input range: 5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35A

Power Consumption (Typical)

ON (Default - 80% Brightness): 4.57W
ON (Typical - 100% Brightness): 6.84W
SLEEP (monitor + adapter): 0.40W
OFF (monitor + adapter): 0.25W

Mounting Options

75 mm VESA mount, Mounting interface on all 4 sides, Flush mount with included brackets

Weight

Unpackaged: 1.47 lbs / 0.66 kg
Packaged: 2.87 lbs / 1.3 kg

Dimensions

6.94" x 4.72" x 1.25" / 176.2 mm x 120.0 mm x 31.7 mm

Shipping Dimensions

9.13" x 6.70" x 3.74" / 232 mm x 170 mm x 95 mm

Temperature

Operating: 0° C to 40° C / 32° F to 104° F; Storage: -20° C to 60° C / -4° F to 140° F

Humidity (non-condensing)

Operating: 20% - 80%; Storage: 10% - 95%

Maximum operating time

24 hours/day

Ingress Protection

IPX1 for front side

Energy Star

Energy Star 7.0

Warranty

3 year standard

Extended Warranty

4 year - Elo P/N: E898247, 5 year - Elo P/N: E898449, 3 year + AUR - Elo P/N: E898648, 4 year + AUR - Elo P/N: E894921,5 year + AUR - Elo P/N: E895125

MTBF

50,000 hours demonstrated

What’s in the Box

Elo 0764L touchscreen display, HDMI cable, USB-A to USB-C touch cable, flush-mount brackets with screws, Quick Installation Guide, EEI label

Enclosure Color

Black

Ordering Information

Model 0764L; part number E970862; TouchPro PCAP; USB 2.0 touch interface; clear surface treatment; worldwide availability

Regulatory Approvals & Declarations

Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NoM; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE

Compliance

GLI 27 kV air / 8 kV contact ESD compliant; UL62368 ball-drop compliant; IK08 impact compliant; TUV Rheinland Low Blue Light; power collection via DDCCI; TUV Rheinland Flicker Free

Shop 0764L 7-inch Models

E970862

Elo 0764L 7-inch Open Frame Touchscreen Monitor, 1280 x 800, TouchPro PCAP 10-touch, Optically Bonded Clear Glass, HDMI, DisplayPort, USB-C, IK08, 24/7, Black, Worldwide, No Stand
