Razor-thin touch and non-touch displays for compact commercial installations.

The Elo 04LS Series combines an ultra-thin slate profile, anti-glare glass and a choice of TouchPro PCAP or non-touch displays for point of sale, HMI, self-service and customer-facing applications. Four sizes run from 7 to 15.6 inches.

A single USB-C connection carries power and video from a compatible host, plus touch data on PCAP models. A locking cable cover and VESA mounting support clean installations; impact protection is IK07 on 7- and 10.1-inch models and IK06 on 13.3- and 15.6-inch models.

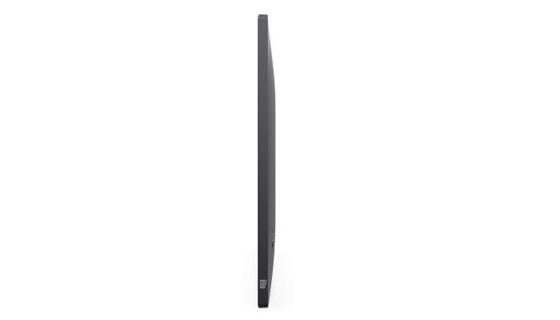

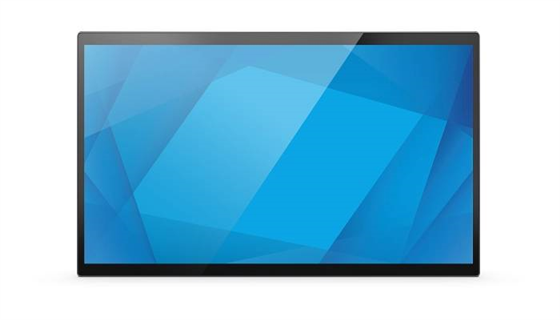

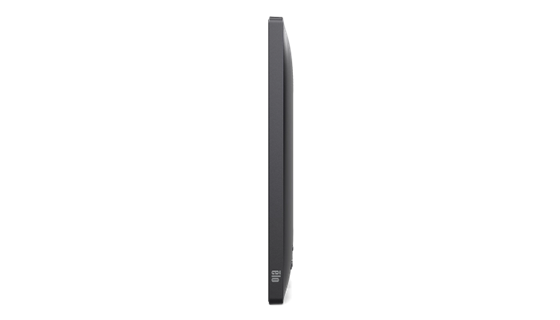

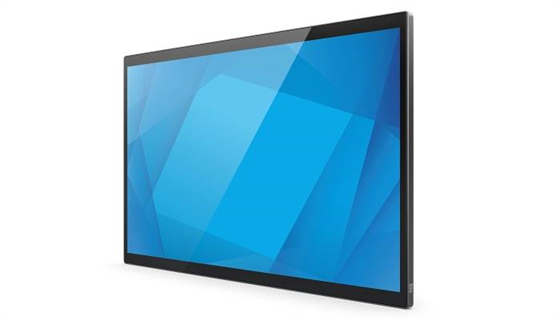

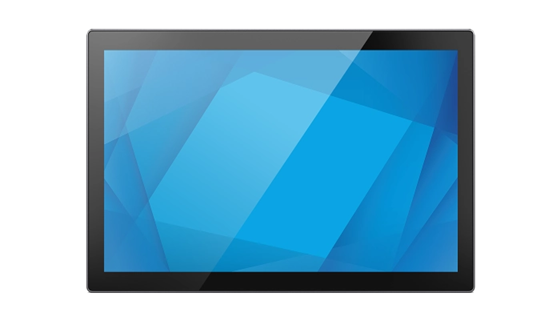

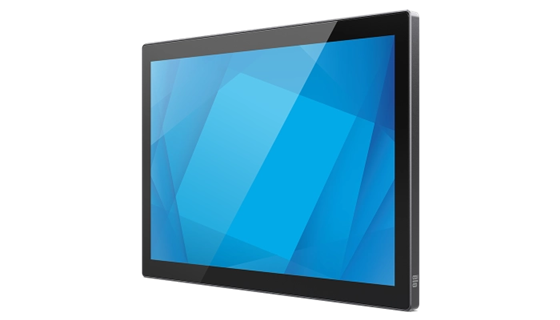

Elo 1504LS ultra-thin touchscreen monitor from the 04LS Series

1504LS shown; screen size varies by selected model.

Key Specifications

  • Product: Commercial USB-C touch and non-touch monitors for POS, HMI, self-service and customer-facing displays
  • Platform and compatibility: Compatible USB-C video source required; PCAP models add USB HID touch with supported Windows hosts
  • Display and touch: 7, 10.1, 13.3 or 15.6 inch; PCAP touch with up to 10 touches or non-touch by selected SKU
  • Ports and connectivity: One USB Type-C connector for power and video; touch data on PCAP models
  • Power: USB-C Power Delivery; typical on-state use ranges from 4.8 W to 8 W by size
  • Durability and environment: IK07 on 0704LS/1004LS and IK06 on 1304LS/1504LS; anti-glare glass; 0 to 40°C operation
  • Mounting: 75 x 75 mm VESA mounting; stand sold separately; Z10 POS Stand support
  • Dimensions and weight: From 6.81 x 4.78 x 0.57 in / 0.71 lb to 14.16 x 8.61 x 0.59 in / 2.45 lb
  • Supported input and workload: 1280 x 800 on 0704LS/1004LS; 1920 x 1080 on 1304LS/1504LS; 60 Hz
  • Warranty: 3 years

In the Box

  • Selected Elo 0704LS, 1004LS, 1304LS or 1504LS monitor
  • Fully featured USB Type-C cable
  • Quick Installation Guide
  • Assembled 75 mm VESA adapter with 1004LS, 1304LS and 1504LS

The 0704LS package does not include the separate 75 mm VESA adapter. All configurations are sold without a stand.

Models in This Series

  • 0704LS: E967730 PCAP touch or E623910 non-touch; 7-inch, 1280 x 800, 16:10 display
  • 1004LS: E967935 PCAP touch or E624103 non-touch; 10.1-inch, 1280 x 800, 16:10 display with dual 2 W speakers
  • 1304LS: E968117 PCAP touch or E736884 non-touch; 13.3-inch, 1920 x 1080, 16:9 display
  • 1504LS: E968313 PCAP touch or E737067 non-touch; 15.6-inch, 1920 x 1080, 16:9 display

Clear, Responsive Touch

Optical bonding and 10-touch PCAP

Optical bonding improves display clarity. PCAP configurations support up to 10 simultaneous touches; non-touch configurations provide clear output where interaction is not needed.

One-Cable Setup

Power, video and touch over USB-C

A compatible host can run video and power through one USB-C cable, with touch data on PCAP configurations. The screw-secured cable cover helps keep that connection in place.

Built for Commercial Use

Impact protection and narrow glass borders

The anti-glare surface and size-specific IK06 or IK07 impact rating support high-traffic counters and customer-facing installations without adding bulk.

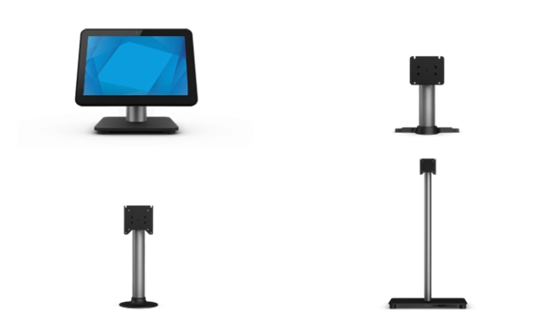

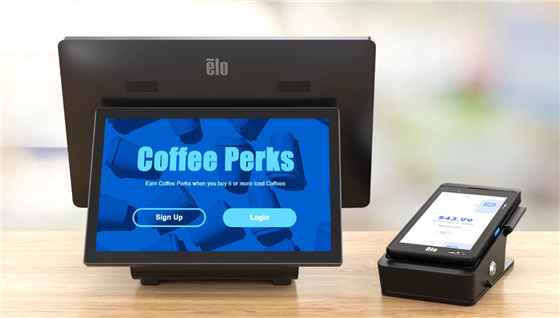

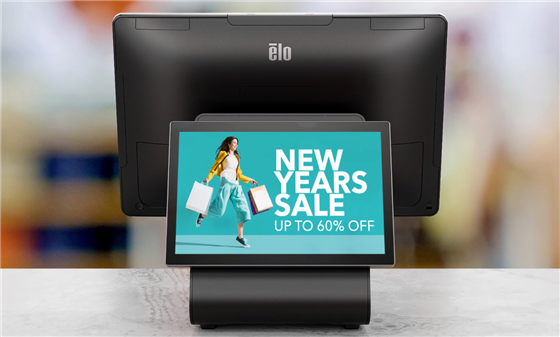

Flexible Placement

VESA and Z-hinge mounting choices

The 75 mm VESA interface supports compatible arms, brackets and stands. Elo's Z10 POS Stand can use its Z-hinge adapter when a countertop configuration is preferred.

Models and Part Numbers
0704LS: E967730 PCAP, E623910 non-touch
1004LS: E967935 PCAP, E624103 non-touch
1304LS: E968117 PCAP, E736884 non-touch
1504LS: E968313 PCAP, E737067 non-touch
Enclosure Color
Dark gray metallic
Diagonal Size
0704LS: 7 in / 177.8 mm
1004LS: 10.1 in / 256.54 mm
1304LS: 13.3 in / 337.82 mm
1504LS: 15.6 in / 396.24 mm
Active Display Area
0704LS: 5.90 x 3.69 in / 149.76 x 93.60 mm
1004LS: 8.54 x 5.34 in / 216.96 x 135.60 mm
1304LS: 11.57 x 6.50 in / 293.76 x 165.24 mm
1504LS: 13.55 x 7.62 in / 344.16 x 193.59 mm
LCD Technology
Active matrix TFT LCD
Touch Technology and Points
TouchPro projected capacitive (PCAP) on touch models, with up to 10 simultaneous touches. E623910, E624103, E736884 and E737067 are non-touch displays.
Aspect Ratio
0704LS and 1004LS: 16:10
1304LS and 1504LS: 16:9
Native Resolution
0704LS and 1004LS: 1280 x 800
1304LS and 1504LS: 1920 x 1080
Preset Video Timings
0704LS: 640 x 480, 800 x 500, 800 x 600, 1024 x 768, 1280 x 720 and 1280 x 800 at 60 Hz
1004LS and 1304LS: 640 x 480, 800 x 500, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050 and 1920 x 1080 at 60 Hz; reduced-blanking modes where listed
1504LS: 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050 and 1920 x 1080 at 60 Hz; reduced-blanking modes where listed
Number of Colors
0704LS and 1004LS: 16.7 million
1304LS and 1504LS: 16.2 million
Brightness (Typical)
0704LS: panel 400 nits; with TouchPro PCAP 360 nits
1004LS: panel 400 nits; with TouchPro PCAP 360 nits
1304LS: panel 300 nits; with TouchPro PCAP 270 nits
1504LS: panel 350 nits; with TouchPro PCAP 315 nits
Response Time (Typical)
0704LS: 35 ms
1004LS: 30 ms
1304LS: 27 ms
1504LS: 30 ms
Viewing Angle (Typical)
0704LS: horizontal 176 degrees total; vertical 176 degrees total
1004LS: horizontal 170 degrees total; vertical 170 degrees total
1304LS: horizontal 178 degrees total; vertical 178 degrees total
1504LS: horizontal 170 degrees total; vertical 170 degrees total
Contrast Ratio (Typical)
0704LS: 800:1
1004LS: 800:1
1304LS: 600:1
1504LS: 1000:1
On-Screen Display (OSD)
OSD with Menu and Power controls. Settings include brightness, contrast, color temperature, low blue light, sharpness, timeout, language, power LED and factory recall. Touch-specific controls apply only to PCAP configurations; speaker-equipped models include volume and mute. OSD and Power lockouts are supported.
I/O Ports
One USB Type-C connector for power and video; touch data on PCAP configurations only.
Video
USB Type-C video input
0704LS and 1004LS horizontal sync: 30-60 kHz
1304LS and 1504LS horizontal sync: 30-82 kHz
Vertical sync: 60 Hz
Speakers
1004LS: 2 x 2 W internal speakers
1304LS: 2 x 2 W internal speakers (+/-10%)
1504LS: 2 x 2 W internal speakers
Power
USB-C Power Delivery; input rating 5 V +/-5% at 3 A, 9 V +/-5% at 3 A, 15 V +/-5% at 1.8 A or 20 V +/-5% at 1.35 A
Typical on-state consumption: 0704LS 4.8 W; 1004LS 6.6 W; 1304LS 6.6 W; 1504LS 8 W
Sleep: 0.8 W touch / 0.3 W non-touch; Off: 0.15 W
Monitor Dimensions (without Stand)
0704LS: 6.81 x 4.78 x 0.57 in / 173.06 x 121.56 x 14.6 mm
1004LS without VESA adapter: 9.45 x 6.42 x 0.59 in / 239.94 x 163 x 15 mm; with adapter depth 0.79 in / 20 mm
1304LS without VESA adapter: 12.27 x 7.56 x 0.59 in / 311.52 x 191.86 x 14.88 mm; with adapter depth 0.79 in / 19.88 mm
1504LS without VESA adapter: 14.16 x 8.61 x 0.59 in / 359.73 x 218.82 x 14.97 mm; with adapter depth 0.79 in / 19.97 mm
Shipping Dimensions
0704LS: 9.13 x 6.61 x 2.80 in / 232 x 168 x 71 mm
1004LS: 12.28 x 8.74 x 3.03 in / 312 x 222 x 77 mm
1304LS: 14.88 x 9.92 x 3.62 in / 378 x 252 x 92 mm
1504LS: 17.01 x 3.66 x 11.61 in / 432 x 93 x 295 mm
Weight
0704LS: 0.71 lb / 0.32 kg unpackaged; 1.48 lb / 0.67 kg packaged
1004LS: 1.32 lb / 0.6 kg unpackaged; 2.45 lb / 1.11 kg packaged
1304LS: 1.92 lb / 0.87 kg unpackaged; 3.42 lb / 1.55 kg packaged
1504LS: 2.45 lb / 1.11 kg unpackaged; 4.21 lb / 1.91 kg packaged

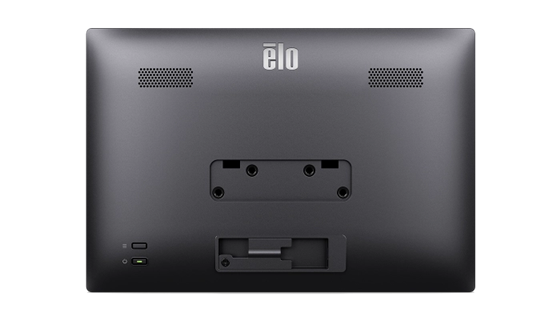

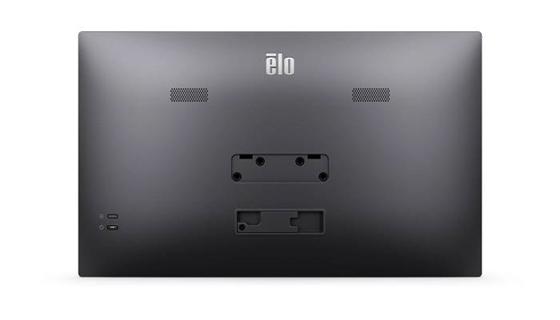

Mounting Options
Four-hole 75 x 75 mm VESA interface for M4 screws. 1004LS, 1304LS and 1504LS include the 75 mm VESA adapter assembled. Z10 POS Stand installation uses the stand's Z-hinge adapter; the 0704LS uses the Z-hinge hardware supplied with the stand.
Temperature
Operating: 0 to 40 C / 32 to 104 F
Storage: -20 to 60 C / -4 to 140 F
Humidity (Non-condensing)
Operating: 20%-80%
Storage: 10%-95% (38.7 C maximum wet-bulb temperature)
Regulatory Approvals and Declarations
Common: Canada CUL/IC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC/UL; Japan VCCI; International CB; Australia RCM; United Kingdom UKCA; RoHS, China RoHS, WEEE and REACH
Mexico NOM: 0704LS and 1004LS; 1304LS and 1504LS touch models only
1504LS also lists Argentina AR certification
Impact Protection
0704LS and 1004LS: IK07
1304LS and 1504LS: IK06
Other Features
All models: TUV Rheinland Low Blue Light and DDCCI power collection
0704LS: TUV Rheinland Flicker Free
1304LS and 1504LS: Energy Star 8.0
Warranty and Reliability
Three-year warranty; 50,000-hour demonstrated MTBF
Extended Service Options
Four-year warranty: E898247
Five-year warranty: E898449
Three-year warranty with Advance Unit Replacement: E898648
Four-year warranty with Advance Unit Replacement: E894921
Five-year warranty with Advance Unit Replacement: E895125
In the Box
All models: selected 04LS monitor, Quick Installation Guide and fully featured USB Type-C cable
1004LS, 1304LS and 1504LS: assembled 75 mm VESA adapter
0704LS: VESA adapter not included
0704LS Data Sheet
Download
1004LS Data Sheet
Download
1304LS Data Sheet
Download
1504LS Data Sheet
Download
04LS User Manual
Download
04LS Quick Installation Guide
Download
