Zebra ZT421
Description
Specifications
Download

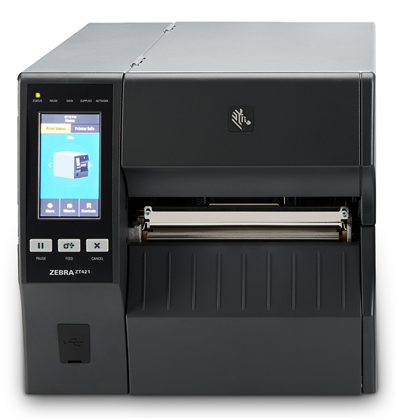

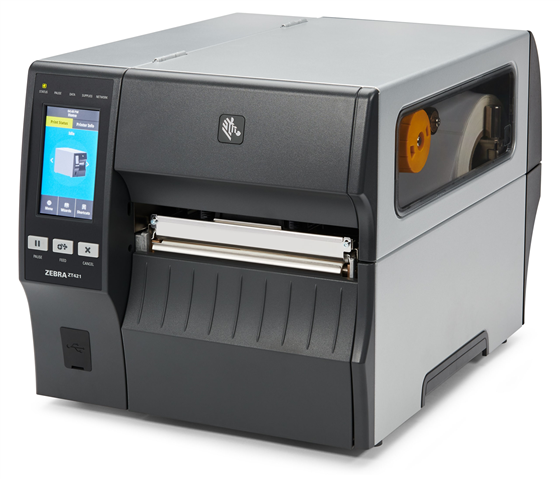

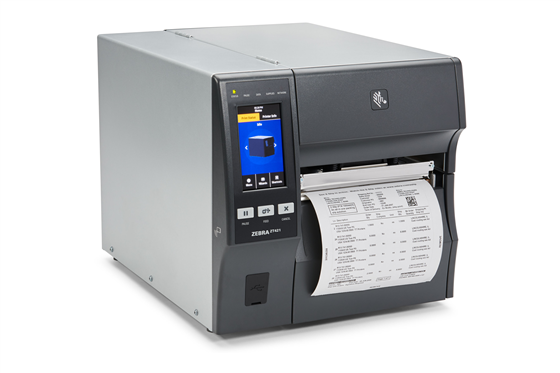

Zebra ZT421

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

Constructed With an All-Metal Frame and Bi-Fold Door, ZT421 Printers Deliver Advancements in Print Speed, Registration and Connectivity as Well as Additional Advanced Features.

The ZT400 Series offers industry-leading versatility, reliability and performance to meet your customer’s industrial printing needs. See printer status at a glance and change settings quickly with the standard 4.3-inch full-color touch display. Available in three print resolutions and two print widths–and offering field-upgradeable RFID encoding options for either general purpose UHF RFID tags or thicker, on-metal tags–the ZT400 Series addresses a broad array of applications. Simplify deploying and managing these printers with Zebra’s Print DNA™ suite of applications, utilities and developer tools.

Features

  • Multiple connectivity options, including the latest Wi-Fi. The ZT411 RFID comes standard with Ethernet, USB, USB Host, and Bluetooth 4.1. Add the optional dual-band wireless card with 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth 4.1, for blazing fast and reliable wireless connections.
  • You can count on the ZT421 to print a variety of different label formats on a variety of different media types.

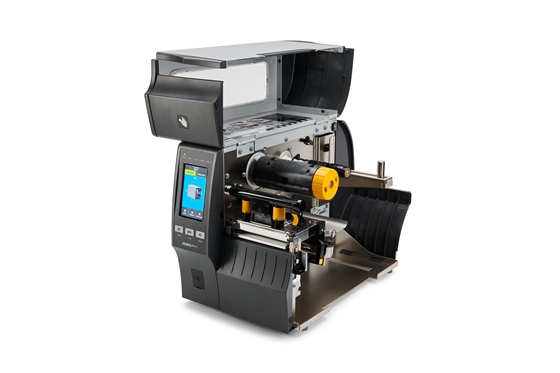

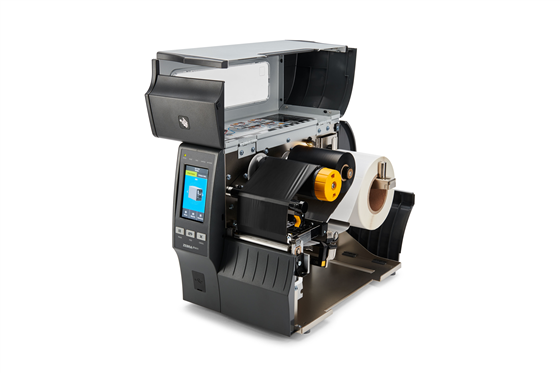

  • The side-loading supplies path makes loading simpler, faster and more intuitive. The color-coded media path guides the user on how to thread the media and ribbon through the printer, while lighted paths make it easy to see, even in poorly lit environments.
  • Constructed using a bi-fold door, these printers are designed to easily fit in space-constrained environments.
  • Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.
Placeholder image
Looking for Compatible Labels or Ribbon?

We offer a selection of labels and ribbon to meet any need. Having trouble finding the label you need? Give our Label Selector Tool a try or give us a call! We have people ready to help.

Dimensions (L x W x H)
19.5 in. L x 13.25 in. W x 12.75 H 495 mm L x 336 mm W x 324 mm H
Weight
40 lbs./18.14 kg
Print Resolution
203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Memory
256 MB SDRAM memory 512 MB on-board linear Flash memory
Maximum Print Width
6.6 in./168 mm
Maximum Print Speed
12 ips/305 mm per second
Maximum Print Length
• 203 dpi: 102 in./2591 mm • 300 dpi: 45 in./1143 mm
Media Width
• 2.00 in./51 mm to 7.0 in./178 mm tear/cutter • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
Media Roll Diameter
8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Media Thickness
0.0023 in./0.058 mm to 0.010 in./0.25 mm
Ribbon Length
1476 ft./450 M
Max Ribbon Width
2.00 in./51 mm to 6.85 in./174 mm
Ribbon Inner Core
1.0 in./25 mm I.D.
Operating Temperature
Thermal transfer: 40º F to 104º F/5º C to 40º C Direct thermal: 32º F to 104º F/0º C to 40º C
ZT421 Quick Setup Guide
Download
ZT421 RFID Spec Sheet
Download
ZT421 Spec Sheet
Download

Shop ZT421 Windows Models

ZT42162-P010000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB

DPI:

203

Interface:

Serial, USB, Ethernet

Cutter Option:

Tear Bar

Print Method:

Thermal Transfer

$2329.92

ZT42162-T010000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Bluetooth 4.1

DPI:

203

Interface:

Serial, USB, Ethernet, Bluetooth

Cutter Option:

Tear Bar

Print Method:

Thermal Transfer

$2423.12

ZT42162-T01000GA

ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 2.1

DPI:

203

Interface:

Serial, USB, Ethernet, Bluetooth

Cutter Option:

Tear Bar

Print Method:

Thermal Transfer

$2423.12

ZT42162-T01A000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 4.1, WiFi

DPI:

203

Interface:

Serial, USB, Ethernet, Bluetooth, WiFi

Cutter Option:

Tear Bar

Print Method:

Thermal Transfer

$2806.51

ZT42162-T01C000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 4.1, WiFi

DPI:

203

Interface:

Serial, USB, Ethernet, Bluetooth, WiFi

Cutter Option:

Tear Bar

Print Method:

Thermal Transfer

$2806.51

ZT42162-T210000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6",203 DPI,ETH,BT4.1,CUTR/TRAY, Serial, USB, Ethernet, Bluetooth 4.1, Cutter w/ Catch Tray

DPI:

203

Cutter Option:

Cutter w/ Catch Tray

Interface:

Serial, USB, Ethernet, Bluetooth

Print Method:

Thermal Transfer

$3109.02

ZT42162-T410000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 203 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Peel w/ Full Rewind

DPI:

203

Cutter Option:

Peel w/ Full Rewind

Interface:

Serial, USB, Ethernet, Bluetooth

Print Method:

Thermal Transfer

$2879.14

ZT42163-T010000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, US Cord, Serial, USB, Ethernet, Bluetooth 4.1

DPI:

300

Interface:

Serial, USB, Ethernet, Bluetooth

Cutter Option:

Tear Bar

Print Method:

Thermal Transfer

$2803.51

ZT42163-T110000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Peel

DPI:

300

Cutter Option:

Peeler

Interface:

Serial, USB, Ethernet, Bluetooth

Print Method:

Thermal Transfer

$3013.92

ZT42163-T210000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Cutter w/ Catch Tray

DPI:

300

Cutter Option:

Cutter w/ Catch Tray

Interface:

Serial, USB, Ethernet, Bluetooth

Print Method:

Thermal Transfer

$3486.42

ZT42163-T410000Z

ZT421 Industrial Label Printer. Thermal Transfer. 6", 300 dpi, Serial, USB, Ethernet, Bluetooth 4.1, Peel w/ Full Rewind

DPI:

300

Cutter Option:

Peel w/ Full Rewind

Interface:

Serial, USB, Ethernet, Bluetooth

Print Method:

Thermal Transfer

$3258.03

Shop ZT421 Accessories

105850-006

USB Interface Cable, 6FT (A to B)

$20.13

37996

15FT USB Cable M-A TO M-B XI, 105SL, Z SER

$33.23

P1058930-025

203 to 300 DPI Conversion Kit for Zebra ZT421, ZT421R, and ZT420 Printers.

$1066.87

P1058930-026

300 to 203 DPI Conversion Kit for Zebra ZT421, ZT421R, and ZT420 Printers.

$685.41

P1058930-074

ZT411, ZT421, Kit, Internal Print Server IPv4,

$429.46

P1058930-075

Parallel Port Interface Card on Zebra ZT411, ZT421, ZT410, and ZT420 Printers

$104.11

P1058930-081

ZT421, Kit, Platen Roller,

$100.90

P1058930-012

Replacement 203dpi Printhead for ZT421. Please Note: This product is non-returnable.

$685.41

P1058930-013

Replacement 300dpi Printhead for ZT421. Please Note: This product is non-returnable.

$1066.87

P1058930-500A

ZT421, Kit, RFID Module USA and Canada

$2248.08

G105850-007

Cable, KIT, USB Interface Cable, 10FT (A to B)

$28.39

P1083320-037A

Zebranet Wireless Card. 802.11ac, BT4.0. USA and Canada. For all ZT111, ZT211, ZT231, ZT411/ZT421, ZT510, ZT600 Series printers, only ZT410/ZT420 printers with firmware V75.20.14Z or later. (BT4.2 unavailable on ZT111, ZT211, ZT231)

$553.74

39518M

Antenna, Magnetic Mount for Internal Wireless Plus Antenna (Antenna not included)

$137.25

P1105147-020

Peeler (Dispenser) Upgrade Module for Zebra ZT421 / ZT421R Printer.

$326.56

P1000219

PS105-Z, SEH External IPv6 Print Server

$505.76

ZKDU-001-00

Keyboard Display Unit (ZKDU), For all EPL and ZPL Printers, 62-Key QW

$365.62

Z1AE-ZT421-3C0

Zebra OneCare Essential 3-Year Comprehensive Warranty. For ZT421 and ZT421R Printers. Purchased within 30 days of Device.

$520.00

Z1AE-ZT421-5C0

Zebra OneCare Essential 5-Year Comprehensive Warranty. For ZT421 and ZT421R Printers. Purchased within 30 days of Device.

$860.08
