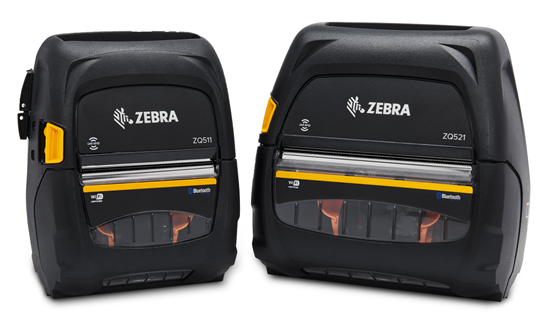

Zebra ZQ511/ZQ521

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

Designed to withstand the toughest environments, Zebra's ZQ500 Series mobile printers are the rugged addition to Zebra's mobile printer family. ZQ500 printers are “Made for iPod® / iPhone® / iPad®” (MFi) and Wi-Fi Alliance certified to support connectivity to a range of Apple®, Android™ and Windows® Mobile devices for a fully mobile printing solution.

Keeping the user in mind, Zebra designed the ZQ500's with large buttons and a user-friendly interface so they are easy to operate, even when wearing gloves. The lightweight ZQ510 and ZQ521 can withstand drops from over 6' to concrete and frequent water sprays with a seal rating of IP54 making them the ideal choice for warehouses. Being able to perform in the widest temperature range in the industry and with Zebra's Link-OS® environment, these premium printers are easy to integrate, manage and maintain even in the most extreme applications.

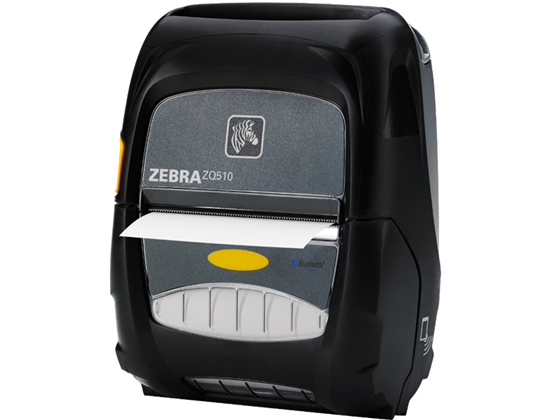

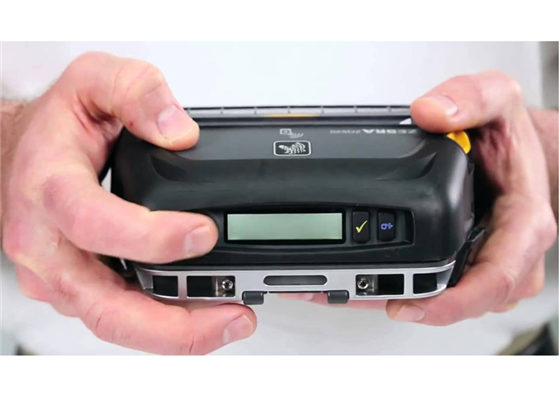

The ZQ510 has a maximum print width of 2.83"/72mm and weighs approximately 1.4lbs where the ZQ521 prints up to 4.09"/104mm wide and weighs 1.75lbs. Both printers are very compact and lightweight and have a simple to read LCD screen with large icons for battery and wireless status. A rechargeable PowerPrecision+ Li-Ion battery can run for hours without needing to recharge with the built-in battery charger.

Features

  • Apple iOS, Android, Windows Mobile and BlackBerry® connectivity
  • 203 dpi
  • Up to 5 Inches Per Second Print Speed
  • CPCL and ZPL Programming Languages
  • Built-In Battery Charger
  • Bluetooth 4.0 Smart Ready Low Energy Radio

Charging Note: The ZQ500 does NOT come with any charging equipment. USB cables, charging docks, and power supplies must be purchased separately. See Accessories for all your charging needs.

Resolution
203 dpi
Max Print Width
<li>ZQ510: 2.83"/72mm<li>ZQ521: 4.09"/104mm
Max Print Speed
Up to 5"/127mm per second
Max Print Length
39"
Sensors
Black mark and gap media sensing using fixed centerposition sensors
Dimensions (L x W x H)
<li>ZQ510: 2.4" x 4.7" x 5.9"(62mm x 120mm x 150mm)<li>ZQ521: 2.6" x 6.1" x 6.2"(67mm x 155mm x 158mm)
Weight (w/Battery)
<li>ZQ510: 1.39lbs/0.63 kgs<li>ZQ521: 1.73lbs/0.79 kgs
Max Paper Width
<li>ZQ510: 3.15"/80 mm +1 mm <li>ZQ521: 4.45"/113 mm +1 mm
Max Roll Size
<li>ZQ510: 2.0"/51 mm <li>ZQ521: 2.24"/57 mm
Max Paper Thickness
0.0063" (0.1600 mm) for labels and 0.0055" (0.1397 mm) for tag/receipt
Media Type
Receipt, Gap/Black mark Label, Tag
Operating Temperature
-4ºF to 131ºF/-20ºC to 55ºC
Storage Temperature
-22ºF to 150ºF/-30ºC to 66º C
Supported Operating Systems
• Apple iOS, Android, Windows Mobile and BlackBerry® connectivity
Interface Options
USB Standard, Bluetooth and Wi-Fi Available
Warranty
1-Year Factory Warranty
Spec Sheet
Download
ZQ511 / ZQ521 Spec Sheet
Download
ZQ521 Cargas Wiring Guide
Download

Shop ZQ511/ZQ521 Windows Models

ZQ51-AUE0000-00

ZQ510 Mobile Printer, Black with 3" Print Width, Direct Thermal, Bluetooth 4.0

Print Width:

3"

Radios:

Bluetooth 4.0

$578.41

ZQ52-AUE0000-00

ZQ520 Mobile Printer, Black with 4" Print Width, Direct Thermal, Bluetooth 4.0

Print Width:

4"

Radios:

Bluetooth 4.0

$738.43

ZQ51-BUE0000-00

ZQ511 3" Mobile Printer, Bluetooth Radio, Linered Platen, Standard Battery Included

Print Width:

3.15"

Radio:

Bluetooth Only

Platen Type:

Linered

Battery:

Standard Battery

$586.74

ZQ51-BUE1000-00

ZQ511 3" Mobile Printer, Bluetooth Radio, Linerless Platen, Standard Battery Included

Print Width:

3.15"

Radio:

Bluetooth Only

Platen Type:

Linerless

Battery:

Standard Battery

$605.99

ZQ51-BUW0000-00

ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Standard Battery Included

Print Width:

3.15"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linered

Battery:

Standard Battery

$656.04

ZQ51-BUW1000-00

ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, Linerless Platen, Standard Battery Included

Print Width:

3.15"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linerless

Battery:

Standard Battery

$733.04

ZQ52-AUN0100-00

ZQ520 Mobile Printer, Dual Radio, Linered Platen, Active NFC

Print Width:

4"

Radios:

Dual (BT 3.0/Wi-Fi)

$865.48

ZQ52-AUN1000-00

ZQ520 Mobile Printer, Dual Radio, Linerless Platen

Print Width:

4"

Radios:

Dual (BT 3.0/Wi-Fi)

$853.20

ZQ52-BUW0010-00

ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Order Battery Separately.

Print Width:

4"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linered

Battery:

Standard Battery

$832.04

ZQ52-BUW0000-00

ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Standard Battery Included.

Print Width:

4"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linered

Battery:

Standard Battery

$900.10

ZQ52-BUW0300-00

ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, RFID Encoder, Linered Platen, Standard Battery Included.

Print Width:

4"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linered

RFID:

RFID

Battery:

Standard Battery

$1700.90

ZQ52-BUW0020-00

ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Extended Battery Included.

Print Width:

4"

Radio:

Dual Radio BT & Wifi

Battery:

Extended Battery

Platen Type:

Linered

$932.14

ZQ52-BUE1000-00

ZQ521 4" Mobile Printer, Bluetooth Radio, Linerless Platen, Standard Battery Included.

Print Width:

4"

Radio:

Bluetooth Only

Platen Type:

Linerless

Battery:

Standard Battery

$848.05

ZQ52-BUE0010-00

ZQ521 4" Mobile Printer, Bluetooth Radio, Linered Platen, Order Battery Separately.

Print Width:

4"

Radio:

Bluetooth Only

Platen Type:

Linered

Battery:

Standard Battery

$699.90

ZQ52-BUE0000-00

ZQ521 4" Mobile Printer, Bluetooth Radio, Linered Platen, Standard Battery Included.

Print Width:

4"

Radio:

Bluetooth Only

Platen Type:

Linered

Battery:

Standard Battery

$767.97

ZQ51-BUW0300-00

ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, RFID Encoder, Linered Platen, Standard Battery Included

Print Width:

3.15"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linered

RFID:

RFID Encoder

Battery:

Standard Battery

$1494.28

ZQ52-BUW1000-00

ZQ521 4" Mobile Printer, Dual Radio BT and WiFi, Linerless Platen, Standard Battery Included.

Print Width:

4"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linerless

Battery:

Standard Battery

$980.18

ZQ51-BUW0010-00

ZQ511 3" Mobile Printer, Dual Radio BT and WiFi, Linered Platen, Order Battery Separately.

Print Width:

3.15"

Radio:

Dual Radio BT & Wifi

Platen Type:

Linered

Battery:

Standard Battery

$590.59

ZQ51-BUE0010-00

ZQ511 3" Mobile Printer, Bluetooth Radio, Linered, Platen, Order Battery Separately.

Print Width:

3.15"

Radio:

Bluetooth Only

Platen Type:

Linered

Battery:

Standard Battery

$463.54

Shop ZQ511/ZQ521 Accessories

SAC-MPP-3BCHGUS1-01

3 slot battery charger; ZQ600, QLn and ZQ500 Series; Includes power supply and US power cord

$403.89

SAC-MPP-1BCHGUS1-01

1 slot battery charger for ZQ600, QLn and ZQ500 Series and US power cord

$160.42

BTRY-MPP-34MA1-01

KIT ACC ZQ610/620 SPARE SMART BATTERY (Batteries must be shipped via ground shipping)

$141.52

Z1AE-ZQ5X1-3C0

3-Year Comprehensive Coverage for Zebra ZQ511/ZQ521 Mobile Printers. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.

$197.60

P1031365-024

Zebra Mobile Printer AC Adapter Kit. Compatible with ZQ510, ZQ511, ZQ520, ZQ521, ZQ610, ZQ620, ZQ630, ZQLn220, QLn320 and QLn420 Mobile Printers. Printer Not Included.

$85.33
