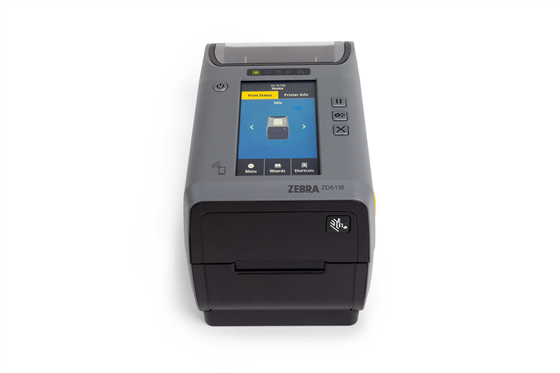

Zebra ZD611R

Images may not reflect the actual product
Product Image
small product image0

Premium Features, Maximum Performance, RFID Capabilities and Unmatched Security
You need a compact, premium RFID printer/encoder that’s built to perform flawlessly – day in and day out. Rely on Zebra’s 4-inch ZD621R desktop RAIN/RFID printer/encoder, or the ZD611R, the industry’s only 2-inch desktop RAIN RFID printer/encoder. Get it all: an innovative architecture to power our ever-expanding printer capabilities and software. Unmatched security to safeguard your sensitive data and shield you from cyberattacks. A large 4.3 in., full-color LCD touch display with intuitive menu. Enhanced features, communication and field-installable media-handling options, and increased remote-management capabilities. Together, these give you outstanding print performance and industry-leading reliability, along with unparalleled intelligence and security, to keep you moving forward.

Expanding Zebra’s RFID Desktop Capabilities
Print and Encode 4- and 2-inch Labels and Tags Building on the legacy of the ZD500R, the 4-inch ZD621R features an innovative architecture that is nearly 32% more powerful. Expanding the desktop RFID line, the ZD611R shares that architecture and is the industry’s only two-inch desktop RAIN RFID printer/encoder. Both the ZD621R and ZD611R can perform more operations simultaneously, deliver best-practice security and are engineered to evolve with emerging technology.

Unparalleled, Peace-of-Mind Printer Security
Shield yourself from cyberattacks with Zebra’s PrintSecure, part of Print DNA. Easily configure your printers via secure connections, identify vulnerabilities, block unauthorized access and more.

Explore Managed Print Services (MPS) with Assurance
Zebra’s Thermal Printers with Print DNA Make MPS Easy Our printers are engineered for durability, and offer innovative management, analytics and security, making them ideal for MPS. With the Print DNA software suite, your Zebra MPS provider can lower your operating costs and IT workload by remotely managing your printers, track and automate supplies, and ensure security.

Get the Features you Need, When you Need Them
Turn Your ZD621R and ZD611R Into Portable Printers Easily transport your ZD621R or ZD611R printer on a cart with Zebra’s battery option. Print where you work to reduce steps and increase accuracy. Power through a full shift with the high-capacity battery. A carrying case is also available for the ZD621R.¹ Add features without interruption including a field-upgradeable wireless kit and media handling options.

Supplies, Service and Support
Zebra Certified Supplies Printing supplies provide a digital voice for assets across your supply chain. If something goes wrong with your printing supplies, operations are interrupted, productivity suffers and costs rise. That’s why we design, produce and rigorously pretest our own line of labels, tags and receipt paper to ensure consistent, optimized performance in your Zebra printer. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.

Backed by Zebra’s Worldwide Service and Support
Access repair support services anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ Maintenance Plans provide enhanced coverage that exceeds standard warranty.

BOX CONTENTS
 • ZD611 RFID Printer
 • Empty Ribbon Take-Up Cores: ZD611R 0.5"
 • AC Power Supply & Power Cord
 • USB Cable
 • Quick Start Guide
 • Regulatory Guide

Additional Links

Looking for the 4" ZD621 RFID Printer? Click Here: 4" ZD621 RFID

For the Standard, Non-RFID ZD611, Click Here: ZD611 Standard

Dimensions
<li>10.5 in. L x 8.0 in. W x 7.5 in. H
Weight
5.5 lb./2.5 kg
Operating System
Link-OS® printer operating system
Resolution
<li>203 dpi/8 dots per mm <li>300 dpi/12 dots per mm (optional)
Memory
512 MB Flash; 256 MB SDRAM
Maximum Print Width
4.09 in./104 mm for 203 dpi; 4.27
Maximum Print Speed
<li>8 in./203 mm per second (203 dpi) <li>6 in./152 mm per second (300 dpi)
Media Sensors
Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware
ZPL II; EPL 2; XML; ZBI; PDF Direct
Regulatory
IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Environmental Compliance
Environment <li>RoHS Directive 2011/65/EU; Amendment 2015/863 <li>REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit www.zebra.com/environment
Label Length
<li>Minimum: 0.25 in./6.35 mm <li>Maximum: 39.0 in./991 mm
Media Width
0.585 in./15 mm to 2.36 in./60 mm
Media Roll Size
<li>Maximum outer diameter: 5.00 in./127 mm <li>Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
Media Thickness
0.0024 in./0.06 mm min.; 0.0075 in./0.1905
Media Types
Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter
2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length
984 ft./300 m; 243 ft./74 m
Ribbon Ratio
<li>1:4 ribbon to media (300 m) <li>1:1 ribbon to media (74 m)
Ribbon Width
ZD621R: 1.3 in./33 mm - 4.3 in./109.2 mm
Operating Temperature
40° to 105° F/4.4° to 41° C
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Electrical
Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
Media Handling
Dispenser/Peeler: label peel and present with
Communication
Field installable RS-232 auto-sensing Serial*, factory installed or field installable wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2 <br>* Serial is standard on ZD621R
Keyboard Display Unit
ZKDU keyboard display unit for stand-alone printing solution
1D Barcodes
Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard
2D Barcodes
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics
16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
ZD611 RFID Setup Guide
Download
ZD611 RFID Spec Sheet
Download
Zebra Setup Utility
Download

Shop ZD611R Windows Models

ZD6A123-T01BR1EZ

ZD611R Thermal Transfer Barcode/RFID Printer; Color Touch LCD; 300 dpi, USB, USB Host, Ethernet, 802.11ac, BT4, USA/Canada, RFID - UHF, US Cord, Swiss Font, EZPL

DPI:

300dpi

Connectivity:

USB + Ethernet + WiFi + Bluetooth

$1812.05

ZD6A122-T01ER1EZ

ZD611 Thermal Transfer Barcode &amp; RFID Printer; Color Touch LCD; 203 dpi, USB, USB Host, Ethernet, BTLE5, USA/Canada, RFID - UHF, US Cord, Swiss Font, EZPL

DPI:

203dpi

Connectivity:

USB + Ethernet

$1536.23

ZD6A122-T01BR1EZ

ZD611 Thermal Transfer Barcode/RFID Printer; Color Touch LCD; 203 dpi, USB, USB Host, Ethernet, 802.11ac, BT4, USA/Canada, RFID - UHF, US Cord, Swiss Font, EZPL

DPI:

203dpi

Connectivity:

USB + Ethernet + WiFi + Bluetooth

$1720.02

ZD6A123-T01ER1EZ

ZD611 Thermal Transfer Barcode/RFID Printer; Color Touch LCD; 300 dpi, USB, USB Host, Ethernet, BTLE5, USA/Canada, RFID - UHF, US Cord, Swiss Font, EZPL

DPI:

300dpi

Connectivity:

USB + Ethernet

$1628.26

Shop ZD611R Accessories

Z1AE-ZD6X1-3C0

OneCare, Essential, Purchased within 30 days of Device, ZD621d, ZD621t, ZD621-RFID, 3 Years, Comprehensive

$129.42

P1080383-603

Battery for Zebra Desktop Printers. Compatible with ZD411, ZD421, ZD621, ZD410, ZD420, and ZD620. Requires Base Housing (P1080383-602 for ZD411/ZD611 / P1080383-600 for ZD421 & ZD621).

$664.50

P1080383-602

Base Housing for Zebra Printer Battery. Compatible with Zebra ZD411, ZD611, ZD410, and ZD610. Purchase Battery (P1080383-603) Separately.

$88.75

P1117258-230

Dispenser (Peeler) for Zebra ZD411T and ZD611T Thermal Transfer and RFID Printers. NOT backwards compatible with ZD410 or TLP printers.

$99.68

P1117258-231

Cutter for Zebra ZD411T and ZD611T Thermal Transfer Printers. NOT Compatible with ZD410 or TLP printers

$395.00
