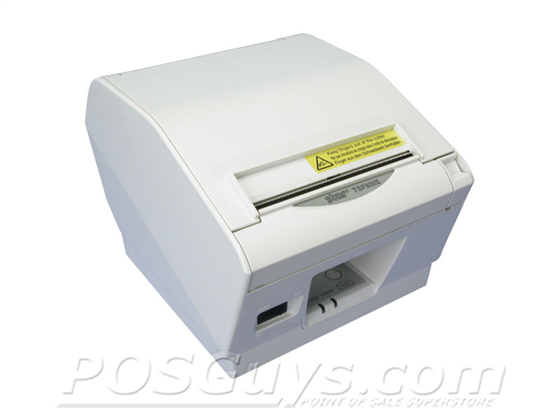

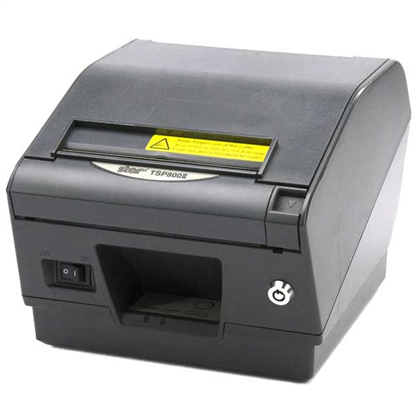

Star Micronics TSP800 Series

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

The TSP800 and TSP800II are one of the few printers lines on the market that provide printing on 3" to 4.25" wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt printer. Features include print speed of 50 lines/sec, auto-cutter, 2-color printing, swappable interfaces for easy integration, and logo store utility for coupons and graphic storage.

Click Here for Additional Warranty Information

    Features
  • Extra wide printing width of 3" to 4.25"
  • Prints 50 lines per second
  • Auto-cutter
  • Optional 2-color printing
Dimensions
Standard model: 180W x 213D x 148H mm - Wall mount model: 180W x 153D x 213H mm
Weight
Standard model: Approx. 1.9 kg - Wall mount model: 2.2 kg
Color Options
Dark Grey, Light Grey
Interface
RS232C, parallel, USB, ethernet
Print Method
Direct thermal
Print Speed
150 mm / sec
Print Resolution
203 x 203 dpi
Emulation
Star line mode, Star page mode, Star DP8340 mode, ESC/POS™
OPOS Compatible
Yes
Character Set
ANK 95, 32 Int 128 Graphic
Barcodes Supported
9 versions
Graphics Printing
Yes
Data / Logo Storage
Yes - 2 x 8 MBbit plus 2 x 1 Mbit Statis RAM
Operating Temperature
41°F - 113°F (5°C - 45°C)
MCBF
37,000,000 Lines
Auto Cutter Lifespan
2 Million cuts
Paper Dimensions
112 mm width (82.5, 80, and 58 mm with paper guide), 100 mm maximum diameter
Two Color Printing Capabilities
Yes - red/black, blue/black, green/black (two color thermal paper required)
Sensors
paper out, paper low, cover open, black mark
Auto Cutter
Optional - Guillotine with partial or full cut selectable
Wall Mountable
Optional - wall mounting bracket required
Mac Compatible
Yes
In The Box
Printer, users manual, start up paper roll, ferrite core
Windows Drivers
Download
Mac OS CUPS Driver
Download
WebPRNT vs. CloudPRNT
Download
Mac OS CUPS Driver Installation Guide
Download
Data Sheet 800
Download
Data Sheet 800II
Download
Manual 800
Download
Manual 800II
Download

Shop TSP800 Series Windows Models

39443101

TSP847C-24 Two-Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, Parallel Interface

Power Supply:

Included

Interface:

parallel

Color:

putty

$457.00

37962120

TSP800 Receipt Printer (TSP847IIL-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, Ethernet Interface, (Requires Power Supply, Part 30781751)

Interface:

Ethernet

Power Supply:

Not Included

Color:

putty

$629.12

37962130

TSP800 Receipt Printer (TSP847IIL-24GRY), Grey with 2 color Printing, Auto Cutter and Tear Bar, Ethernet Interface, (Requires Power Supply, Part 30781751)

Interface:

Ethernet

Color:

Grey

Power Supply:

Not Included

$629.12

39443700

TSP800 Receipt Printer (TSP847IIC-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, Parallel Interface, (Requires Power Supply, Part 30781751)

Power Supply:

Not Included

Interface:

parallel

Color:

putty

$469.68

39443710

TSP800 Receipt Printer (TSP847IIC-24GRY), Grey with 2 Color Printing, Auto Cutter and Tear Bar, Parallel Interface, (Requires Power Supply, Part 30781751)

Color:

Grey

Power Supply:

Not Included

Interface:

parallel

$494.53

39443800

TSP800 Receipt Printer (TSP847IID-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, RS-232 Serial Interface, (Requires Power Supply, Part 30781751)

Power Supply:

Not Included

Color:

putty

Interface:

Serial

$533.03

39443810

TSP800 Receipt Printer (TSP847IID-24GRY), Grey with 2 Color Printing, Auto Cutter and Tear Bar, RS-232 Serial Interface, (Requires Power Supply, Part 30781751)

Color:

Grey

Power Supply:

Not Included

Interface:

Serial

$494.53

39443900

TSP800 Receipt Printer (TSP847IIU-24), Putty with 2 Color Printing, Auto Cutter and Tear Bar, USB Interface, (Requires Power Supply, Part 30781751)

Power Supply:

Not Included

Color:

putty

Interface:

USB

$474.00

39443910

TSP800 Receipt Printer (TSP847IIU-24GRY), Grey with 2 Color Printing, Auto Cutter and Tear Bar, USB Interface, (Requires Power Supply, Part 30781751)

Color:

Grey

Power Supply:

Not Included

Interface:

USB

$474.00

39443911

TSP847IIU-24GRY , TSP800II, Thermal, Cutter, USB, Gray, Ext PS Needed

$551.67

39443111

TSP847C-24 GRY Two-Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, Parallel Interface

Color:

Grey

Power Supply:

Included

Interface:

parallel

$-1.00

39443001

TSP847D-24 Two-Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, Serial Interface

Power Supply:

Included

Color:

putty

Interface:

Serial

$-1.00

39443011

TSP847D-24 GRY Two-Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, Serial Interface

Color:

Grey

Power Supply:

Included

Interface:

Serial

$-1.00

39443201

TSP847U-24 Two-Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, USB Interface

Power Supply:

Included

Color:

putty

Interface:

USB

$-1.00

39443211

TSP847U-24 GRY Two-Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, USB Interface

Color:

Grey

Power Supply:

Included

Interface:

USB

$-1.00

37998850

TSP847L-24 Two Color Printer, Color: Putty with Tear Bar and Auto Cutter, Power Supply, Ethernet Interface

Interface:

Ethernet

Power Supply:

Included

Color:

putty

$-1.00

37998860

TSP847L-24 GRY Two Color Printer, Color: Grey with Tear Bar and Auto Cutter, Power Supply, Ethernet Interface

Interface:

Ethernet

Color:

Grey

Power Supply:

Included

$-1.00

Shop TSP800 Series Accessories

39590110

Wall Mount Kit for TSP800 (WBT800)

$38.29

28102

6 Foot USB Printer Cable: Black, A to B

$13.48

39607200

RS232 Serial Interface Board for TSP650, TSP700, TSP800 & TUP500 Series'

$37.79

39607211

Parallel Interface Board TSP650, TSP700, TSP800 & TUP500 Series'

$39.81

39607820

Swappable USB Interface Board (IFBD-HU07 USB I'FACE) for TSP654II, TSP700,TSP800

$48.40

39607804

Ethernet Interface Board IFBD-HE07 for TSP650, TSP700II, TSP800II, TSP828, TUP500 SERIES' - Replaces 39607802 & 39607803

$123.49

37967430

Labels TSP800: 111mm Roll Width, 4 1/8 x 3 Inch Labels, Black Mark on back side, 600 Labels/Roll, 12 Rolls/Case, Blue Core (TRL111-4x3-BM-D100-C31, 12PK)

$200.53

37967440

Labels TSP800: 111mm Roll Width, 4 1/8 x 6 Inch Labels, Black Mark on back side, 300 Labels/Roll, 12 Rolls/Case, Blue Core (TRL111-4x6-BM-D100-C31, 12PK)

$200.53

37967450

Labels TSP800: 111mm Roll Width, 4 1/8 x 1 Inch Labels, Black Mark on back side, 1600 Labels/Roll, 12 Rolls/Case, Blue Core (TRL111-4x1-BM-D100-C31, 12PK)

$200.53

37963930

Paper TSP800II: 112mm Width, 328 ft Length, 12 Rolls/Case, Blue Core (TRF112-D100-C17, 12PK)

$107.00

30782110

External Power Supply for Star Micronics Printer

$35.00

37966980

3-Year Swap-A-Star Enhanced Warranty for Star Micronics Thermal Printers. Adds Next Business Day Replacement Via 2nd Day Air to Standard 2 Year Warranty & Extends Warranty By 1 Year. Can Be Added Up to 30 Days After Product Purchase. Note: This Warranty Does Not Carry Over to the Replacement Printer.

$165.00

37966870

2-Year Swap-A-Star Enhanced Warranty for Star Micronics Thermal Printers. Adds Next Business Day Shipment Via 2nd Day Air to Standard 2 Year Warranty. Can Be Added Up to 30 Days After Product Purchase. Note: This Warranty Does Not Carry Over to the Replacement Printer.

$135.00
