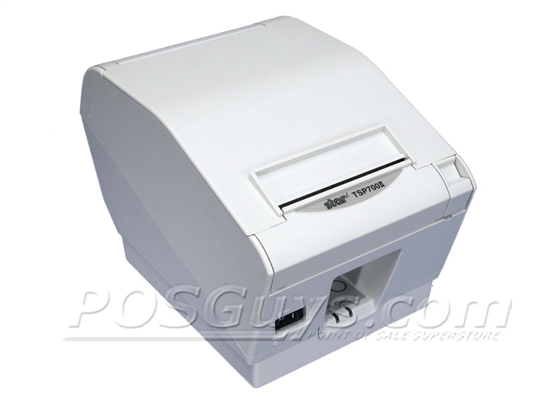

Star Micronics TSP700II Series

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

Bluetooth Models Are Now Available!

The TSP700II is an ultra high speed thermal printer. It is ideal for applications requiring high volume, time-critical printing, including POS, credit card, hospitality, restaurant, warehouse and kiosk applications. Features include print speed of 53 Receipts/min (250mm/sec), autocutter, three adjustable paper widths, dual cash drawer drivers, automatic logo printing, and optional splash proof cover.

This printer comes with a 3 year warranty.

Additional Features:

  • Prints reports, receipts, and labels
  • Automatic duplicate printing
  • Available RS232 serial, IEEE1284 parallel, USB2.0 Full Speed, 10 Base-T Ethernet or Wifi communications interfaces
  • Drop-In paper loading
  • z-fold form or ticket printing, or add a large capacity paper roll with the TSP700II’s unique rear-loading paper slot for external paper sourcing
  • Jam proof Auto Cutter with partial or full cut options

Click Here for Additional Warranty Information

Pricing Includes Power Supply Unless Otherwise Noted
Dimensions
147W x 148H x 213D mm
Weight
Approx. 1.7 kg
Color Options
Dark Grey, Light Grey
Interface
25-pin serial, parallel, USB, ethernet, Wifi
Print Method
Direct thermal
Print Speed
250 mm / sec, 48 rpm (receipts per minute)
Print Resolution
203 x 203 dpi
Emulation
Virtual serial port to USB, Virtual Serial Port to Ethernet
OPOS Compatible
Yes
Character Set
ANK 95, 32 Int 128 Graphic
Graphics Printing
Yes
Barcodes Supported
9 versions / PDF417, QR, Maxicode Options
Operating Temperature
41°F - 113°F (5°C - 45°C)
Data / Logo Storage
Yes
MCBF
60,000,000 Lines
Auto Cutter Lifespan
2 Million cuts
Paper Dimensions
80 mm standard width (82.5 and 58 mm with fitted guide), 100 mm maximum diameter
Paper Thickness
0.065 to 0.15 mm
Two Color Printing Capabilities
No
Sensors
paper out, paper low, cover open, black mark
Auto Cutter
Yes - Guillotine with partial or full cut selectable
Wall Mountable
Yes - bracket included
Mac Compatible
Yes
Software Included
CD-ROM with drivers, automatic receipt reversal software, receipt re-design and coupon marketing tools
In The Box
Printer, wall mount kit, interface cover, paper guide (for 58 mm), power switch cover, CD-ROM w/drivers, paper roll, software solutions, setup guide, virtual serial port
In The Box
Printer, wall mount kit, interface cover, paper guide for 58 mm, power switch cover, CD-ROM with drivers, paper roll, software solutions, setup guide, virtual serial port
Windows Drivers
Download
Mac OS CUPS Driver
Download
Mac OS CUPS Driver Install Instructions
Download
WebPRNT vs. CloudPRNT
Download
Manual
Download
Data Sheet
Download

Shop TSP700II Series Windows Models

37999970

Star TSP743IIW-24 GRY Two-Color Printer, Color: Grey with Auto Cutter and Power Supply, WiFi Interface

Color:

Grey

Interface:

WIFI

$634.00

39442511

TSP743IIU Thermal Printer, Color: Grey with Auto Cutter, USB Interface, REQUIRES POWER SUPPLY # 30782110

Color:

Grey

Interface:

USB

$427.91

37999950

TSP743IIL Thermal Printer, Color: Grey with Auto Cutter, Ethernet Interface, REQUIRES POWER SUPPLY # 30782110

Interface:

Ethernet

Color:

Grey

$488.18

39480710

TSP743IIBi OF Thermal Printer, Color: Grey with Auto Cutter, Auto-Off, Bluetooth Android/Windows Interface, REQUIRES POWER SUPPLY # 30782110

Interface:

Bluetooth

Color:

Grey

$536.84

39442510

Star TSP743IIU-24 GRY Two-Color Printer, Color: Grey with Auto Cutter and Power Supply, USB Interface

Color:

Grey

Interface:

USB

$346.00

37999960

Star TSP743IIW-24 Two-Color Printer, Color: Putty with Auto Cutter and Power Supply, WiFi Interface

Color:

putty

Interface:

WIFI

$634.00

39442200

Star TSP743IIC-24 Thermal Printer, Color: Putty with Auto Cutter and Power Supply, Parallel Interface

Interface:

parallel

Color:

putty

$336.68

39442210

TSP743IIC Thermal Printer, Color: Grey with Auto Cutter, Parallel Interface, REQUIRES POWER SUPPLY # 30782110

Color:

Grey

Interface:

Parallel

$393.92

39442300

Star TSP743IID-24 Thermal Printer, Color: Putty with Auto Cutter and Power Supply, Serial Interface

Color:

putty

Interface:

Serial

$336.68

39442310

TSP743IID Thermal Printer, Color: Grey with Auto Cutter, Serial Interface, REQUIRES POWER SUPPLY # 30782110

Color:

Grey

Interface:

Serial

$393.92

39442500

Star TSP743IIU-24 Two-Color Printer, Color: Putty with Auto Cutter and Power Supply, USB Interface

Color:

putty

Interface:

USB

$346.00

37999940

Star TSP743IIL-24 Thermal Printer, Color: Putty with Auto Cutter and Power Supply, Ethernet Interface

Interface:

Ethernet

Color:

putty

$432.20

Shop TSP700II Series Accessories

39570010

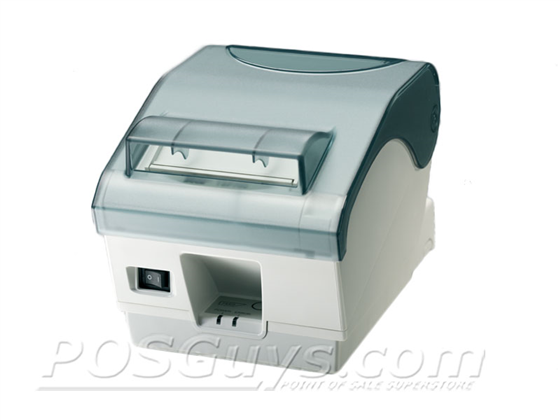

Splash Proof Cover for TSP700II

$20.61

28102

6 Foot USB Printer Cable: Black, A to B

$13.48

XWP-T220-10-ADD

Thermal Receipt Paper Promo Pack (10 Pack of Rolls) - 3.125" Wide x 220 ft. BPA FREE. (Price is for First Promo Pack Only. Ground Shipping Only)

$40.00

39607200

RS232 Serial Interface Board for TSP650, TSP700, TSP800 & TUP500 Series'

$37.79

39607211

Parallel Interface Board TSP650, TSP700, TSP800 & TUP500 Series'

$39.81

39607820

Swappable USB Interface Board (IFBD-HU07 USB I'FACE) for TSP654II, TSP700,TSP800

$48.40

39607804

Ethernet Interface Board IFBD-HE07 for TSP650, TSP700II, TSP800II, TSP828, TUP500 SERIES' - Replaces 39607802 & 39607803

$123.49

37963920

Paper TSP100, mC-Print3, TSP650, FVP10, HSP7000 (TSP700): 80mm Width, 230 ft Length, 12 Rolls/Case, Blue Core (TRF80-D83-C17, 12PK)

$67.00

37967470

Labels TSP700: 80mm Roll Width, 3 x 1 Inch Labels, Black Mark on back side, 1600 Labels/Roll, 12 Rolls/Case, Blue Core

$157.74

37967480

Labels TSP700: 80mm Roll Width, 3 x 2 Inch Labels, Black Mark on back side, 900 Labels/Roll, 12 Rolls/Case, Blue Core (TRL80-3x2-BM-D100-C31, 12PK)

$157.74

30782110

External Power Supply for Star Micronics Printer

$35.00

37966870

2-Year Swap-A-Star Enhanced Warranty for Star Micronics Thermal Printers. Adds Next Business Day Shipment Via 2nd Day Air to Standard 2 Year Warranty. Can Be Added Up to 30 Days After Product Purchase. Note: This Warranty Does Not Carry Over to the Replacement Printer.

$135.00

37966980

3-Year Swap-A-Star Enhanced Warranty for Star Micronics Thermal Printers. Adds Next Business Day Replacement Via 2nd Day Air to Standard 2 Year Warranty & Extends Warranty By 1 Year. Can Be Added Up to 30 Days After Product Purchase. Note: This Warranty Does Not Carry Over to the Replacement Printer.

$165.00
