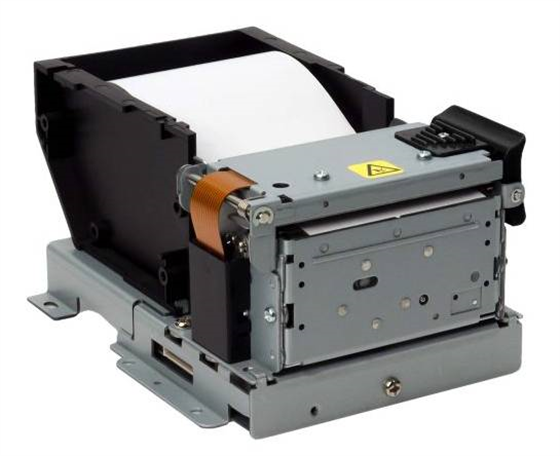

Star Micronics SK1-221

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

High-Speed, Compact, Drop-In Paper Loading

For kiosks where space is a concern, the SK1-221 series printers offer a compact design that can fit into a variety of applications. Equipped with standard format (horizontal orientation) drop-in paper loading, the SK1-221 series is easy to set up and maintain. All SK1-221 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.

Key Features

  • Drop-in paper loading
  • Compact and lightweight
  • Max 250mm/sec high-speed printing
  • Full and partial cut (command selectable)
  • Available with StarPRNT or ESC/POS emulation
  • Supports receipt, ticket, and label media

Versatile and Designed for Self-Service
Adaptable and convenient, the SK1-221 self-service kiosk printer features easy “Drop-In & Print” paper loading, a compact design that can accommodate a variety of applications, and RS-232C and USB interfaces for easy integration. The SK1-221 can also print receipt, ticket, and label media, making it an ideal self-service kiosk printer for numerous industries.

Part of the Star Micronics Kiosk Printer Series
The SK1-221 is a part of the full line of Star Micronics kiosk printers. Star Micronics proudly offers a wide variety of kiosk printers in a variety of paper sizes (2”, 3”, and 4”) with compact or modular footprints and multiple optional accessories like bezels, presenters, large paper roll holders, and more. The kiosk printers are ideal for use in self-service kiosks in restaurants, retail stores, gas stations, transportation hubs, and more.

Printer Method
Direct Line Thermal
Print Speed
Max 250mm/sec
Paper Width
58mm, 60mm
Print Width
54mm, 56mm
Paper Roll Holder
<b>SK1-211:</b> 120mm <br><b>SK1-221:</b> 83mm <br><b>SK1-24:</b> 83mm
Resolution
8 dots/mm (203dpi)
Font
8x16, 12x24 dots
Character Types
PC437 / 850 / 852 / 857 / 858 / 860 / 863 / 865 / 866, WPC 1252
Bar Code
JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E
2D Bar Code
QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix
Interface
Dual Serial (RS232C) & USB (V2.0 FULL SPEED)
Cutter
Full and Partial Cut (Command Selectable)
Operating Voltage
DC 24V
External Dimensions
<b>SK1-211:</b> 104 x 137 x 79 (w x h x d) mm <br><b>SK1-221:</b> 104 x 137 x 70 (w x h x d) mm <br><b>SK1-24:</b> 99 x 118 x 123 (w x h x d) mm
Reliability
<b>Max Cycles Before Failure</b>-200 Million Pulses <br><b>Print Head</b>-150km <br><b>Auto Cutter</b>-2 Million Cuts
Safety Standards
CE, FCC, VCCI
SK1-221 Spec Sheet
Download
SK1-221 User Manual
Download
SK1-221 Windows 10/11 Driver
Download
