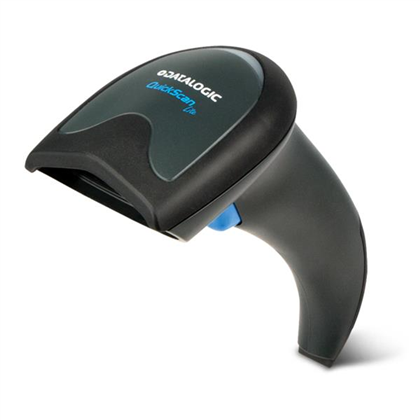

DataLogic QuickScan Lite QW2100

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

The Datalogic QuickScan Lite QW2100 offers a great combination of performance and affordability, great for smaller retailers, libraries, or office asset scanning. It is built as a cheap barcode scanner, but the QW2100's scanning capabilities compare well to more expensive counterparts.

As a linear imager, the QW2100 reads retail barcodes from contact to over a foot away, making it easy for users of all skill levels to scan successfully. The wide scanning angle, combined with the thinner and brighter scanning line, ensures faster and easier scanning of most 1D barcodes. An optional stand gives you presentation scanning from a variety of angles.

The lightweight QuickScan QW2100 has been built to withstand the bumps and accidents you may experience in a retail or light industrial setting. Rubberized overmolding on the scanner protects it from drops of five feet to concrete, extending its lifespan dramatically. An IP42 seal keeps dirt and some water splashes from harming the components as well. Shipping with a 3-year warranty, the Datalogic QuickScan QW2100 provides many years of reliable service.

    Features
  • USB, RS-232 Serial Interfaces
  • Contact to 15.7" depth of field on UPC-A barcodes
  • Withstands 5-foot drops to concrete
  • IP42 seal
  • 3-Year Warranty
Dimensions
6.7 x 2.5 x 2.7 in / 17.0 x 6.5 x 7.0 cm
Weight
4.2 oz / 119.0 g
Color Options
Black
Interfaces Available
USB
Scan Method
Liner Imager
Decoding Capabilities
1D Linear<br>Postal Codes<br>Stacked Codes
Scan Rate (Maximum)
400 reads/sec.
Reading Angle
Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
Print Contrast (Min)
25%
Typical Depth of Field
5 mils : 2.5 to 15.0 cm / 1.0 to 6.0 in<br>7.5 mils : 0 to 24.0 cm / 0 to 9.4 in<br>10 mils: 0 to 35.0 cm / 0 to 13.8 in<br>13 mils: 0 to 40.0 cm / 0 to 15.7 in<br>20 mils: 0 to 60.0 cm / 0 to 23.6 in
Indicators
Beeper (Adjustable Tone)<br>Datalogic ‘Green Spot’ Good Read Feedback<br> Good Read LED
Auto Sense Mode
Yes
Operating Temperature
Operating: 0 to 50 °C / 32 to 122 °F
Drop Specification
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Environmental Sealing
IP 42
Stand
Included in with some models<br>Available (Sold Separately)
Warranty
3-Year Factory Warranty
Data Sheet
Download
Manual
Download
Quick Start Guide
Download
Instruction Sheet, Hands-free Stand/Holder
Download

Shop QuickScan Lite QW2100 Windows Models

QW2120-BKK11S

QuickScan Lite QW2100, Black with Coiled Interface Cable, Stand, USB Interface

$138.00

QW2120-BKK1

QuickScan Lite QW2100, Black with Interface Cable, No Stand, USB Interface

$108.00

QW2120-BKK1S

QuickScan Lite QW2100, Black with Interface Cable 90A0 52044, Stand STD-QW20-BK, USB Interface

$117.00

Shop QuickScan Lite QW2100 Accessories

STD-QW20-BK

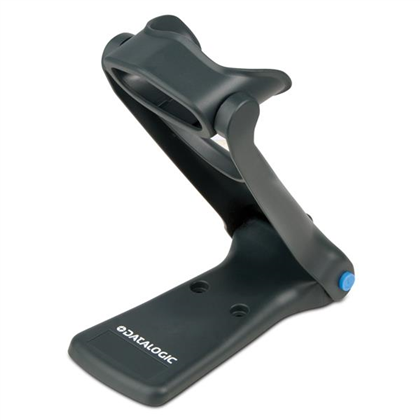

QuickScan Lite QW2100 Collapsible Stand, Black

$18.00

90A052065

Cable, USB Type A, 2M Straight, Enhanced, For Datalogic Scanners

$15.40

E-QWI-5

QuickScan Lite QW2100 Ease of Care 5-Year Comprehensive Warranty. Includes 5 Day Shipping Turnaround (Excluding Transit), One Way Return Freight paid by Datalogic (Ground). No Advanced Replacement.

$12.39
