DataLogic PowerScan PD9630

Images may not reflect the actual product

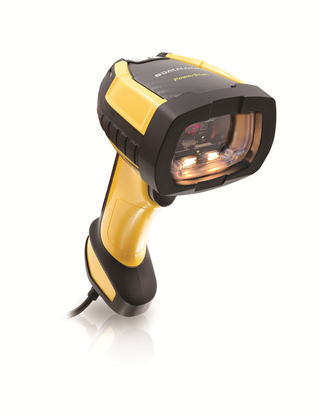

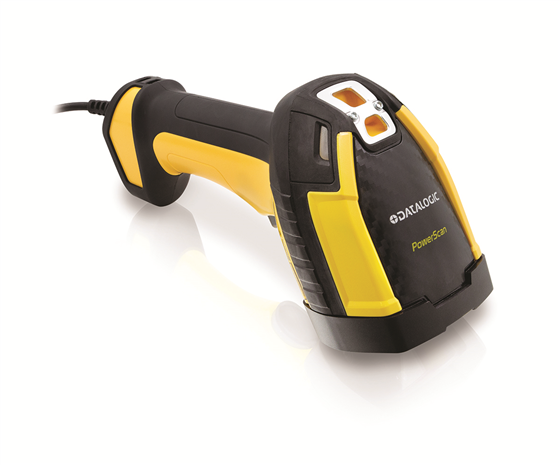

Product Image
small product image0
small product image1
small product image2
small product image3

Handheld Industrial Scanners for 1D/2D Barcode Reading with Top Flexibility

Bullet Proof Your Traceability Targets

The 9600 is the range-topping handheld industrial scanner in the best-selling PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses today when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts. Maximum performance whilst protecting your bottom line at a great price!

Future Proof Your Connectivity

The PowerScan 9600 series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but now with embedded industrial connectivity, allowing simple interfacing with a PC, Industrial PC, Tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The plug and play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet. Any future standards or changes to your networking setup are easy to switch to within a matter of minutes.

Putting Power into Your Hands

The PowerScan 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the 9600 Series provides gentle white light illumination and outputs a successful ‘Green Spot’ for a successful read, even on damaged or dirty barcodes.

Taking Wireless to The Next Level

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic’s STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The PowerScan 9600 scanner features Datalogic’s Wireless Charging System. Based on inductive-charging technology, Datalogic’s Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time – and this removes a key point of failure for devices used in industrial and retail functions. Operators can freely walk around large working areas with an industrial wireless barcode scanner, scanning items, inputting data from the built-in keypad, and gaining immediate feedback from the host on the large, bright OLED display.

Ensuring Even Better Cost of Ownership

With growing emphasis on long term device performance, Datalogic has equipped several cost-saving features in the PowerScan 9600 Series. Smart battery technology maximizes and optimizes charging efficiency, providing an indication of battery health. The cradle also includes wireless charging capability, eliminating the possibility of poor or no charging due to damaged or dirty contacts, which is the number one failure in traditional cradle setups. These new cradles even provide information on device health, enabling you to schedule predictive maintenance, thus avoiding any unplanned downtime because of unexpected failure. Your total cost of ownership is reduced significantly thanks to these simple but powerful additions, with wireless charging providing a 15% increase. The PowerScan 9600 Series is the easy choice when it comes to top flexibility and extreme reliability regarding handheld scanners.

9600 Auto Range Series

The 9600 series is also available in a full suite of Auto Range (AR) products to provide the best solution for different necessities. It includes a corded desk models (PD9600 AR), cordless models featuring Datalogic’s STAR 433 MHz Cordless System™ 2.0 proprietary radio (PM9600 AR) and full keypad/display options, and cordless Bluetooth® 5.0 models (PBT9600AR). The PowerScan 9600 Auto Range series inherits the plug-and-play architecture of the PowerScan 9600 family making it easily configurable between Serial, USB, Ethernet, EtherNet/IP, or PROFINET while protecting customer’s investment in case of future changes to the communication setup.


Other PowerScan 9600 Listings:
  • DataLogic PowerScan PBT9600
    Bluetooth Version of the PowerScan Series.
  • DataLogic PowerScan PM9600
    Radio Version of the PowerScan Series & Comes with Numerical Buttons for Quick Entry- Great for those who need to walk far and still be able to scan such as a large warehouse or storage yard.


Features - POWERSCAN™ 9600 SERIES
  • Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
  • Standard Range and High Performance models
  • Water and Particulate Sealing Rating: IP65 and IP67; Cradle IP65; 10 million hits trigger
  • Center of gravity design
  • Modular cradle design allowing interface expansion
  • White light illumination
  • High visibility OLED Display with 4-Keys /16-Keys keypad options
  • Standard Range, High Performance and Document capture optics
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
  • Datalogic’s Motionix™ motion-sensing technology
  • Wireless Charging reducing total cost of ownership
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
Dimensions (H x L x W)
19.0 x 14.0 x 7.9 cm / 7.5 x 5.5 x 3.1 in
Weight
318.0 g / 11.2 oz
Image Sensor
PD9630-SR/HP: 1280 x 800 PD9630-DC: 1280 x 800 color sensor
Reading Angle
Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52
Resolution (Max)
PD9630-SR/PD9630-DC: 1D Codes: 3 mil; 2D Codes: 6 mil PD9630-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
Ambient Light (Max)
0 - 100,000 lux
Drop Resistance
Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
Tumble Specifications
5,000 @ 1 m / 3.3 ft
MTBF
Withstands 10 million trigger hits
Environmental seal
IP67 and IP65
Standard Interfaces
RS-232 / USB
1D / Linear Codes
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code
Postal Codes
Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Digital Watermarking
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Battery
<li>Battery Type: Lithium-Ion: 3350 mAh <li>Charge time @ 12 VDC: 2.5 hours to charge up to 95%, 3.2 hours to charge 100%, External Power. <li>Reads per charge: 80,000
Ambient Light
0 - 100,000 lux
Drop Resistance
<li>Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; <li>Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Trigger Resistance
Withstands 10 million hits
ESD Protection (Air Discharge)
20 kV
Humidity (Non-Condensing)
0 - 95%
Particulate and Water Sealing
IP67 and IP65; Cradle IP65 (specific models)
Temperature
<li>Operating: -20 to 50 °C / -4 to 122 °F <li>Storage/Transport: -40 to 70 °C / -40 to 158 °F <li>Charging: 0 to 40 °C / 32 to 104 °F nominal; 0 to 35 °C / 32 to 95 °F ideal
Interfaces
RS-232 / USB / Ethernet and Industrial Protocols
Colors Available
Yellow/Black
Dimensions H x L x W
19.8 x 14.0 x 7.9 cm / 7.8 x 5.5 x 3.1 in
Display
PM9600-D/DK. 1.8’’ OLED graphic display; Font Dimensions: User selectable.
Keyboard
PM9600-D: 4 Keys, PM9600-DK: 16 Keys; Configurable
Weight
<li>PD9630: 318 g / 11.2 oz, <li>PBT9600: 415 g / 14.6 oz, <li>PM9600: 425 g / 15.0 oz, <li>PM9600-D: 445 g / 15.7 oz, <li>PM9600-DK: 455 g / 16.0 oz
Imager Sensor
1280 x 800 pixels
Light Source
<li>Aiming: 630 - 680 nm VLD <li>Illumination: White LED reading light
Print Contrast Ratio (Minimum)
15%
Reading Angle
Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52°
Field of View
SR and HP: 38° H, 24° V
Reading Indicators
Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™ (Three Green Lights) technology for good-read feedback; Datalogic ‘Green Spot’; Dual Good Read LEDs; Vibration
Resolution (Maximum)
<li>SR/DC: 1D Codes: 3 mil; 2D Codes: 6 mil <li>HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil
Typical Depth of Field
<b>SR Models</b> <br> Code 128 <li>5 mils: 6.4 to 30.9 cm / 2.5 to 12.2 in <li>20 mils: 4 to 103.7 cm / 1.6 to 40.8 in <li>40 mils: 5.5 to 175 cm / 2.2 to 68.9 in <br> EAN/UPC <li>13 mils: 4 to 67.5 cm / 1.5 to 26.5 in <br> DataMatrix <li>10 mils: 6 to 30 cm / 2.5 to 11.8 in <br> <br> <b>HP Models</b> <br> Code 128 <li>2.5 mils: 6.3 to 11.5 cm / 2.5 to 4.5 in <li>5 mils: 3.8 to 41 cm / 1.5 to 16.1 in <li>40 mils: 5.5 to 242.9 cm / 2.1 to 95.6 in <br> EAN/UPC <li>13 mils: 4 to 120 cm / 1.5 to 40.2 in <br> PDF417 <li>10 mils: 0.5 to 46.1 cm / 0.2 to 18.1 in <br> DataMatrix <li>10 mils: 4.2 to 32 cm /1.6 to 12.6 in
PD9630 Data Sheet
Download
POWERSCAN™ 9600 AUTO RANGE
Download
POWERSCAN™ 9600 SERIES
Download

Shop PowerScan PD9630 Windows Models

PD9630-SRK1

Powerscan PD9630-SR, Standard Range, USB Kit (Includes Scanner and USB Interface Cable)

Accessories:

Scanner & Cable

Scan Engine:

Standard Range

Interface:

USB

Cables Included:

USB Cable

$468.46

PD9630-HPK1

Powerscan PD9630-HP, High Performance, USB Kit (Includes Scanner and USB Interface Cable)

Scan Engine:

High Performance

Accessories:

Scanner & Cable

Interface:

USB

Cables Included:

USB Cable

$535.13

PD9630-ARK1

PowerScan PD9630-AR, Auto Range, USB Kit (Kit includes Scanner and USB Cable CAB-553)

Scan Engine:

Auto Range

Accessories:

Scanner & Cable

Interface:

USB

$682.08

PD9630-SR

Powerscan PD9630-SR, Standard Range, USB/RS-232 Multi-Interface. Order Cable Separately.

Cables Included:

None

Accessories:

Scanner Only

Scan Engine:

Standard Range

Interface:

USB or Serial - Order Cables Separately.

$440.73

PD9630-DCK1

Powerscan PD9630-DC, Document Capture, USB Kit (Includes Scanner and USB Interface Cable)

Scan Engine:

Document Capture

Accessories:

Scanner & Cable

Interface:

USB

Cables Included:

USB Cable

$557.55

PD9630-DC

Powerscan PD9630-DC, Document Capture, USB/RS-232 Multi-Interface. Order Cable Separately.

Scan Engine:

Document Capture

Cables Included:

None

Accessories:

Scanner & Cable

Interface:

USB or Serial - Order Cables Separately.

$503.55

PD9630-SRK2

Powerscan PD9630-SR, Standard Range, RS-232 Kit (Includes Scanner and RS-232 Interface Cable)

Cables Included:

RS-232 Cable

Accessories:

Scanner & Cable

Interface:

Serial

Scan Engine:

Standard Range

$468.46

PD9630-HP

Powerscan PD9630-HP, High Performance, USB/RS-232 Multi-Interface. Order Cable Separately.

Scan Engine:

High Performance

Cables Included:

None

Accessories:

Scanner Only

Interface:

USB or Serial - Order Cables Separately.

$509.76

PD9630-HPK2

Powerscan PD9630-HP, High Performance, RS-232 Kit (Includes Scanner and RS-232 Interface Cable)

Scan Engine:

High Performance

Cables Included:

RS-232 Cable

Accessories:

Scanner & Cable

Interface:

Serial

$535.13

Shop PowerScan PD9630 Accessories

CAB-467

Datalogic Interface Cable, 12 Foot, Coiled, USB Interface

$52.00

CAB-465

Datalogic Interface Cable, 12 Foot, Straight, USB Interface

$45.00

CAB-434

Cable 8 Feet, RS232 9-Pin Female, Coiled, (External Power on Pin 9) for the Datalogic PowerScan

$41.00

CAB-433

Cable 6 Feet, RS232 9-Pin Female Straight, POT) for the PowerScan

$31.76

BC9630-910

BC9600 Base Station/Charger, 910 MHz, Multi-Interface (RS-232, USB)

$365.40

BC9630-BT

BC9630 Base Station/Charger, Bluetooth, Multi-Interface (RS-232, USB)

$365.40

BC9631-910

BC9600 Base Station/Charger, 910 MHz, Multi-Interface (RS-232, USB), IP65

$368.90

BC9631-BT

BC9631 Base Station/Charger, Bluetooth, Multi-Interface (RS-232, USB), IP65

$398.30

RBP-PM96

Battery Pack, Removable, PowerScan 9600

$49.00

MC-P096-E2

Multi Battery Charger, Extension, 2-Slot

$100.10

MC-P096-M2

Multi Battery Charger, Master, 2-Slot (requires the 90ACC0350 power supply)

$134.40

MC-P096-M4

Multi Battery Charger, Master, 4-Slot (requires the 90ACC0350 power supply)

$224.70

CAB-552

Cable CAB-552, USB Type A, Straight, 2m / 6.5 ft, IP67

$23.10

HLS-P080

Holster, Universal, HLS-8000

$47.75

PC-P096

Protective Case/Belt Holster, PowerScan 9600

$23.10

HLD-P096

Holder, Desk/Wall Mount, PowerScan 9600

$16.60

STD-P096

Stand, Hands-free, PowerScan 9600

$32.49

6003-0941

Datalogic Universal Power Power Cord (120VAC, STD)

$15.00

90ACC1886

Base Station Line Cord

$4.00

ZSC2PM9631

Datalogic Ease of Care 3 Year Comprehensive Warranty for PowerScan PM/BT96XXSR. Covers Normal Wear & Tear and Accidental Breakage Coverage. 2-Business-Day Turnaround For Replacement Unit (Excluding Transit). Both Ways Freight Paid By Datalogic. Note: Standard Range Unit Only.

$70.00
