Honeywell PM45
Description
Specifications
Download

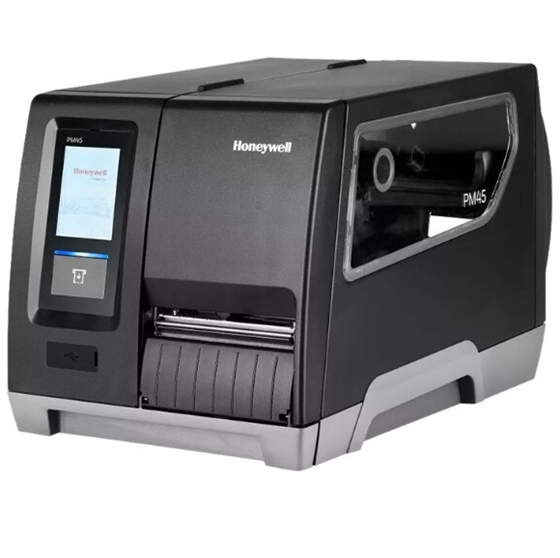

Honeywell PM45

Images may not reflect the actual product
Product Image
small product image0
small product image1
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. As a highly connected industrial printer, the PM45 is packed with first-in-class WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer is also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.

    Features
  • USB, Ethernet standard, optional Parallel, Ethernet, 802.11b/n WiFi, and Cellular WLAN interfaces
  • Direct thermal / Thermal Transfer Printing - RFID Encoder Option
  • 14" per second print speed depending on model
  • 4.09" maximum print width
    Product Breakdown
  • PM45: L x H x W: 19.0 in x 11.11.6 in x 11.2 in. | USB 2.0 Host x2
  • PM45c: L x H x W: 17.0 in x 7.1 in x 10.0 in. | USB 2.0 Host x1
  • PM45c with Mega Door: L x H x W: 19.7 in x 9.6 in x 10.0 in. | USB 2.0 Host x1
Print Method
Direct Thermal / Thermal Transfer
Dimensions (L x W x H):
Standard - 19.0 in x 11.11.6 in x 11.2 in. Compact - 17.0 in x 7.1 in x 10.0 in
Interface Options
USB, Ethernet standard, optional Parallel, Ethernet, 802.11b/n WiFi, and Cellular WLAN interfaces
Max. Print Speed
14 Inches Per Second
Printer Language
Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
Barcodes Supported
arcode Symbologies: All major 1D and 2D symbologies are supported Standards Supported: UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label
Graphics Printing
Supports PCX, PNG, GIFand BMP file formats. Other formats supported with Label Generation Tools
Memory
Standard: 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22
Weight
Standard Weight: 13.2 kg (29.1lbs) Compact - Weight: 12.6 kg (27.7 lbs)
Roll Size (max), Core Size
Max OD Diameter: 8.38in. Inner Core Diameter: 0.5-3 in
Media Types
: Gap, Notch, Black mark, Continous, Media low, Media end. Roll-fed or fan-fold
PM45 Data Sheet
Download

Shop PM45 Windows Models

PM45A11000000201

PM45A, Full Touch Display, USB+Ethernet, Bluetooth, Wifi, Fixed Hanger, 203 DPI, US Power Cord

DPI:

203

User Interface:

Full Touch Display

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Power Supply:

Power Supply Included

Size Configuration:

Standard

Connection:

USB+Ethernet, Bluetooth, Wifi,

$2760.66

PM45A00000000201

PM45A, Icon Display, USB+Ethernet, Fixed Hanger, 203 DPI, US Power Cord

DPI:

203

User Interface:

Icon

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Power Supply:

Power Supply Included

Size Configuration:

Standard

Connection:

USB+Ethernet

$1894.66

PM45A00000000301

PM45A, Icon Display, USB+Ethernet, Fixed Hanger, 300 DPI, US Power Cord

DPI:

300

User Interface:

Icon

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Power Supply:

Power Supply Included

Size Configuration:

Standard

Connection:

USB+Ethernet

$3357.10

PM45A10000030301

PM45A, Full Touch Display, USB+Ethernet, Fixed Hanger, Hanger, Rewinder + Label taken sensor 300 DPI, US Power Cord

DPI:

300

User Interface:

Full Touch Display

Power Supply:

Power Supply Included

Rewinder:

Rewinder Included

Label Taken Sensor:

Sensor Included

Size Configuration:

Standard

Connection:

USB+Ethernet

$3784.36

PM45A10000000301

PM45A, Full Touch Display, USB+Ethernet, Fixed Hanger, 300 DPI, US Power Cord

DPI:

300

User Interface:

Full Touch Display

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Power Supply:

Power Supply Included

Size Configuration:

Standard

Connection:

USB+Ethernet

$2692.66

PM45A00000000211

PM45A, Icon, USB+Ethernet, Fixed Hanger, 203 DPI, US Power Cord - Direct Thermal Only

DPI:

203

User Interface:

Icon

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Power Supply:

Power Supply Included

Size Configuration:

Standard

Connection:

USB+Ethernet

$2797.57

PM45A11000000301

PM45A, Icon, USB+Ethernet, Bluetooth, Wifi, Fixed Hanger, 300 DPI, US Power Cord

DPI:

300

User Interface:

Icon

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Power Supply:

Power Supply Included

Size Configuration:

Standard

Connection:

USB+Ethernet, Bluetooth, Wifi,

$4196.37

PM45A10000030201

PM45A, Full Touch Display, Ethernet, Fixed Hanger, Rewinder + Label taken sense, TT, 203 DPI, US Power Cord

DPI:

203

User Interface:

Full Touch Display

Power Supply:

Power Supply Included

Rewinder:

Rewinder Included

Label Taken Sensor:

Sensor Included

Size Configuration:

Standard

Connection:

USB+Ethernet

$2522.68

PM45CA1000030200

PM45 Compact, Full Touch Display, Ethernet, Fixed Hanger, Rewinder + Label taken sense, TT, 203 DPI, No Power Cord

DPI:

203

Size Configuration:

Compact

User Interface:

Full Touch Display

Power Supply:

No Power Supply

Rewinder:

Rewinder Included

Label Taken Sensor:

Sensor Included

Connection:

USB+Ethernet

$2813.02

PM45CA0000000200

PM45 Compact, Icon Display, Ethernet, Fixed Hanger, TT, 203 DPI, No Power Cord

DPI:

203

Size Configuration:

Compact

User Interface:

Icon

Power Supply:

No Power Supply

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Connection:

USB+Ethernet

$2871.34

PM45A10000000201

PM45A, Full Touch Display, USB+Ethernet, Fixed Hanger, TT, 203 DPI, US Power Cord

DPI:

203

Size Configuration:

Compact

User Interface:

Full Touch Display

Rewinder:

No Rewinder

Label Taken Sensor:

No Sensor

Power Supply:

Power Supply Included

Connection:

USB+Ethernet

$2216.15
