Opticon OPH-1005

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

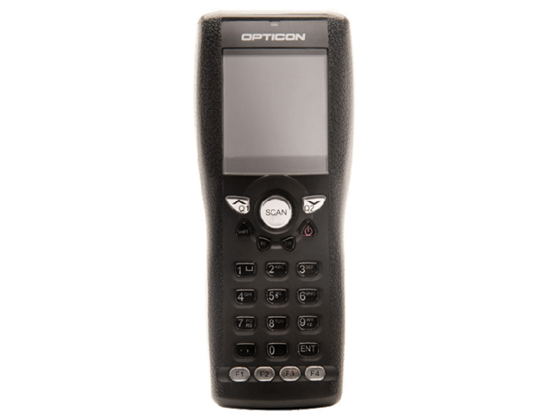

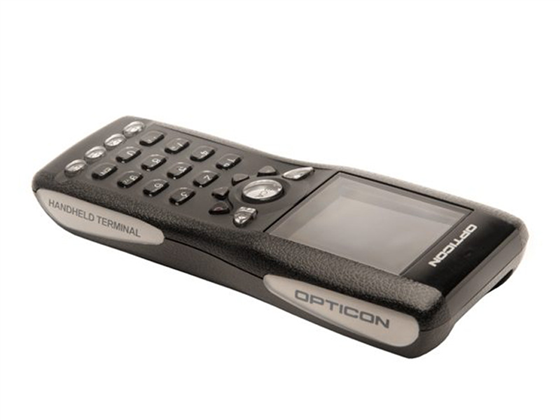

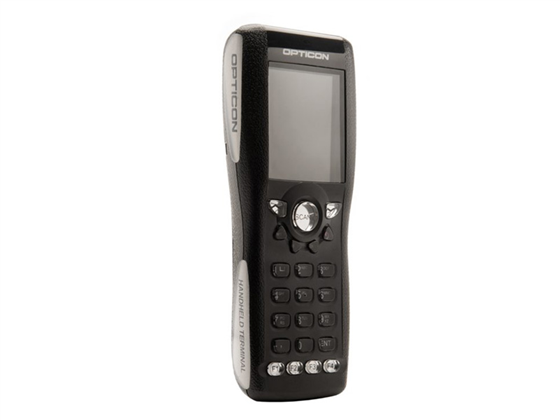

The OPH-1005 is a batch scanner that has a fast processor with 4MB RAM and 128MB storage. The LCD screen is bright and 320 x 240 pixels, thus, increasing the readability. The numeric keypad with enlarged scan key will make scanning and entering data easier. It is a lightweight scanner with only 140 grams and has the size of a regular phone, making it convenient to carry while on the job. The separately offered cradle makes data transfer quick and easy while charging the device in the meantime. Buyers also get a special SDK from Opticon providing the option to create customized solutions.

    Features
  • Batch Scanner
  • Fast processor
  • Compact and lightweight
  • 100 scans/second
  • Bright LCD screen
Weight
4.9 oz (140 g)
Dimension
2.17 x 5.35 x 0.91 in (55 x 136 x 23 mm)
Operating System
Proprietary
Processor
RX62N 32-bit MCU
Memory
NAND FLASH: 128 MB<br>FLASHROM: 4 MB<br>RAM: 4 MB SRAM
Scan Method

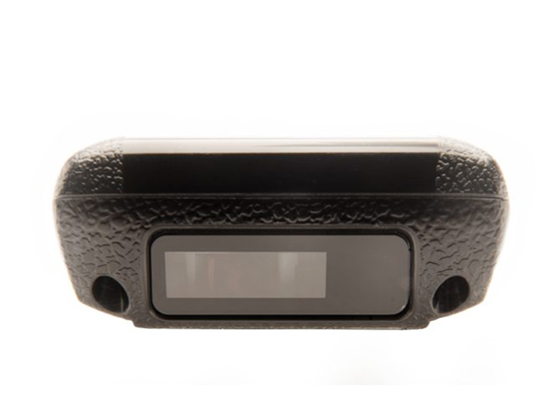

1D Laser
Screen
2", 320 x 240 pixels
Keyboard
23-Key Numeric
Battery
Rechargable Lithium-Ion 3.7V 1100mAh
Interface
USB, Serial, Ethernet Available
Seal Specification
IP 54
Drop Specification
5 ft (1.5 m) drop onto concrete surface
Operating Temperature
14 - 122˚F (-10 - 50˚C)
Warranty
2 Year
Data Sheet
Download
Quick Start Guide
Download
Manual
Download

Shop OPH-1005 Windows Models

OPH-1005-SK2

OPH-1005 Batch Scanner KIT, 1D Laser, Power Supply and RS232/USB (CRD-1006) Cradle Included

$580.00

Shop OPH-1005 Accessories

CRD1004-01

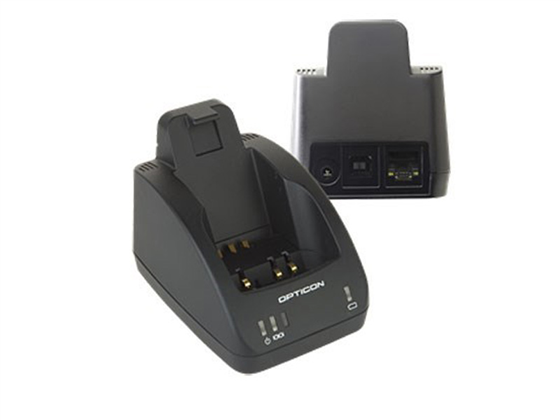

OPH-1005 Cradle Only, Ethernet/USB Communication, Charging

$199.00
