UniTech MS633

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

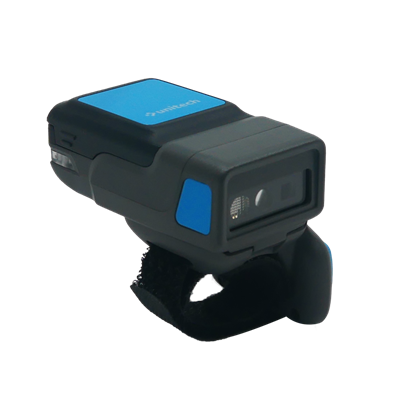

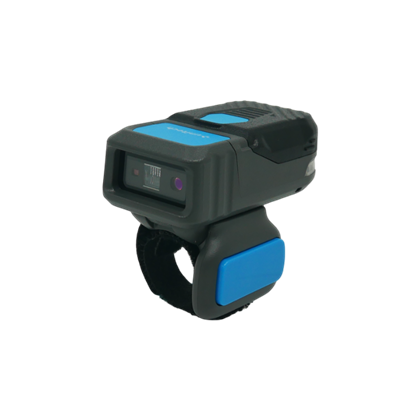

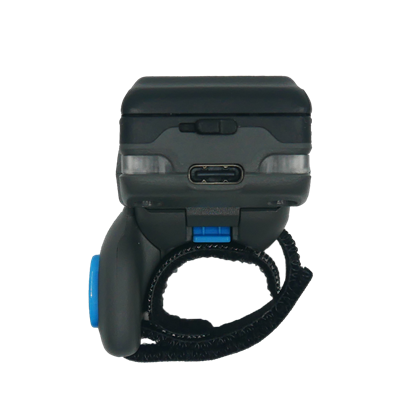

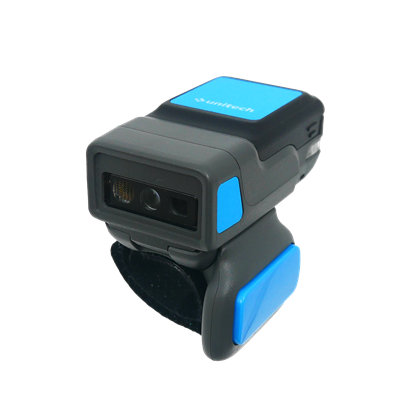

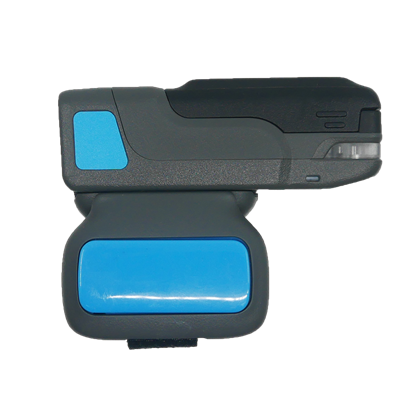

The MS633 ring scanner features a lightweight, wearable design that offers exceptional freedom of movement, allowing users to scan barcodes comfortably while keeping both hands free for other tasks.

Lightweight & Comfortable

Weighing just 56 grams, the MS633 Bluetooth 2D Ring Scanner delivers powerful scanning in an ultra-light form—ideal for extended use across retail, inventory, warehousing, and logistics. Its ergonomic build minimizes fatigue and enhances workflow efficiency.

Exceptional Middle Range Scanning Capability

With a scanning range of up to 12 meters, the MS633 enables users to capture barcodes from a distance, reducing the need to physically handle items and improving operational speed.

Hands-Free Operation

Designed for left or right-hand use, the MS633 supports seamless hand-switching and hands-free operation, boosting comfort and reducing fatigue in fast-paced, high-mobility environments.

Reliable Wireless Connectivity

Stay connected across large areas with stable Bluetooth communication—ideal for warehouses, retail floors, and other dynamic workspaces where mobility is key to productivity.

Unitech Software Solutions

Compatible with Unitech’s ScanBridge Utility and Scanner SDK, the MS633 offers customizable integration for optimized performance within your workflow—making it more than just a scanner, but a complete scanning solution.

Features

  • Lightweight and unique wearable ring design
  • Premier barcode reading distance: Up to 12M
  • One push rotate design allows right and left hand operation to switch easily
  • Flexible wireless design for extended operation ranges
  • Changeable and rechargeable battery pack
  • Full Shift Battery Life: Up to 9 Hours
  • Instant decoding feedback: LED, Buzzer and Vibrator indicators.
  • Support Unitech software solutions, ScanBridge Utility and Scanner SDK
Dimensions
MS633: 64.8mm(L)×34.5mm(W)×24.7mm(D), MS633 LR: 70.0mm(L)×36.4mm(W)×28.4mm(D)
Weight
MS633: 56g, MS633 LR: 67g
Trigger Switch Life
500,000 times
Optical Resolution
CMOS Image (1280 x 960 pixels), MS633 LR: CMOS Image (2688 x 1520 pixels)
Roll
360°
PItch
±60°
Skew
±60°
Aiming Element
Green Laser
Illumination Element
1 Warm-White LED, MS633 LR: 2 Warm-White LED
Field of View
44.5º horizontal, 33.5º vertical, MS633 LR: 37º horizontal , 21º vertical
Ambient Light
107,639 lux (direct sunlight)
Supported 1D Symbologies
Code39, Code128, Codabar, Code11, UPC/EAN, 2of5 Databar, Code39, MSI, UK Plessy, Telepen, Composite, TLC-39
Supported 2D Symbologies
Postal Codes, PDF, Micro PDF, Composite, TLC-39, Aztec, Data Matrix, QR, Maxicode, Han Xin, Grid Matrix, OCR
Power
600mAh
Operating Temperature
14°F ~ 122°F / -10°C~50°C
Humidity
5% to 85% non-condensing
Drop Specification
Multiple 4.9 ft./1.5 m drops to concrete
Decode Ranges
MS633: 5mil Code39: 6.1cm~24.1cm/2.4in.~9.5in. 5mil Code128: 7.1cm~22.9cm/2.8in.~9.0in. 6.67mil PDF417: 6.1cm~20.3cm/2.4in.~8.0in. 10mil DataMatrix: 7.4cm~21.6cm/2.9in.~8.5in. 100% UPCA: 4.6cm~49.5cm/1.8in.~19.5in. 15mil QR Code: 3.0cm~29.2cm/1.2in.~11.5in. 20mil QR Code: 3.0cm~35.6cm/1.2in.~14.0in. <br> MS633 LR: 3mil Code 39: 6.9cm~41.1cm/2.7in.~16.2in. 5mil Code 39: 6.4cm~67.6cm/2.5in.~26.6in. 5mil PDF417: 7.1cm~49.8cm/2.8in.~19.6in. 6.7mil PDF417: 6.6cm~65cm/2.6in.~25.6in. 10mil DataMatrix: 5.6cm~68.8cm/2.2in.~27.1in. 100% UPC(13mil): 6.4cm~180cm/2.5in.~71in. 15mil Code 128: 18.2cm~182.9cm/7.2in.~72in. 200mil DataMatrix: 20cm~1440cm/7.9in.~566.9in. 200mil QR: 25cm~1800cm/9.8in.~708.7in.
