Zebra LS2208

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

Over 5 Million Zebra LS2208 sold!

One of the most successful barcode scanners of all time, the stylish Zebra LS2208 (formerly known as the Symbol LS2208) is a great fit for almost any retail application. Precision laser scanning, dual finger trigger, and automatic hands-free mode when placed in it’s stand, the LS2208 has been the trusted choice for retail point of sale for over ten years.

The innovative LS2208 laser barcode scanner from Symbol Technologies (formerly Motorola Solutions) delivers high-performance features at an affordable price. For investment protection in a light, compact scanner with maximum productivity, the LS2208 is an ideal choice.

This unit features bi-directional barcode scanning at up to 100 scans per second and is available with a hand-free stand. With a variety of interface designs, including keyboard wedge, USB, and serial, integrating the LS2208 barcode scanner with an existing inventory or POS system is easy. Sporting an unmatched five-year warranty, the Zebra LS2208 is a smart investment for retail, health care, and many other mid-to-high volume scanning applications.

* The trigger on the LS2208 is now gray where previously it had been yellow

**Zebra OneCare**

Zebra OneCare comprehensive warranty coverage is available for this product, please see accessories.

Click Here for Additional Warranty Information

Dimensions
6 x 2.5 x 3.34in (15.2 x 6.3 x 8.4cm)
Weight
5.15oz (146gm)
Color Options
Twilight Black<br>Cash Register White
Interfaces Available
RS232<br>Keyboard Wedge<br>Wand<br>BM 46XX/9X<br>USB<br>Synapse and Undecoded
Scan Method
Bi-Directional Laser
Typical Depth of Field
5mil: 2.5 - 6in<br>7.5mil: 1.5 - 10.0in<br>10mil: 1.0 - 14.5in<br>100% UPC: 0 - 17in
Decoding Capabilities
UPC/EAN. UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS Variants, Chinese 2 of 5
Mobility/Range
Corded
Scan Rate (Maximum)
100 scans/second
Reading Angle
Pitch: +/- 65° <br>Roll (Tilt): +/- 30° <br>Skew: +/- 60°
Print Contrast (Min.)
20% minimum reflective difference
Auto Sense Mode
Yes, In Stand
Indicators
Beep<br>Visible Light
Operating Temperature
32° to 122° F (0° to 50° C)
Drop Specification
Withstands repeated 5ft (1.5m) drops to concrete
Environmental Sealing
n/a
Ambient Light (Max)
Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight
Stand
Yes, Included
Warranty
5 Year Plus Manufacturer Warranty
123Scan Configuration Utility (Windows 32-Bit)
Download
123Scan Configuration Utility (Windows 64-Bit)
Download
Quick Reference Guide(Multilingual)
Download
Data Sheet (English)
Download
Data Sheet (Español)
Download
Manual (English)
Download
Quick Start Guide (English)
Download
Quick Start Guide (Español)
Download

Shop LS2208 Windows Models

LS2208-SR20007R-UR

LS2208 Scanner Kit, Black with Scanner, Stand and USB Cable, USB Interface (Worldwide Edition)

Color:

Black

Accessories:

Stand

Interface:

USB

$155.03

LS2208-7AZU0100ZNA

LS2208 Scanner Kit, Black with Scanner, and USB Cable, No Stand, USB Interface

Color:

Black

Interface:

USB

$142.52

LS2208-1AZU0100ZNA

LS2208 Scanner Kit, White with Scanner, and USB Cable, No Stand, USB Interface

Interface:

USB

Color:

White

$142.52

LS2208-SR20007R-NA

LS2208 Scanner Kit, Black with Scanner, Stand and USB Cable, USB Interface

Color:

Black

Accessories:

Stand

Interface:

USB

$155.03

LS2208-SR20001R-NA

LS2208 Scanner Kit, Beige with Scanner, Stand and USB Cable, USB Interface

Color:

Beige

Accessories:

Stand

Interface:

USB

$155.03

LS2208-1AZU0100ZR

LS2208 Scanner, White USB Kit, Cable Included, No Stand

Accessories:

Cable Included

Interface:

USB

Color:

White

$130.88

LS2208-7AZU0100ZR

LS2208 Scanner, Black with 7' Straight USB Cable

Color:

Black

Accessories:

Cable Included

Interface:

USB

$130.88

LS2208-SR20001R

LS2208 Scanner, White with Multi-Interface, Scanner Only

Interface:

Multi-Interface

Accessories:

Not Included

Color:

White

$120.81

LS2208-7AZR3600SR

LS2208 Scanner, for RADIANT SYSTEMS

$140.95

LS2208-SR20001R-UR

LS2208 Scanner Kit, Beige with Scanner, Stand and USB Cable, USB Interface (Replaced by LS2208-SR20001R-NA)

Color:

Beige

Accessories:

Stand

Interface:

USB

$142.39

LS2208-SR20001NA

LS2208 Scanner, White, Scanner Unit Only (Cable Not Included)

Interface:

Order Cable Separately

Color:

White

$131.54

LS2208-SR20007NA

LS2208 Scanner, Black, Scanner Unit Only (Cable Not Included)

Color:

Black

Interface:

Order Cable Separately

$131.54

LS2208-1AZR0100DR

LS2208 Scanner Kit, Beige with Scanner, RS-232 Serial Cable, Power Supply, and Stand, Serial Interface

Color:

Beige

Interface:

RS-232

Accessories:

Stand and Power Supply

$153.48

LS2208-7AZR0100DR

LS2208 Scanner Kit, Black with Scanner, RS-232 Serial Cable, Power Supply, and Stand, Serial Interface

Color:

Black

Interface:

RS-232

Accessories:

Stand and Power Supply

$152.69

LS2208-SR20007R-KR

LS2208 Scanner Kit, Black with Scanner, PS/2 Cable, and Stand, PS/2 Keyboard Wedge Interface

Color:

Black

Interface:

PS/2

Accessories:

Stand

$151.91

LS2208-SR20001R-KR

LS2008 Scanner Kit, Beige with Scanner, PS/2 Cable, and Stand, PS/2 Keyboard Wedge Interface

Color:

Beige

Interface:

PS/2

Accessories:

Stand

$151.91

Shop LS2208 Accessories

20-61019-02R

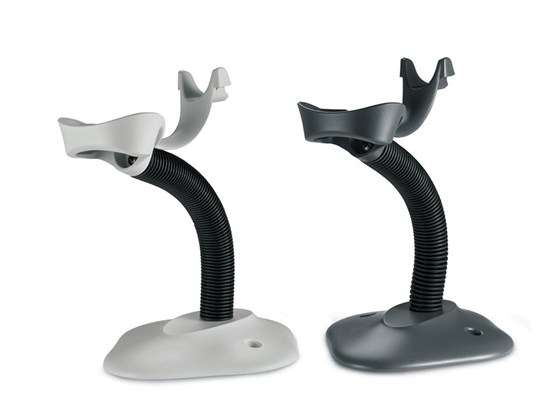

LS2208 Gooseneck Stand, Color: Black

$51.14

20-61019-01R

LS2208 Gooseneck Stand, Color: White

$51.14

CBA-U01-S07ZAR

USB Interface Cable (Original Part)

$38.97

CBA-K02-C09PAR

9 ft. Keyboard Wedge Cable for DS9808

$37.58

CBA-R01-S07PAR

7-Foot RS232 Cable, Standard DB9 Female TxD on 2, Straight (Requires Power Supply)

$25.00

20-61019-04R

LS2208 Gooseneck Stand, Black, Weighted

$69.42

20-70777-01R

Desk Holder LS2208, LS3008, and LS4208 Scanners

$31.66

SSS-LS2208-50

5 Year Zebra One Care Select 3-Day Exchange Comprehensive Coverage for LS2208

$24.00

CBA-U09-C15ZAR

Zebra 15-Foot USB Cable, Coiled, USB Series A Connector

$124.20

CBA-U10-S15ZAR

Zebra 15-Foot USB Cable, Straight, Series A Connector

$64.54

CBA-U12-C09ZAR

Zebra Cable, 9-Foot USB, Coiled, Series A Connector

$45.06

CBA-U29-C15ZAR

Zebra Cable, Black, Shielded 15 Feet Coiled, USB

$102.00

PWR-WUA5V4W0US

Standard Cradle Power Supply, Level VI AC/DC Power Supply Wall Adapter, w/Captive DC cable and US Adapter Clip AC Input: 100-240V, 0.2A DC Output: 5.2V, 1.1A, 5.7W (Standard Cradle Only)

$43.45

STND-GS00UNC-04

Universal Gooseneck Intellistand – Black (LS2208, LI2208, LS4208, DS2208, DS4208, DS4308, DS4608, DS8108)

$51.14

11-66553-06R

Wall Mount Stand for Zebra LS3008, DS670X, and LS2208 Barcode Scanners.

$45.06
