Infinite Peripherals Linea Pro

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

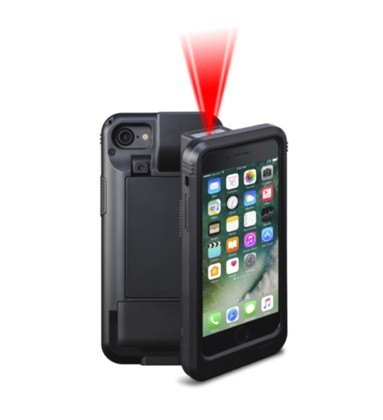

LINEA PRO 7 - Infinite Peripherals Linea Pro 7 is designed to work with iPhone SE3 (3rd Gen.), iPhone 7 & iPhone 8 and is compatible with iPhone 6/6s.

The new enhanced design, high performance scan engines, replaceable battery, additional scan button and USB Type-C connection make Linea Pro 7 the most advanced and powerful iOS barcode scanner and the perfect point-of-sale and tracking solution.

There are two types of scanners: 1D laser engine (Opticon) which reads 1D barcodes, and 2D imager Zebra SE4750 scan engine which reads both 1D and 2D barcodes.

The following extra features are also available: Bluetooth, RFID, Encrypted Head.

Linea Pro, bespoke made for iOS devices including Apple’s latest smartphone and tablet versions, has provided total mobility to barcode scanning and card reading, as well as automatic and real-time data gathering and communication thanks to its wireless Bluetooth and RFID capabilities (depending on the model). Its ergonomic design and light weight make it the ideal POS/reader solution wherever manoeuvrability is necessary. Its high-technology features and efficiency make it suitable for use in multiple fields. In addition, there are several accessories that enhance Linea Pro 7’s portability and performance, including rugged protective cases and charging stations. All the scanners are compatible with over 100 fully-functioning iOS Apps that can be found on the Apple Store, and a SDK is available to allow the development and integration of new and existing Apps.

Features - LINEA PRO 7

  • Scan - Read all the most widely used barcodes in business today

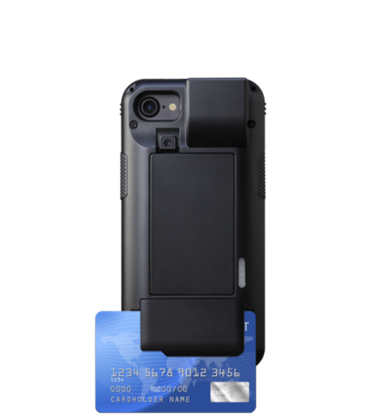

  • Swipe - Conveniently and securely run cards through the 3-track magstripe reader now placed at the bottom to enhance ergonomics
  • RFID - Contactless card reading with support for Mifare classic, Mifare ultra-light & Tag-it®
  • Enhanced assembly and battery

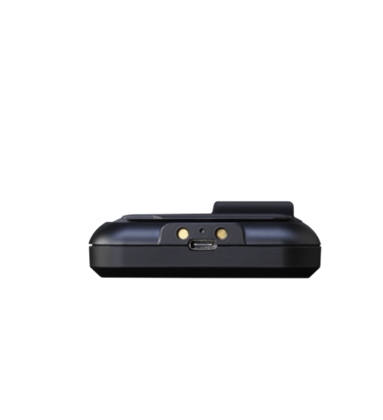

  • Usb type-c connection
  • Additional scan buttons - Easier to use in either hand
  • Over 100 compatible iOS apps
  • Develop - Full SDK available for the iOS platform

INFINEA TAB M - Designed for the Apple® iPhone SE, iPhone 7 & iPhone 8 and compatible with iPhone 6/6s

Designed for iPad mini, iPad Air and their subsequent versions (iPad mini 2, iPad mini 3, iPad mini 4, iPad mini 5, iPad Air 2, iPad Air 10.5″,), iPad Pro 9.7″, iPad 9.7 (5th/6th Gen.), iPad 10.2 (7th/8th/9th Gen.) and iPhone 6/6s/7/8 Plus, the Infinite Peripherals Infinea Tab M range converts these iOS mobile devices into powerful point-of-sale and scanning solutions, as it is a combination of barcode scanner and magnetic card reader. It connects through Apple’s Lightning Connector.

The Infinea Tab M comes with a 2D image sensor which reads the most widely used 1D and 2D barcodes (including QR codes). Besides the scan engine, one or more of the following capabilities are also available: Bluetooth, RFID reader, NFC reader, Encrypted Head (as opposed to non-encrypted) and PCI compliance (as set out by the Payment Card Industry to ensure secure transactions). Some versions are only card readers without scanner. All of these model combinations are available on Lineapro.store, please browse the categories below to find the one that best suits your needs. Additionally, there are several accessories available that enhance the Infinea Tab range, including rugged cases, hand grips and mounts.

All the scanners are compatible with over 100 fully-functioning iOS Apps that can be found on the Apple Store, and a SDK is available to allow the development and integration of new and existing Apps.

Features - INFINEA TAB M

  • Scan - Read all the most widely used barcodes in business today
  • Swipe - Conveniently and securely run cards through the 3-track magstripe reader
  • RFID/NFC - Contactless card reading with support for Mifare classic, Mifare ultra-light & Tag-it®
  • Over 100 compatible iOS apps
  • Develop - Full SDK available for the iOS platform
Compatibility
<b>Linea Pro 7 Scanners</b> <br> <li>iPhone SE (2020), iPhone 7, iPhone 8, and iPhone 6/6S <br> <b>Infinea Tab M Scanners</b> <li>iPad mini, iPad mini 2, iPad mini 3, iPad mini 4, iPad Air, iPad Air 2, iPad Pro (9.7") iPad 2017 (5th Gen) / iPad 2018 (6th Gen)
Power Supply
<b>Linea Pro 7 Scanners</b> <br> <li>5V through USB C-Type or Station charger <br> <b>Infinea Tab M Scanners</b> <li>DC 5V through mini USB <li>DC 5V through Single or 5 stations charger
Magnetic Stripe Reader
<b>Linea Pro 7 Scanners</b> <br> <li>3-track bidirectional reading capabilities <li>Type: ISO 7810, 7811, 7813 <br> <b>Infinea Tab M Scanners</b> <li>3-track bidirectional reading capabilities <li>Type: ISO 7816-1/2/3 compatible & RAW mode
Barcode Scanner
<b>Linea Pro 7 Scanners</b> <br> <li>Zebra SE4750SR / SE4750MR 2D <br> <b>Infinea Tab M Scanners</b> <li>Opticon MDI3100 - image sensor 752x480 CMOS
Bluetooth (optional)
<b>Linea Pro 7 Scanners</b> <br> <li>Bluetooth 3.0 compatible - Class 2 - Serial Port Profile (SPP) - iAP <br> <b>Infinea Tab M Scanners</b> <li>Bluetooth 2.0 Class 2, Distance - up to 10m, Serial port profile (SPP)
LEDs
<b>Linea Pro 7 Scanners</b> <br> <li>4 LEDs for battery status <br> <b>Infinea Tab M Scanners</b> <li>Green LED for battery <li>Blue LED for device status <li>Four LEDs for contactless indication
Buttons
<b>Linea Pro 7 Scanners</b> <br> <li>Scanning button <li>Battery status button <br> <b>Infinea Tab M Scanners</b> <li>Scan and status buttons
Battery
<b>Linea Pro 7 Scanners</b> <br> <li>2400mAh battery (16,850 Scans over approx. 26hrs of use) <br> <b>Infinea Tab M Scanners</b> <li>Rechargeable Li-ion Battery 3,7V 1300mAh <li>Charging from USB port or Single/Gang Charger
Cables
<b>Linea Pro 7 Scanners</b> <br> <li>USB Type-C for device charge and sync <br> <b>Infinea Tab M Scanners</b> <li>Standard USB A to mini B cable
Audio Indicator
Electromagnetic Buzzer
Communications
<b>Infinea Tab M Scanners</b> <li>USB Interface - between Infinea Tab Mini and iOS device <li>USB Synchronization between iOS device & PC <li>External RS
Operating Environment
<b>Linea Pro 7 Scanners</b> <li>Operating temperature: 0°C to +40°C <li>Operating humidity: 35 to 85% RH <li>Storage temperature: -5°C to +40°C <li>Storage humidity: 10 to 90% RH
Dimensions
<b>Linea Pro 7 Scanners</b> <br> <li>157 mm x 77 mm x 26 mm (6.2in x 3 in x 1 in) <br> <b>Infinea Tab M Scanners</b> <br> <li>103mm x 88mm x 23.5mm
Weight
<b>Linea Pro 7 Scanners</b> <br> <li>175g (6.62 oz.) without iOS device <br> <b>Infinea Tab M Scanners</b> <br> <li>140g with battery and 2D barcode reader (without device)
Software Support
SDK for iOS platform
Certifications
CE, FCC, Apple Mfi, Optional PCI Compliance (PCI PTS 3.x SRED)
Magnetic Stripe Reader
3-track bidirectional reading capabilities<br>Type: ISO 7816-1/2/3 compatible & RAW mode<br>PCI PTS 3.x SRED compliant<br>DUKPT and Fixed Key Management<br>3DES-112, AES-256 encryption algorithms
Barcode Scanner
1D Laser or 2D high speed imager
LEDs
4 LEDs for battery status
Battery
Rechargeable Li-ion Battery 3.7V 1300mAh, charging from USB port or Single/Gang Charger
Audio Indicator
Electromagnetic Buzzer
Weight
4oz - without iOS device
Dimensions
1D Scanner: 5.6in x 2.7in x .86in<br>2D Scanner: 5.6in x 2.7in x 1in
Operating Temperature
32°F to +40°C 0°C to +40°C
Cables
Standard USB A to mini B cable
Communications
USB Interface – between Linea Pro 5 and iPhone 5<br>USB Synchronization between iPhone 5 and PC
Button
1 Scanning Button
Certifications
PCI PTS 3.x SRED compliant<br>DUKPT and Fixed Key Management<br>3DES-112, AES-128, AES-256 encryption algorithms
Software Support
SDK for iOS platform
Infinea Tab M Scanners Spec Sheet
Download
Infinea Tab M Scanners User Manual
Download
Linea Pro 7 Spec Sheet
Download
Linea Pro 7 User Manual
Download

Shop Linea Pro Windows Models

LP7-BT-PH7

Linea Pro 7 - iPhone SE3 & iPhone 7/8 1D Barcode Scanner MSR-BT

Scan Engine:

1D Imager

Device Compatibility:

iPhone SE3 & iPhone 7/8

MSR Included:

MSR with BT Included

$613.26

LP7-ZS2D-PH7

Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner

Scan Engine:

2D Imager

Device Compatibility:

iPhone SE3 & iPhone 7/8

$669.79

LP7-ZS2D-UHF-PH7

Linea Pro 7 UHF - iPhone SE, iPhone 7/8 & iPhone 6/6S 2D Barcode Scanner

Scan Engine:

2D Imager

Device Compatibility:

iPhone SE3 & iPhone 7/8

$982.61

LP7-ZS2DE-PH7

Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner Encrypted MSR

Scan Engine:

2D Imager

Device Compatibility:

iPhone SE3 & iPhone 7/8

MSR Included:

MSR Included

$692.00

LP7-ZM2D-PH7

Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D MID-RANGE Barcode Scanner

Scan Engine:

2D Mid Range Imager

Device Compatibility:

iPhone SE3 & iPhone 7/8

$808.00

LP7-ZS2DBTE-PH7

Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner Encrypted MSR-BT

Scan Engine:

2D Imager

Device Compatibility:

iPhone SE3 & iPhone 7/8

MSR Included:

MSR with BT Included

$808.00

LP7-ZS2DBTRE-PH7

Linea Pro 7 - iPhone SE3 & iPhone 7/8 2D Barcode Scanner Encrypted MSR-BT-RFID

Scan Engine:

2D Imager

Device Compatibility:

iPhone SE3 & iPhone 7/8

MSR Included:

MSR with BT Included

RFID:

RFID

$866.00

LP7I-ZS2D-PHSE

Linea Pro 7i - iPhone SE3 & iPhone 7/8 2D Barcode Scanner

Scan Engine:

2D Imager

Industrial Rated:

Industrial

Device Compatibility:

iPhone SE3 & iPhone 7/8

$808.00

LP7I-ZS2DR-PHSE

Linea Pro 7i - iPhone SE3 & iPhone 7/8 2D Barcode Scanner

Scan Engine:

2D Imager

Industrial Rated:

Industrial

Device Compatibility:

iPhone SE3 & iPhone 7/8

RFID:

RFID

$914.13

LP7I-ZM2DBTR-PHSE

Linea Pro 7i - iPhone SE3 & iPhone 7/8 2D Mid-Range Barcode Scanner

Scan Engine:

2D Mid Range Imager

Industrial Rated:

Industrial

Device Compatibility:

iPhone SE3 & iPhone 7/8

RFID:

RFID

$983.00

ITM-MSE

Infinea Tab M iPad mini 1,2,3 – iPad Air 1 & iPad 9.7 (5th/6th Gen.) – iPad 10.2 (7th/8th/9th Gen.) – Encrypted Magstripe Reader Only

Scan Engine:

2D Imager

Device Compatibility:

iPad mini 1,2,3 – iPad Air 1 & iPad 9.7 (5th/6th Gen.) – iPad 10.2 (7th/8th/9th Gen.)

MSR Included:

MSR Included

$224.19

ITM-O2DBTRE

Infinea Tab M – iPad mini 1/2/3, iPad Air 1, iPad 9.7 (5th/6th Gen.), iPad 10.2 (7th/8th/9th Gen.) – 2D Barcode Scanner – Encrypted MSR

Scan Engine:

2D Imager

Device Compatibility:

iPad mini 1,2,3 – iPad Air 1 & iPad 9.7 (5th/6th Gen.) – iPad 10.2 (7th/8th/9th Gen.)

MSR Included:

MSR with BT Included

RFID:

RFID

$941.85

LP5-N2DE-PH5

Linea Pro for iPhone 5, Black with MSR, 2D Scanner, Encrypted Ready (Special Order, NO Returns)

$599.02
