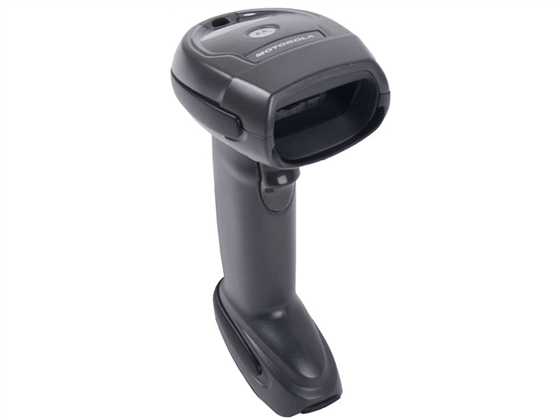

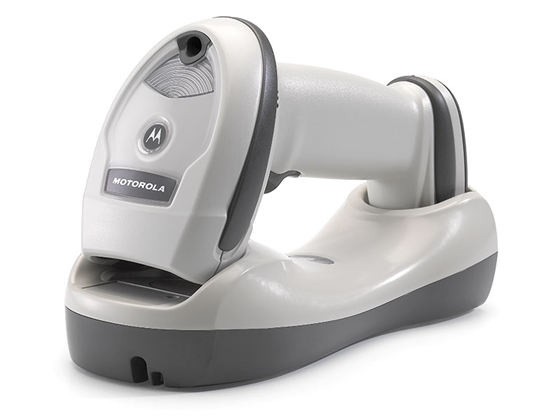

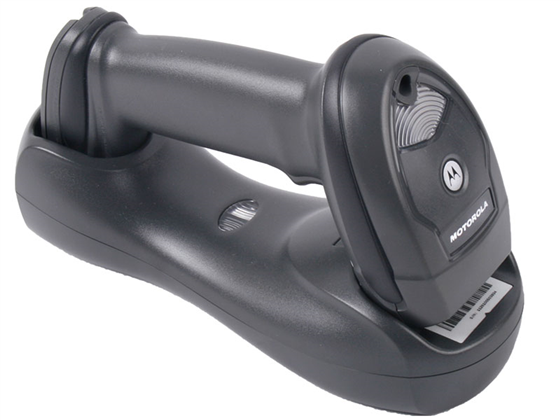

The Zebra LI4278 barcode scanner offers aggressive linear imaging with fantastic wireless technology, excellent for retail or light industrial barcode scanning.

Zebra's* first foray into linear imaging, the LI4278 provides fast, aggressive scanning for a wide variety of uses. The barcode scanner can read retail barcodes from up to 31 inches away, all but eliminating searching for the scanning "sweet spot" or stretching to get in a proper reading range. With the ability to scan barcodes as dense as 3 mil, the LI4278 is just at home in manufacturing environments as retail, and its superior scanning speed and motion tolerance hold up to high demand, high volume scanning.

The Bluetooth v2.1 Class 2 radio on the LI4278 promotes tremendous freedom, allowing your employees to scan products without having to haul them to the PC. With an effective range of 330 feet, the LI4278 is a great fit for virtually any retail or warehouse scanning environment. And Bluetooth's EDR ensures the barcode scanner sends data quickly, saving you time and money. Data is also encrypted, providing peace of mind when scanning personal data.

Designed for maximum uptime and a low total cost of operation, the LI4278 has been built to withstand rough retail and light industrial abuse. The gasket-sealed body is protected from dust and can be sprayed clean as necessary, and the reinforced body is protected from drops of up to 6-feet to concrete. Shipping with a 3-year warranty, with optional Zebra One Care comprehensive coverage plans available, the Symbol* LI4278 barcode scanner will provide any business with years of great service.

    Features
  • 1" to 31" scan range on standard retail barcodes
  • Reads barcodes as small as 3 mil
  • 330 foot radio range
  • 547 scans per second scanning speed
  • 72-hour battery life
  • Compatible with LS4278 cradles
*Symbol LI4278 is now know as the Zebra LI4278.

**Zebra OneCare**

Zebra OneCare comprehensive warranty coverage is available for this product, please see accessories.

Click Here for Additional Warranty Information

Dimensions
3.84" x 2.75" x 7.34"
Weight
7.9 oz

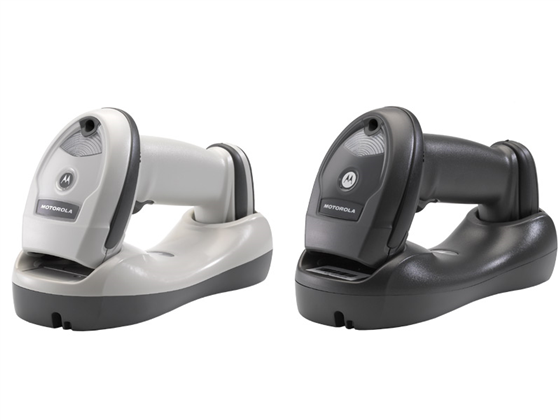

Color Options
Twilight Black, Cash Register White
Interfaces Available
USB<br>RS-232 Serial<br>PS/2 Keyboard Wedge
Scan Method
Linear Imager
Optional Batch Mode
Stores up to 500 barcodes
Battery
Rechargeable/Replaceable with 72 hour life
Decoding Capabilities
Standard 1D Barcodes
Mobility/Range
330 ft, line of sight
Operating Time
72 Hours
Motion Tolerance
25 inch/sec
Scan Rate (Maximum)
547 scans/sec
Reading Angle
Pitch: +/- 65° <br>Roll (Tilt): +/- 45°<br> Skew: +/- 65°
Print Contrast (Min.)
15%
Typical Depth of Field
3 mil 5-7 in./12.7-17.8 cm<br> 4 mil 4-10 in./10.2-25.4 cm<br> 5 mil 3-13 in./7.6-33 cm<br> 7.5 mil 1.5-19 in./ 3.8-48.3 cm<br> 13 mil (100% UPC-a) 1-31 in./2.5-78.7 cm<br> 20 mil 1-42 in./2.5-106.7 cm<br> 26 mil (200% UPC-a) 3-55 in./7.6-140 cm<br> 100 mil (paper) >20 ft./6 m<br>
Indicators
LED<br>Beep
Auto Sense Mode
Available
Drivers License Data Parsing
Not Available
Healthcare Specific Model
Not Available
Image Capture
Not Available
Mobile Phone Scanning Capabilities
Available
Drop Specification
Withstands 6-foot drops to concrete
Operating Temperature
32&deg; to 122&deg; F
Environmental Sealing
IP54
Ambient Light (Max)
108,000 lux

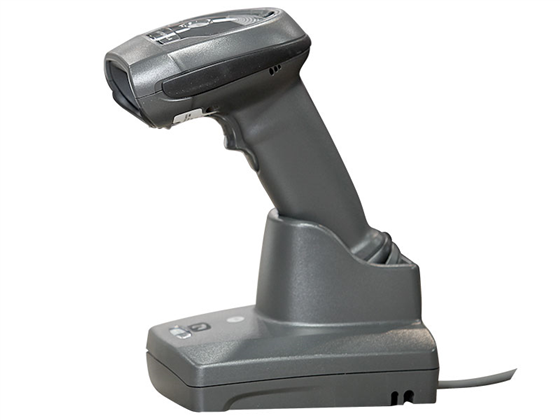

Stand
Presentation Cradle Available
Warranty
3 Years
123Scan Configuration Utility (Windows 32-Bit)
Download
123Scan Configuration Utility (Windows 64-Bit)
Download
Data Sheet (English)
Download
Data Sheet (Español)
Download
LI4278 User Manual (English)
Download
LI4278 Quick Start Guide (English)
Download
LI4278 Quick Start Guide (Español)
Download

Shop LI4278 Windows Models

LI4278-TRBU0100ZWR

LI4278 Barcode Scanner Kit, Twilight Black Scanner, Standard Cradle and Interface Cable Included, USB Interface

Color:

Black

Accessories:

Cradle

Interface:

USB

$501.00

LI4278-TRWU0100ZWR

LI4278 Barcode Scanner Kit, Cash Register White Scanner, Standard Cradle and Interface Cable Included, USB Interface

Color:

Black

Accessories:

Cradle

Interface:

USB

$501.00

LI4278-PRBU2100AWR

LI4278 Barcode Scanner Kit, Twilight Black Scanner , Presentation Cradle, Interface Cable, and Power Supply Included (Requires LINE CORD 23844-00-00R), USB Interface

Color:

Black

Accessories:

Cradle and Power Supply

Interface:

USB

$573.48

LI4278-PRWU2100AWR

LI4278 Barcode Scanner Kit, White Scanner, Presentation Cradle Cable, and Power Supply Included (Requires LINE CORD 23844-00-00R), USB Interface

Accessories:

Cradle and Power Supply

Interface:

USB

Color:

White

$573.48

LI4278-SR20007WR

LI4278 Barcode Scanner, Twilight Black, Scanner Only (Cradle and Cable NOT INCLUDED)

Color:

Black

Warning:

Cables and Cradle Not Included

$412.91

LI4278-SR20001WR

LI4278 Barcode Scanner, Cash Register White, Scanner Only (Cradle and Cable NOT INCLUDED)

Warning:

Cables and Cradle Not Included

Color:

White

$412.91

Shop LI4278 Accessories

CR0078-PC1F007WR

LI4278 Presentation Charging/Communication Cradle, (Requires PWR-WUA5V4W0US and Communication Cable), Twilight Black

$266.71

CR0008-SC10007R

LI4278 Charging ONLY Cradle, Twilight Black

$107.87

CR0008-SC10001R

LI4278 Charging ONLY Cradle, Cash Register White

$72.13

CR0078-SC10001WR

LI4278 Charging/Communications Cradle, Cash Register White

$241.02

CR0078-SC10007WR

LI4278 Charging/Communications Cradle, Requires Communications Cable, Twilight Black

$241.02

CBA-U01-S07ZAR

USB Interface Cable (Original Part)

$38.97

23844-00-00R

7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW

$14.86

BTRY-LS42RAA0E-01

Replacement Battery for LI4278, LS4278, and DS6878 Barcode Scanners (Batteries must be shipped via ground shipping)

$41.40

SSS-LI4278-30

3 Year Zebra One Care Select Advanced Exchange Comprehensive Coverage for LI4278

$70.00

SSE-LI4278-30

3 Year Zebra One Care Essential 3-Day Exchange Comprehensive Coverage for LI4278

$60.00

PWR-BGA12V50W0WW

Power Supply, Requires DC Line Cord CBL-DC-388A1-01 &amp; AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.

$68.18

CBL-DC-388A1-01

7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW

$15.00

CBA-U21-S07ZBR

Cable - Shielded Usb: Series A Connector, 7Ft. (2.1M), Straight (Updated)

$38.97

PWR-WUA5V4W0US

Standard Cradle Power Supply, Level VI AC/DC Power Supply Wall Adapter, w/Captive DC cable and US Adapter Clip AC Input: 100-240V, 0.2A DC Output: 5.2V, 1.1A, 5.7W (Standard Cradle Only)

$43.45

CR0078-PC1F09BWR-REFURB

Presentation Cradle, charge and communications, Bluetooth/FIPS; HC WHITE/BLUE- Refurbished - (Requires PWR-BGA12V50W0WW, CBL-DC375A1-01, 23844-00-00R and Communication Cable)

$49.00

CR0078-PC1F007WR-Refurb

Presentation Cradle for LI4278 - and Communications Cable, Twilight Black (REFURB) (Requires PWR-WUA5V4W0US and Communication Cable)

$65.00

ZBR-CRADLE-POWER-KIT

Power Supply Kit For Zebra Presentation Cradle and Mobile Computers (Three Piece). Includes Power Supply (PWR-BGA12V50W0WW), Line Cord (23844-00-00R), and DC Line Cord (CBL-DC-375A1-01). For Presentation Cradle or Zebra Mobile Computers Only.

$60.00
