Mobile Computer with Keypad and 4G Connection

The Custom America K-Ranger provides decent performance and functionality. The device offers a mid-range processor, a well-equipped integrated barcode scanner, and a host of accessories to support a range of retail, T&L, and light industrial applications. The device can handle falls up to 5 feet and an IP65 certified sealing plus Dragontrail scratch-resistant touchscreen equip this unit for moderate impacts.

Key Features - K-Ranger Mobile Computer

  • Fully rugged for warehousing/transportation/ manufacturing/retail applications
  • IP65 certified, 1.5 m (5ft.) drop resistance
  • Projected capacitive multi-touch panel
  • High mobility with multiple connectivities
  • Reading ID/2D barcodes

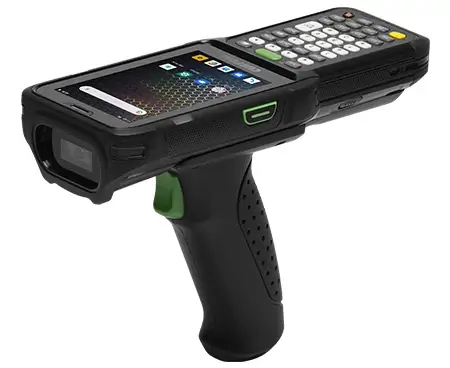

  • Enhanced model: attachable pistol grip
  • Version with standard and long range optic

Included in Box

  • K Ranger
  • Battery
  • User Manual
  • Warranty Card
Waterproof
IP65
OS
Android™ 9
Keyboard
  • KR500-G Model comes with a Keyboard
  • KR550-G Model comes with a Keyboard
  • Attachable Pistol Grip
  • KR500-G Model can use Pistol Grip
  • KR550-G Model can use Pistol Grip
  • Long range
    KR550-G Variant Only
    Camera
    8 Mpx (only for brick version)
    Display
    4" TFT LCD 800 × 480 resolution, projected capacitive, multi-touch screen
    CPU
    Qualcomm Snapdragon 450/8* Cortex A53 1.8 GHz
    Power
    Rechargeable Li-ion 5200 mAh; Charger 12V 2A power adapter; 5V 2A (slow charge)
    Storage ROM+RAM
    16 GB + 2 GB
    Accessible SD
    up to 128 GB
    GSM
    850/1900
    3G WCDMA
    WCDMA: B2/B4/B5
    4G LTE
  • TDD-LTE:B38/B40/B41
  • FDD-LTE:B2/B4/B5/B7/B12/B13/B17/B26/B27
  • Wi-Fi
    2.4/5 GHz - Integrated IEEE 802.11 a/b/g/n
    2D Scanner
  • KR500-G ScanEngine SE4750 - 1D/2D Barccode
  • KR550-G ScanEngine SE4850 - 1D/2D Barcode Long Range
  • Bluetooth
    4.2
    Keypad
    38 keys + Alphanumeric
    Sim Card
    1 Nano Sim 2G/3G/4G (LTE Europe)
    Drop
    Multiple Drops to Concrete 1.5 m
    Sensors
    Accelerometer (G-sensor), gyroscope, e-compass, proximity sensor, ambient light sensor
    NFC
    Integrated
    Battery
    5200 mAh
    Operation temperature
    -15 °C to 55 °C
    Storage temperature
    -20 °C to 60 °C
    Dimensions
    77.8 mm (H) x 202.4 mm (W) x 41.6 mm (D)
    Weight (without battery)
  • KR500-G 314gr
  • KR550-G 349gr
  • K-Ranger Rugged Scanner Spec Sheet
    Download
    K-Ranger Rugged Scanner User Guide
    Download

    Shop K-Ranger Models

    995CO020200833

    K-Ranger KR550 Rugged Mobile Computer. 38 Button Physical Keyboard. SE4850 Long Range Scan Engine. 2GB RAM, 16GB SSD. Android 9 w/ GMS. IP65. WiFi, Bluetooth 4.0, 4G LTE. 5200MAH Battery. Pistol Grip Sold & Charging Accessories Sold Separately.

    $2216.60

    995ED042600833

    K-Ranger KR500 Rugged Mobile Computer. 38 Button Physical Keyboard. SE4750 Standard Range Scan Engine. 2GB RAM, 16GB SSD. Android 9 w/ GMS. IP65. WiFi, Bluetooth 4.0, 4G LTE. 5200MAH Battery. Charging Accessories & Pistol Grip Sold Separately.

    $1453.68

    Shop K-Ranger Accessories

    996ED040000026

    K-Ranger 4 Slot Charging Cradle. Requires Power Supply (996ED040000029) & AC Power Cable (976ZZ010000021)

    $446.45

    996ED040000029

    K RANGER Power Supply for 4 Slot Cradle (977ED040000007)

    $42.50

    977ED040000007

    K Ranger 4 Slot Charging Cradle. (Requires Power Supply 996ED040000029)

    $458.23

    48000000005500

    K-Ranger Replacement Battery

    $121.25

    977ED040000005

    K-Ranger Single Slot Cradle with Back-Up Battery Slot (Requires Power Supply (976ZZ010000021) & Cable (996ED040000028).

    $140.38

    996ED040000027

    K-Ranger Card Cradle. Includes Snap On Micro USB converter and Cable

    $72.77

    996ED040000031

    K-Ranger Snap-On IO to Micro USB Converter.

    $55.25

    996ED040000036

    K-Ranger Micro USB Cable

    $24.00

    996CO020000001

    K-Ranger Pistol Grip Add on. Camera is Disabled When Equipped.

    $164.17

    996ED040000028

    K-Ranger Single Cradle Power Supply

    $52.75

    996ED040000032

    K-RANGER RUBBER BOOT KR5 SC

    $28.50

    976ZZ010000021

    Custom America AC Power Cable

    $19.03
